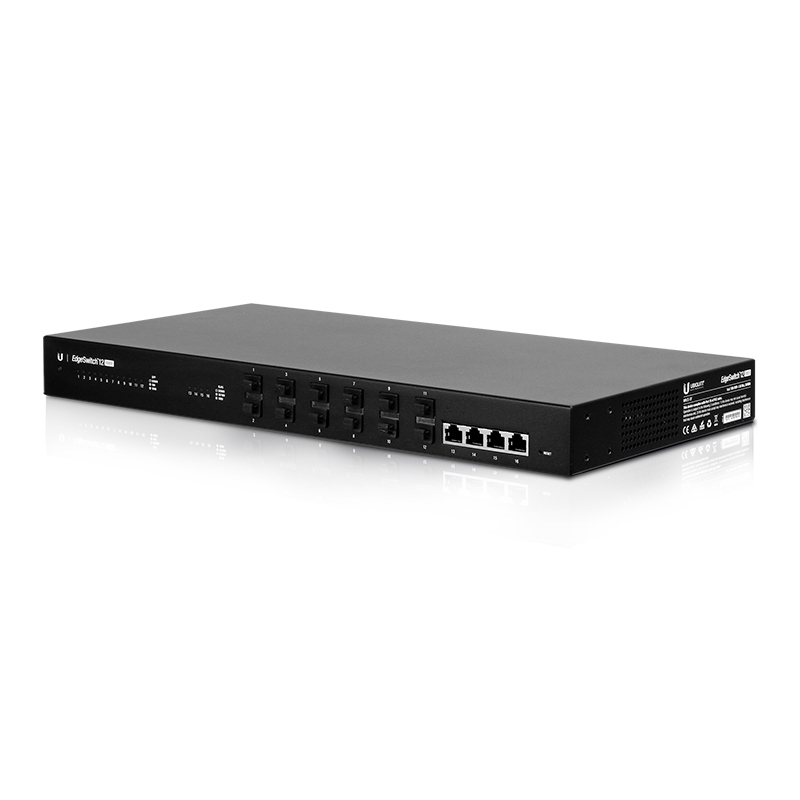

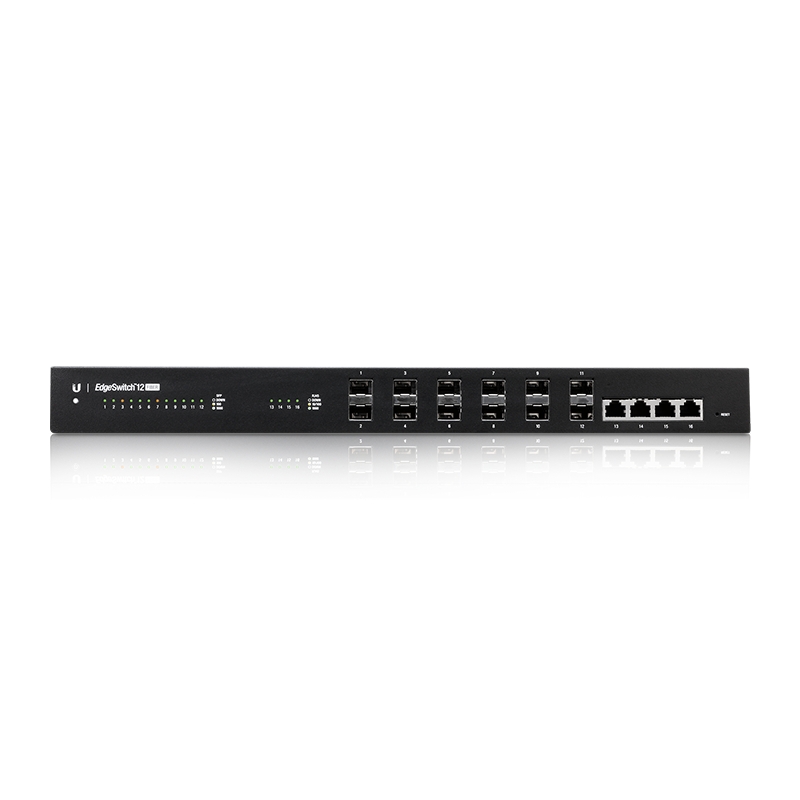

UBIQUITI EdgeSwitch 12 Fiber ES-12F

Order code: ES-12F
Quick code: #1067

UBIQUITI EdgeSwitch 12 Fiber, ES-12F - Total Non-Blocking Throughput 16Gbps, Switching Capacity 32Gbps, 12x Gbit SFP Ports, 4x Gbit LAN Ports, Rack mount

Price exc. VAT: Price inc. VAT: For orders (total sum):
151.44£ 181.73£ >0£
150.05£ 180.06£ >300£
148.66£ 178.39£ >1000£
Qty:


Features:

Advanced Switching Technology for the Masses


Build and expand your network with Ubiquiti Networks® EdgeSwitch™ Fiber, part of the EdgeMAX® line of products. The EdgeSwitch Fiber is a fully managed, Gigabit fiber switch, delivering robust performance and intelligent switching for high‑bandwidth networks.
The EdgeSwitch Fiber offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Switching Performance


The EdgeSwitch Fiber offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, the EdgeSwitch Fiber supports up to 16 Gbps.

Distribution Layer


The EdgeSwitch Fiber offers high performance and low latency as an aggregation switch. For fiber connectivity, it features 12 SFP ports, eight of which also support 100 Mbps. For copper connectivity, the EdgeSwitch Fiber offers four Gigabit RJ45 ports.

Comprehensive User Interface


Designed for convenient management, the EdgeSwitch Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface.
For advanced users, an industry‑standard command-line interface (CLI) is available through the serial console port, telnet, and SSH.

Powerful Functionality


The EdgeSwitch Fiber uses a sophisticated operating system that provides basic switching features and a variety of advanced features including:
• MSTP/RSTP/STP
• VLAN, Private VLAN, Voice VLAN
• Link Aggregation
• DHCP Snooping, IGMP Snooping
• TACACS+, RADIUS, 802.1X, MAC Filtering, ACL
• DiffServ, CoS
• Static Routing, Policy-Based Routing
• DHCP Server Functionality

Features:

  • 12x Gigabit SFP Ports
  • 4x Gigabit RJ45 Ports
  • 1x Serial Console Port
  • Non-Blocking Throughput: 16 Gbps
  • Switching Capacity: 32 Gbps
  • Forwarding Rate: 23.81 Mpps
  • Maximum AC Power Consumption: 56W
  • Rackmountable with Rack-Mount Brackets (Included)
  • DC Input Option (Redundant or Stand-Alone)

Specification:

ES-12F
Dimensions 443 x 221 x 43 mm (17.44 x 8.70 x 1.69")
Weight 2.68 kg (5.91 lb, Rack-Mount Brackets Included)
2.59 kg (5.71 lb, Rack-Mount Brackets Excluded)
Enclosure Characteristics SGCC Steel
Total Non-Blocking Throughput 16 Gbps
Switching Capacity 32 Gbps
Forwarding Rate 23.81 Mpps
Max. AC Power Consumption 56W
Power Method AC: 100-240VAC/50-60 Hz, Universal Input
DC: t DC 56W, 25 to 16V, with 2.5 mm DC Power Inline Connector
Supported Voltage Range AC: 100 to 240VAC
DC: 25 to 16VDC
Power Supply AC/DC, Internal, 56W DC
LEDs Per Data Port Speed/Link/Activity
Networking Interfaces (8) 100/1000 Mbps SFP Ethernet Ports
(4) 1000 Mbps SFP Ethernet Ports
(4) 10/100/1000 Mbps RJ45 Ethernet Ports
Management Interface (1) RJ45 Serial Port, Ethernet In/Out Band
Rackmount Yes, 1U High
ESD/EMP Protection Air: ± 24 kV
Contact: ± 24 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
