MIKROTIK dual polarization sector Integrated antenna mANTBox 2 12s (RB911G-2HPnD-12S)

MPN: RB911G-2HPnD-12S
Order code: RB911G-2HPnD-12S
Quick code: #1591

2.4GHz 120 degree, 12dBi, dual polarization, 600Mhz CPU, 64MB RAM, Gigabit Ethernet, PSU and PoE, Router OS (Licence level 4)

Price exc. VAT: Price inc. VAT: For orders (total sum):
66.48£ 79.78£ >0£
65.91£ 79.09£ >300£
64.77£ 77.72£ >1000£
Qty:
  In stock


Features:

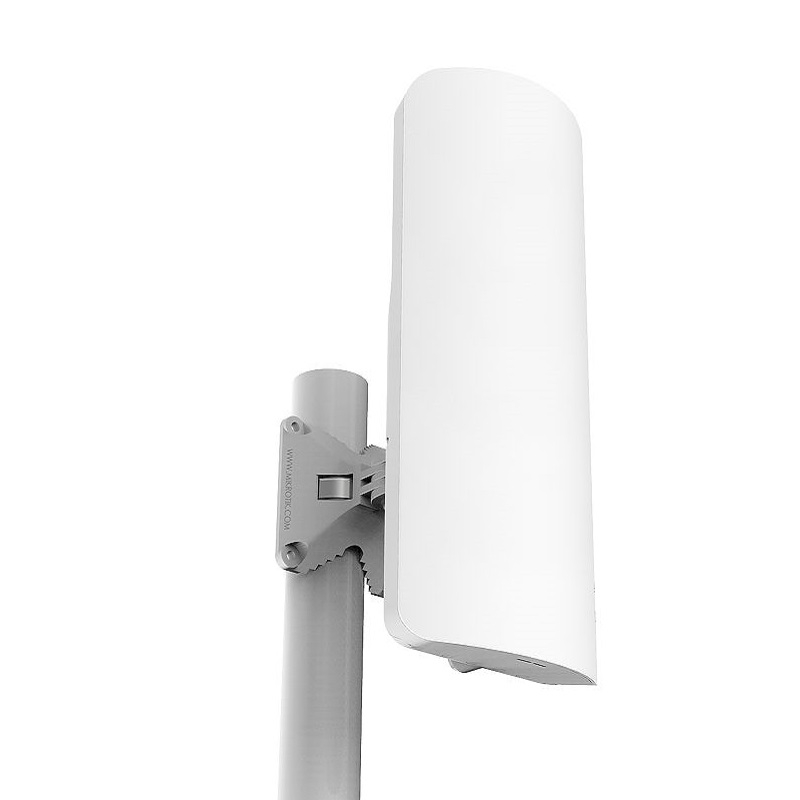

mANTBox 2 12s is long range 12dbi 120 degrees integrated Base Station for 2.4 GHz.

The mANTBox is based on our new mANT sector antennas, but also has a wireless router built right in. Powered by the RB911 device, the mANTBox comes ready to use with everything included. The device uses a high speed 600 MHz CPU, comes with the Gigabit Ethernet port and has a built in 802.11 b/g/n wireless device with up to 30 dBm output power.

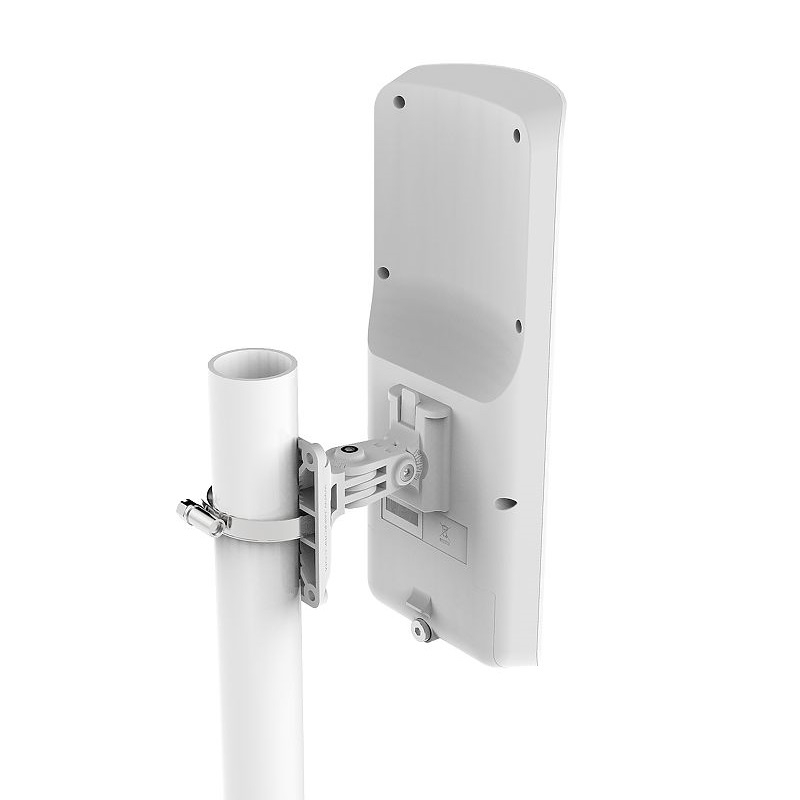

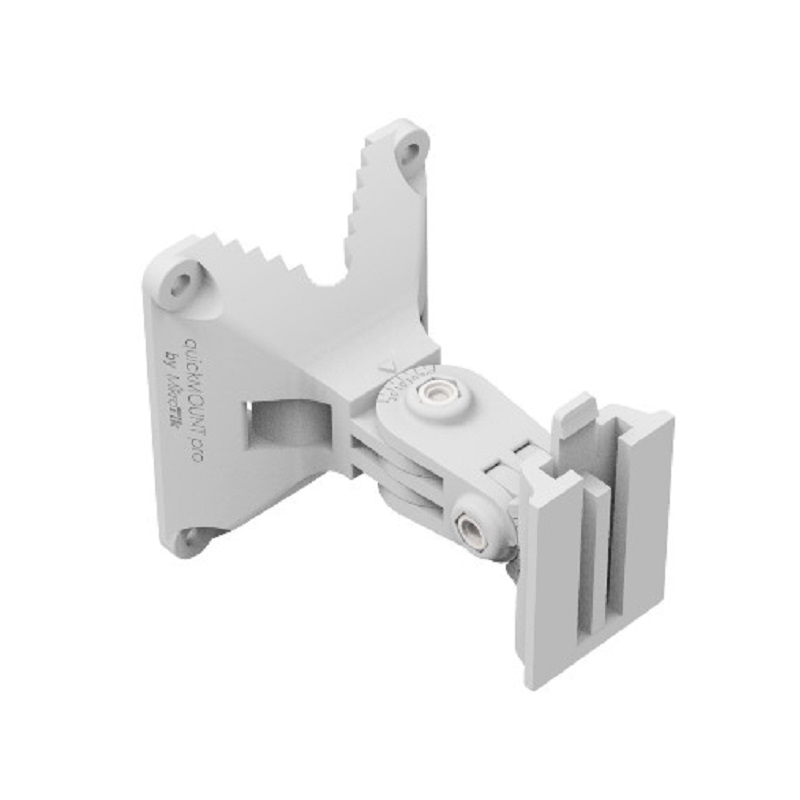

The mANTBox 2 12s is compatible with the SXT type mount, so you can use it with our durable and adjustable QuickMount systems. It comes with quickMOUNT PRO included.

Specification:

Product code: RB911G-2HPnD-12S
CPU: AR9342
CPU core count: 1
CPU nominal frequency: 600 MHz
Dimensions: 140 x 348 x 82 mm
Operating System: RouterOS (License level 4)
Size of RAM: 64 MB
Storage size: 128 MB
Storage type: NAND
Tested ambient temperature: -40°C .. +70°C

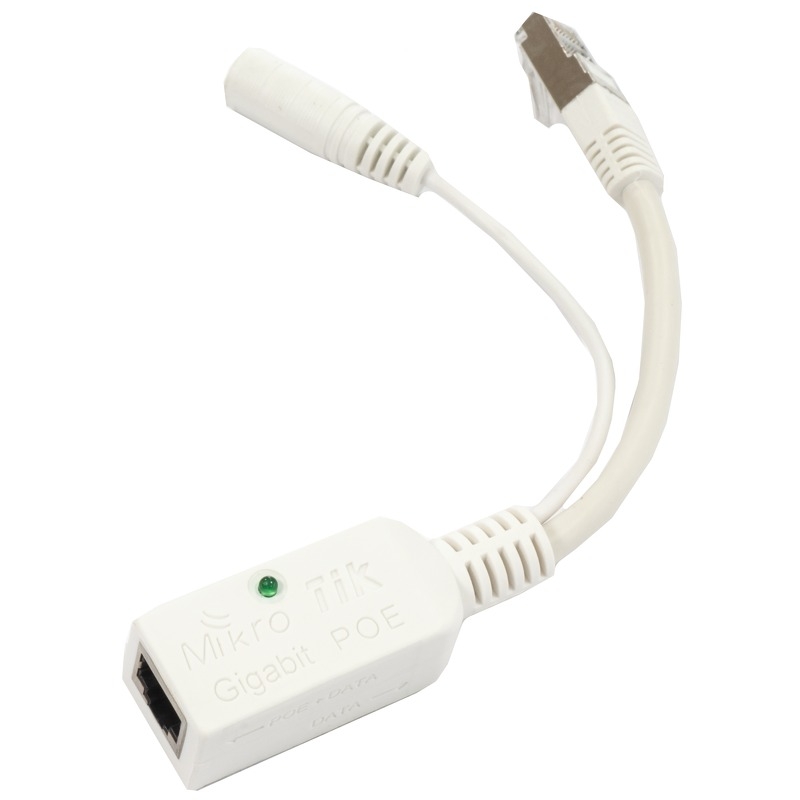

Powering

PoE in: Passive PoE
PoE in input Voltage: 10-28 V
Number of DC inputs: 2 (PoE-IN, DC jack)
DC jack input Voltage: 8-30 V
Max power consumption: 11

Wireless

Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n
Antenna gain dBi for 2.4 GHz: 12
Wireless 2.4 GHz chip model: AR9342

Ethernet

10/100/1000 Ethernet ports: 1

Other

PCB temperature monitor: Yes
Voltage Monitor: Yes
