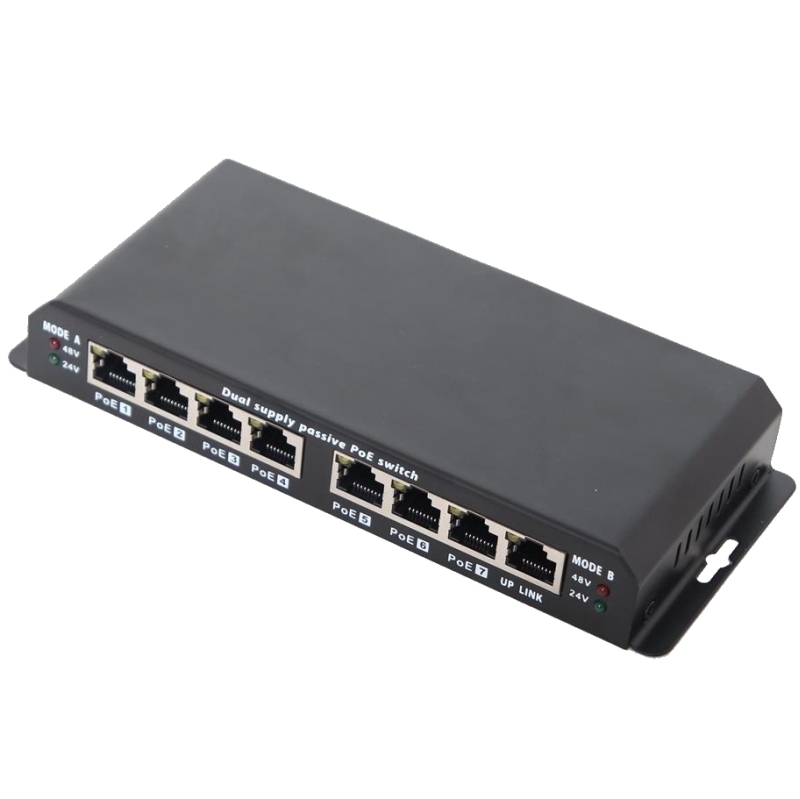

8 port PoE Switch with 7 PoE ports

8 ports switch 10/100 Mbps ports with 7 PoE, active and passive POE modes, 24V 2.5A power supply included or 48V 1.25A power adapter under request

Price exc. VAT: Price inc. VAT: For orders (total sum):
31.55£ 37.86£ >0£
31.04£ 37.25£ >300£
30.54£ 36.65£ >1000£
Qty:
In stock



Features:

Very versatile, very compact desktop unmanageable PoE switch, Rackmount is optional. This switch has 8 x 10/100Mbps ports, with seven PoE Out ports and can power up any PoE active device.

A big advantage of this switch is the ability to power devices that support different PoE standards. Mikrotik or Ubiquiti equipment can be powered with IP cameras simultaneously.

Please note that you can not power up Ubiquiti or Mikrotik equipment with 48V DC, it can only be done with 24V DC.

8 switch port switch 10/100 autodetect operation with status LED
Available power supply options:
18 volts, 24 volts, 48 volts, 56 volts
30 watts, 60 watts, 120 watts
100 to 240 volt AC input, 50 or 60 hz high efficiency

7always on PoE outputs with either Mode A and/or Mode B:
Mode A power and data on pins 12 (-) and 36 (+)
Mode B power or pins 45 (+) and 78 (-) with data on pins 12 an d 36
Mode A (ie. Active power - 802.3af, 802.3at mainly used for cameras, VoIP phones, ...)
Mode B (ie. The passive power used by companies such as MikroTik Ubiquiti ...)

Dual PTC fuses on each PoE output port:
One 650 ma fuse per port for Mode A
One 1000 ma fuse per port for Mode B

18 volt to 56 volt operation

3 power supply inputs:
2 x 2.1mm power connectors, center positive
Mode A input with LED status
Mode B input with LED status
LED indicates 18/24 volt operation or 48/56 volt operation
Maximum input current per mode – 2.5 amps
Mode B PoE power input from the uplink port – 1.25 amp

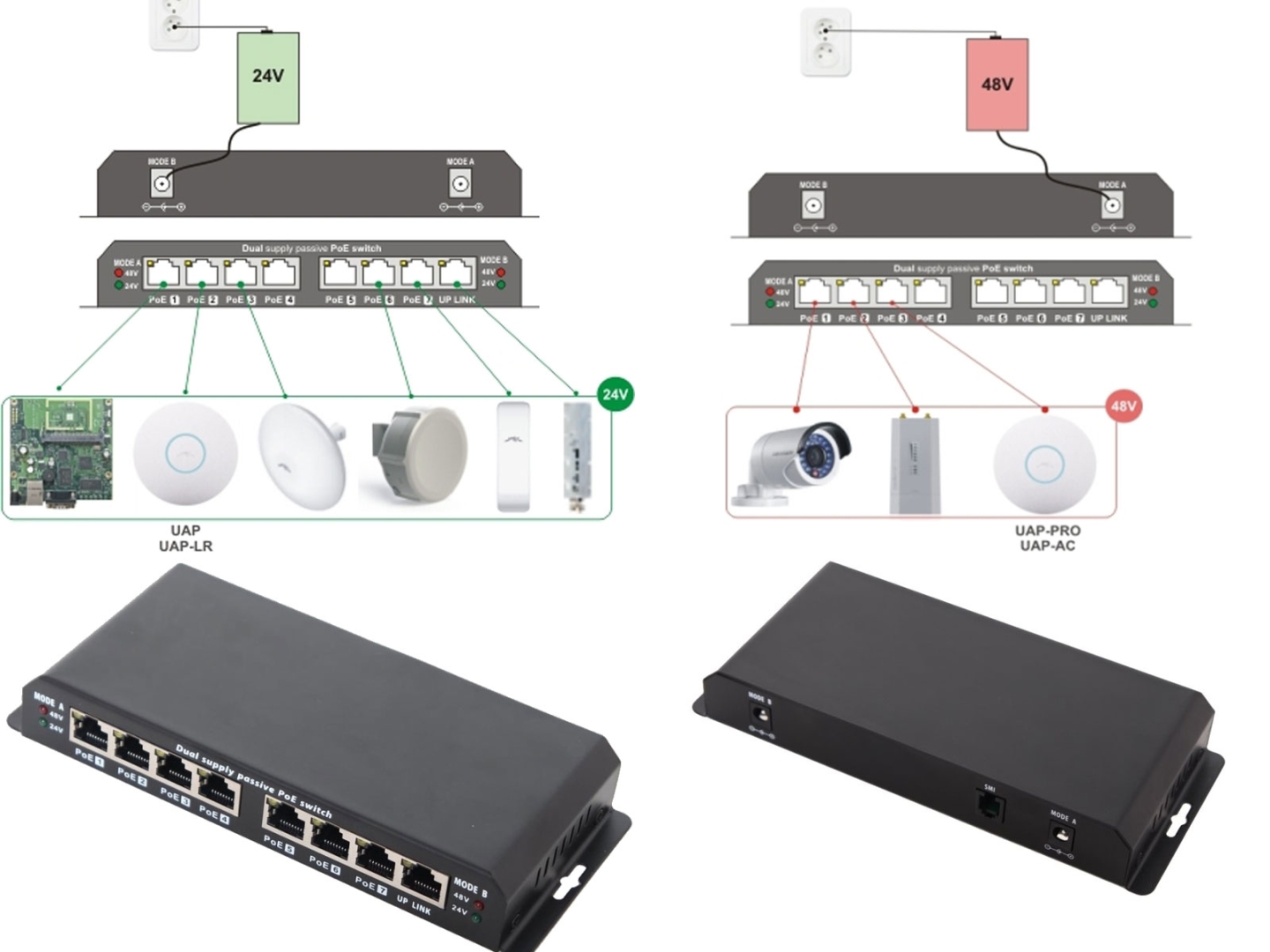

Dual Power supply operation:
Redundancy - 48v 802.3 af only
Load balancing – 48v 802.3 af only
Mixed voltage – Mode A at 48v and Mode B at 24v

Uplink port 10/100 mb:
No PoE voltage out
Autodetect 568A or 568B connection

802.3 af emulation (always on, no autonegotiation)
48volt in either A or B modes

By default 24V 2.5A power supply included, if you need 48v 60W power supply with those - please let us know. Price is the same.

Specification:

Input 100-240V AC 50/60Hz
Output 18 TO 56 V 90W (Min)
Data 1/2&3/6
Power 12/36(Mode A) 45/78(Mode B)
Data In Connects PC/HUB/Switch
Weight 0.5Kg
Ethernet Cable TIA/EIA 568 Cat. 5
Data rate 10/100Mbps
Connector RJ-45
Operating Temperature 0°C ~ 40°C
Storage Temperature -40°C~+70°C
Operating Humidity 10%~80%RH
Storage Humidity 5%~90%RH
Certification CE & FCC
Case of material metal work material
Dimensions 192mm×82mm×27mm
24V 2.5A power supply included, 48V 1.25A power adapter under request
