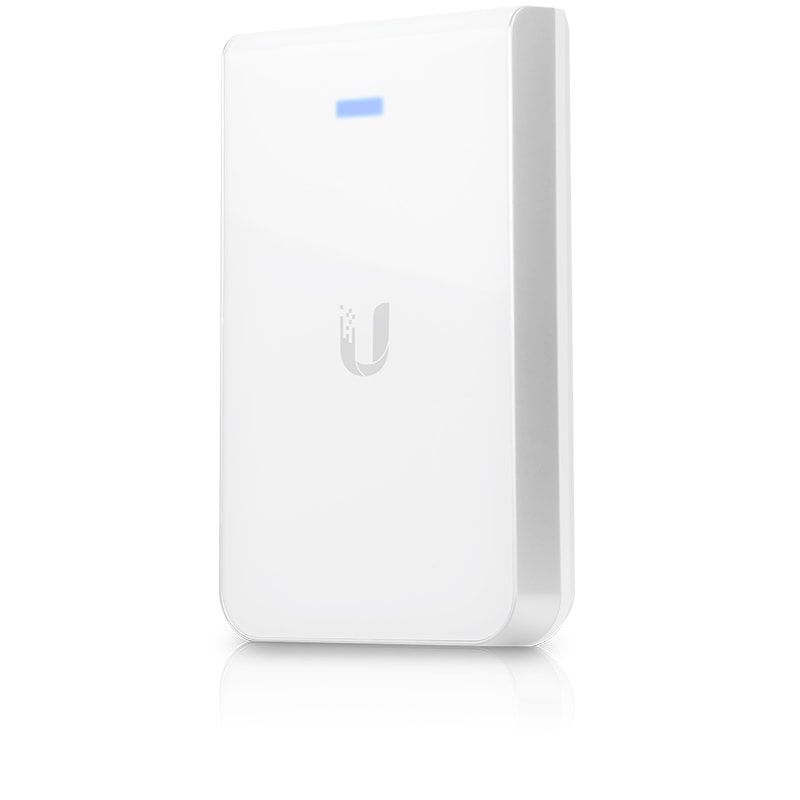

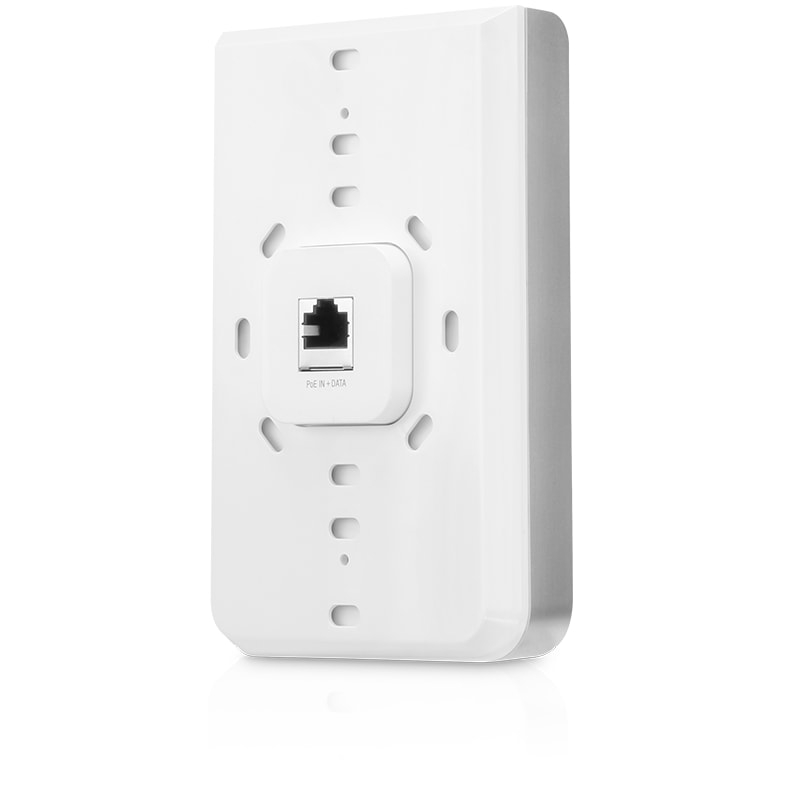

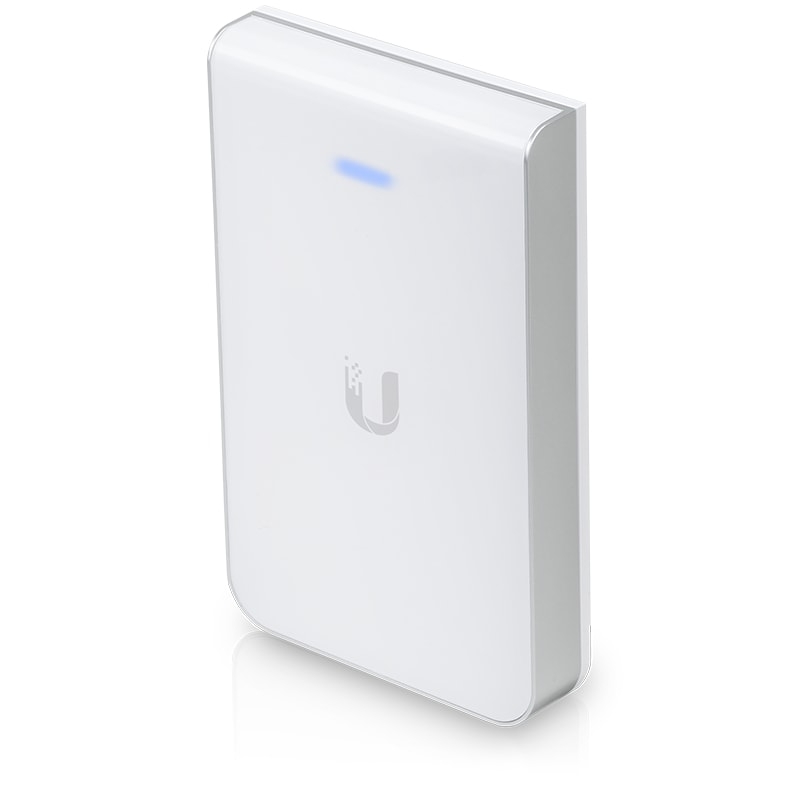

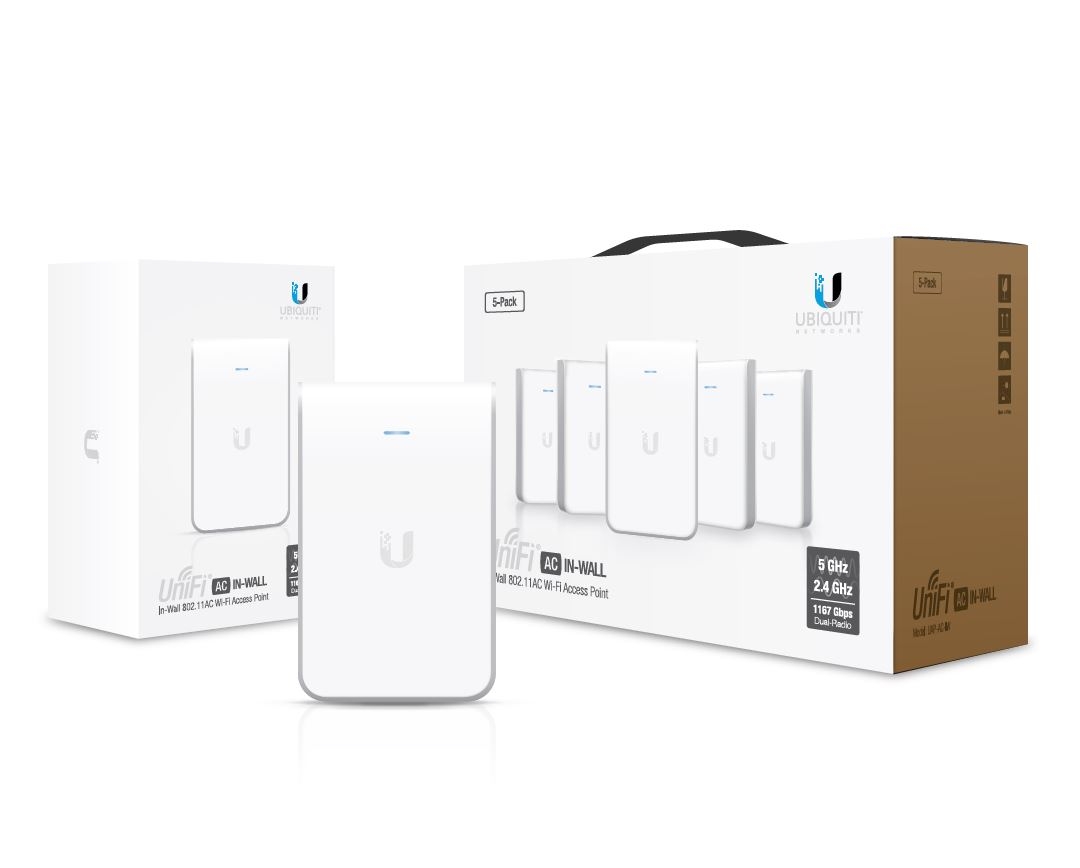

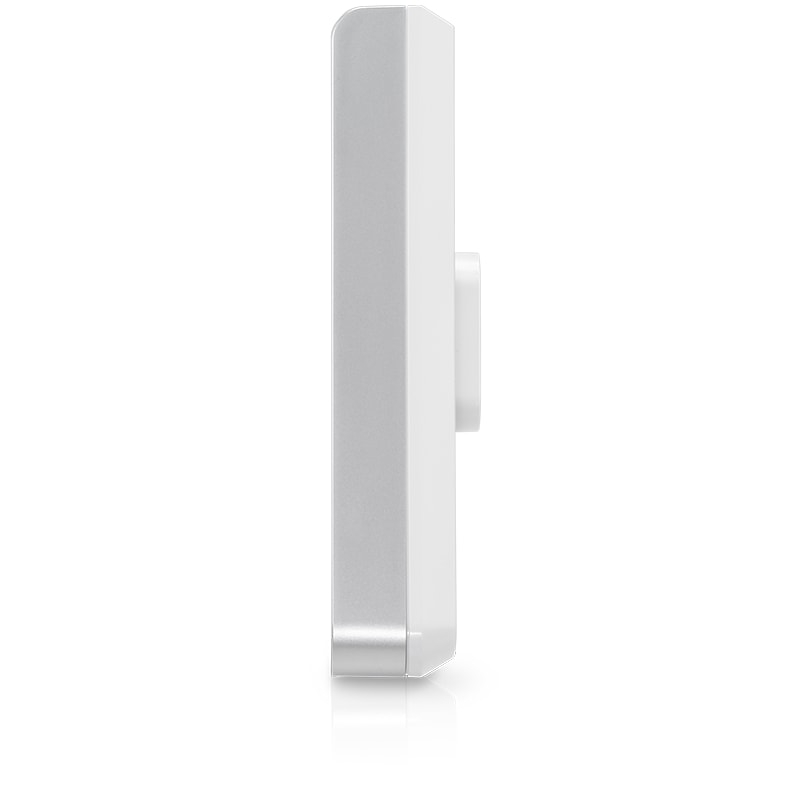

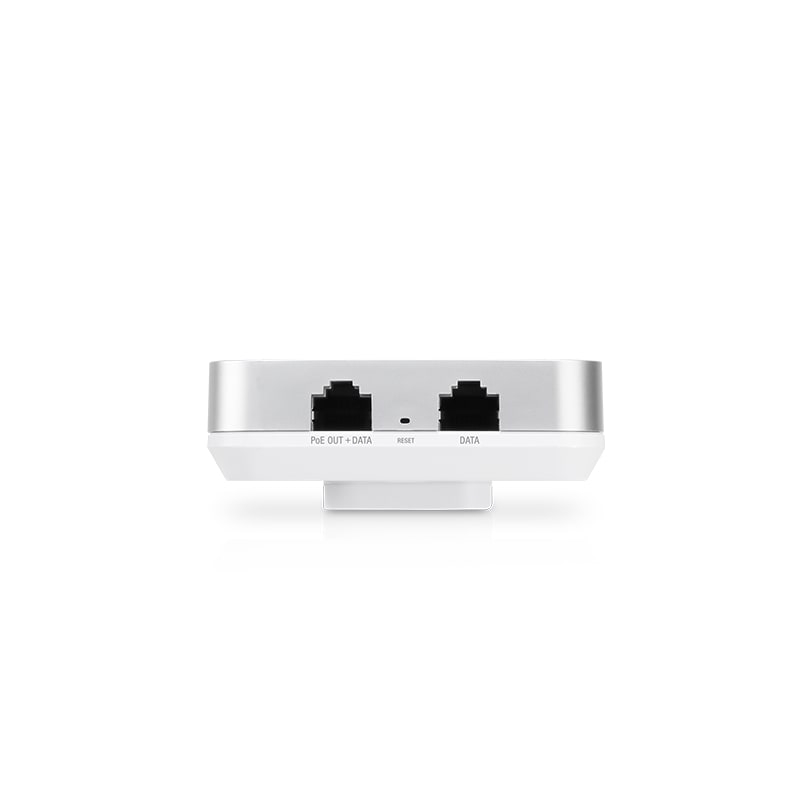

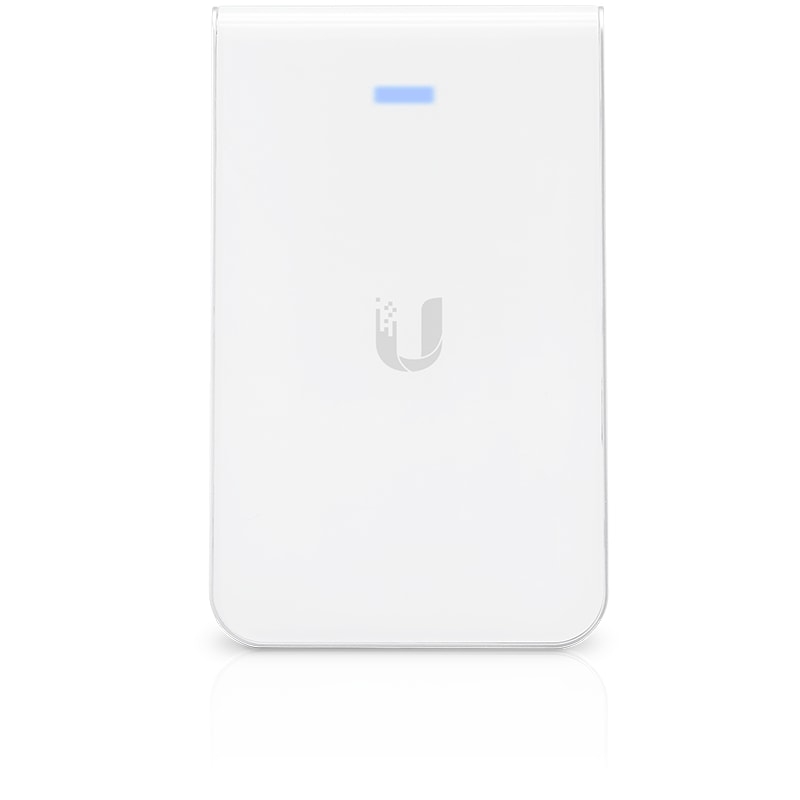

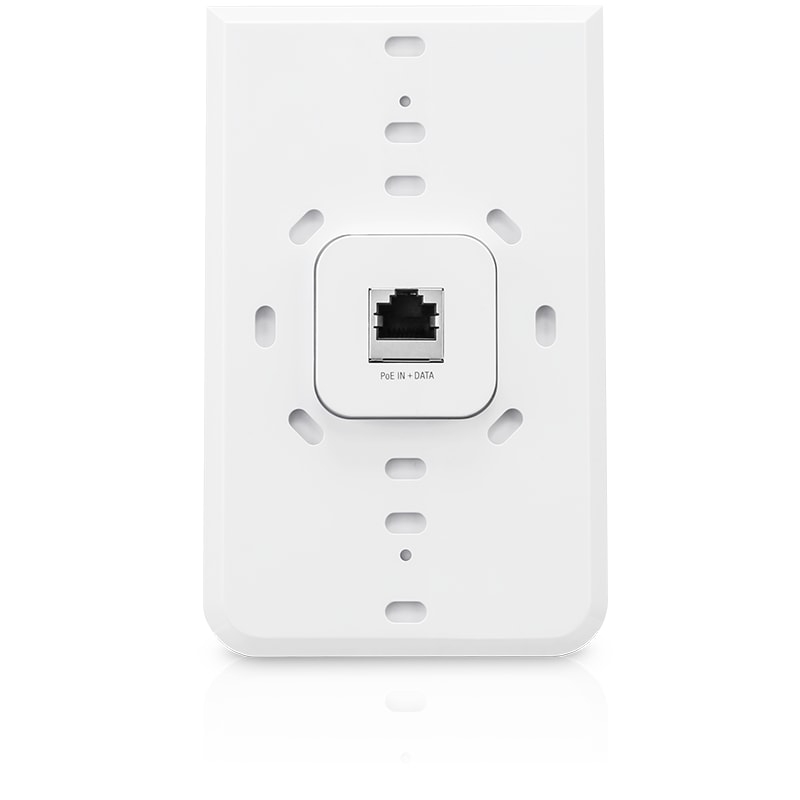

UBIQUITI UniFi AC In-Wall AP (UAP-AC-IW)

UBIQUITI UniFi AC In-Wall AP (UAP-AC-IW)

UBIQUITI UniFi AC In-Wall AP, UAP-AC-IW, 800+ Mbps in Wall AP/Hotspot 5 Ghz and 2,4 GHz, 802.11 a/b/g/n/ac, 3x Gbit LAN, up to 250+ clients - indoor - POE unit is not included in package

UBIQUITI UniFi AC In-Wall AP (UAP-AC-IW)
Click on photo to expand
Price: Price inc VAT: For orders
(total sum):
75.86£ 91.03£ <300.00£
74.68£ 89.62£ >300.00£
73.49£ 88.19£ >1000.00£
72.38£ 86.86£ >3000.00£
71.28£ 85.54£ >7500.00£
Quantity:
In stock


Features

The UniFi AC In-Wall AP transforms an Ethernet wall connection into a dual-band 802.11AC Wi-Fi Access Point. It features two Gigabit Ethernet ports, one of which delivers PoE to power and connect an 802.3af device to the network. The UniFi AC In-Wall AP provides simultaneous, dual-band, 2x2 MIMO technology. We recommend powering the UniFi AC In-Wall AP with the UniFi PoE Switch as PoE adapters are not included in the single- and five-packs.

Specifications

Dimensions:139.7 x 86.7 x 25.75 mm (5.5 x 3.41 x 1.01")
Weight: 200 g (6.43 oz)
Networking Interface: (3) 10/100/1000 Ethernet Ports
Buttons: Reset
Power Method: 802.3at PoE+ Supported
Power Supply: UniFi PoE Switch (Not Included)
Power Save: Supported
PoE Out: 48V Pass-Through (Pins 1, 2+; 3, 6-)
Maximum Power Consumption: 7W
Maximum TX Power 2.4 GHz: 20 dBm
Maximum TX Power 5 GHz: 20 dBm
Antennas: (1) Dual-Band Antenna, Single-Polarity
Antennas 2.4 GHz: 1 dBi
Antennas 5 GHz: 2 dBi
Wi-Fi Standards: 802.11 a/b/g/n/ac
Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID: Up to Four per Radio
Mounting: 1-Gang Electrical Wall Box (Not Included)
Operating Temperature: -10 to 50° C (14 to 122° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC

Advanced Traffic Management
VLAN: 802.1Q
Advanced QoS: Per-User Rate Limiting
Guest Traffic Isolation: Supported
WMM: Voice, Video, Best Effort, and Background
Concurrent Clients: 250+

Supported Data Rates (Mbps)
Standard: Data Rates
802.11ac: 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps

Attachments

Datasheet - UniFi_AC_APs_DS_iw.pdf
Quick Start Guide - UniFi_UAP-AC-IW_QSG.pdf
