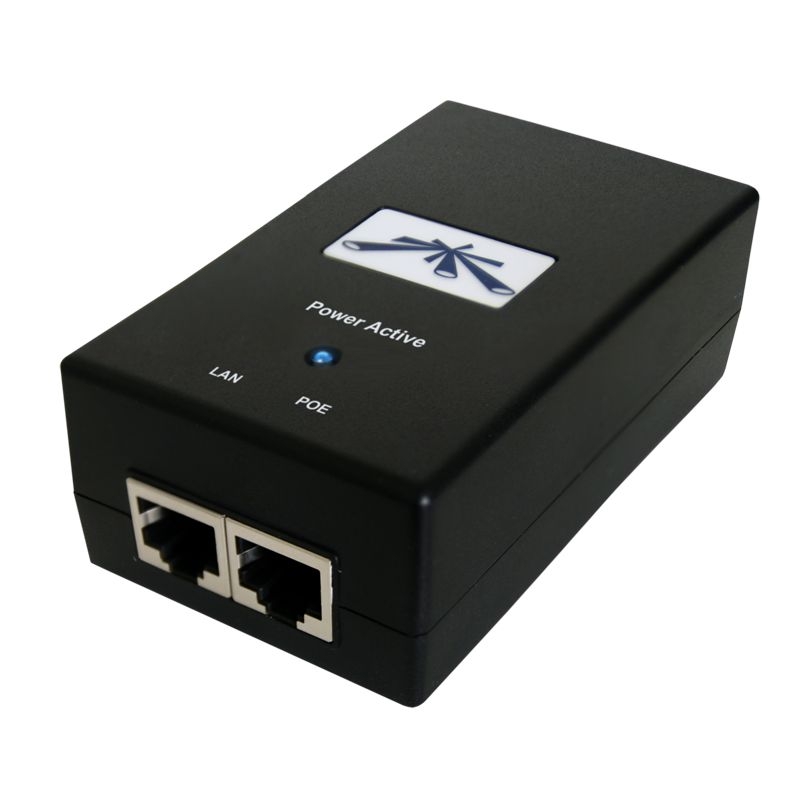

Ubiquiti Gigabit POE 50V 1.2A 60W

Ubiquiti Gigabit POE, 50V, 1.2A, 60W, earth grounding, ESD protection, power LED

Price exc. VAT: Price inc. VAT: For orders (total sum):
11.91£ 14.29£ >0£
11.71£ 14.05£ >300£
11.51£ 13.81£ >1000£
Qty:
In stock



Features:

The UBNT-POE-50-60W-GIGABIT features earth grounding/ESD protection, power LED

Ubiquiti PoE Adapters provide a variety of features to help protect your Ubiquiti PoE devices:
• Surge protection
• Clamping protection
• Maximum surge discharge
• Peak pulse current
• AC cable with earth ground
ESD attacks are the leading cause for device failures. You can effectively protect against ESD attacks using a grounded Ubiquiti PoE Adapter, TOUGHCable™, and TOUGHCable Connectors.

Features:
Output Voltage: 50VDC @ 1.2A
Input Voltage: 90-260VAC @ 47-63 Hz
Input Current: 1.3A @ 120VAC, 0.75A @ 240VAC
Efficiency: 85+%
Output Ripple: 1% Max
Switching Frquency: 65 kHz
Line Regulation: +/- 1%
Load Regulation: +/- 3%
Operating Temperature: 0 to 40° C (32 to 104° F)
Storage Temperature: -30 to 70°C (-22 to 158° F)
Operating Humidity: 35 to 95% Non-Condensing
Size: 100.95 x 60 x 33 mm (3.97 x 2.36 x1.30 in)

Specification:

Dimensions: 100.95 x 60 x 33 mm (3.97 x 2.36 x1.30 in)
Weight: 192 g (6.77 oz)
Output Voltage: 50VDC @ 1.2A
LAN Activity Indicator: No
Gigabit LAN Port: Yes
Remote Reset Capability: No
Reset Button: No
Input Voltage: 90-260VAC @ 47-63 Hz
Input Current: 1.3A @ 120VAC, 0.75A @ 240VAC
Inrush Current: <100A Peak @120VAC, <200A Peak @ 230VAC
Efficiency: 85+%
Output Ripple: 1% Max.
Switching Frequency: 65 kHz
Line Regulation: ± 1%
Load Regulation: ± 3%
4-Pair Powering: Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-)
Operating Temperature: 0 to 40° C (32 to 104° F)
Storage Temperature: -30 to 70°C (-22 to 158° F)
Operating Humidity: 35 to 95% Non-Condensing
AC Connector: IEC-320 C6
Data IN / POE: RJ45 Shielded Socket
Surge Protection: Difference and Common Mode
Clamping Protection: 11V Data, 60V Power
Max. Surge Discharge: 1500A (8/20μS) Power
Peak Pulse Current: 6A (10/1000μS) Data
Shunt Capacitance: <5 pf data
Response Time: <1 nS
Compliance: IEC 60950-1:2005+A1, UL60950-1, EN55022:2010, EN55024:2010, FCC Class B, AC Cable with Earth
Ground USA, EU, AR, BR, UL, CCC, Mexico

Additional product information:

Datasheet
