UBIQUITY UniFi 10G 6-Port Switch with 802.3bt PoE++ (US-XG-6POE)
4x 100/1000 Mbps and 2.5/5/10G RJ45 Ports, 2x 1/10 SFP+ Ports, 4x 802.bt PoE++ Ports, Non-Blocking Throughput: 60 Gbps, Switching Capacity: 120 Gbps, Forwarding Rate: 89.3 Mpps
|Price exc. VAT:||Price inc. VAT:||For orders (total sum):|
Build and expand your network with the Ubiquiti® UniFi® Switch XG 6POE, model US-XG-6POE. It is a fully managed, 6-port, 10G switch with 802.3bt PoE++.
For deployment versatility, four 10G RJ45 ports offer 802.3bt PoE++ for powering devices, and two SFP+ ports are designed for high‑capacity fiber uplinks.
The UniFi Switch XG 6POE offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
The switch features a total non‑blocking throughput of up to 60 Gbps.
802.3bt PoE++ Compatibility
The UniFi Switch XG 6POE is compatible with devices requiring 802.3af or 802.3at, as well as the following UniFi Access Points (APs), which require 802.3bt power (e.g. UAP-AC-SHD, UAP-XG, UWB-XG, UWB-XG-BK)
The UniFi Switch XG 6POE can be powered by a DC power source or the included power adapter. The optional DC input can be used as a stand-alone or redundant DC power source (not included).
The UniFi Switch XG 6POE offers 802.3bt PoE++ on all four RJ45 ports – up to 60W per port – for devices requiring additional power, such as the UniFi XG APs.

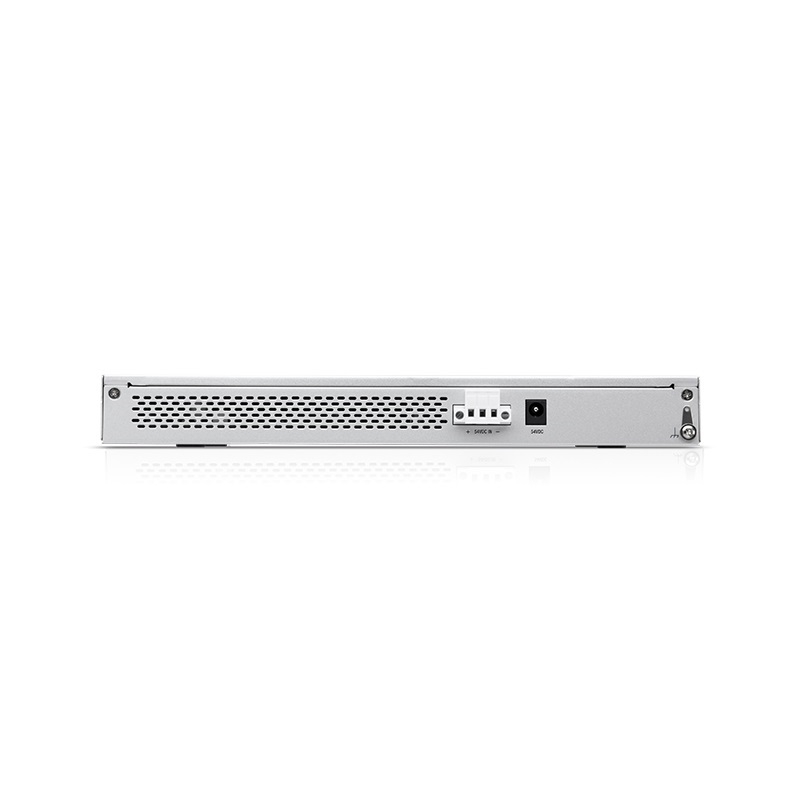

The UniFi Switch XG 6POE includes a power adapter and features a DC input with terminal block so you have the option to use a DC power source (not included).
The UniFi Switch XG 6POE can be mounted on a desktop or in a rack (rackmount accessory sold separately).
Dimensions: 165 x 268.1 x 31.8 mm (6.50 x 10.56 x 1.25")
Weight: 1.3 kg (2.87 lb)

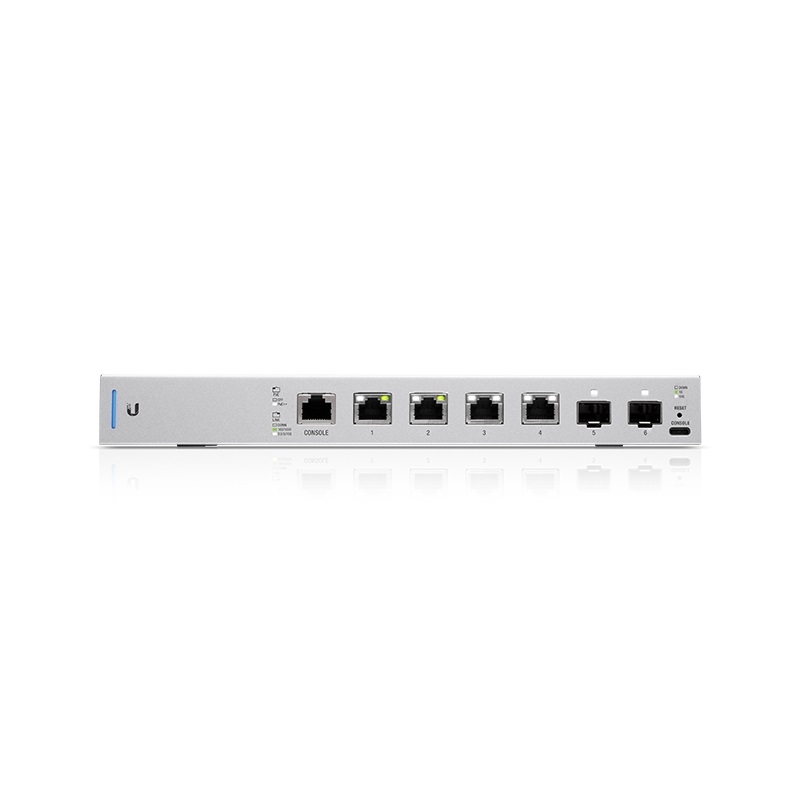

(4) 100/1000 Mbps and 2.5/5/10G RJ45 Ports
(2) 1/10G SFP+ Ethernet Ports
(1) RJ45 Serial Port Out-of-Band
(1) USB Type C Port Out-of-Band
Power Method: 54VDC, 3.88A Power Adapter (Included) or DC Input with Terminal Block
Power Supply: External AC/DC Adapter (Included) or DC Power Source
Supported Voltage Range: 44 to 57VDC
Max. Power Consumption (Excluding PoE Output): 40W
System - Status
RJ45 Data Ports - PoE; Speed/Link/Activity
SFP+ Data Ports - Link/Activity
ESD/EMP Protection: Air: ± 18 kV, Contact: ± 12 kV
Shock and Vibration: ETSI300-019-1.4 Standard
Operating Temperature: -5 to 45° C (23 to 113° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC
PoE Interfaces: PoE++ IEEE 802.3bt (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)
Max. 802.3bt Wattage per Port by PSE: 60W
Voltage Range 802.3af Mode: 44-57V
Voltage Range 802.3at/bt Mode: 50-57V
