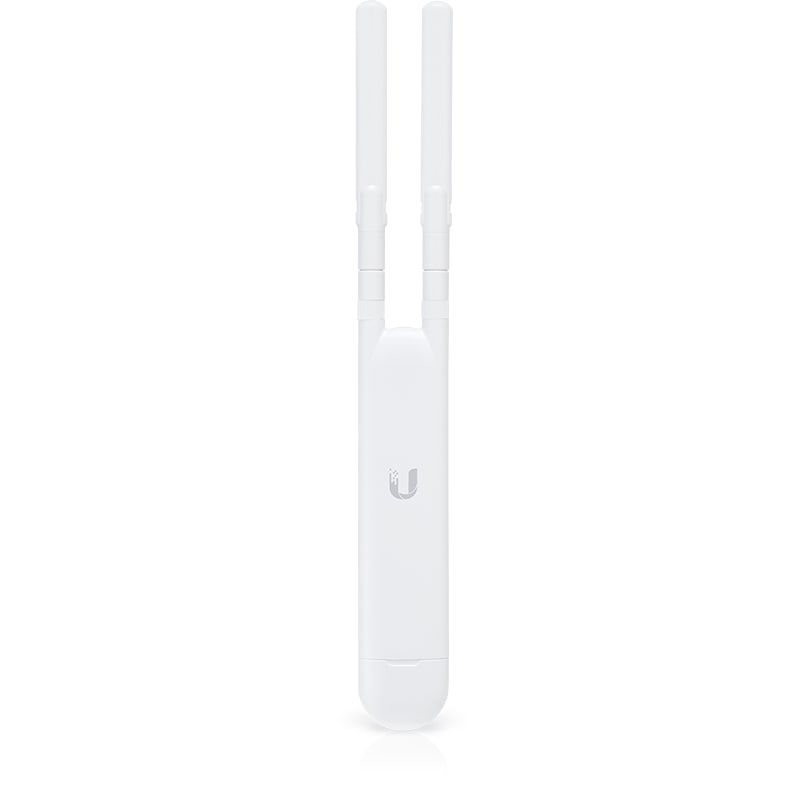

UBIQUITI UniFi AC Mesh (UAP-AC-M)
UBIQUITI UniFi AC Mesh (UAP-AC-M), 1x Gbit LAN, 867 Mbps, 2,4/5ghz, 802.11 a/b/g/n/ac Wi-Fi Standards, 2 x Integrated Omni Antennas, Outdoor-Indoor, 2x2 MIMO
|Price exc. VAT:||Price inc. VAT:||For orders (total sum):|
Compact Form Factor
The UniFi AC Mesh AP is designed to discreetly integrate into virtually any environment.
The UniFi AC Mesh AP can be used indoors or outdoors.
Unique provisioning LED provides administrator location tracking and alerts for each device.

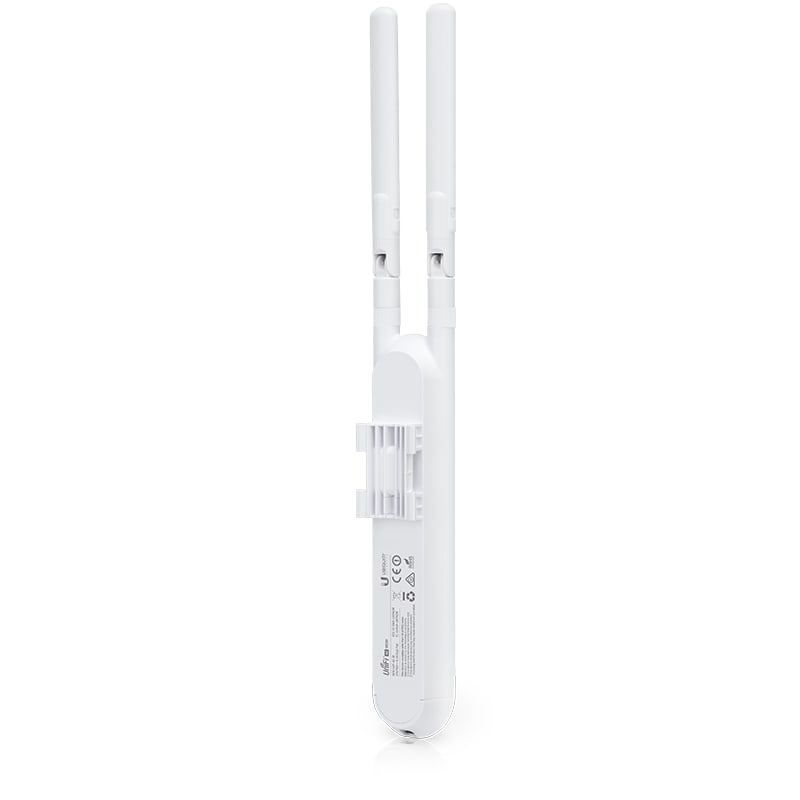

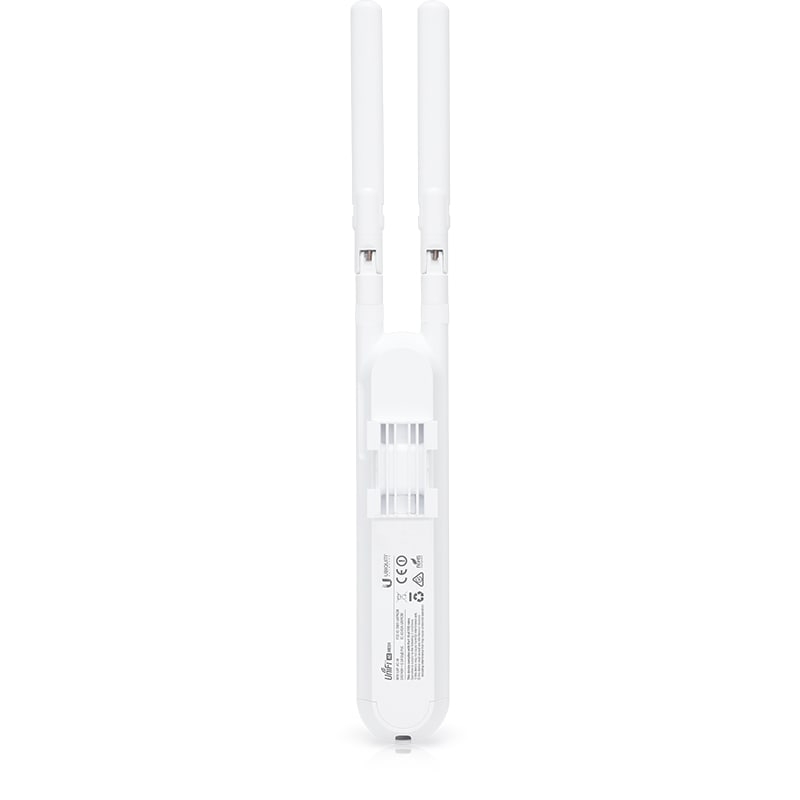

The UniFi AC Mesh AP can be mounted on a wall, pole, or fast-mount of a Ubiquiti high-gain antenna. (All accessories are included)
Multiple Power Options
The UniFi AC Mesh AP is compatible with 802.3af PoE Alternative A and 24V passive PoE. You can power it with an 802.3af Alternative A compatible switch or the included Gigabit PoE adapter.
Use the included omni antennas, or use the included fast-mount adapter to install the AP on an optional connectorized antenna for expanded range coverage and customized pattern shaping.
Packed with Features
Use the UniFi Controller to provision thousands of UniFi APs, map out networks, quickly manage system traffic, and provision additional UniFi APs.
Use the RF map to monitor and analyze radio frequencies for optimal AP placement, configuration, and troubleshooting.
Powerful RF Performance Features
Advanced RF performance and configuration features include spectral analysis, airtime fairness, and band steering.
Use the configurable reporting and analytics to manage large user populations and expedite troubleshooting.
Wireless Uplink functionality enables wireless connectivity between APs for extended range. One wired UniFi AP uplink supports up to four wireless downlinks on a single operating band, allowing wireless adoption of devices in their default state and real-time changes to network topology.
For devices that support Plug & Play Mesh, this functionality is extended to allow multi-hop wireless uplink - so wirelessly uplinked APs can support uplink to other wirelessly uplinked APs.
Guest Portal/Hotspot Support
Easy customization options for Guest Portals include authentication, Hotspot setup, and the ability to use your own external portal server. Use UniFi's rate limiting for your Guest Portal/Hotspot package offerings. Apply different bandwidth rates (download/upload), limit total data usage, and limit duration of use.
All UniFi APs include Hotspot functionality:
• Built-in support for billing integration using major credit cards.
• Built-in support for voucher-based authentication.
• Built-in Hotspot Manager for voucher creation, guest management, and payment refund.
• Full customization and branding of Hotspot portal pages.
A single cloud-based UniFi Controller can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and admin read/write and read-only accounts.
Manage flexible configurations of large deployments. Create multiple WLAN groups and assign them to an AP's radio
Dimensions: 353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35")
Weight: 152 g (5.36 oz) with Antennas

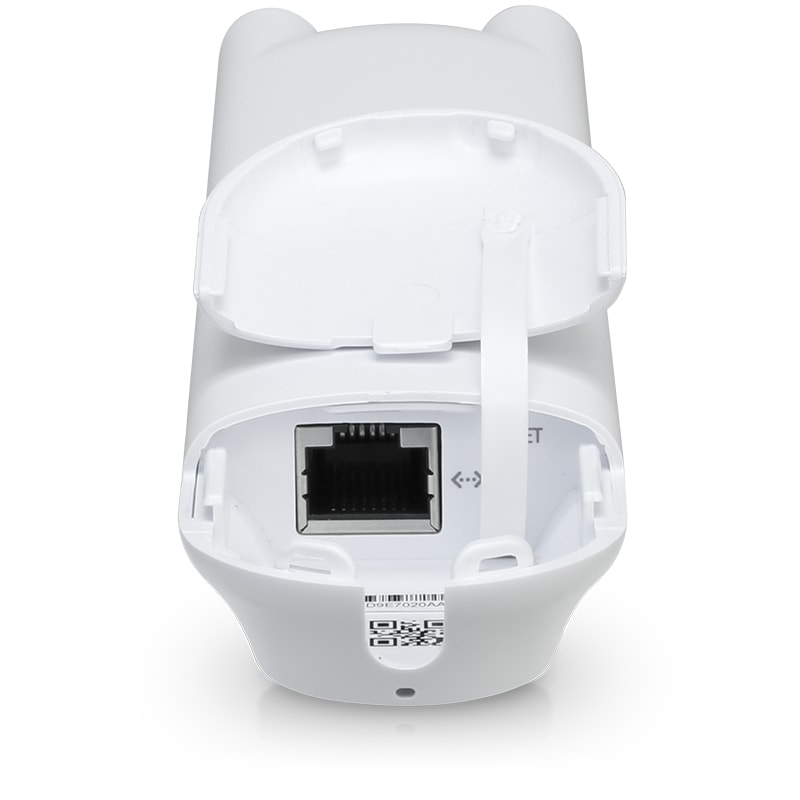

Networking Interface (1): 10/100/1000 Ethernet Port
24V Passive PoE (Pairs 4, 5+; 7, 8 Return);
802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)
(Supported Voltage Range: 44 to 57VDC)
Power Supply: 24V, 0.5A Gigabit PoE Adapter (PoE adapter included)
Power Save: Supported
Maximum Power Consumption: 8.5W
Maximum TX Power:
2.4 GHz - 20 dBm
5 GHz - 20 dBm
External Dual-Band Omni Antennas:
2.4 GHz - 3 dBi
5 GHz - 4 dBi
Wi-Fi Standards: 802.11 a/b/g/n/ac
Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID: Up to Four per Radio
Mounting: Wall/Pole/Fast-Mount (Kits Included)
Operating Temperature: -30 to 70° C (-22 to 158° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC
Advanced Traffic Management
Advanced QoS: Per-User Rate Limiting
Guest Traffic Isolation: Supported
WMM: Voice, Video, Best Effort, and Background
Concurrent Clients: 250+
Supported Data Rates (Mbps)
802.11ac - 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11n - 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a - 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11g - 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b - 1, 2, 5.5, 11 Mbps
