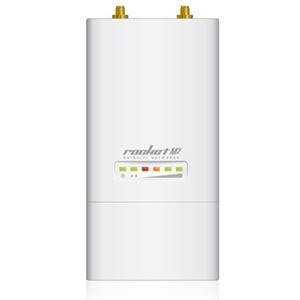

UBIQUITI Rocket M2 Airmax

Order code: RocketM2
Quick code: #303

Ubiquiti Rocket M2 AirMax. Powerful AirMax BaseStation Platform, 150Mbps+ real TCP/IP throughput, 2x2 MIMO, low latency

Price exc. VAT: Price inc. VAT: For orders (total sum):
63.42£ 76.10£ >0£
62.87£ 75.44£ >300£
61.77£ 74.12£ >1000£
Qty:
  In stock


Features:

Ultimate in RF Performance: The Rocket is a rugged, hi-power, very linear 2x2 MIMO radio with enhanced receiver performance. It features incredible range performance (50+km) and breakthrough speed (150+Mbps real TCPI/IP). The device was specifically designed for outdoor PtP bridging and PTMP Airmax base-station applications.

Rocket M Seamlessly Integrates with AirMax BaseStation and Rocket Antennas: Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

The Rocket M easily and securely snaps into place on Ubiquiti Carrier-Class Antennas

AirOS V: Version 5 of Ubiquiti's AirOS builds upon the market leading intuitive user-interface loaded with advanced wireless configurations and routing functionality.

Specification:

Processor Specs: Atheros MIPS 24KC, 400MHz
Memory Information: 32MB SDRAM, 8MB Flash
Networking Interface: 2 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
Enclosure Size: 16cm length x 8cm width x 3cm height
Weight: 0.5 kg
RF Connector: 2x RPSMA (Waterproof)
Enclosure Characteristics: Outdoor UV Stabalized Plastic
Mounting Kit: Pole Mounting Kit included
Max Power Consumption: 6.5 Watts
Power Supply: 24V, 1A POE Supply Included
Power Method: Passive Power over Ethernet (pairs 4,5+; 7,8 return)
Operating Temperature: -30C to 75C
Operating Humidity: 5 to 95% Condensing
Shock and Vibration: ETSI300-019-1.4
Wireless Approvals: FCC Part 15.247, IC RS210, CE
RoHS Compliance: YES

Additional product information:

Datasheet
Quick Start Guide
Declaration of Conformity
