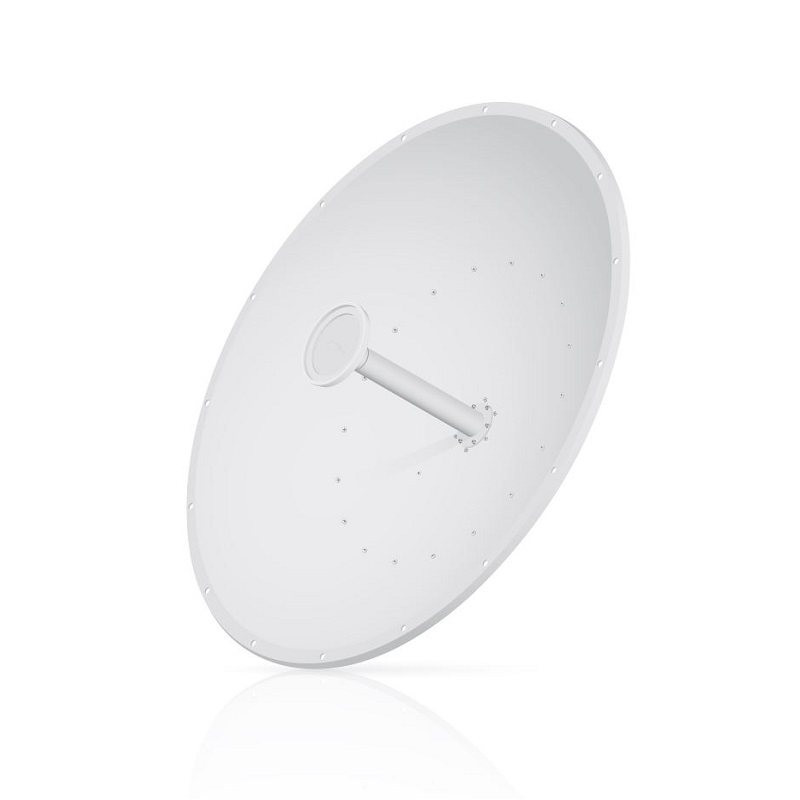

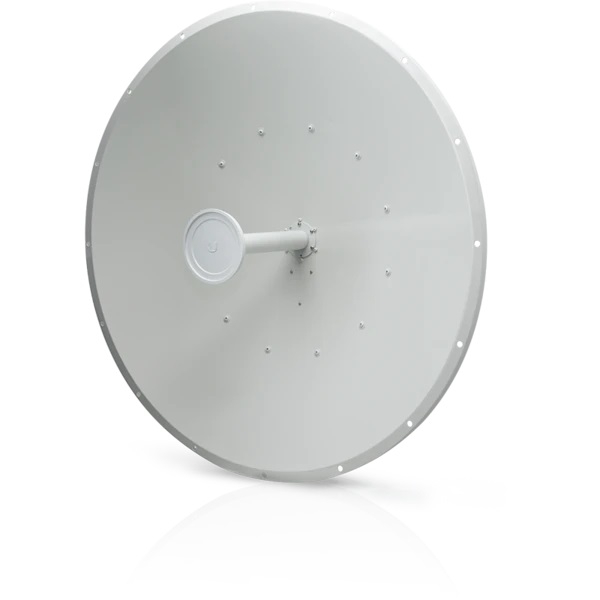

Ubiquiti RocketDish 34dbi

Ubiquiti AirMAX Antenna Rocket Dish 5 GHz Duplex MIMO, 34 dBi, 2x RSMA, including accessories.

Price exc. VAT: Price inc. VAT: For orders (total sum):
242.93£ 291.52£ >0£
238.82£ 286.58£ >300£
234.70£ 281.64£ >1000£
Qty:
In stock



Features:

Bi-polarizational 34 dBi antenna is suitable for the unit of Rocket M5 (MIMO). It uses horizontal and vertical polarization, which replaces two separate antennas and thus save your costs associated with hiring the location for antennas.

The antenna is suitable for simple creation of PtP connections. It is supplied with waterproof fittings for interfacing the unit with rocket M.

Specification:

Model: RD-5G34
Dimensions*: 1050 x 1050 x 421 mm (41.34 x 41.34 x 16.57")
Weight**: 13.5 kg (29.76 lb)
Frequency Range: 4.9 - 5.8 GHz
Gain:
4.9 GHz - 30 dBi
5 - 5.8 GHz - 34 dBi
HPOL Beamwidth: 3° (3 dB)
VPOL Beamwidth: 3° (3 dB)
F/B Ratio: 42 dB
Max. VSWR: 1.4:1
Wind Loading: 1,779 N @ 200 km/h (400 lbf @ 125 mph)
Wind Survivability: 200 km/h (125 mph)
Polarization: Dual-Linear
Cross-pol Isolation: 35 dB Min.
ETSI Specification: EN 302 326 DN2

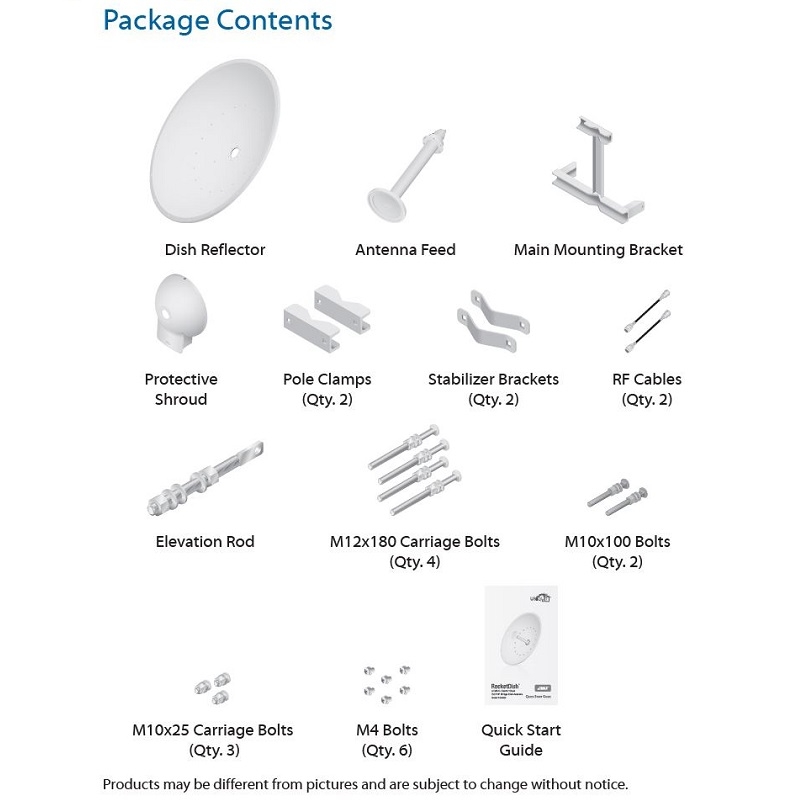

Mounting: Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included

* Dimensions exclude pole mount and Rocket (Rocket sold separately)
** Weight includes pole mount and excludes Rocket (Rocket sold separately)

Additional product information:

Datasheet
Quick Start Guide
Link to manufacturer product page
