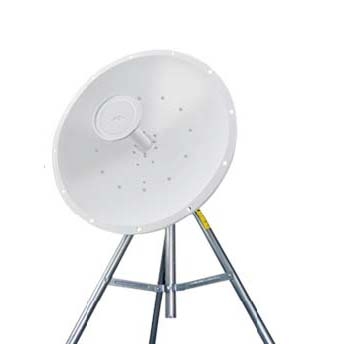

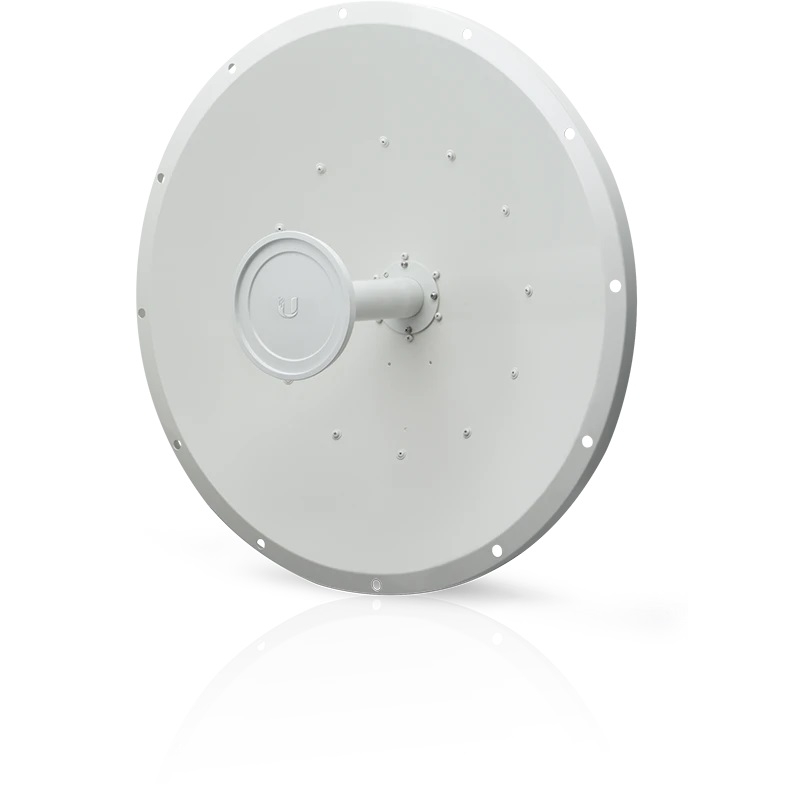

Ubiquiti RocketDish 30dbi (RD-5G30)
MPN:
RD-5G30
Order code:
RocketDish 5G-30
Quick code:
#251
EAN:
0810354021282
Ubiquiti Air Max 5GHz Dish Antenna, Dual Polarization, MIMO, 30dBi, recommended for Ubiquiti Rocket M Platform
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 94.53£ | 113.44£ | >0£ |
| 93.66£ | 112.39£ | >300£ |
| 92.79£ | 111.35£ | >1000£ |
Features:
Carrier Class Performance. Breakthrough Price Points. Instantly pair with Rocket M5 to create powerful 2x2 MIMO PtP Bridging applications. Rocket mount and weatherproof RF jumpers included.
Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.
Specification:
| Dimensions | 650 x 650 x 304 mm (25.6 x 25.6 x 11.97") |
| Weight | 9.8 kg (21.61 lb) |
| Frequency Range | 4.9 - 5.8 GHz |
| Gain | 4.9 GHz: 26 dBi 5 - 5.9 GHz: 30 dBi |
| HPOL Beamwidth | 5° (3 dB) |
| VPOL Beamwidth | 5° (3 dB) |
| F/B Ratio | 34 dB |
| Max. VSWR | 1.4:1 |
| Wind Loading | 787 N @ 200 km/h (177 lbf @125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 35 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included |
