Ubiquiti RocketDish 3G 26dbi

Ubiquiti RocketDish 3G 26dbi

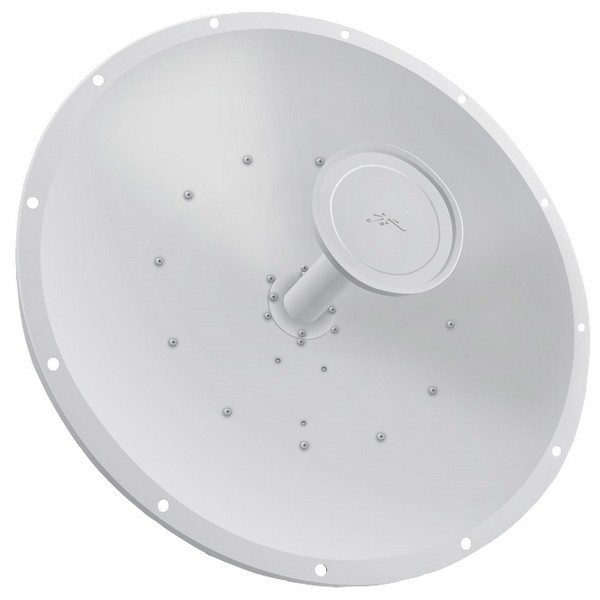

Ubiquiti Air Max 3G, 3.3-3.8GHz Dish Antenna, Dual Polarization, MIMO, 26dBi, recommended for Ubiquiti Rocket M Platform

Ubiquiti RocketDish 3G 26dbi
Click on photo to expand
Price: Price inc VAT: For orders
(total sum):
197.00£ 236.40£ <300.00£
195.00£ 234.00£ >300.00£
193.00£ 231.60£ >1000.00£
191.00£ 229.20£ >3000.00£
189.00£ 226.80£ >7500.00£
Quantity:
In stock


Features

New Technology OMT Design Carrier Class Performance. Breakthrough Price Points. Instantly pair with Rocket M365 to create powerful 2x2 MIMO PtP Bridging applications. Full mating bracket and weatherproof RF jumpers included.

Rocket M Seamlessly Integrates with Rocket Dish Antenna Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

Specifications

Frequency Range: 3.3-3.8 GHz
Gain: 24.9-26.0dBi
Polarization: Dual Linear
Cross-pol Isolation: 35dB min
Max VSWR: 1.4:1
Hpol Beamwidth (6dB): 7 deg.
Vpol Beamwidth (6dB): 7 deg.
F/B Ratio: -34dB
ETSI Specification: EN 302 326 DN2
Dimensions: 25.5in (648mm) diameter
Weight: 21.6lbs (9.8kg)
Wind Survivability: 120 mph
Windloading: 113lb@100mph

Attachments

Datasheet - Rocket_Dish3G_DS.pdf
Quick Start Guide - RocketDish_RD-3G26_QSG.pdf
