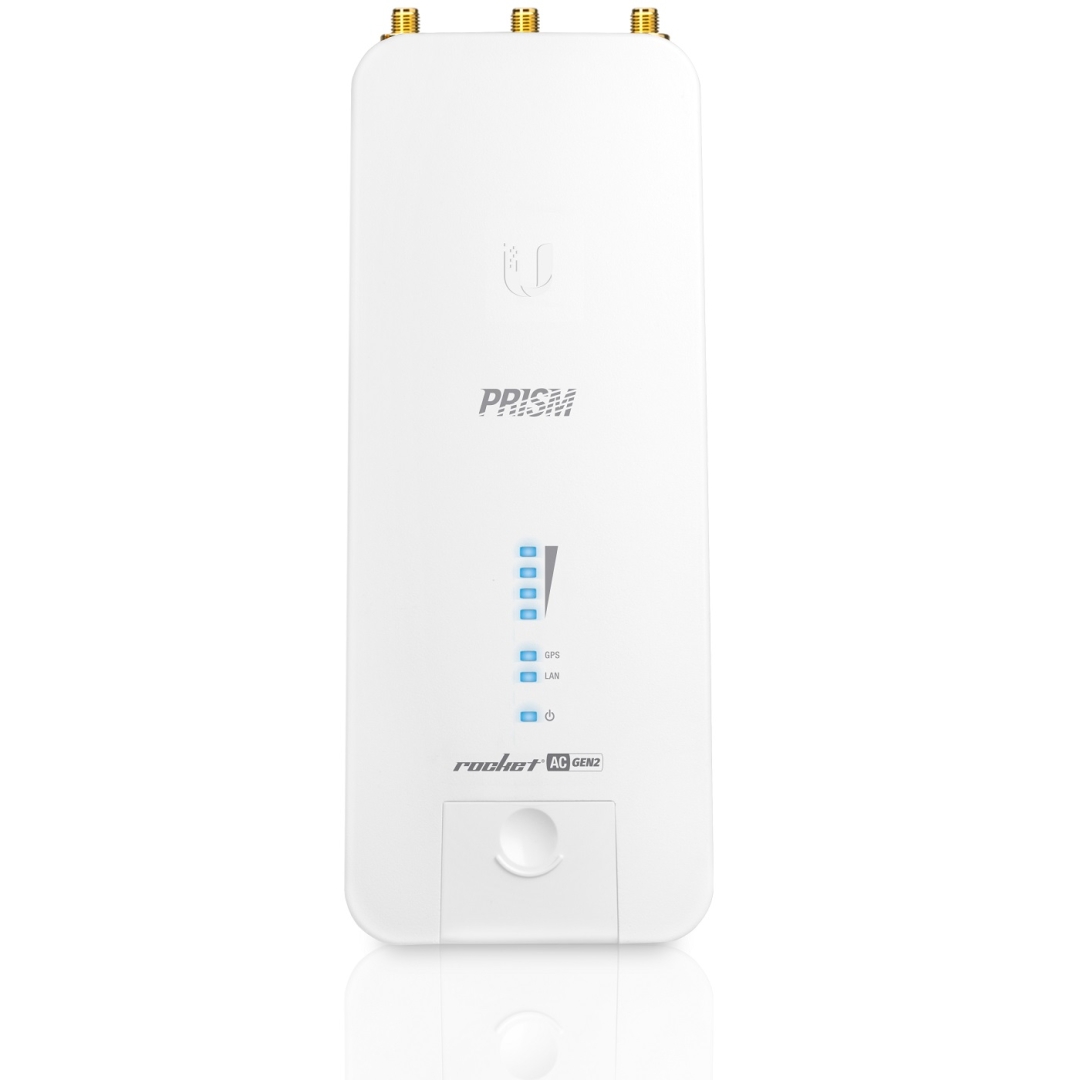

UBIQUITI RP-5AC-GEN2 Rocket 5AC airPrism generation 2 Basestation

UBIQUITI RP-5AC-GEN2 Rocket 5AC GEN2 AirPrism Basestation - Generation2 airMAX AC Multi-Point radio with AirPRISM technology, 28dBm, Gigabit LAN, 2x RSMA, 5GHz 2X2 802.11ac, improved SNR, Removed Interference

Price exc. VAT: Price inc. VAT: For orders (total sum):
171.52£ 205.82£ >0£
168.62£ 202.34£ >300£
165.71£ 198.85£ >1000£
Qty:
Out of stock



Features:

The Rocket Prism 5AC Gen 2 is designed to deliver maximum spectral efficiency and up to 500+ Mbps Real TCP/IP throughput.

Features
5 GHz Frequency Band With plenty of available spectrum, this unlicensed band works well for long‑distance links. The Rocket Prism 5AC Gen 2 features full-band 5 GHz coverage and maximizes output power for the US market, meeting strict OOBE requirements.
airView Use the real-time spectrum analyzer so you can identify noise signatures and design your wireless links to minimize noise interference.
High Performance To take full advantage of its design and capabilities, deploy the Rocket Prism 5AC Gen 2 for PtP or PtMP links in high RF noise environments.
airPrism Sector Antenna You can mount three Rocket Prism 5AC Gen 2 radios on the airPrism 5 GHz 3x30° HD Sector Antenna, model AP‑5AC‑90‑HD, for PtMP links. Each Rocket radio corresponds with a specific 30° beamwidth and independently transmits and receives.
Dedicated Management Radio Access the airOS configuration interface instantly through the UMobile app to set up and manage your Rocket 5AC Prism Gen 2.
Robust Die Cast Aluminum Casing Helps protect the Rocket Prism 5AC Gen 2 against electromagnetic interference.
GPS for Superior Co-Location Performance Precise GPS frame synchronization enable co-located Rocket Prism 5AC Gen 2 radios to transmit and receive data without interfering with each other, allowing for better frequency reuse and increased network stability.
Improved Surge Protection The Rocket Prism 5AC Gen 2 utilizes the latest ESD protection to help protect against power surges.
Gigabit Ethernet Delivers high throughput over its wired connection.
Plug and Play Every airMAX antenna has a built-in Rocket mount, so no tools are needed to install the Rocket Prism 5AC Gen 2. (airMAX ac antennas are recommended for optimal performance.)

Specification:

Dimensions: 88 x 40 x 230 mm (3.47 x 1.58 x 9.06")
Weight: 400 g (14.11 oz)
Networking Interface:
(1) 10/100/1000 Ethernet Port, RF Connectors
(2) RP-SMA (Waterproof ), (1) GPS* (Waterproof)
LEDs (4) Signal Strength, GPS*, Power, LAN
Enclosure: Die-Cast Aluminum with White Powder Coating
Max. Power Consumption: 9.5W
Power Supply: 24V, 1A Gigabit PoE Adapter (Included)
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Processor Specs: Atheros MIPS 74Kc
Memory: 128 MB DDR2 SDRAM
Supported Voltage Range: 18-26VDC
Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels
Channel Sizes PtP Mode: 10/20/30/40/50/60/80 MHz
Channel Sizes PtMP Mode: 10/20/30/40 MHz
ESD/EMP Protection: ± 24 kV Contact / Air for Ethernet
Operating Temperature: -40 to 80° C (-40 to 176° F)
Operating Humidity: 5 to 95% Noncondensing
RoHS Compliance: Yes
Shock and Vibration: ETSI300-019-1.4
Modes: Access Point, Station
Services: Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing
Utilities: Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test
Distance Adjustment: Dynamic Ack and Ackless Mode
Power Adjustment: Software Adjustable UI or CLI
Security: WPA2 AES Only
QoS: Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low
Statistical Reporting: Up Time, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate
Other: Remote Reset Support, Software Enabled/Disabled, VLAN Support, 256QAM, GPS*, TX Filter
Ubiquiti Specific Features: 30/50/60 MHz Channels, airMAX ac Mode, Traffic Shaping with Burst Support, Discovery Protocol, Frequency Band Offset, Ackless Mode
Certifications: CE, FCC, IC
Operating Frequency: 2412 - 2472 MHz, 5150 - 5875 MHz

Additional product information:

Datasheet
Quick Start Guide
