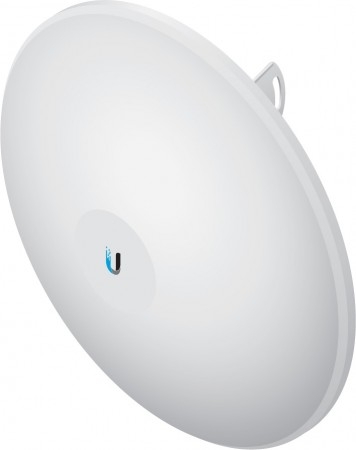

Ubiquiti Powerbeam PBE-5AC-500

UBIQUITI PowerBeam PBE-5AC-500, AC, 802.11ac 27dbi, 500mm, 450Mbps, Radome included, Hi-performance MIMO Bridging Device CPE

Price exc. VAT: Price inc. VAT: For orders (total sum):
117.01£ 140.41£ >0£
115.03£ 138.04£ >300£
113.05£ 135.66£ >1000£
Qty:
In stock



Features:

Ubiquit PowerBeam PBE-5AC-500

Ubiquiti Point to Point link using the lastest ac airMAX technology, the PBE-5AC-500 supports up to 450+ Mbps real TCP/IP throughput. It launches with PtP functionality, and a client mode feature will be added with a future firmware upgrade. The Ubiquiti PBE-5AC-500 also includes a protective radome to shield the radio from the elements. 2 units are required for a link.
Ubiquit PowerBeam PBE-5AC-500 Key Features

802.11ac Wireless AC: Built on the 5GHz ac standards for improved performance in wireless speeds up to 450mbps
Plug and Play Installation: The PowerBeam PBE-5AC-500 requires no tools for assembly; only a single wrench is required for pole-mounting
Incredible Antenna Beam Performance: The form factor of the PowerBeam features the highest gain for its size. The PowerBeams excellent beam directivity provides the best performance in high-noise environments.
Advanced Software Technology: Ubiquitis airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments.
TDMA airMAX protocol: enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Protective Radome: Includes a protective radome to shield the radio from the elements.

Main features

High capacity Point-to-Point bridge
802.11ac support - up to 450Mbps of real throughput
Protective radome included
Innerfeed™ integrated feeder

Specification:

Processor Specs Atheros MIPS 74Kc, 560 MHz
Memory 128 MB DDR2, 8 MB Flash
Networking Interface 10/100/1000 Ethernet Port
Wireless Approvals FCC, IC, CE
RoHS Compliance Yes

Dimensions
Radome Excluded 520 x 520 x 308 mm (20.47 x 20.47 x 12.13 in)
Radome Included 525 x 525 x 315 mm (20.67 x 20.67 x 12.40 in)
Weight
Radome Excluded 2.35 kg (5.18 lb)
Radome Included 3.15 kg (6.95 lb)
Power Supply 24V, 0.5A Gigabit PoE
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Max. Power Consumption 8.5W
Gain 27 dBi
Operating Frequency
Worldwide 5150 - 5875 MHz
USA 5725 - 5850 MHz
Wind Loading 419.6 N @ 200 km/h (94.33 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
LEDs Power, (1) LAN, (4) WLAN Signal Strength LEDs
Software-Adjustable to Correspond to Custom RSSI Levels
Channel Sizes 5/8/10/20/30/40 MHz
Polarization Dual Linear
Enclosure Outdoor UV Stabilized Plastic
Mounting Pole-Mount Kit Included
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Non-Condensing
Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5

Additional product information:

Datasheet
Quick Start Guide
AirOs User Guide
