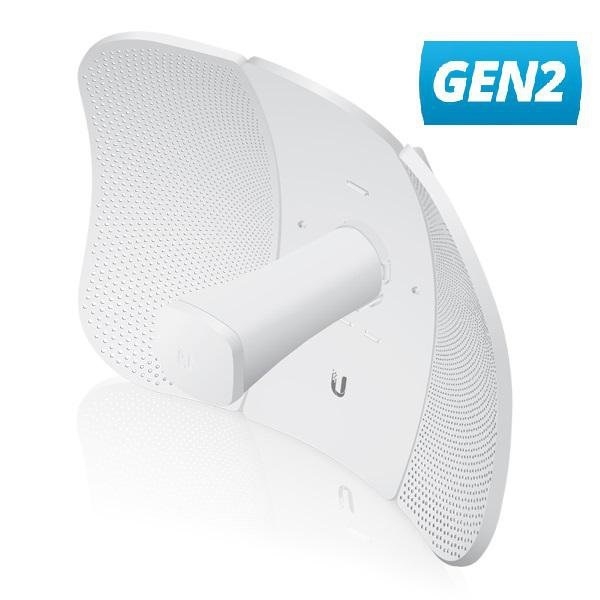

UBIQUITI LiteBeam 5AC 23dbi Gen2 (LBE-5AC-GEN2)
UBIQUITI LiteBeam 5AC 23dbi Gen2 LBE-5AC-GEN2, AirMax MIMO 2x2, outdoor 5 GHz, 802.11ac 1x GBit LAN, High Power, ultra-lightweight, POE 24V, Improved Noise Immunity.
|Price exc. VAT:||Price inc. VAT:||For orders (total sum):|
|Out of stock|
Ubiquiti Networks launches the latest generation of airMAX CPE (Customer Premises Equipment), the LiteBeam 5AC Gen 2, with dedicated Wi-Fi management.
Improved Noise Immunity
The LiteBeam 5AC Gen 2 directs RF energy in a tighter beamwidth. With the focus in one direction, the LiteBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
Improved Mounting and Surge Protection
Featuring enhanced protection against power surges, the LiteBeam 5AC Gen 2 offers a more robust mount with separate azimuth and elevation adjustments.
Ubiquiti’s InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Featuring high performance and innovative mechanical design, the LiteBeam 5AC Gen 2 is versatile and cost effective to deploy.
High-Gain, Directional, 2x2 MIMO Antenna
The LiteBeam® AC provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.
Dimensions 358 x 271.95 x 272.5 mm (14.09 x 10.71 x 10.73")
800 g (1.76 lb)
980 g (2.16 lb)
Power Supply 24V, 0.3A Gigabit PoE Adapter (Included)
Max. Power Consumption 7W
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range 24V ± 10%
Operating Frequency Worldwide USA: U-NII-1 USA: U-NII-2A USA: U-NII-2C USA: U-NII-3
2412 - 2462 MHz
5150 - 5875 MHz
5150 - 5250 MHz 5250 - 5350 MHz 5470 - 5725 MHz 5725 - 5850 MHz
Gain 23 dBi
Networking Interface (1) 10/100/1000 Ethernet Port
Processor Specs MIPS 74Kc
Memory 64 MB DDR2
LEDs Power, Ethernet
Channel Sizes PtP Mode PtMP Mode
10/20/30/40/50/60/80 MHz 10/20/30/40 MHz
Enclosure Characteristics Reflector (SGCC 0.6T) / Plastic: PC
Mounting Pole-Mounting Kit (Included)
Wind Loading 275 N @ 200 km/h (61.8 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
ESD/EMP Protection ± 24 kV Contact / Air
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
