Ubiquiti Air Max 20dBi 5GHz Sector Antenna (AM-5G20-90)
Ubiquiti Air Max 5GHz Sector Antenna, Dual Polarization, MIMO, 20dBi, 90 degrees beamwidth, recommended for Ubiquiti Rocket M Platform.
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 91.54£ | 109.85£ | >0£ |
| 90.70£ | 108.84£ | >300£ |
| 89.86£ | 107.83£ | >1000£ |
Features:
Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.

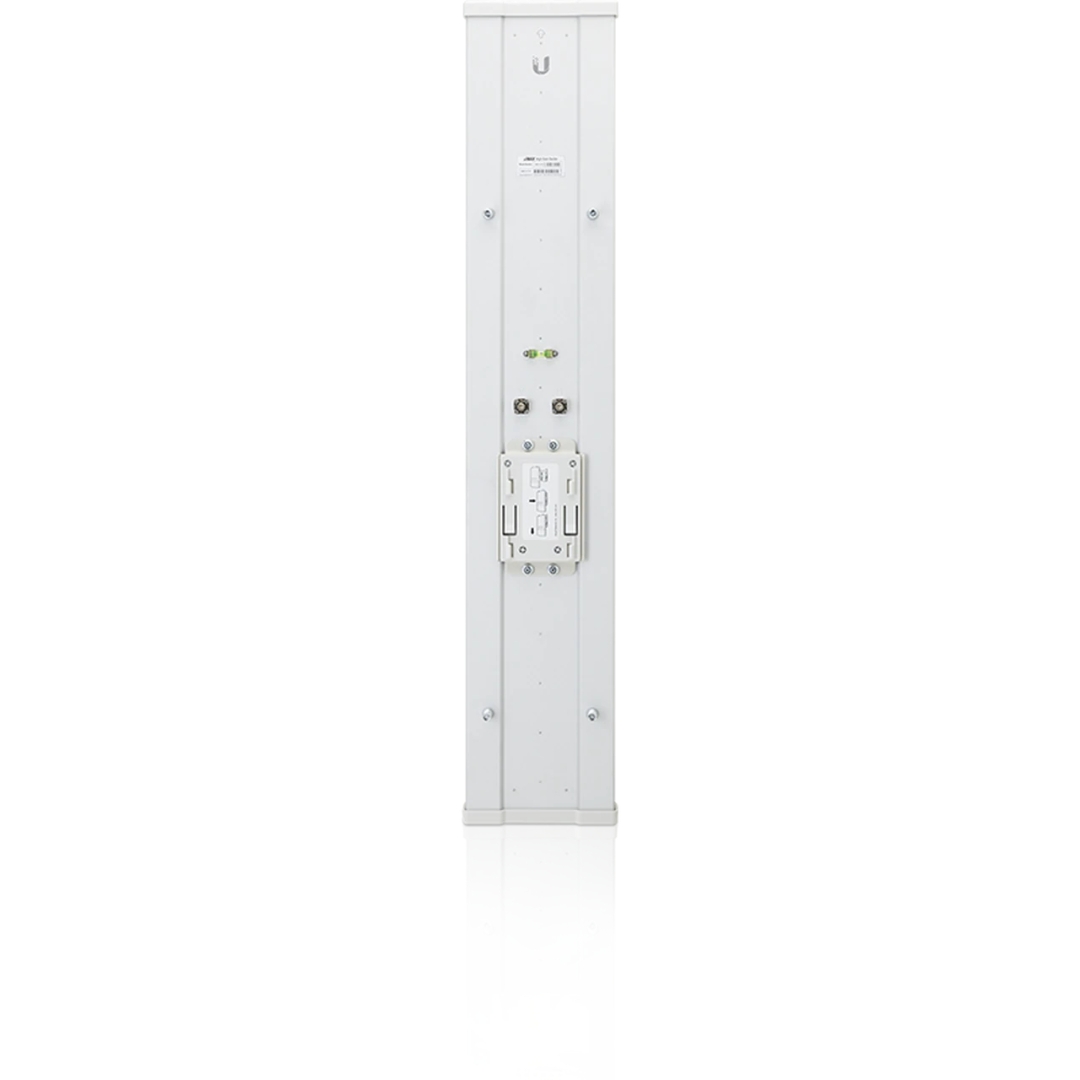

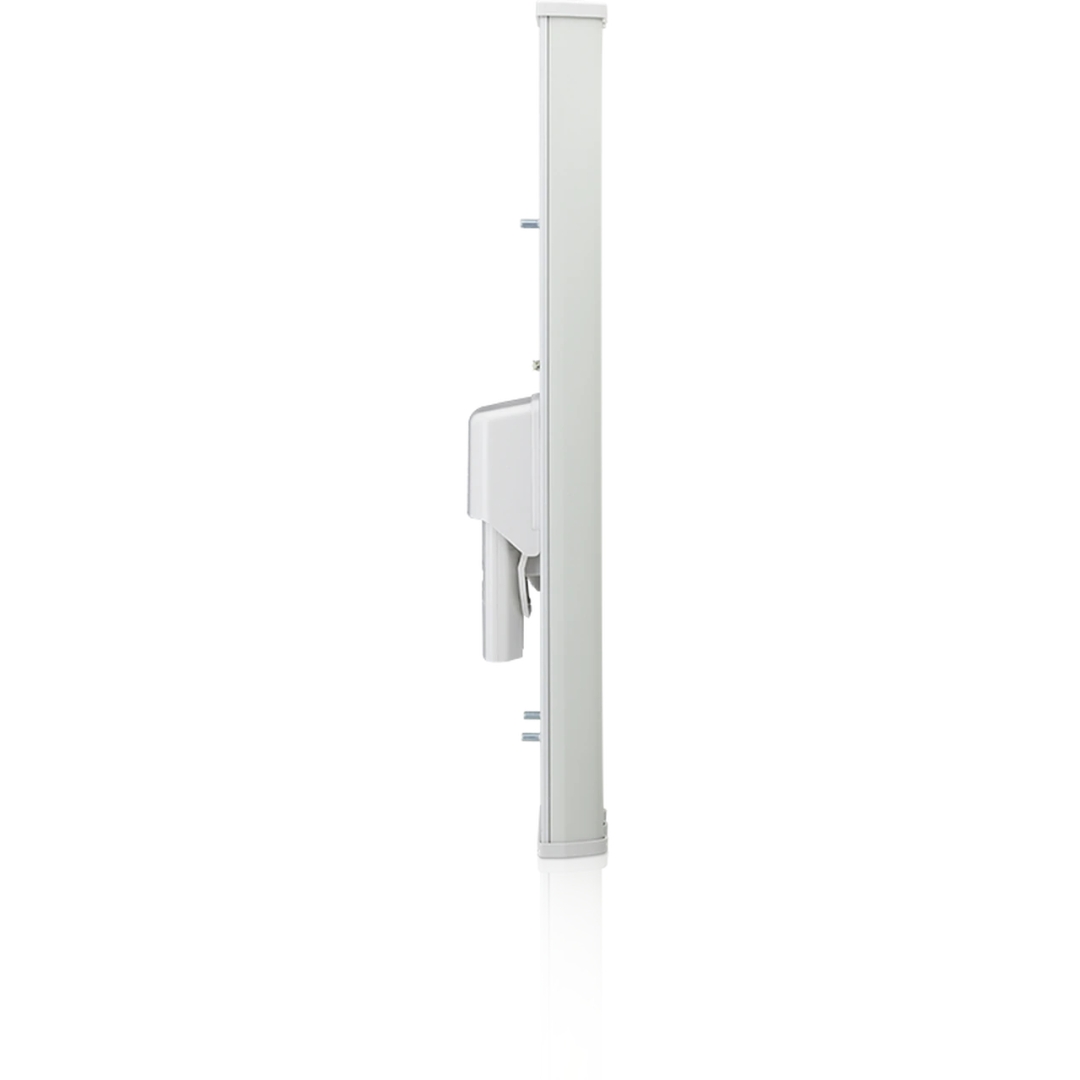

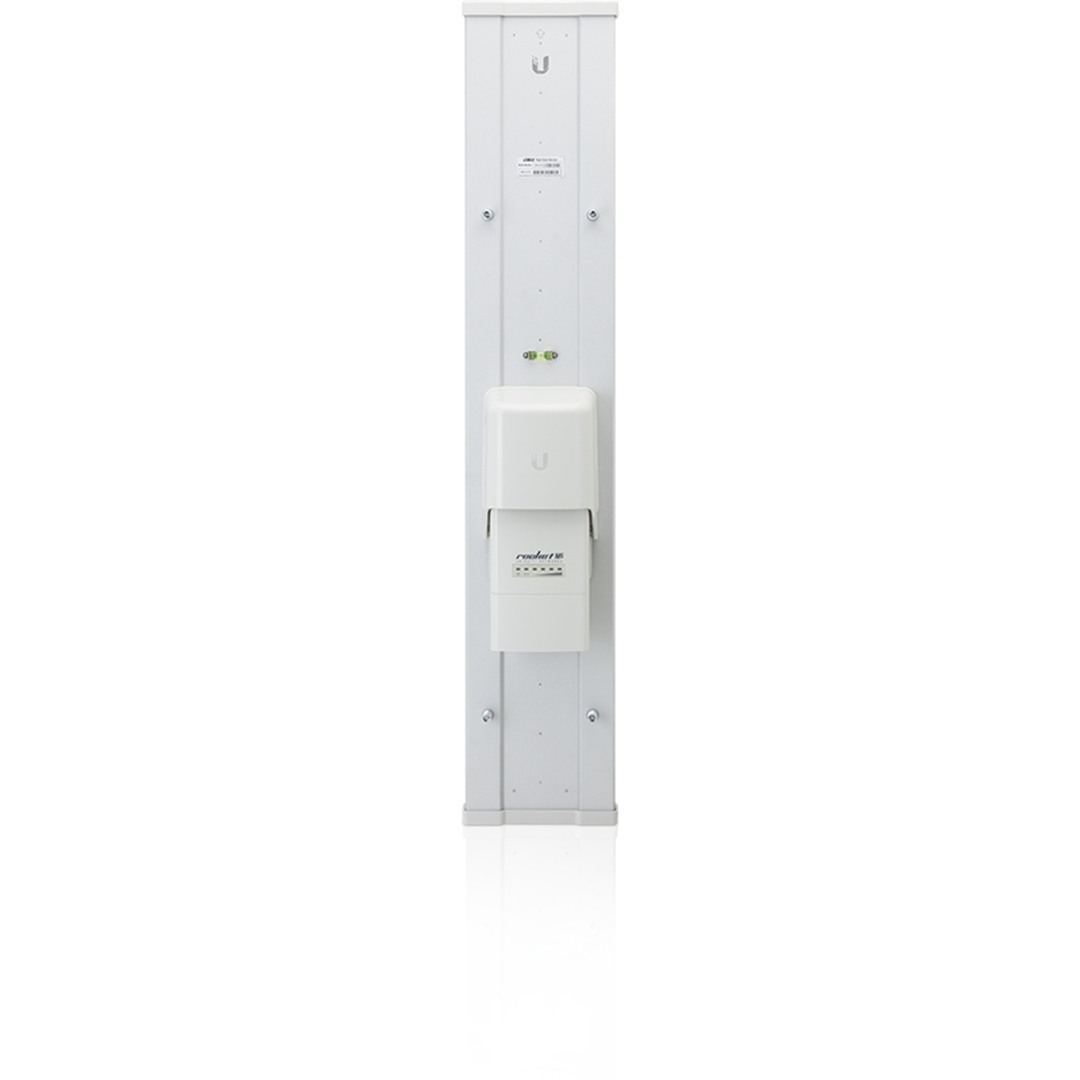

Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.
Specification:
|
AM-5G20-90 |
|
|
Dimensions |
700 x 135 x 70 mm |
|---|---|
|
Weight (Mount Included) |
5.9 kg |
|
Frequency |
5.15 - 5.85 GHz |
|
Gain |
19.4 - 20.3 dBi |
|
HPOL Beamwidth |
91° (6 dB) |
|
VPOL Beamwidth |
85° (6 dB) |
|
Elevation Beamwidth |
4° |
|
Electrical Downtilt |
2° |
|
Max. VSWR |
1.5:1 |
|
Wind Survivability |
200 km/h |
|
Wind Loading |
182 N @ 200 km/h |
|
Polarization |
Dual Linear |
|
Cross-Pol Isolation |
28 dB Min. |
|
ETSI Specification |
EN 302 326 DN2 |
|
Mounting |

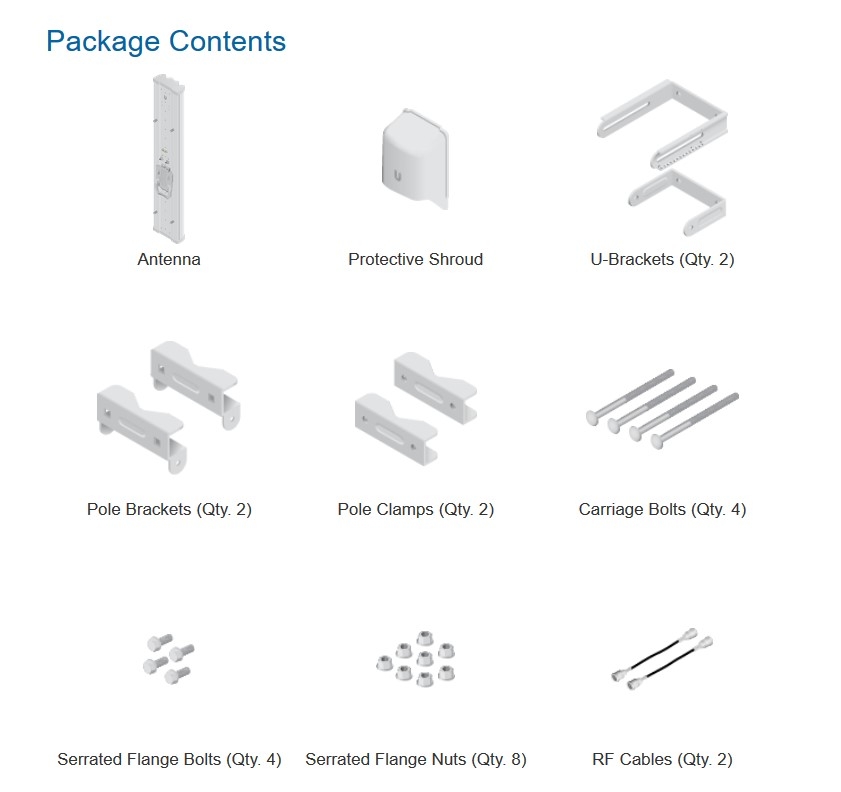

Universal Pole Mount, Rocket Bracket, and Weatherproof RF Jumpers Included |
