Ubiquiti Air Max 17dBi 5GHz Sector Antenna (AM-5G17-90)

MPN: AM-5G17-90
Order code: AM-5G-17
Quick code: #256

Ubiquiti Air Max 5GHz Sector Antenna, Dual Polarization, MIMO, 17dBi, 90 degrees beamwidth, recommended for Ubiquiti Rocket M Platform.

Price exc. VAT: Price inc. VAT: For orders (total sum):
57.66£ 69.19£ >0£
57.16£ 68.59£ >300£
56.17£ 67.40£ >1000£
Qty:


Features:

Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.
Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

Specification:

AM-5G17-90

Dimensions

367 x 63 x 41 mm
(14.45 x 2.48 x x 1.61")

Weight (Mount Included)

1.1 kg
(2.43 lb)

Frequency


AM-5G16-120 5.10 - 5.85 GHz
AM-5G17-90 4.90 - 5.85 GHz

Gain


AM-5G16-120 15.0 - 16.0 dBi
AM-5G17-90 16.1 - 17.1 dBi

HPOL Beamwidth


AM-5G16-120 137° (6 dB)
AM-5G17-90 72° (6 dB)

VPOL Beamwidth


AM-5G16-120 118° (6 dB)
AM-5G17-90 93° (6 dB)

Elevation Beamwidth

Electrical Downtilt

Max. VSWR

1.5:1

Wind Survivability

200 km/h
(125 mph)

Wind Loading

41.7 N @ 200 km/h
(9.375 lbf @ 125 mph)

Polarization

Dual Linear

Cross-Pol Isolation

22 dB Min.

ETSI Specification

EN 302 326 DN2

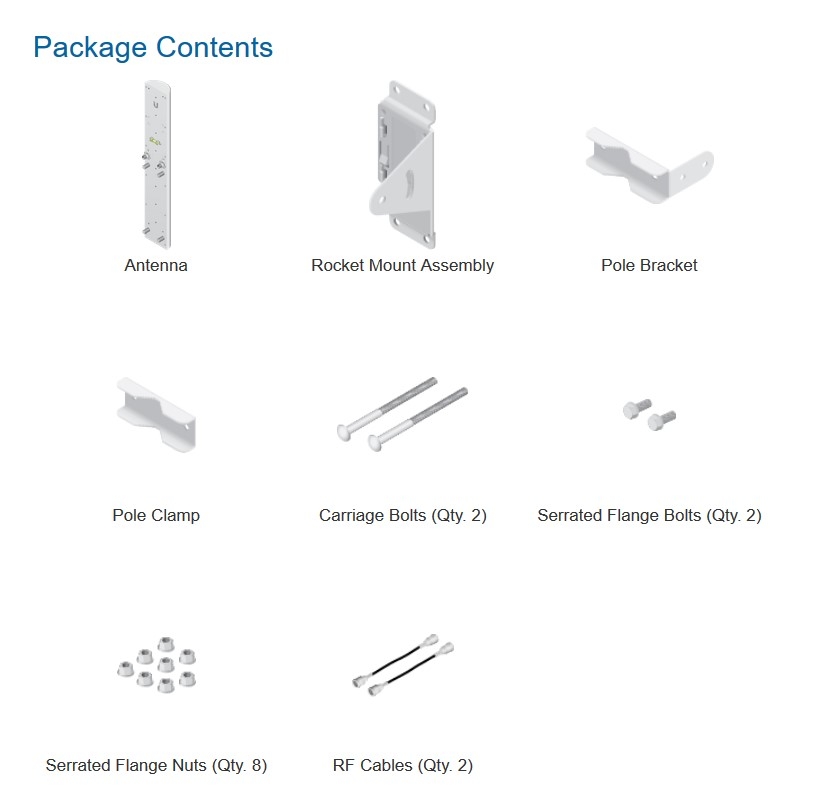

Mounting

Universal Pole Mount, Rocket Bracket, and Weatherproof RF Jumpers Included
