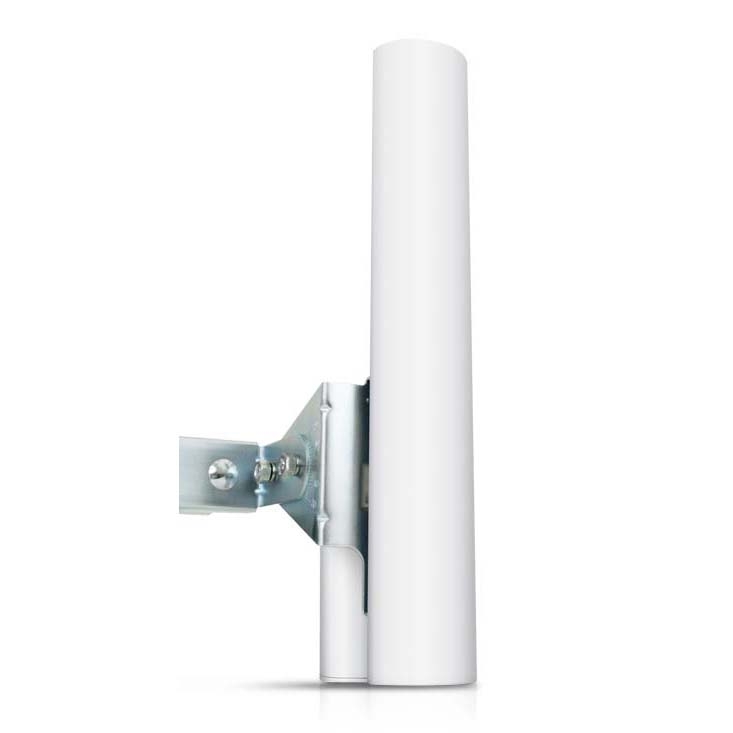

Ubiquiti Air Max 16dBi 5GHz Sector Antenna (AM-5G16-120)

MPN: AM-5G16-120
Order code: AM-5G-16
Quick code: #257

Ubiquiti Air Max 5GHz Sector Antenna, Dual Polarization, MIMO, 16dBi, 120 degrees beamwidth, recommended for Ubiquiti Rocket M Platform.

Price exc. VAT: Price inc. VAT: For orders (total sum):
58.25£ 69.90£ >0£
57.74£ 69.29£ >300£
56.74£ 68.09£ >1000£
Qty:


Features:

Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.
Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

Specification:

AM-2G16-90

Dimensions

700 x 145 x 79 mm

(27.56 x 5.71 x 3.11")

Weight (Mount Included)

3.9 kg

(8.6 lbs)

Frequency

2.3 - 2.7 GHz

Gain

16.0 - 17.0 dBi

HPOL Beamwidth

91° (6 dB)

VPOL Beamwidth

90° (6 dB)

Elevation Beamwidth

Electrical Downtilt

Max. VSWR

1.5:1

Wind Survivability

200 km/h

(125 mph)

Wind Loading

133.4 N @ 200 km/h

(30 lbf @ 125 mph)

Polarization

Dual Linear

Cross-Pol Isolation

28 dB Min.

ETSI Specification

EN 302 326 DN2

Mounting

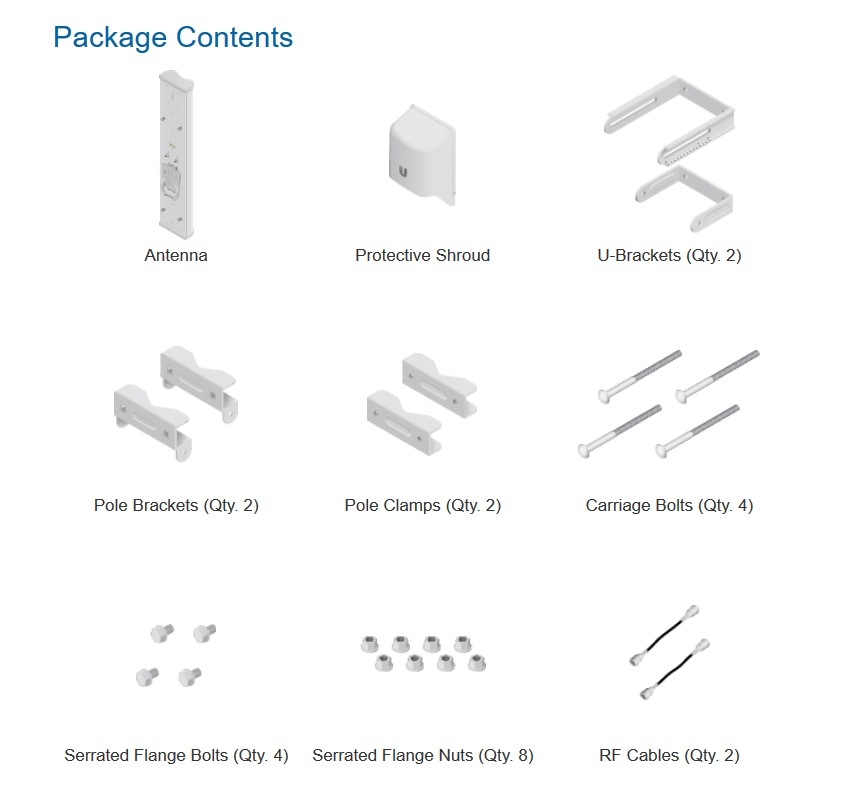

Universal Pole Mount, Rocket Bracket, and Weatherproof RF Jumpers Included
