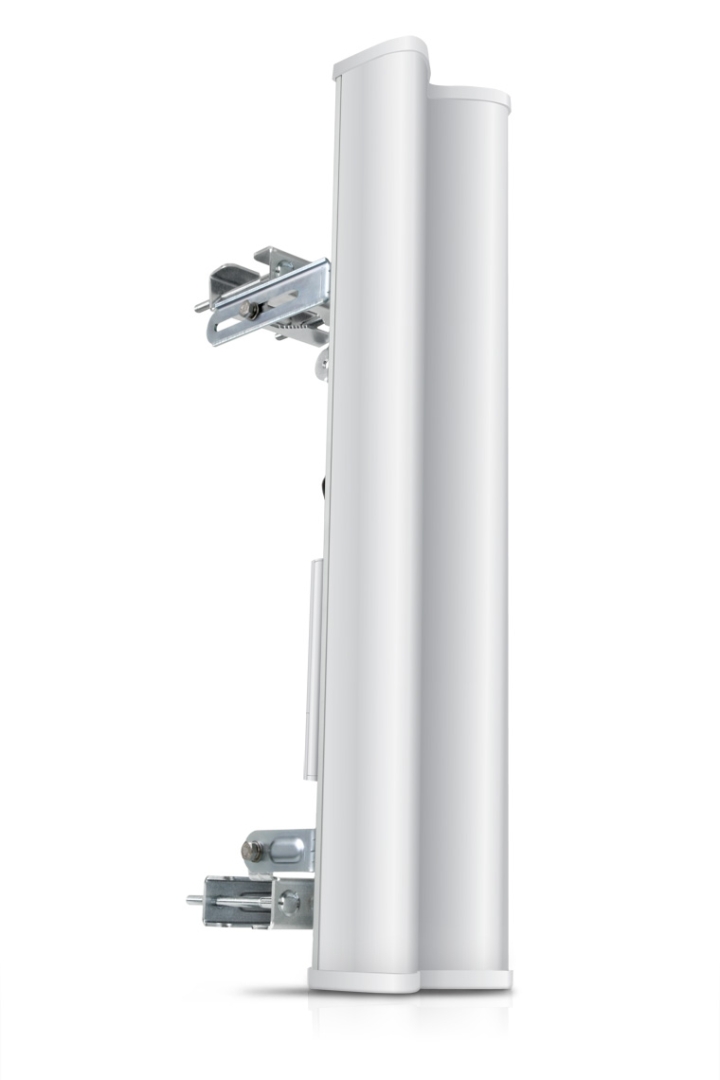

Ubiquiti Air Max 16dBi 2.4GHz Sector Antenna

Order code: AM-2G-16
Quick code: #306

Ubiquiti Air Max 2.4GHz Sector Antenna, Dual Polarization, MIMO, 16dBi, 90 degrees beamwidth, recommended for Ubiquiti Rocket M Platform.

Price exc. VAT: Price inc. VAT: For orders (total sum):
100.75£ 120.90£ >0£
99.89£ 119.87£ >300£
98.15£ 117.78£ >1000£
Qty:
  Out of stock


Features:

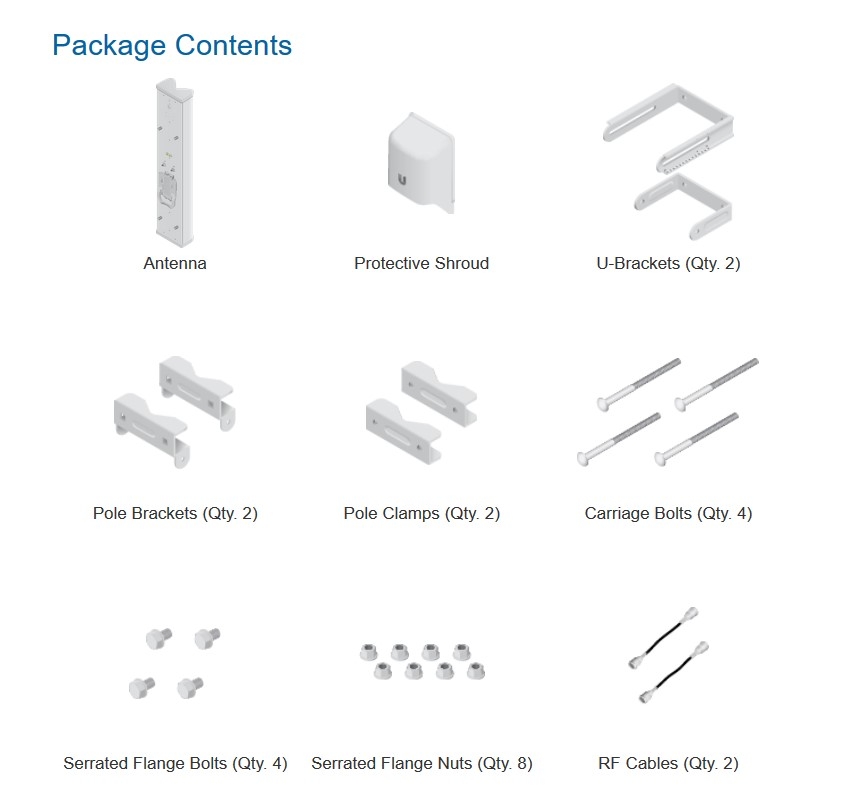

Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.
Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

Specification:

Frequency Range: 2.3-2.7GHz
Gain: 16.0-17.0dBi
Polarization: Dual Linear
Cross-pol Isolation: 28dB min.
Max VSWR: 1.5:1
Hpol Beamwidth: (6dB) 91 deg.
Vpol Beamwidth: (6dB) 90 deg.
Elevation Beamwidth: 9 deg.
Electrical Downtilt: 4 deg.
ETSI Specification: EN 302 326 DN2
Dimensions: 700x145x79mm
Weight: 3.9 kg
Windloading: 160 mph
