Ubiquiti Air Max 15dBi 2.4GHz Sector Antenna (AM-2G15-120)

MPN: AM-2G15-120
Order code: AM-2G-15
Quick code: #305

Ubiquiti Air Max 2.4GHz Sector Antenna, Dual Polarization, MIMO, 15dBi, 120 degrees beamwidth, recommended for Ubiquiti Rocket M Platform.

Price exc. VAT: Price inc. VAT: For orders (total sum):
102.10£ 122.52£ >0£
101.22£ 121.46£ >300£
99.46£ 119.35£ >1000£
Qty:


Features:

Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.
Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

Specification:

Mode AM-2G15-120
Dimensions* 700 x 145 x 93 mm
(27.56 x 5.71 x 3.66")
Weight* 4.0 kg
(8.82 lbs)
Frequency Range 2.3 - 2.7 GHz
Gain 15.0 - 16.0 dBi
HPOL Beamwidth 123° (6 dB)
VPOL Beamwidth 118° (6 dB)
Electrical Beamwidth
Electrical Downtilt
Max. VSWR 1.5:1
Wind Survivability 200 km/h
(125 mph)
Wind Loading 169 N @ 200 km/h
(38 lbf @ 125 mph)
Polarization Dual-Linear
Cross-pol Isolation 28 dB Min.
ETSI Specification EN 302 326 DN2

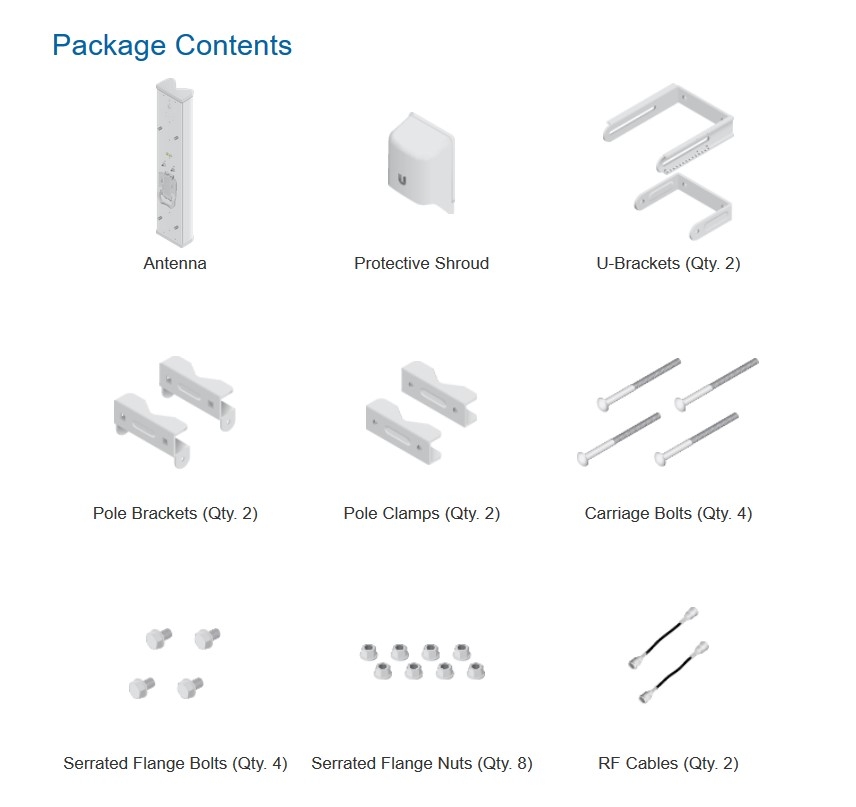

Mounting Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included

* Dimensions and weight exclude pole mount and Rocket (Rocket sold separately)
