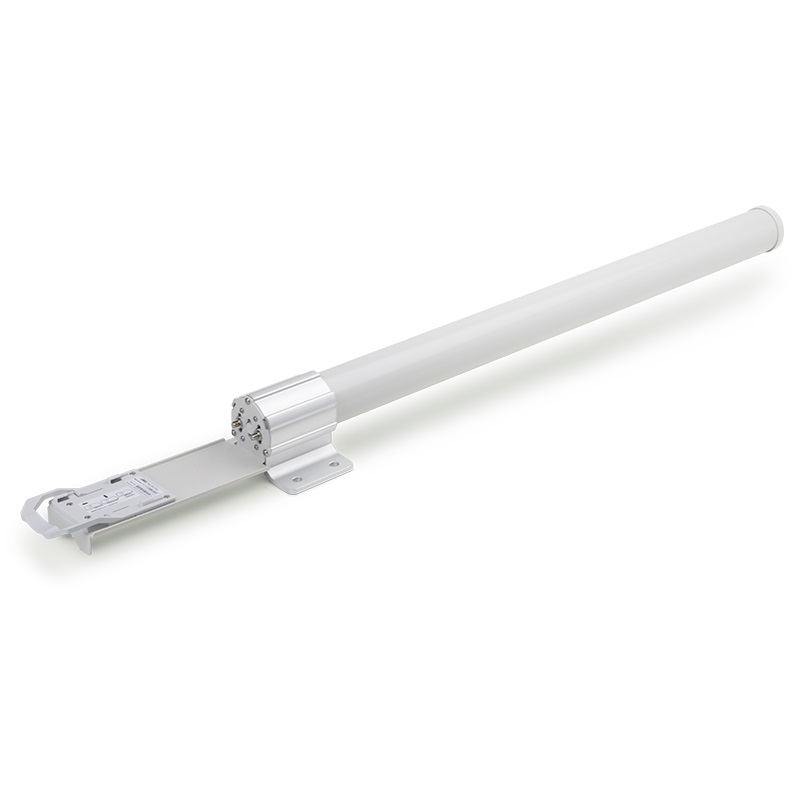

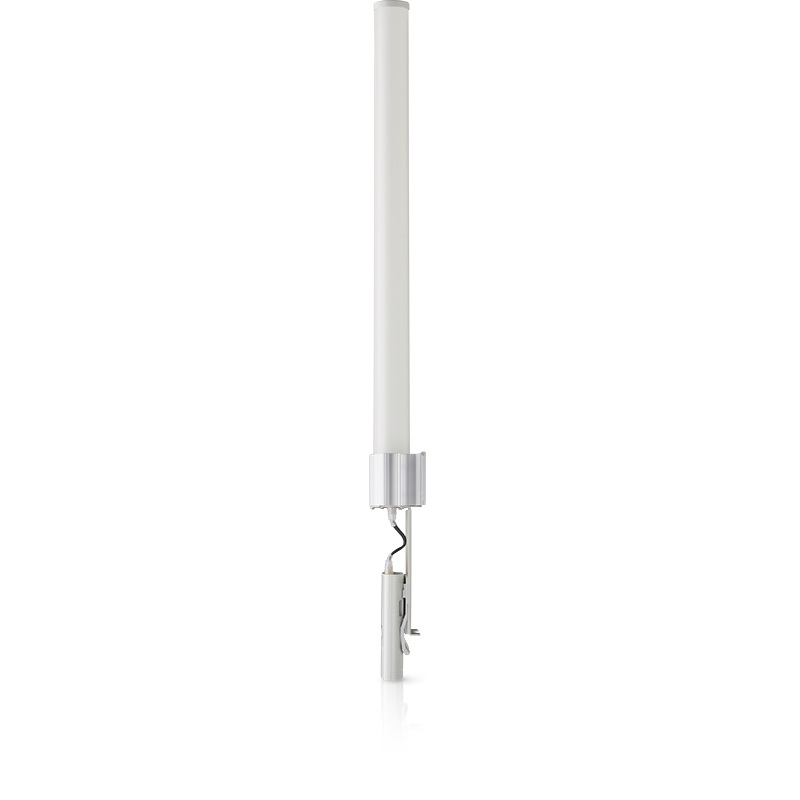

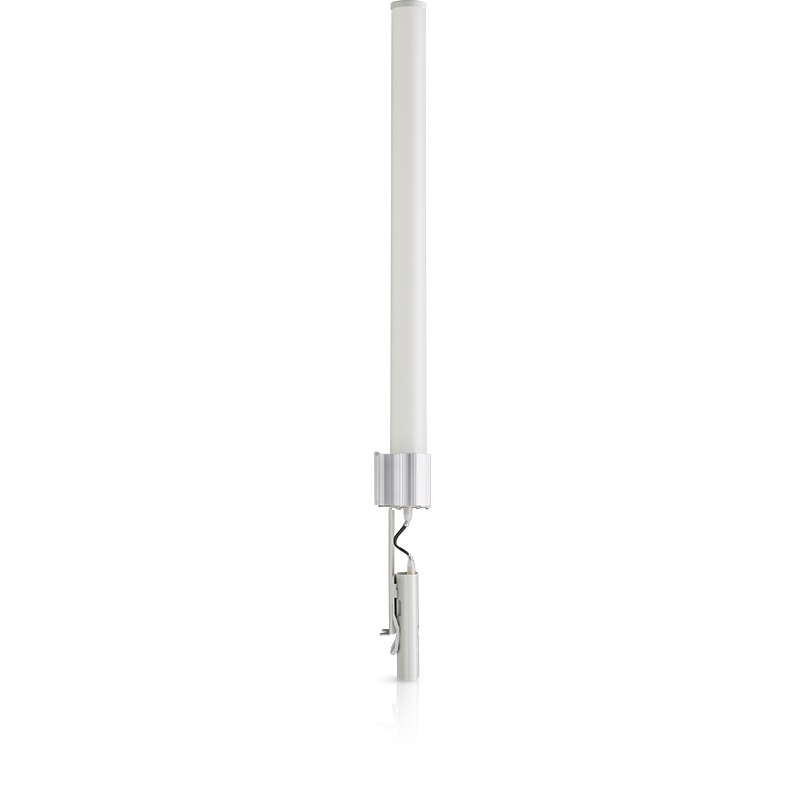

UBIQUITI 3G12 AirMax 12dBi 3GHz DualOmni Antenna (AMO-3G12)

Order code: AMO-3G12
Quick code: #669

Ubiquiti AMO-3G12 - DualOmni 3GHz, 12dBi, Next-Gen 2x2 MIMO Omni Antenna, Weatherproof RF Cables and Rocket M Mount Included

Price exc. VAT: Price inc. VAT: For orders (total sum):
115.01£ 138.01£ >0£
114.02£ 136.82£ >300£
112.04£ 134.45£ >1000£
Qty:
  In stock


Features:

The airMAX® Omni Antenna is a carrier-class 2x2 dual-polarity MIMO omnidirectional antenna designed to seamlessly integrate with Rocket radios (Rocket sold separately).

Flexibility

To support your specific application, the airMAX Omni Antenna is available in multiple frequency models:
• 2.4 GHz
• 3 GHz
• 5 GHz

Breakthrough Design

The airMAX Omni Antenna is the first of its kind to feature a patented, dual‑polarity omni design.

Omnidirectional Coverage

The airMAX Omni Antenna provides powerful 360° coverage, 2x2 MIMO performance in Line‑of‑Sight (LoS) or Non‑Line‑of‑Sight (NLoS) applications.

Durable Construction

Each airMAX Omni Antenna features a robust mechanical design for outdoor application use.

Plug and Play Integration

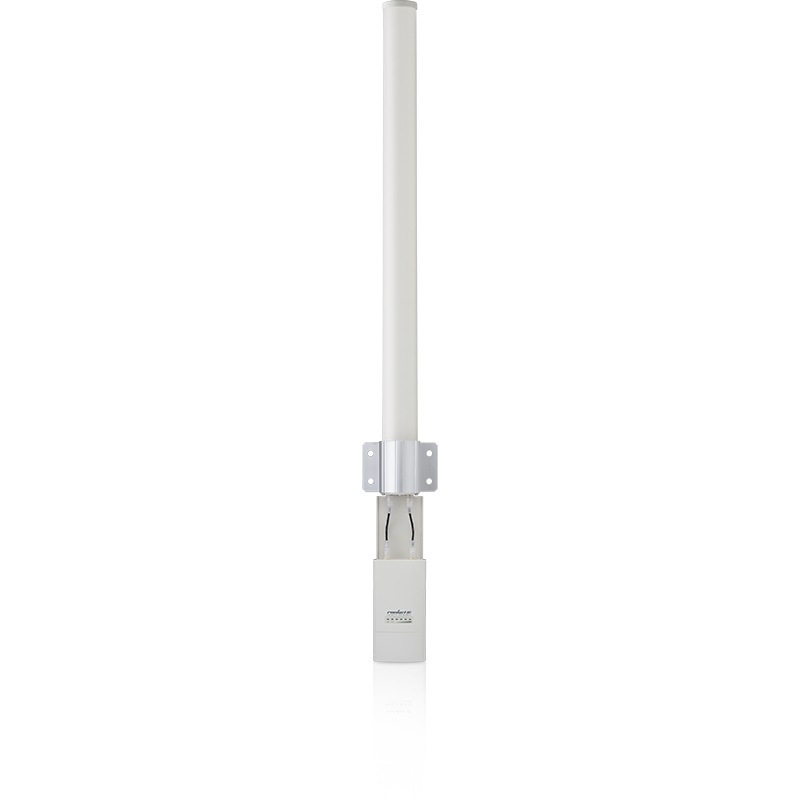

Every airMAX Omni Antenna has a built-in Rocket mount, so installation requires no special tools. Snap the Rocket securely into place and mount the antenna; you then have the optimal combination of Rocket radio and airMAX Omni Antenna for your application.

Pair the Rocket radio with the airMAX Omni Antenna to create a powerful omnidirectional basestation. This combination gives network architects unparalleled flexibility and convenience.

Specification:

Dimensions: 1030 x 122 x 84 mm (40.55 x 4.8 x 3.31")
Weight with Mount: 2.05 kg (4.52 lb)
Frequency: 3.4 – 3.7 GHz
Gain: 12 dBi
Elevation Beamwidth: 8°
Electrical Downtilt: 4°
Max. VSWR: 1.6:1
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 111.2 N @ 200 km/h (25 lbf @ 125 mph)
Polarization: Dual Linear
Cross-Pol Isolation: 25 dB Min.
RF Connectors: 2 RP-SMA Connectors (Weatherproof)

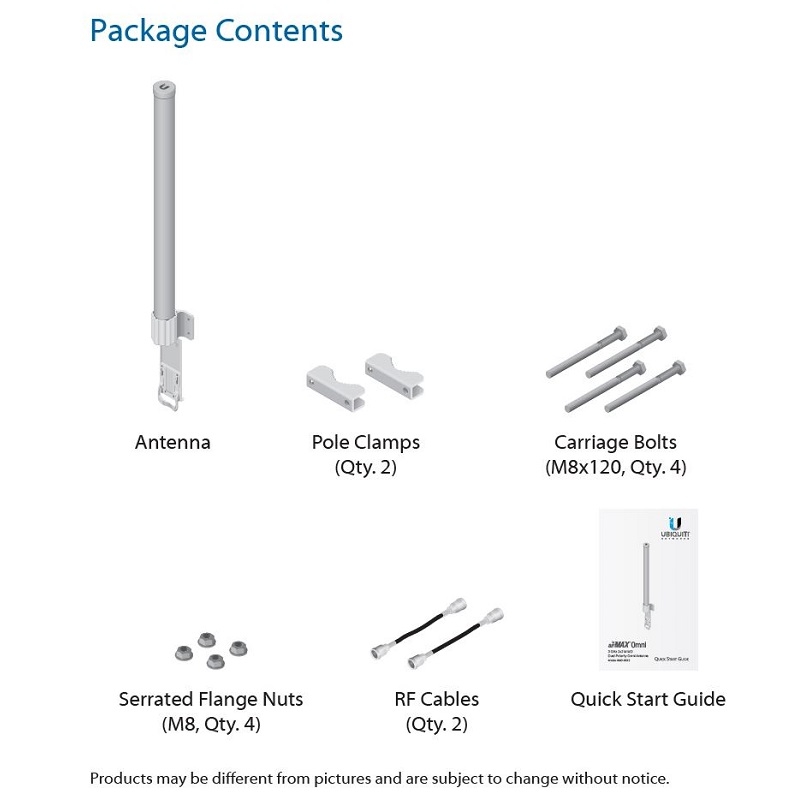

Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
ETSI Specification: EN 302 326 DN2
