Ubiquiti Air Max 13dBi 5GHz DualOmni Antenna (AMO-5G13)

Order code: AMO-5G13
Quick code: #397

Ubiquiti - AMO-5G13 - DualOmni 5GHz, 13dBi, Next-Gen 2x2 Dual Polarity MIMO Omni Antenna, Weatherproof RF Cables and Rocket M Mount Included

Price exc. VAT: Price inc. VAT: For orders (total sum):
119.18£ 143.02£ >0£
118.15£ 141.78£ >300£
116.10£ 139.32£ >1000£
Qty:
  In stock


Features:

The airMAX® Omni Antenna is a carrier-class 2x2 dual-polarity MIMO omnidirectional antenna designed to seamlessly integrate with Rocket radios (Rocket sold separately).

Flexibility

To support your specific application, the airMAX Omni Antenna is available in multiple frequency models:
• 2.4 GHz
• 3 GHz
• 5 GHz

Breakthrough Design

The airMAX Omni Antenna is the first of its kind to feature a patented, dual‑polarity omni design.

Omnidirectional Coverage

The airMAX Omni Antenna provides powerful 360° coverage, 2x2 MIMO performance in Line‑of‑Sight (LoS) or Non‑Line‑of‑Sight (NLoS) applications.

Durable Construction

Each airMAX Omni Antenna features a robust mechanical design for outdoor application use.

Plug and Play Integration

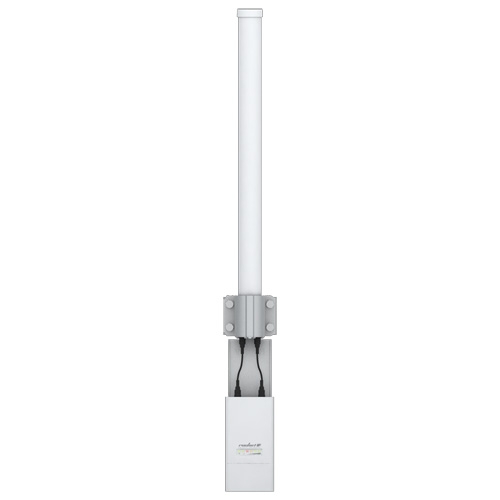

Every airMAX Omni Antenna has a built-in Rocket mount, so installation requires no special tools. Snap the Rocket securely into place and mount the antenna; you then have the optimal combination of Rocket radio and airMAX Omni Antenna for your application.

Pair the Rocket radio with the airMAX Omni Antenna to create a powerful omnidirectional basestation. This combination gives network architects unparalleled flexibility and convenience.

Specification:

Dimensions: 799 x 90 x 65 mm (31.46 x 3.54 x 2.56")
Weight with Mount: 0.82 kg (1.81 lb)
Frequency: 5.45 - 5.85 GHz
Gain: 13 dBi
Elevation Beamwidth: 7°
Electrical Downtilt: 2°
Max. VSWR: 1.5:1
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 84.52 N @ 200 km/h (19 lbf @ 125 mph)
Polarization: Dual Linear
Cross-Pol Isolation: 25 dB Min.
RF Connectors: 2 RP-SMA Connectors (Weatherproof)

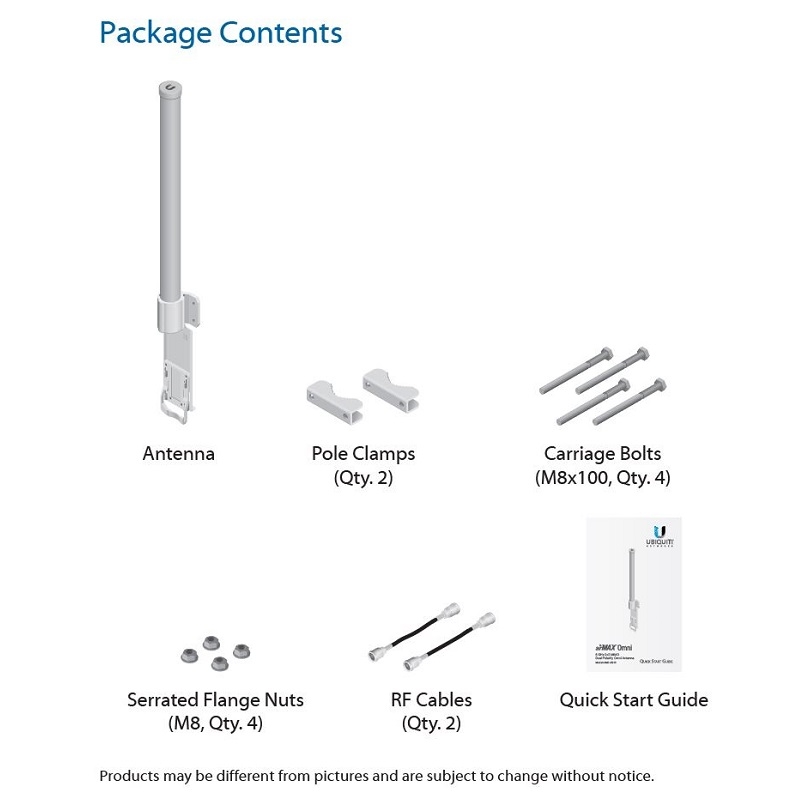

Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
ETSI Specification: EN 302 326 DN2
