Ubiquiti Air Max 10dBi 2.4GHz DualOmni Antenna (AMO-2G10)
Ubiquiti AMO-2G10 - DualOmni, 2.4GHz, 10dBi, Next-Gen 2x2 Dual Polarity MIMO Omni Antenna, Weatherproof RF Cables and Rocket M Mount Included
|Price exc. VAT:||Price inc. VAT:||For orders (total sum):|

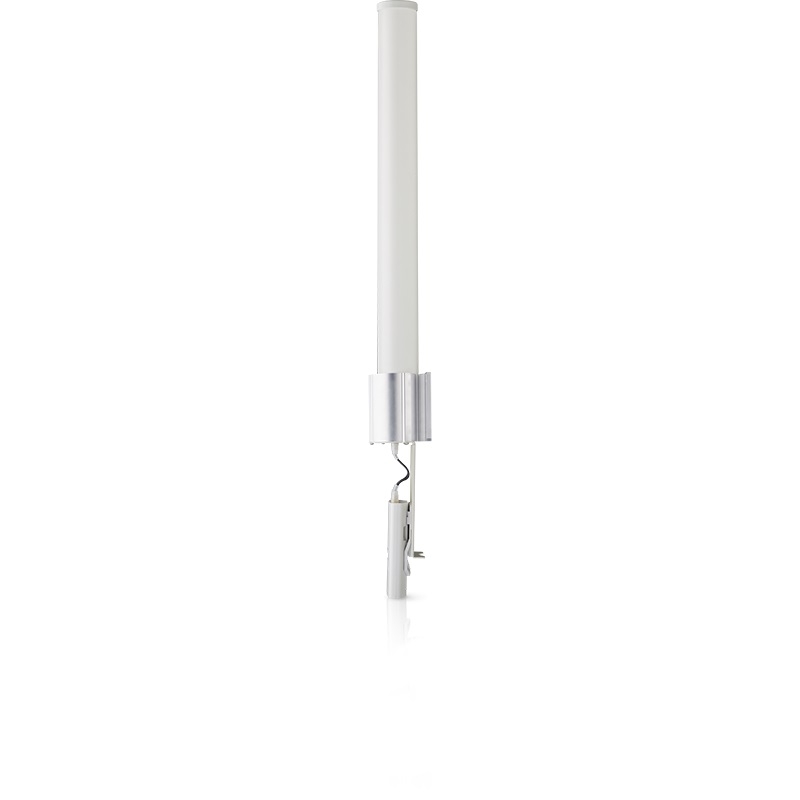

The airMAX® Omni Antenna is a carrier-class 2x2 dual-polarity MIMO omnidirectional antenna designed to seamlessly integrate with Rocket radios (Rocket sold separately).
To support your specific application, the airMAX Omni Antenna is available in multiple frequency models:
• 2.4 GHz
• 3 GHz
• 5 GHz
The airMAX Omni Antenna is the first of its kind to feature a patented, dual‑polarity omni design.
The airMAX Omni Antenna provides powerful 360° coverage, 2x2 MIMO performance in Line‑of‑Sight (LoS) or Non‑Line‑of‑Sight (NLoS) applications.
Each airMAX Omni Antenna features a robust mechanical design for outdoor application use.
Plug and Play Integration

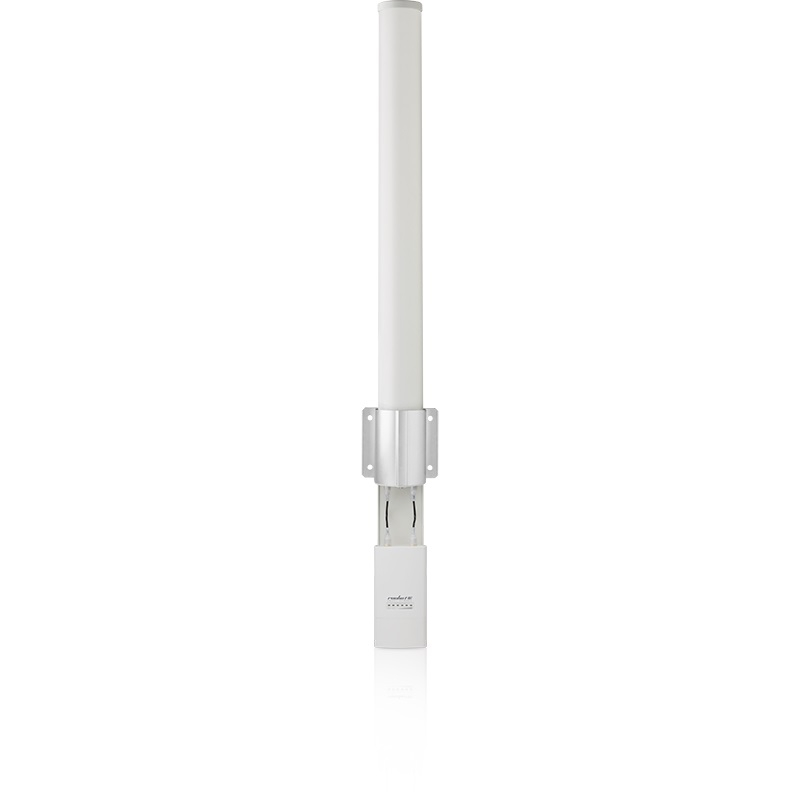

Every airMAX Omni Antenna has a built-in Rocket mount, so installation requires no special tools. Snap the Rocket securely into place and mount the antenna; you then have the optimal combination of Rocket radio and airMAX Omni Antenna for your application.
Pair the Rocket radio with the airMAX Omni Antenna to create a powerful omnidirectional basestation. This combination gives network architects unparalleled flexibility and convenience.
Dimensions: 1012 x 122 x 105 mm (39.84 x 4.8 x 4.13")
Weight with Mount: 2.1 kg (4.24 lb)
Frequency: 2.35 - 2.55 GHz
Gain: 10 dBi
Elevation Beamwidth: 12°
Electrical Downtilt: 4°
Max. VSWR: 1.7:1
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 97.9 N @ 200 km/h (22 lbf @ 125 mph)
Polarization: Dual Linear
Cross-Pol Isolation: 25 dB Min.
RF Connectors: 2 RP-SMA Connectors (Weatherproof)

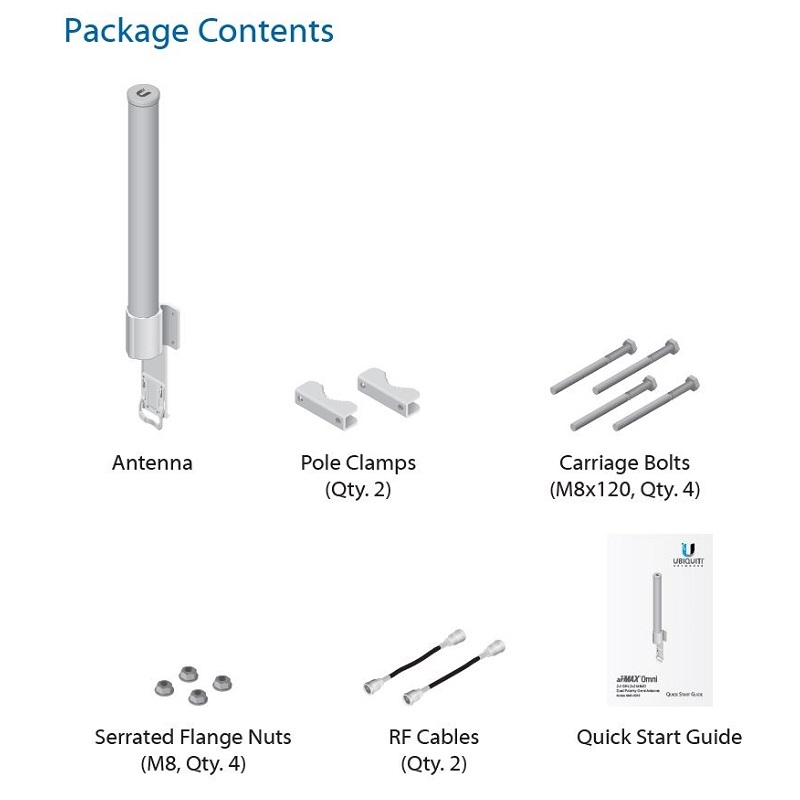

Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
ETSI Specification: EN 302 326 DN2
