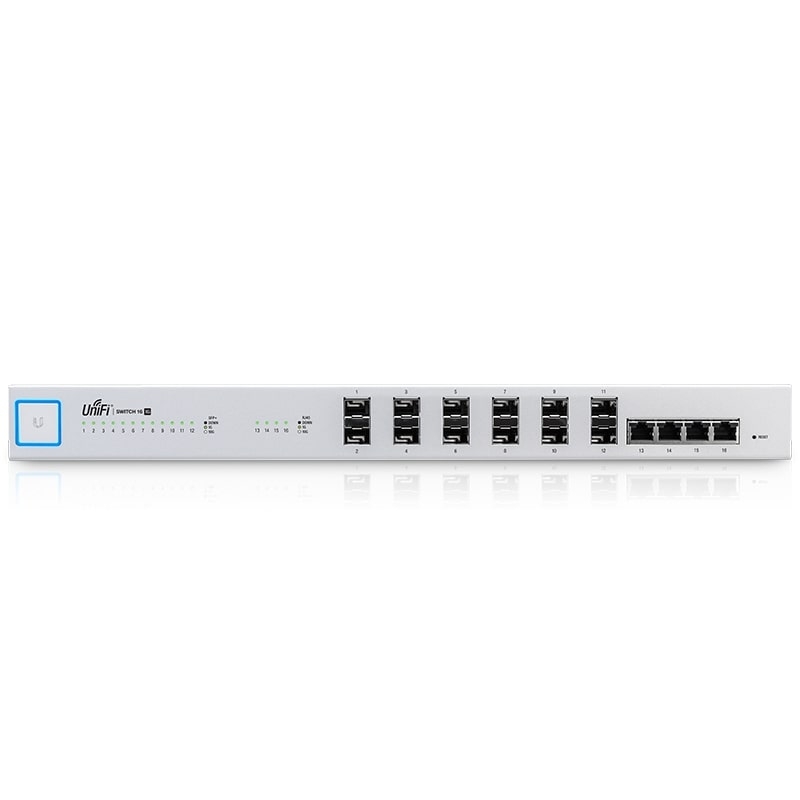

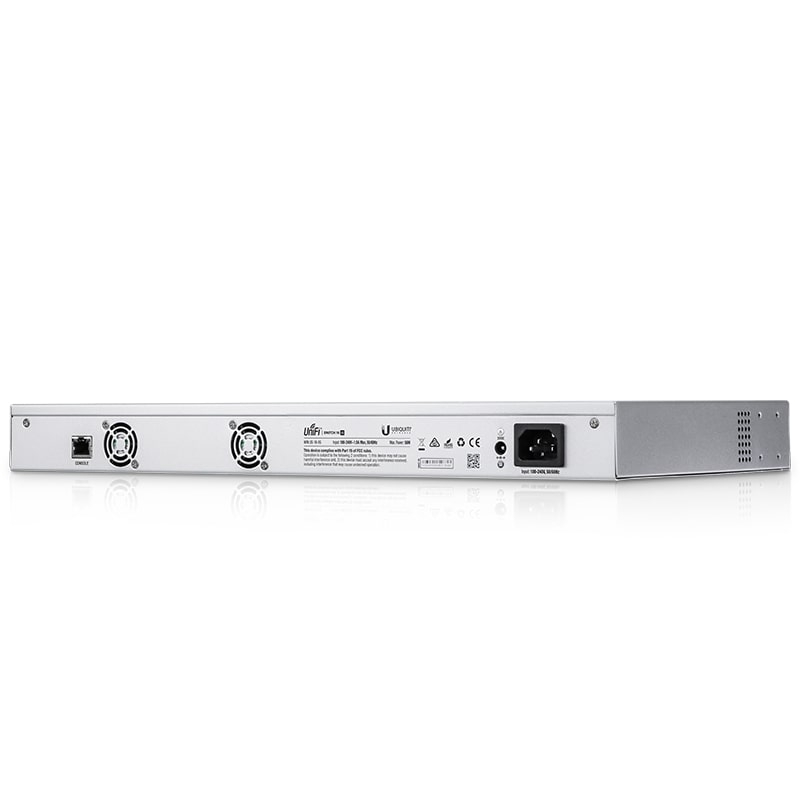

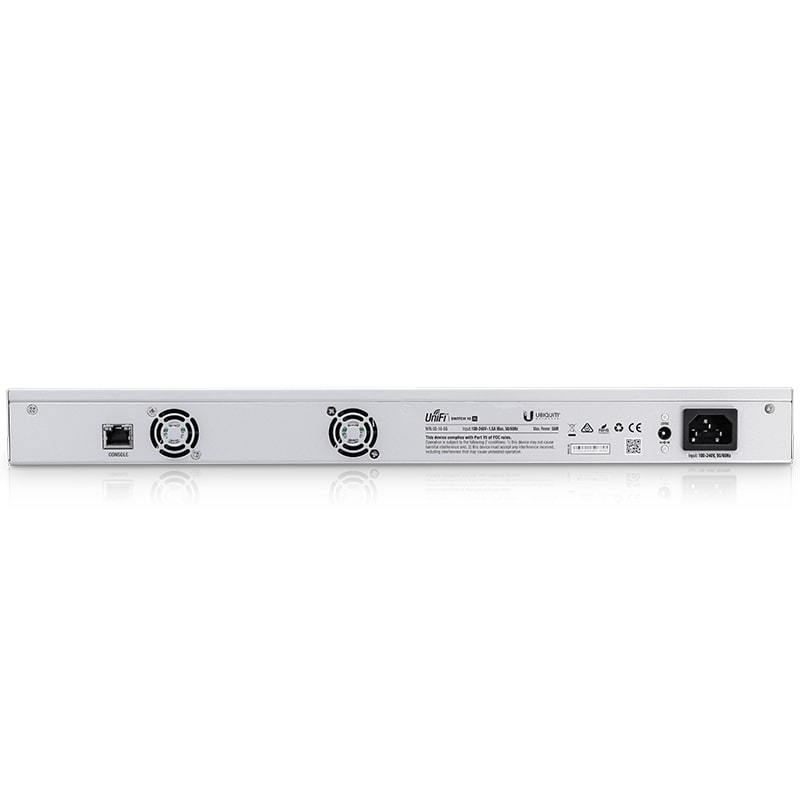

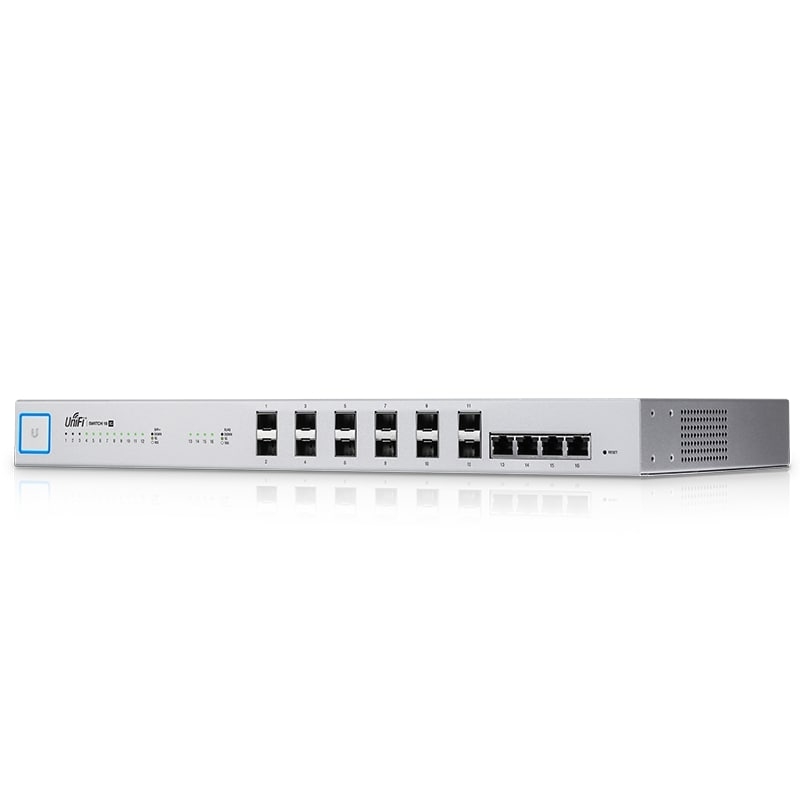

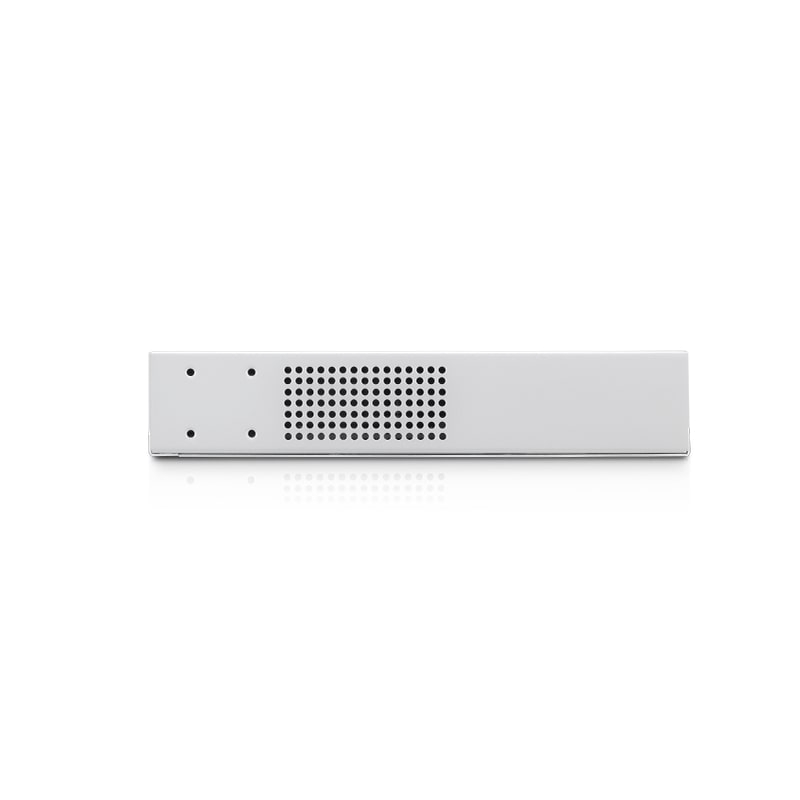

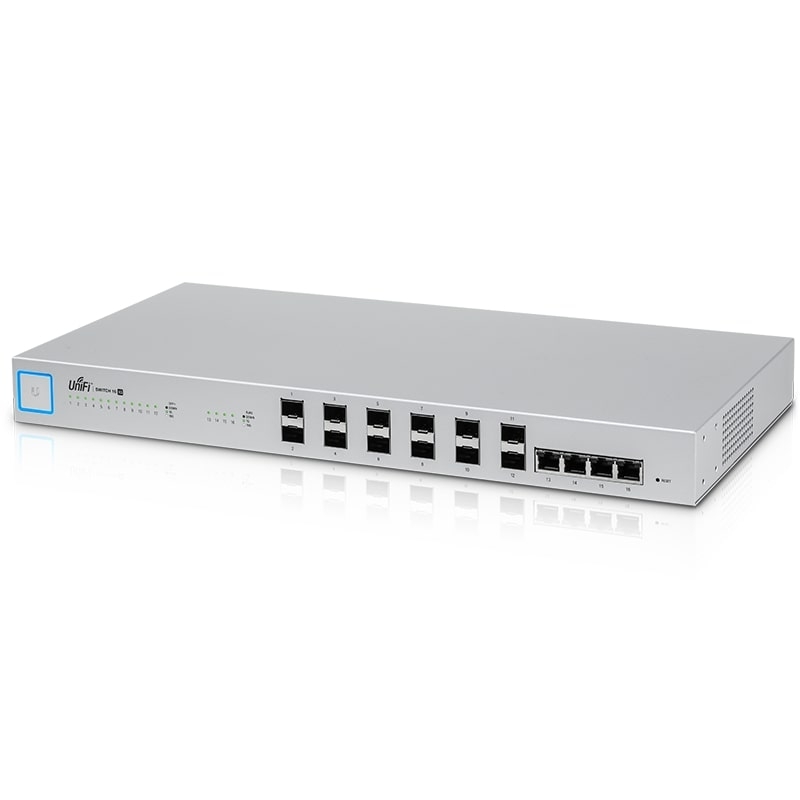

UBIQUITI US-16-XG 10G Aggregation Switch
UBIQUITI UnifiSwitch US-16-XG 10G 16-Port Managed Aggregation Switch, 12x 1/10 Gbps SFP+ ports, 4x 1/10 Gbps LAN ports, 160 Gbps total throughput
|Price exc. VAT:||Price inc. VAT:||For orders (total sum):|
|Out of stock|
10G Aggregation Switch for Enterprise Networks
Build and expand your network with Ubiquiti Networks® UniFi® Switch 16 XG, part of the UniFi Enterprise System. The US‑16‑XG is a fully managed, 16-port, 10G fiber switch that enhances network capacity by providing high-bandwidth aggregation connectivity to multiple switches in your network.
The US‑16‑XG offers an extensive suite of advanced Layer-2 switching features and protocols.
The US‑16‑XG offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
The total non-blocking throughput is up to 160 Gbps.
10G High-Capacity Links
The US‑16‑XG offers maximum performance and low latency as an aggregation switch.
For fiber connectivity, it features 12 SFP+ ports. For copper connectivity, the US‑16‑XG offers four RJ45 ports that support 10GBASE-T, the standard for 10 Gbps connections using Cat6 (or higher) cabling and RJ45 connectors.
• (12) 1G/10G SFP+ Ports
• (4) 1G/10G RJ45 Ports
• (1) RJ45 Serial Console Port
• Non-Blocking Throughput: 160 Gbps
• Switching Capacity: 320 Gbps
• Forwarding Rate: 238.10 Mpps

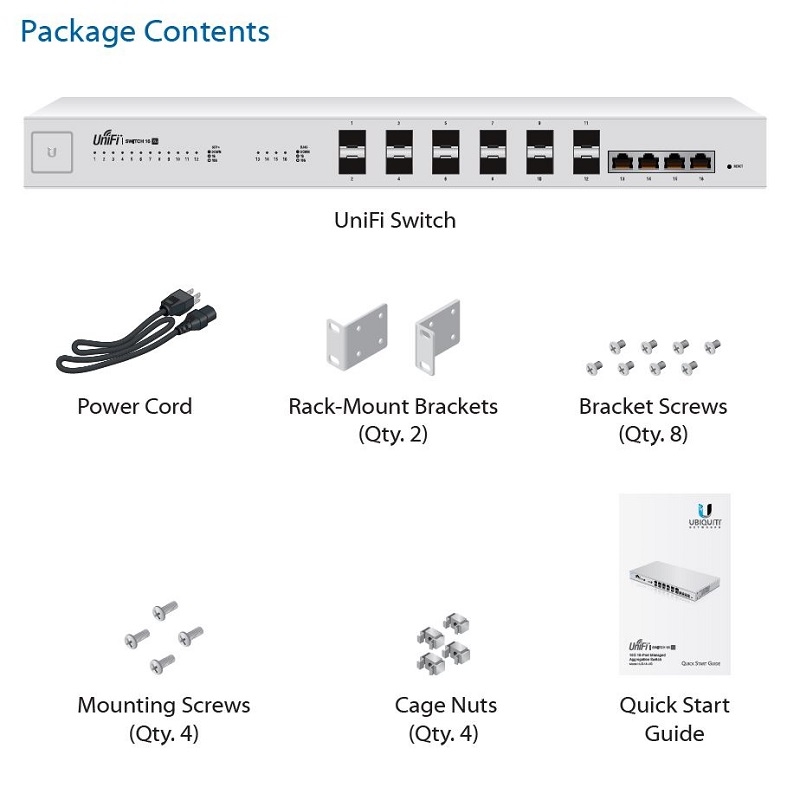

• Rack Mountable with Mount Brackets (Included)
• DC Input Option (Redundant or Stand-Alone)
Dimensions: 443 x 221 x 43 mm (17.44 x 8.70 x 1.69")
Weight Without Mount Brackets: 2.62 kg (5.78 lb)
Weight With Mount Brackets: 2.71 kg (5.97 lb)
Enclosure Characteristics: SGCC Steel
Total Non-Blocking Throughput: 160 Gbps
Switching Capacity: 320 Gbps
Forwarding Rate: 238.10 Mpps
Max. DC Power Consumption: 36W (Excludes SFP/SFP+ Modules)
Power Method AC: 100-240VAC/50-60 Hz, Universal Input
Power Method DC: DC 56W, 25 to 16V, with 2.5 mm DC Power Inline Connector
Supported Voltage Range: AC - 100 to 240VAC, DC - 25 to 16VDC
Power Supply: AC/DC, Internal, 56W DC
LEDs: Per Data Port Speed/Link/Activity
Networking Interfaces: (12) 1/10 Gbps SFP+ Ethernet Ports, (4) 1/10 Gbps RJ45 Ethernet Ports
Management Interface: (1) RJ45 Serial Port Out-of-Band, Ethernet Ports In-Band
Certifications: CE, FCC, IC
Rack Mount: Yes, 1U High
ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature: -5 to 40° C (23 to 104° F)
Operating Humidity: 5 to 95% Noncondensing
Shock and Vibration: ETSI300-019-1.4 Standard
