UBIQUITI UniFi WiFi BaseStation XG UWB‑XG (UWB-XG)
UniFi WiFi BaseStation XG - The World's Highest Capacity Wi-Fi AP.
Elegant Industrial Design
Available in white or black, the sleek UniFi WiFi BaseStationXG is a versatile access point with multiple mounting options to suit your application.
Designed for Stadiums and Event Venues
Featuring maximum wireless performance combined with wireless security, the UniFi WiFi BaseStationXG is ideal for ultra high density environments, such as event venues, festivals, and stadiums, where there are numerous clients in a relatively small space.
Superior Capacity for Large Crowds
Featuring low-latency QoS (Quality of Service), the UniFi WiFi BaseStationXG supports up to 1500 clients with 12 MU-MIMO chains (500 clients with 4 MU-MIMO chains per client radio).
RF Energy Steering
True cellular Wi-Fi using multiple APs – its selectable directional beamforming antenna allows for cell size optimization to maximize coverage.
RF Channel Filtering
Provides isolation for seamless parallel radio operation.
The UniFi WiFi BaseStationXG delivers unprecedented wireless awareness and security, including tools for real-time spectrum monitoring, airtime utilization analytics, and intrusion detection/prevention. Using a persistent spectral scan, the AP constantly monitors the RF environment to check for both potential malicious activity and the best channel for network performance
Advanced Features in UniFi Controller
Featuring an intuitive user interface, the UniFi Controller conducts device discovery, provisioning, monitoring, and configuration for centralized control of UniFi devices.
|Operating Frequency||5 GHz|
|Wi-Fi Standards||802.11 a/n/ac/ac-wave2|
|Encryption||WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF|
|Antennas||Integrated Dual-Mode Antenna Array|
|Interfaces||(1) 10/100/1000 Ethernet Port
(1) 1/10 Gbps ICM Ethernet Port
|Max. TX Power||25 dBm|
|Gain||Small Cell 10 dBi
Large Cell 15 dBi
|Max. Power Consumption||31W|
|Power Supply (PoE)||50VDC, 1.2A Gigabit PoE|
|Power Method||802.3bt PoE|

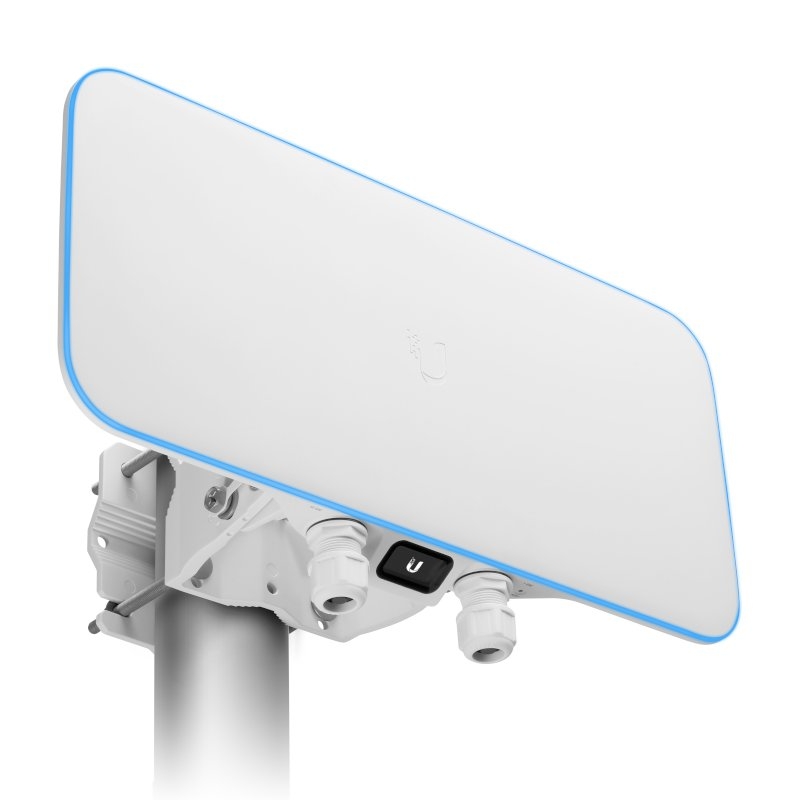

|Mounting||VESA-Compatible Mount, Pole/Wall (Brackets Included)|
|Operating Temperature||-10 to 70° C (14 to 158° F)|
|Operating Humidity||5 to 95% Noncondensing|
|Dimensions||471.1 x 257.5 x 94.3 mm|
