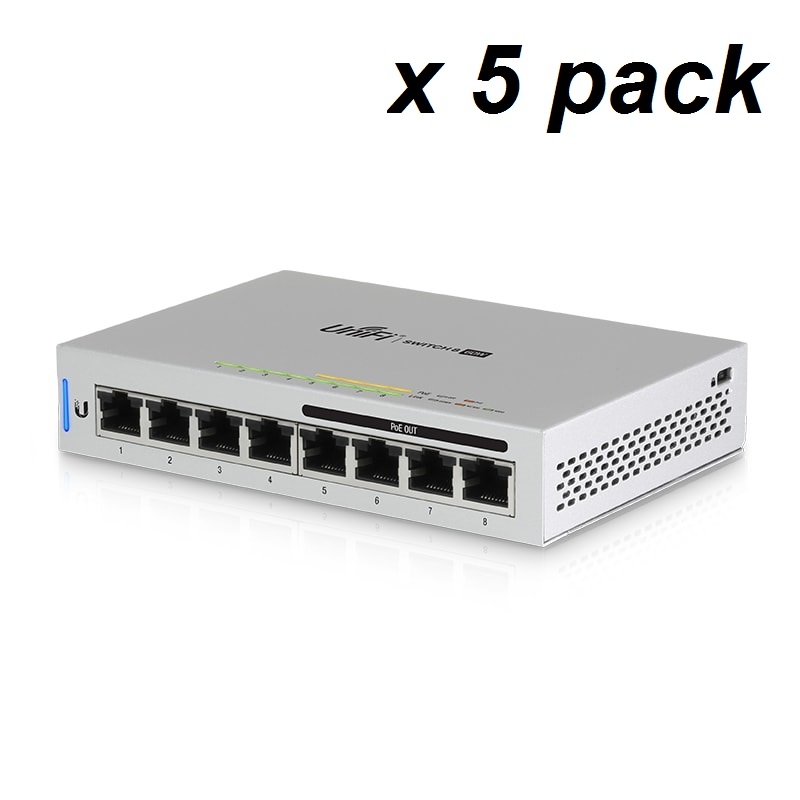

UBIQUITI Unifi Fully Managed Gigabit Switch, 5 pack (US-8-60W-5)
4x Gigabit LAN ports + 4x Gigabit Auto-Sensing IEEE 802.3af PoE Ports, up to 15.4W
|Price exc. VAT:||Price inc. VAT:||For orders (total sum):|
• (8) Gigabit RJ45 Ports
• (4) Auto-Sensing IEEE 802.3af PoE Ports
• Non-Blocking Throughput: 8 Gbps
• Switching Capacity: 16 Gbps
• Forwarding Rate: 11.9 Mpps
• Maximum Power Consumption: 12W
8-Port Managed Gigabit Switches
The US-8-60W is an 8-port gigabit switch with four 802.3af PoE ports. Its auto-sensing PoE ports deliver up to 15.4W of power per port.
The new 8-port models feature Gigabit Ethernet ports in a compact form factor. For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps.
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, with a switching capacity of 16 Gbps.
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
Dimensions: 148.0 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21")
Weight: 432 g (15.24 oz)
Enclosure Characteristics: SGCC Steel
Total Non-Blocking Throughput: 8 Gbps
Switching Capacity: 16 Gbps
Forwarding Rate: 11.9 Mpps
Max. Power Consumption: 12W (Excluding PoE Output)
Max. PoE Wattage per Port: 15.4W
Power Method: 48VDC, Max. 2A
Supported Voltage Range: 57VDC to 44VDC
Power Supply: External AC/DC Adapter, 48V, 1.25A
LEDs: PoE (Port 8), Speed/Link/Activity (All Ports)
Networking Interfaces: (8) 10/100/1000 Mbps RJ45 Ports
PoE Interfaces (4) Ports 5, 6, 7, 8; IEEE802.3af
ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature: -5 to 45° C (23 to 113° F)
Operating Humidity: 5 to 95% Noncondensing
Shock and Vibration: ETSI300-019-1.4 Standard
Certifications: CE, FCC, IC
