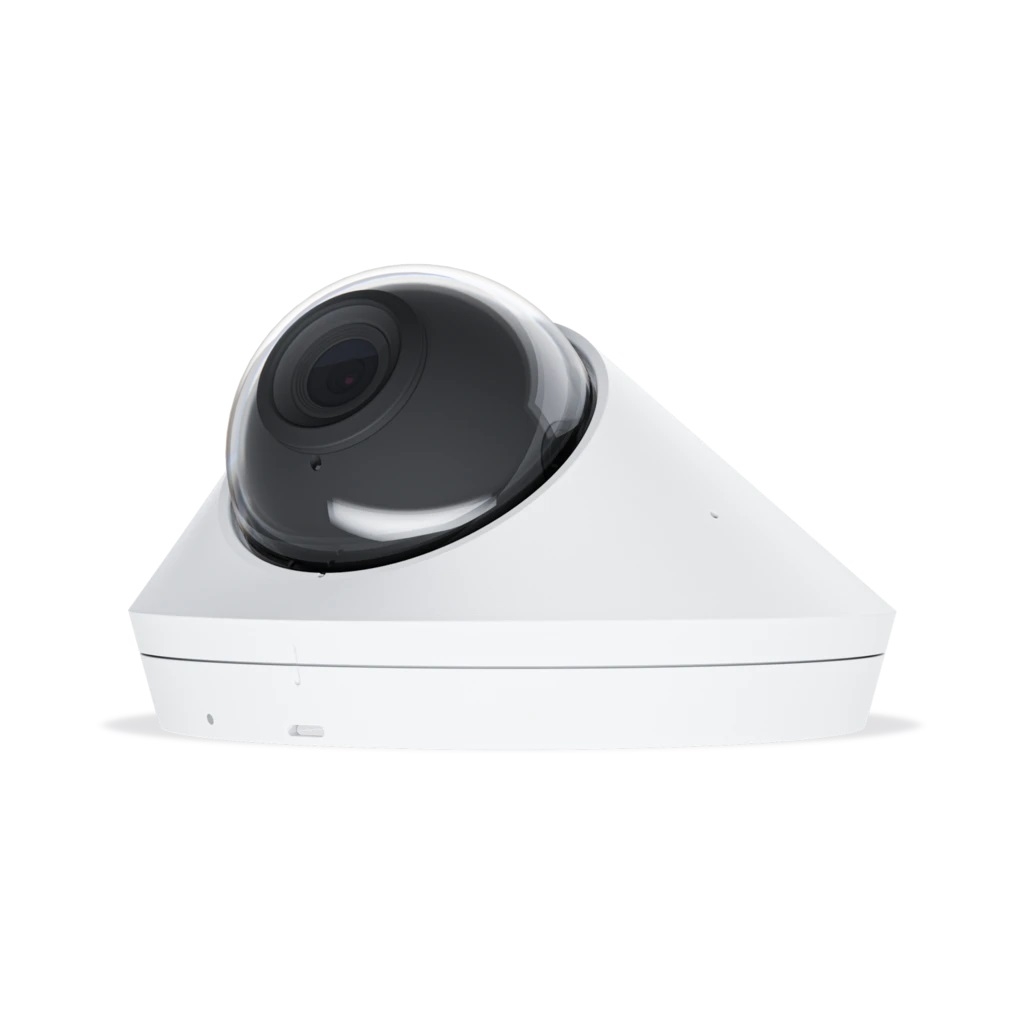

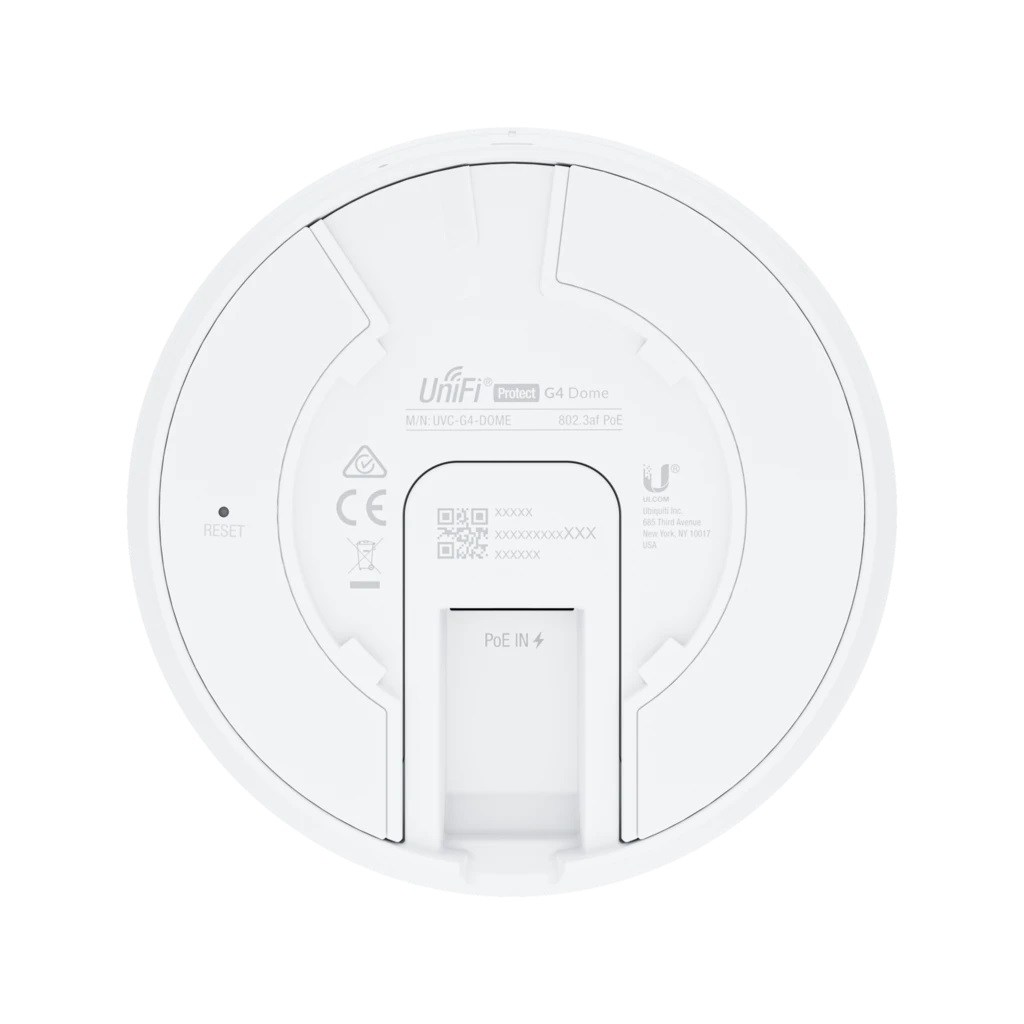

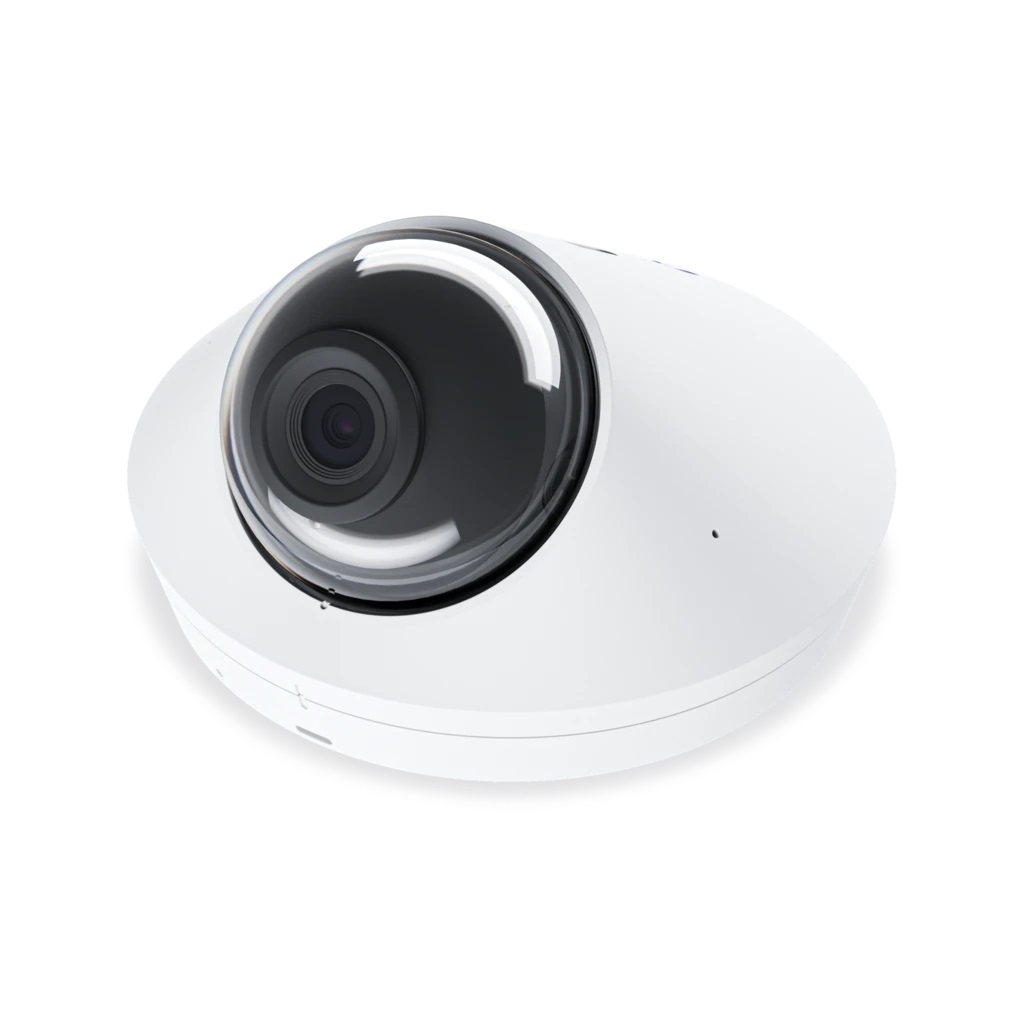

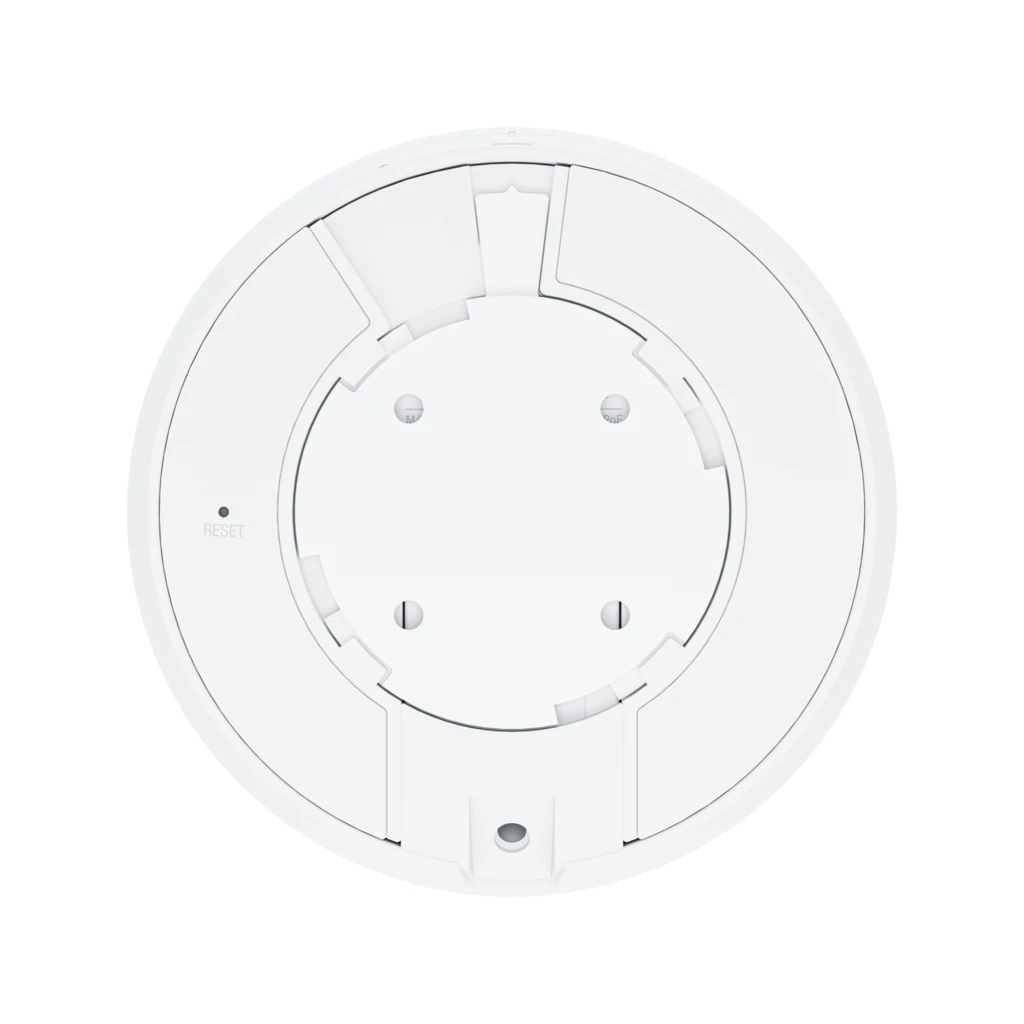

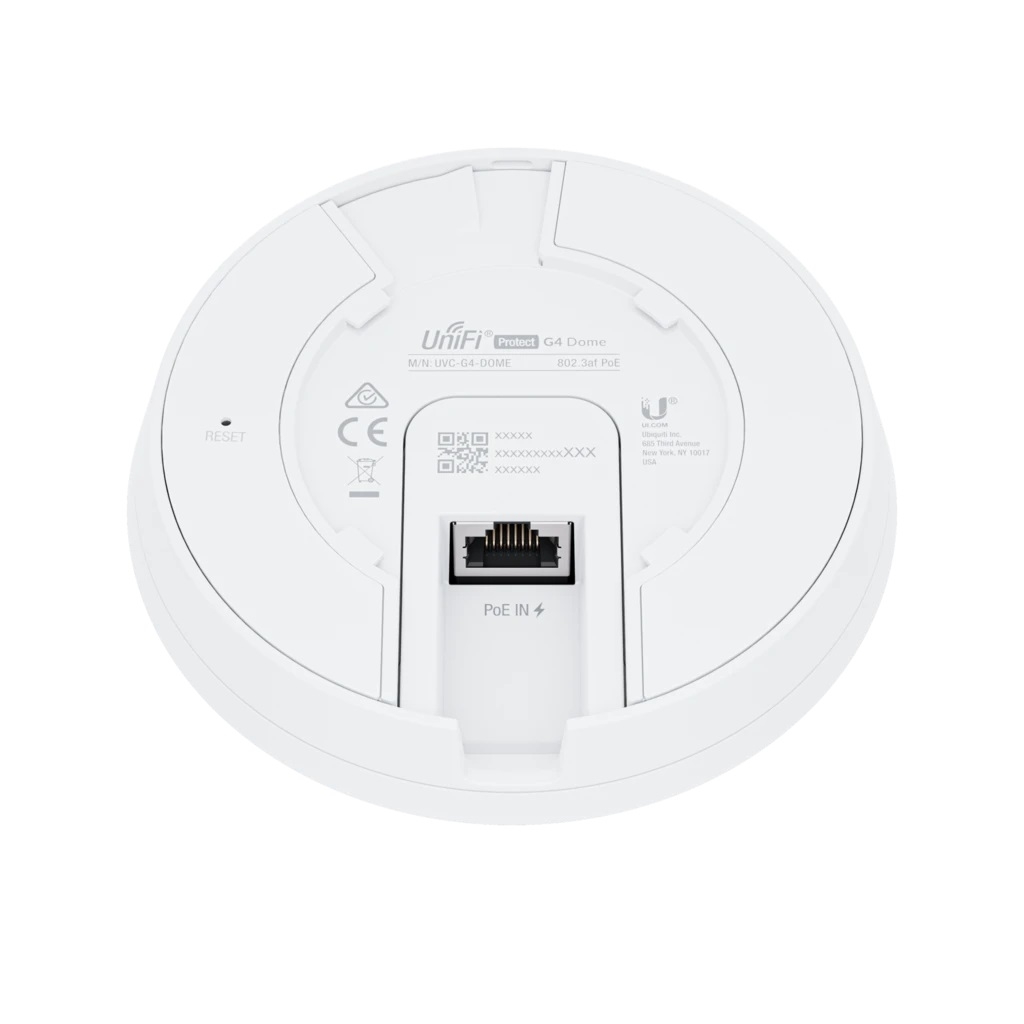

UBIQUITI UniFi Protect G4 Dome Camera (UVC-G4-DOME)
MPN:
UVC-G4-DOME
Order code:
UVC-G4-DOME
Quick code:
#3100
4MP Resolution (2688 x 1512, 24 FPS) | For indoors or outdoors use (weatherproofing: IPX4, resistance: IK08 ) | 5 MP CMOS Sensor | H.264 | Infrared LEDs | 802.3af/802.3at support (PoE adapter not included)
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 160.03£ | 192.04£ | >0£ |
| 158.57£ | 190.28£ | >300£ |
| 157.10£ | 188.52£ | >1000£ |
Features:
Compact 4MP vandal-resistant (IK08) and weatherproof (IPx4) dome camera with integrated IR LEDs for crystal clear day and night vision.
Features:
4MP, 24 FPS Video
Day or Night with Infrared LEDs
IPx4 weatherproof Enclosure
Built-in Microphone & Speaker
Powered by Power over Ethernet (PoE)
Managed by UniFi Protect Software
IK08 vandal resistant
Note: UniFI Protect is required to run this product with full functionality, we recommend using it with UniFi Dream Machine Pro or UniFi Protect Network Video Recorder
Specification:
| Dimensions | Ø109.2 x 64.5 mm (Ø4.3 x 2.5") |
| Weight | Without Mount: 370 g (13.05 oz) With Mount: 390 g (13.76 oz) |
| Enclosure Material | Aluminum Alloy, Polycarbonate, Hard-Coated Dome |
| Mounting Materials | Polycarbonate, Stainless Steel |
| Weatherproofing | IPX4 |
| Resistance | IK08 |
| Optics | |
|---|---|
| Sensor | 5 MP CMOS Sensor |
| Lens | Fixed Focal Length |
| View Angle | H: 86°, V: 60°, D: 111° |
| Night Mode | Built-in Light Sensor Built-in IR LED Illumination and IR Cut Filter |
| Video | |
| Video Compression | H.264 |
| Resolution | 2688 x 1512 (16:9) |
| Maximum Frame Rate | 24 FPS |
| Image Settings | Brightness, Contrast, Sharpness, Saturation, Noise Reduction, 50/60 Hz |
| System | |
| Processor Specs | Ambarella Advanced Image Processing SoC |
| Memory Information | 512 MB |
| Management Interface | UniFi Protect |
| Networking Interface | RJ45, 10/100/1000 Mbps Ethernet |
| Flash Memory Support | 256 MB |
| Max. Power Consumption | 5W |
| Power Method | 802.3af PoE, 44-57VDC, 0.114-0.088A |
| Supported Voltage Range | 44-57VDC |
| Link/Activity LED | Yes |
| Button | Factory Reset |
| Operating Temperature | -20 to 40° C (-4 to 104° F) |
| Operating Humidity | 0 to 90% Noncondensing |
| Certifications | FCC, IC, CE |
| Audio | |
| Microphone | Yes (Can be Disabled in Software) |
| Speaker | Yes |
| Software | |
| Controller Software | UniFi Protect |
| Mobile Apps | UniFi Protect iOS and Android |
