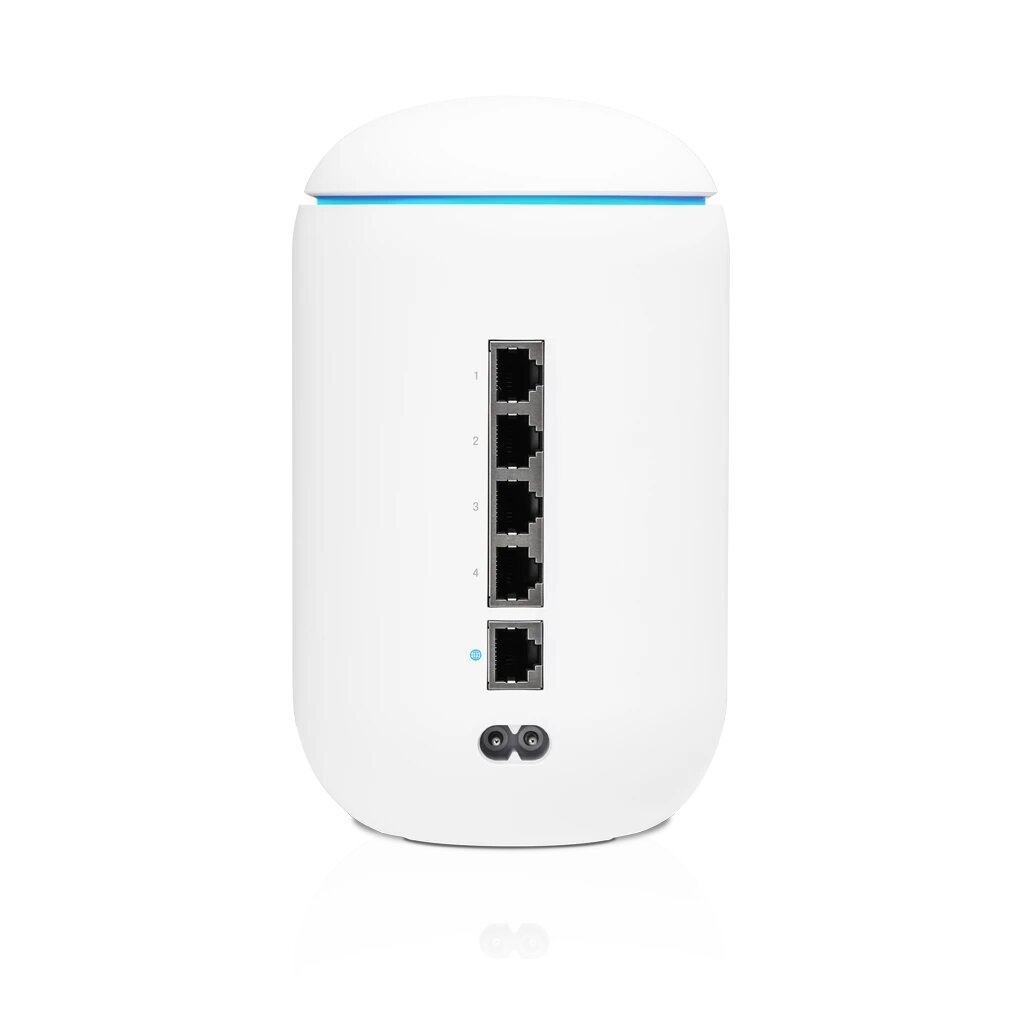

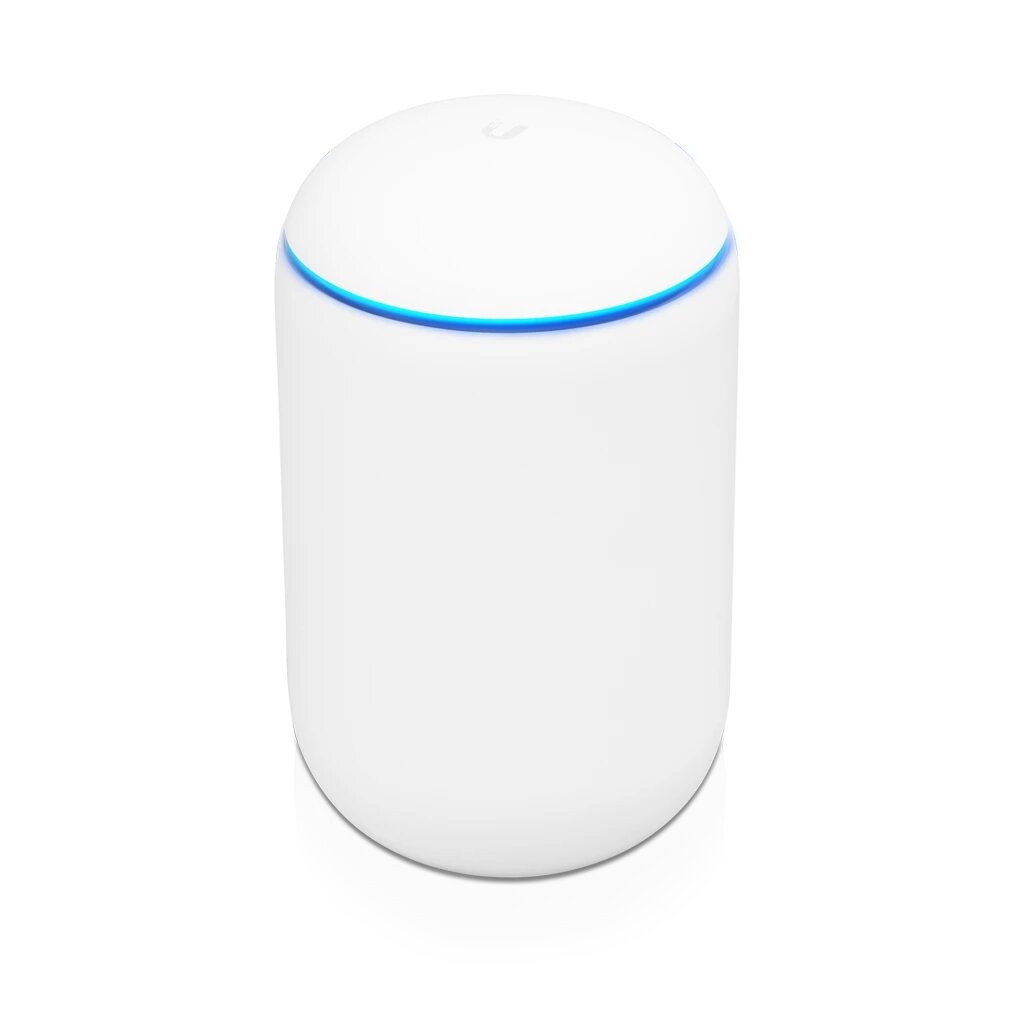

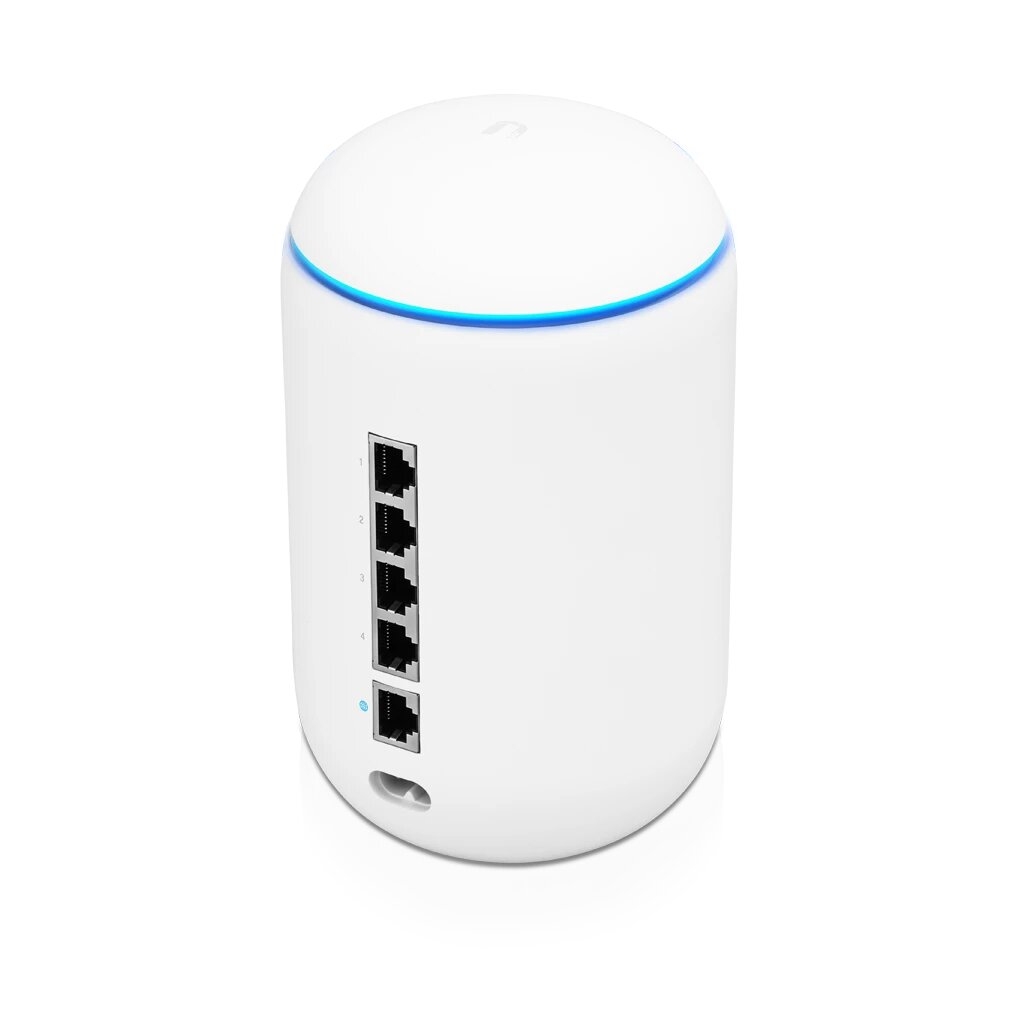

UBIQUITI UniFi Dream Machine (UDM)

MPN: UDM
Order code: UDM
Quick code: #2038

UniFi Dream Machine (UDM) is the easiest way to introduce UniFi to homes and businesses. The UDM includes everything you need for a small-scale wired or Wi-Fi network. It's easy to use and still offers all the benefits of UniFi for homes and businesses.

Price exc. VAT: Price inc. VAT: For orders (total sum):
251.49£ 301.79£ >0£
249.32£ 299.18£ >300£
244.98£ 293.98£ >1000£
Qty:


Features:

  • High‐Performance Dual Band 802.11ac 4x4 Wave 2 AP
  • Managed 4-Port Gigabit Switch
  • Advanced Security Gateway with IDS/IPS and DPI
  • UniFi Network Controller with Intuitive User Interface
  • Scalable Through Additional UniFi Devices Connected to LAN
  • Powered by Fast 1.7 GHz Quad-Core Processor

Specification:

Dimensions Ø 110 x 184.2 mm (Ø 4.33 x 7.25")
Weight 1.05 kg (2.32 lb)
Networking Interfaces (4) LAN 10/100/1000 RJ45 Ports
(1) WAN 10/100/1000 RJ45 Port
Buttons Reset
IDS/IPS Throughput 850 Mbps
Processor Arm Cortex-A57 Quad-Core at 1.7 GHz
System Memory 2 GB DDR RAM
On-Board Flash Storage 16 GB
Maximum Power Consumption 26W
Supported Voltage Range 100 - 240VAC
Power Method AC Power Cord
Power Supply Internal AC/DC Power Adapter (24V, 0.6A, 100 - 240VAC)
Power Save Supported
Beamforming Supported
TX Power*
2.4 GHz
5 GHz

23 dBm
26 dBm
Antenna (1) Dual-Band, Quad-Polarity Antenna
Antenna Gain
2.4 GHz
5 GHz

3 dBi
4.5 dBi
Wi-Fi Standards 802.11 a/b/g/n/ac/ac-wave2
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
BSSID Up to 8 per Radio
Operating Temperature -10 to 45° C (14 to 113° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
