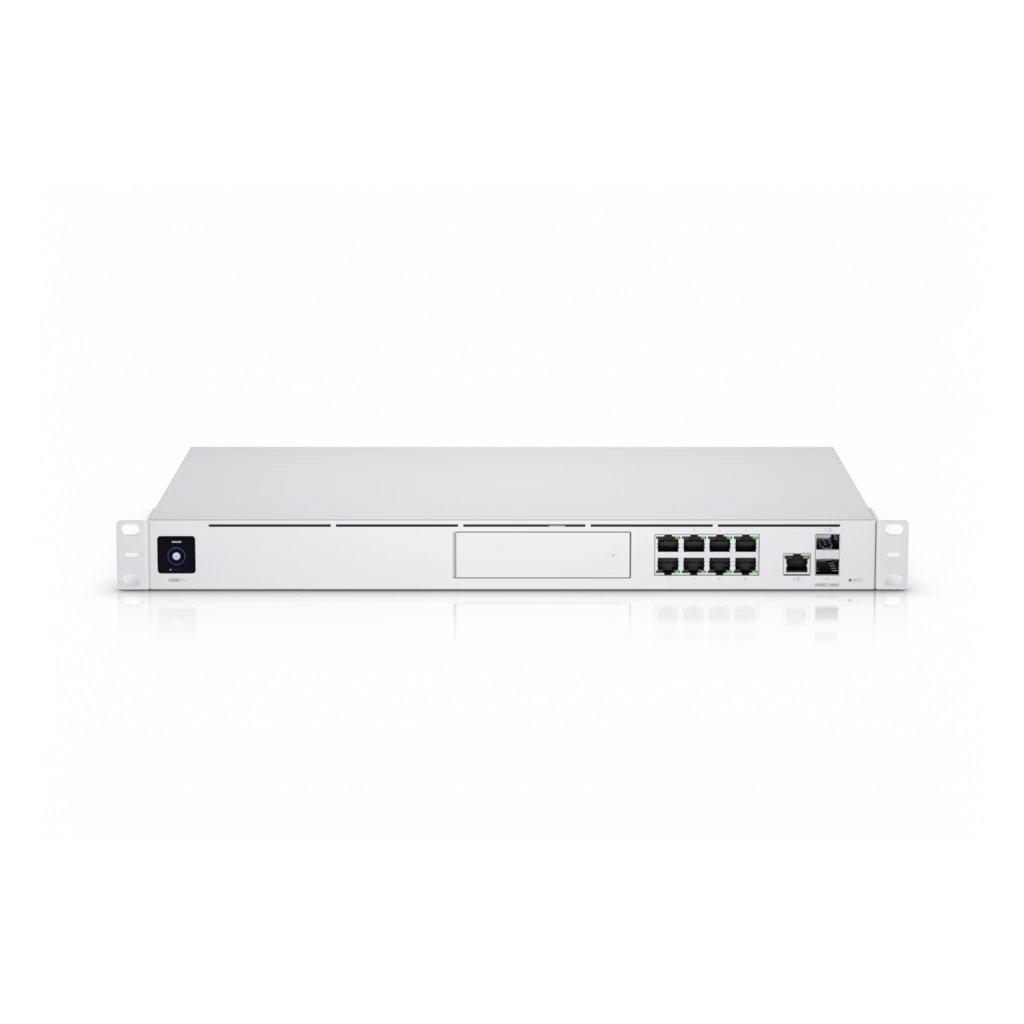

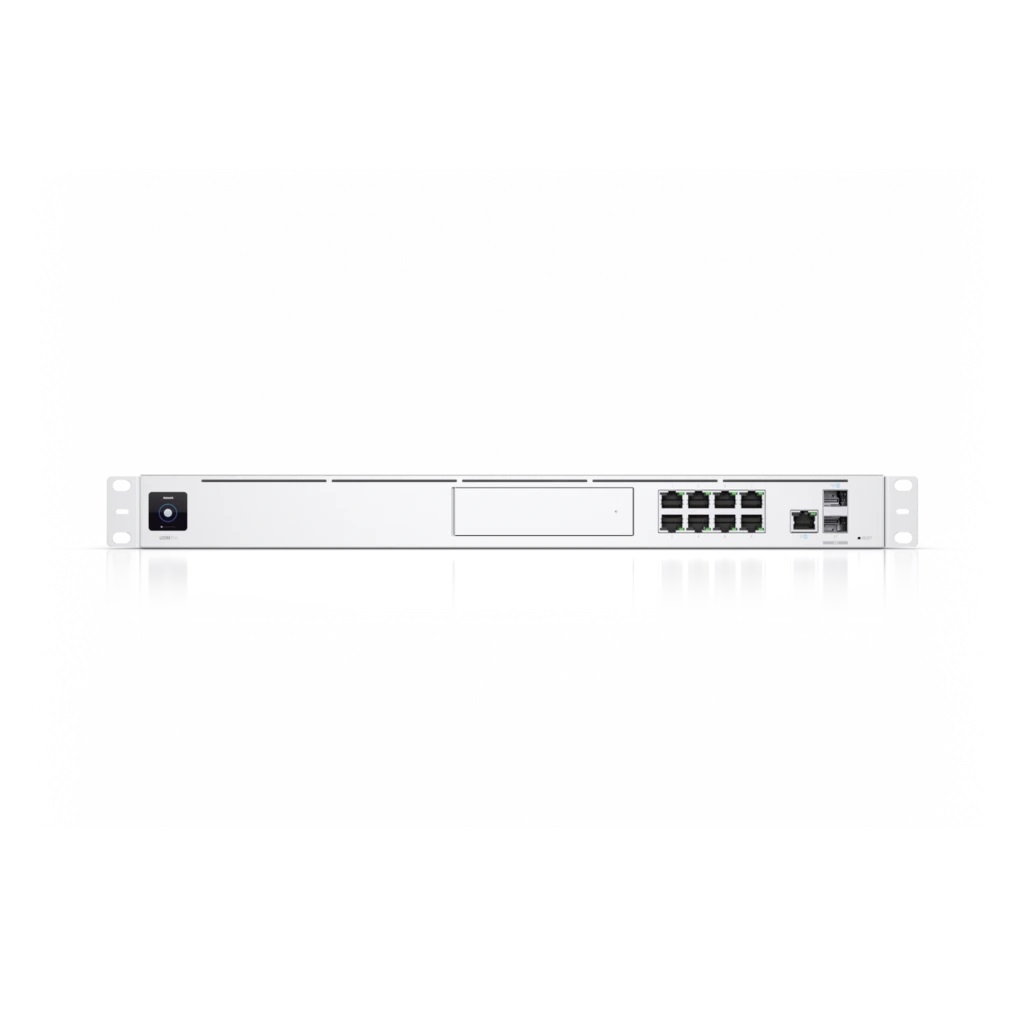

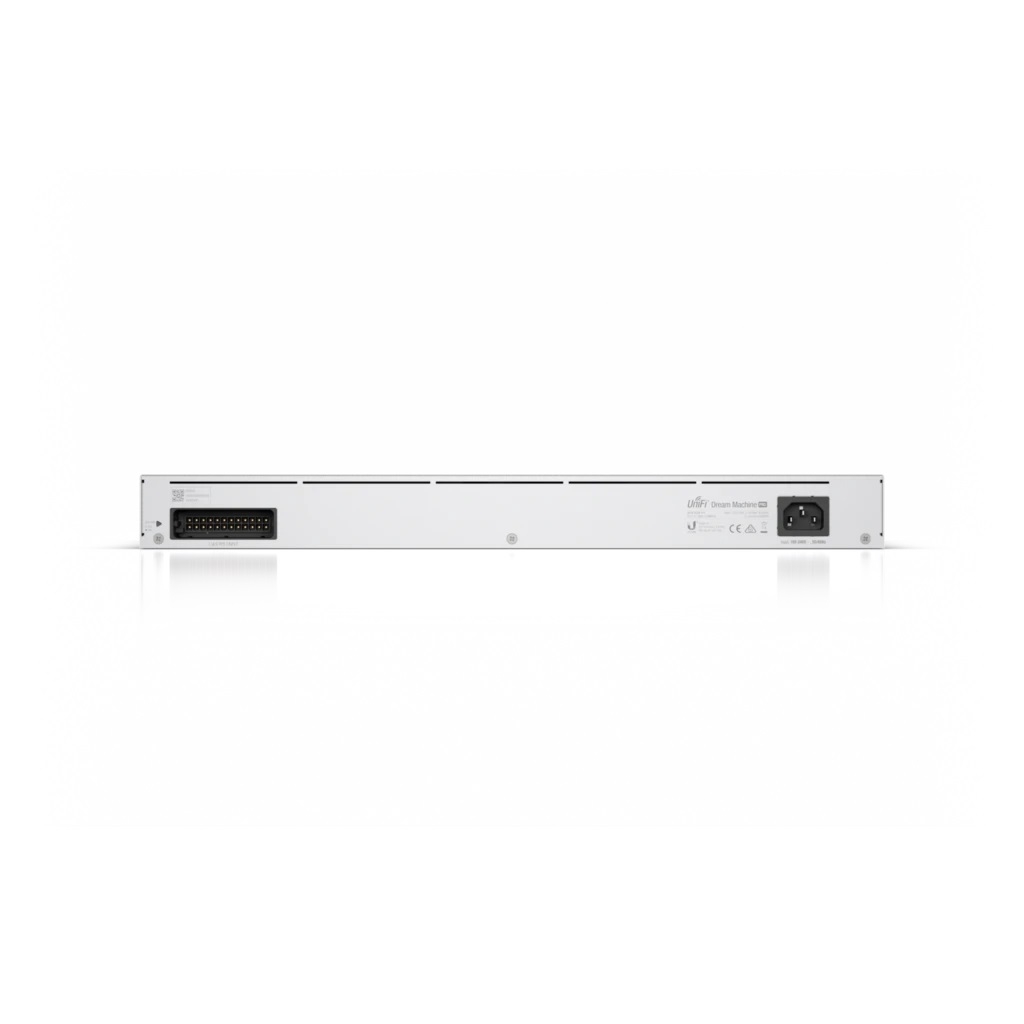

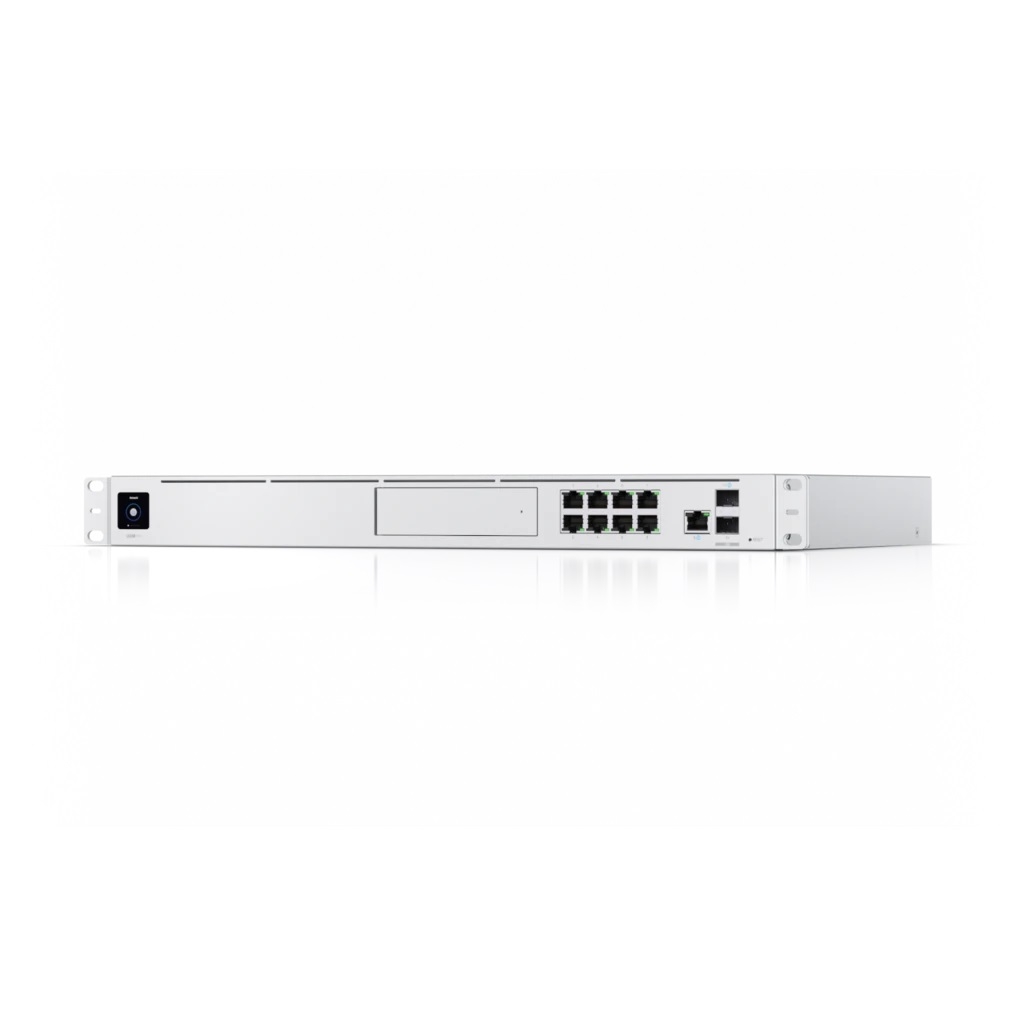

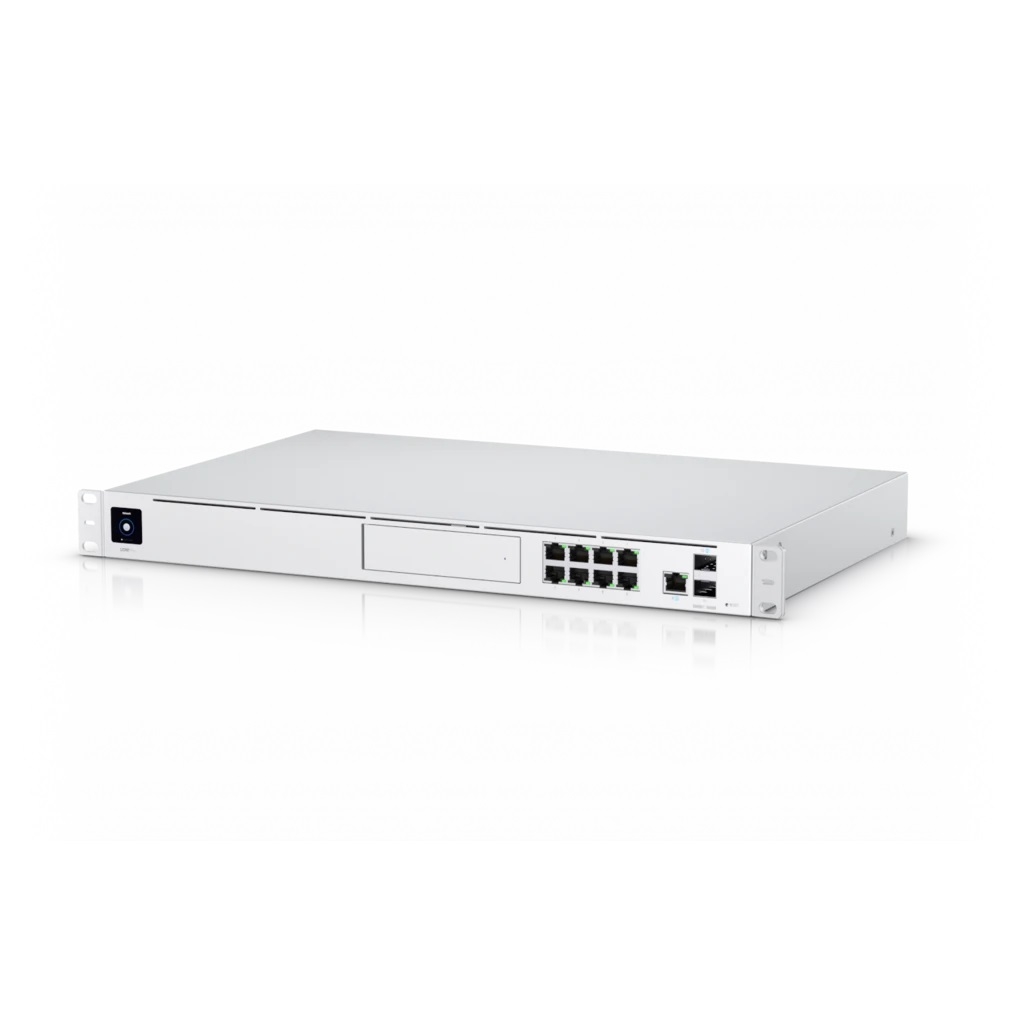

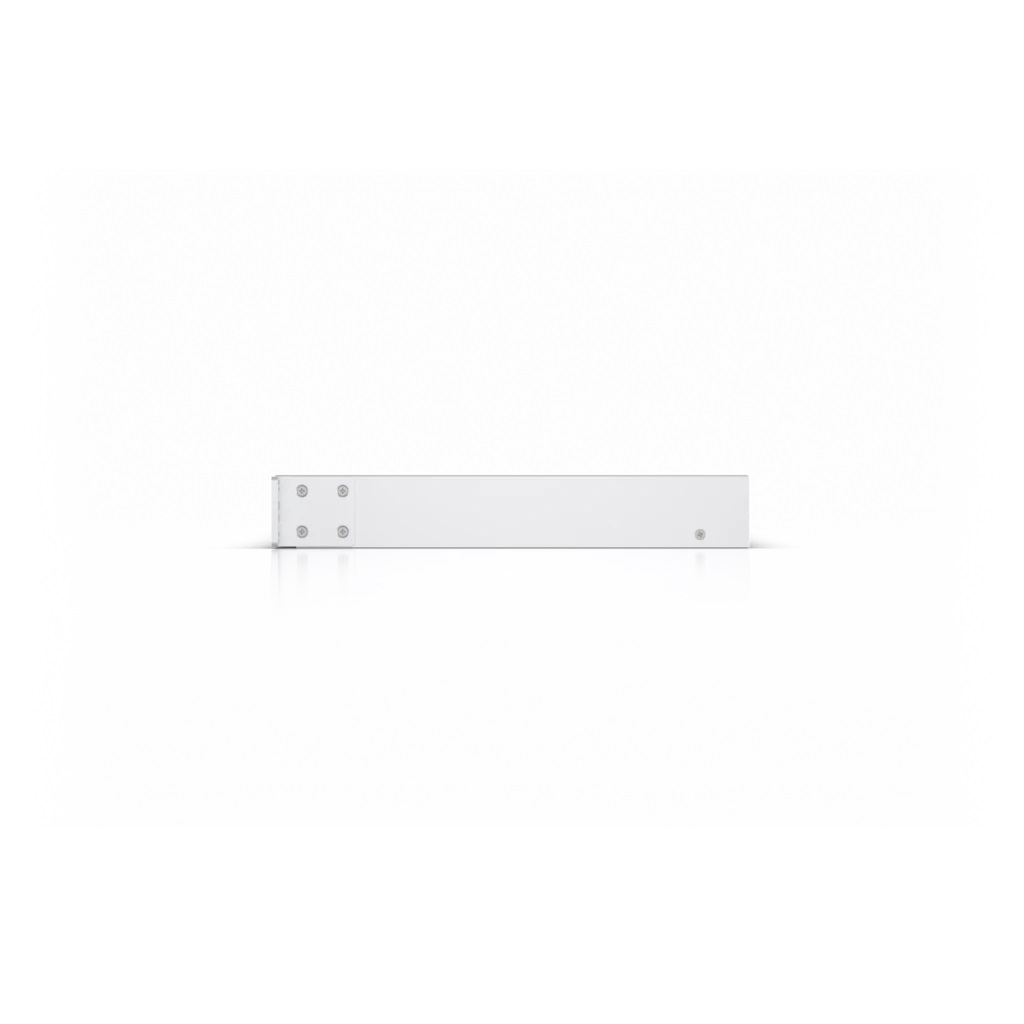

UBIQUITI UniFi Dream Machine Pro - Enterprise Security Gateway and Network Appliance (UDM-PRO)

MPN: UDM-PRO
Order code: UDM-PRO
Quick code: #2296

WAN ports: 1x 10G SFP+ port, 1x Gigabit RJ45 port | LAN ports: 1x 10G SFP+ port, 8x Gigabit RJ45 ports | 3.5" HDD Bay (also supports 2.5" HDD)

Price exc. VAT: Price inc. VAT: For orders (total sum):
321.08£ 385.30£ >0£
318.31£ 381.97£ >300£
312.78£ 375.34£ >1000£
Qty:


Features:

UniFi Dream Machine Pro (UDM-Pro) is an all-in-one enterprise network appliance. UDM-Pro integrates all current and upcoming UniFi controllers with a security gateway, 10G SFP+ WAN, 8-port Gbps switch and off-the-shelf 3.5" HDD support.
All-in-one 1U rack appliance for small to medium sized businesses.

  • Combines new UniFi OS with 8-port switch and security gateway
  • UniFi Protect video surveillance NVR with off-the-shelf 3.5" HDD support
  • 8-port Gigabit Switch with 1 Gbps RJ45 and 10G SFP+ LAN
  • Enterprise-class IPS/IDS, DPI, and Wi-Fi AI capabilities
  • Powered by fast 1.7 GHz quad-core processor

Specification:

Overview
The UniFi® Dream Machine Pro is an all-in-one network appliance for a scalable network in an office, retail, or hospitality environment. Powered by a fast 1.7 GHz quad‑core processor, the UDM Pro combines multiple functions into a single device:

   • Advanced Security Gateway with Built-in Switch
   • Dual WAN Ports: One 10G SFP+ and One Gigabit RJ45
   • One 10G SFP+ LAN Port
   • Embedded Enterprise Software: UniFi Network
    • 3.5" HDD Bay for NVR Storage (2.5" HDD also supported)

Software
The UDM Pro includes the UniFi Network Controller so you can manage your UniFi Switches and APs. It can also run the UniFi Protect software for convenient monitoring and complete management of your camera surveillance system. Video recordings are stored on the built-in NVR (hard drive not included) and can be easily accessed using the UniFi Protect mobile app. Via remote access, you can securely view the  recordings that are privately stored on the UDM Pro rather than a third-party server.

Redundancy
The UDM Pro supports multiple redundancy options to ensure your network remains operational:
   • Dual WAN with Failover Supports dual internet/ISP connections with failover: if the primary WAN connection drops, it will automatically switch to the other WAN connection.
   • LTE Failover Redundancy Supports the UniFi LTE device for automatic failover to the LTE cellular network. If the wired WAN fails, it will automatically switch to the UniFi LTE, keeping your network online (Requires use of the U-LTE and active LTE account (US only)).
   • Power Supply Redundancy and Failover The UDM Pro supports our PSU failover system, the UniFi SmartPower RPS, model USP-RPS. If the internal power supply unit fails, the proprietary USP RPS interface acts  to provide redundant power for backup (Requires use of the USP-RPS).

Powerful Security
The UDM Pro offers advanced firewall policies and persistent threat management (Requires UniFi software v5.12 or newer.) to act as an Intrusion Prevention System (IPS) and Intrusion Detection System (IDS).
   • Threat Management Easily select and customize levels of security for viruses and malware, Point-to-Point (PtP) protection, hacking, internet traffic, and website reputation.
   • Endpoint Scanning The UDM Pro automatically scans endpoints (clients) connected to your network to identify potential security threats and vulnerabilities.
   • Honeypot Embedded Honeypot functionality can detect malware, worms, and other types of malicious traffic trying to scan your network for vulnerabilities.
   • DNS Content Filtering DNS filters block traffic from sites with malicious, phishing, or adult content. There are three levels of DNS filtering security, each adding more protection.
   • GeoIP Filtering GeoIP filtering allows you to block outgoing, incoming, or bi-directional traffic designated by country. Use the UniFi threat map to select the countries you intend to block.

Additional Features
   • Automatic QoS Top QoS priority is assigned to voice and video traffic.
   • VPN Server for Secure Communications A site-to-site VPN secures and encrypts private data communications traveling over the internet.
   • Convenient VLAN Support The UDM Pro can create virtual network segments for security and network traffic management.
   • Innovative Display The 1.3" touchscreen displays status information for easy monitoring and quick troubleshooting.

Dimensions

442.4 x 43.7 x 285.6 mm

(17.42 x 1.72 x 11.24")

Weight
With Mount Brackets

3.90 kg (8.60 lb)
3.99 kg (8.80 lb)

Interfaces

Networking (8) 10/100/1000 RJ45 LAN Ports
(1) 10/100/1000 RJ45 WAN Ports
(1) 1/10G SFP+ LAN Port
(1) 1/10G SFP+ WAN Port
Management Ethernet In-Band
(1) Bluetooth BLE

Max. Power Consumption

33W

Power Method

(1) Universal AC Input, 100 to 240VAC

(1) RPS DC Input

Power Supply

Internal 50W/12V

Supported Voltage Range

100 - 240VAC

Display

1.3" Color Touch Panel

LED

System Status
HDD Activity
RJ45 Link/Speed/Activity
SFP+ Link/Speed/Activity

Processor

Quad ARM Cortex-A57 Core at 1.7 GHz

System Memory

4 GB DDR4

On-Board Flash Storage

16 GB eMMC

Operating Temperature

-10 to 40° C (14 to 104° F)

Operating Humidity

5 to 95% Noncondensing

Certifications

CE, FCC, IC
