UBIQUITI UniFi Directional Dual-Band Antenna for UAP-AC-M (UMA-D)

Order code: UMA-D
Quick code: #1465

Dual-Band, Dual-Polarity Optimized for 802.11ac, High Efficiency Directional Radiation Pattern, Three-Axis Ball Joint Mount for Precise Aiming

Price exc. VAT: Price inc. VAT: For orders (total sum):
70.67£ 84.80£ >0£
70.06£ 84.07£ >300£
68.85£ 82.62£ >1000£
Qty:
  Out of stock


Features:

The UniFi Antenna, model UMA-D, is an optional mesh antenna designed to work with the UniFi® AC Mesh AP, model UAP-AC-M. With dual-band support, the UMA-D expands range coverage and provides customized pattern shaping. It is available in single- and five-packs.

Antenna Features Optimized for 802.11ac, the UMA-D offers a high efficiency directional radiation pattern with dual polarity.

Weather-Resistant Enclosure Encased in UV-stabilized plastic, the UMA-D can be used indoors or outdoors.

Versatile Mounting The UMA-D has a ball joint mount designed for precise aiming and can be mounted on a pole or wall.

Compatibility The UMA-D is a connectorized antenna that is compatible with the UAP-AC-M.



Specification:

Dimensions: 201.3 x 128.0 x 32.5 mm (7.93 x 5.04 x 1.28")
Weight: with Mount - 480 g (16.93 oz), without Mount - 400 g  (14.11 oz)
Enclosure: Outdoor UV Stabilized Plastic
RF Connections: (2) RP-SMA
Supported Frequency Range: 2.4 - 2.5 GHz, 5.1 - 5.9 GHz

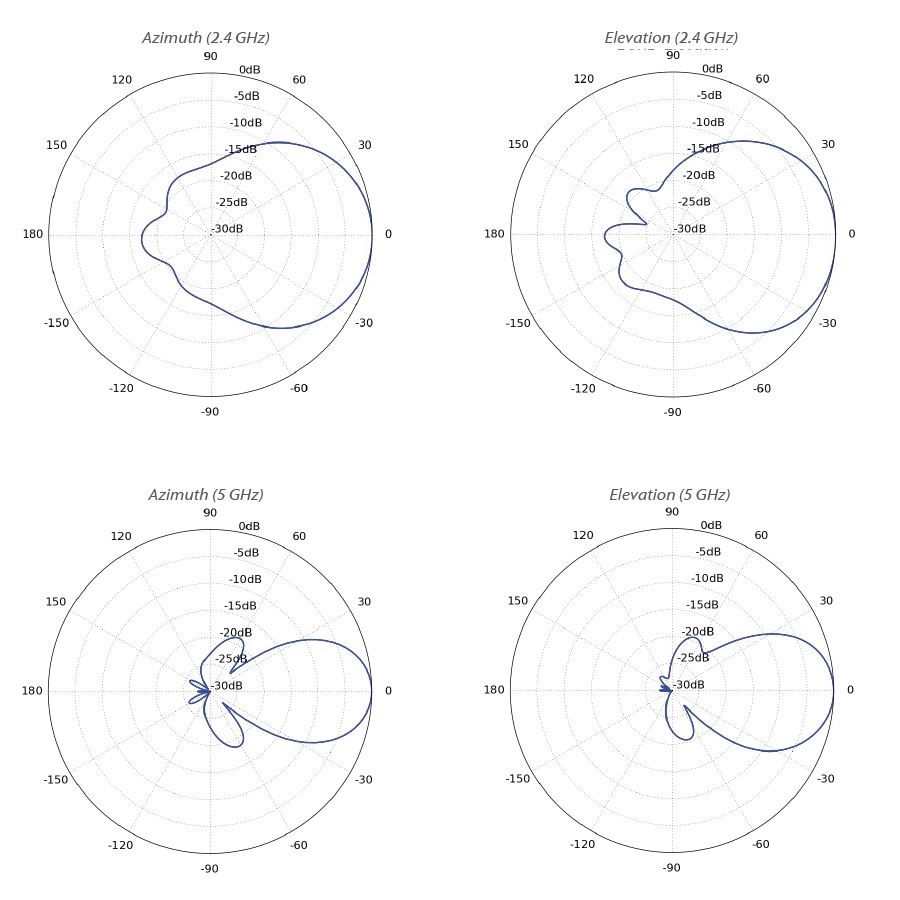

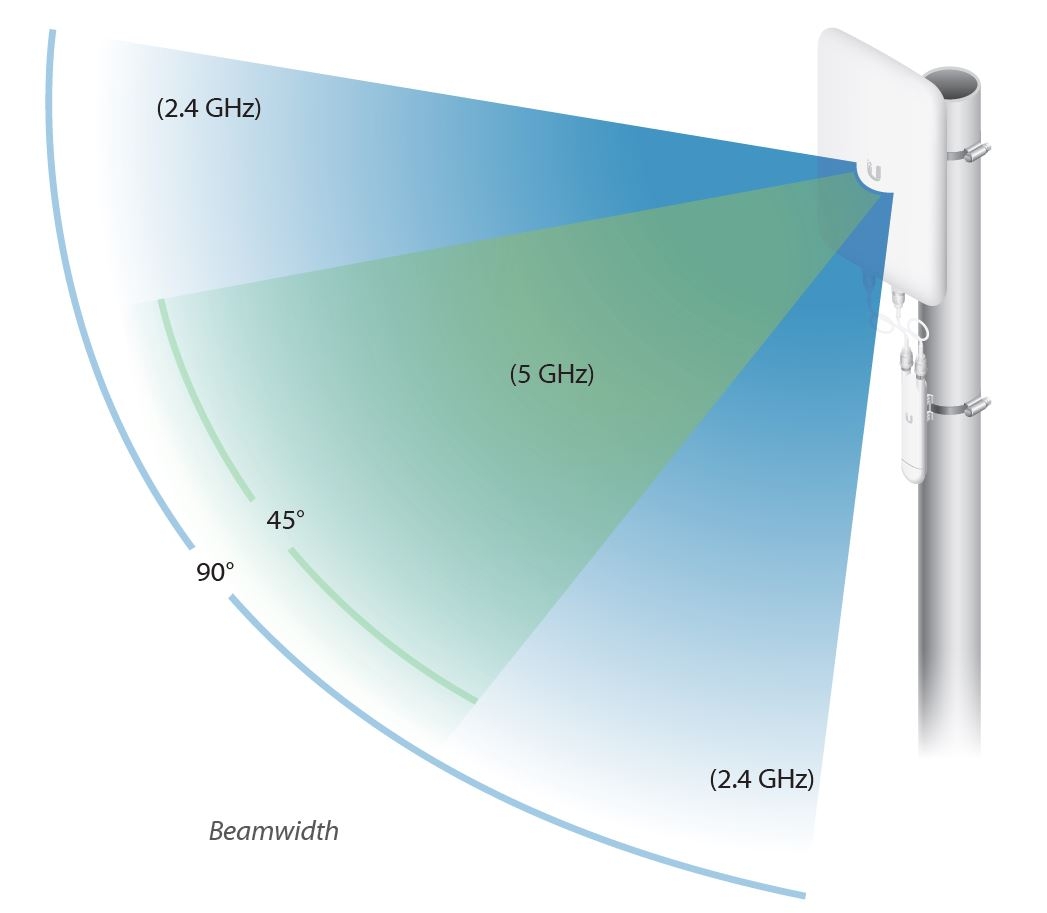

HPOL Beamwidth: 2.4 GHz - 90°, 5 GHz - 45°
VPOL Beamwidth: 2.4 GHz - 90°, 5 GHz - 45°
Elevation Beamwidth: 2.4 GHz - 90°, 5 GHz - 45°
Maximum VSWR: 2:1
Polarization: Dual-Linear
Cross-Pol Isolation: 2.4 GHz - 25 dB, 5 GHz - 30 dB
Antenna Gain: 2.4 GHz - 10 dBi, 5 GHz - 15 dBi

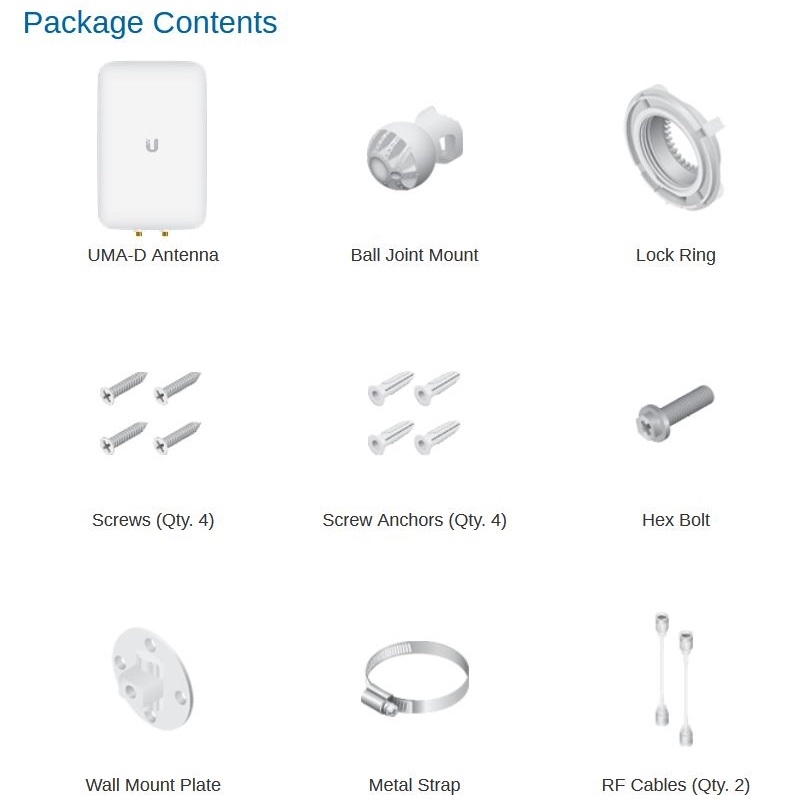

Mounting: Wall/Pole (Kits Included)

Additional product information:

Datasheet
