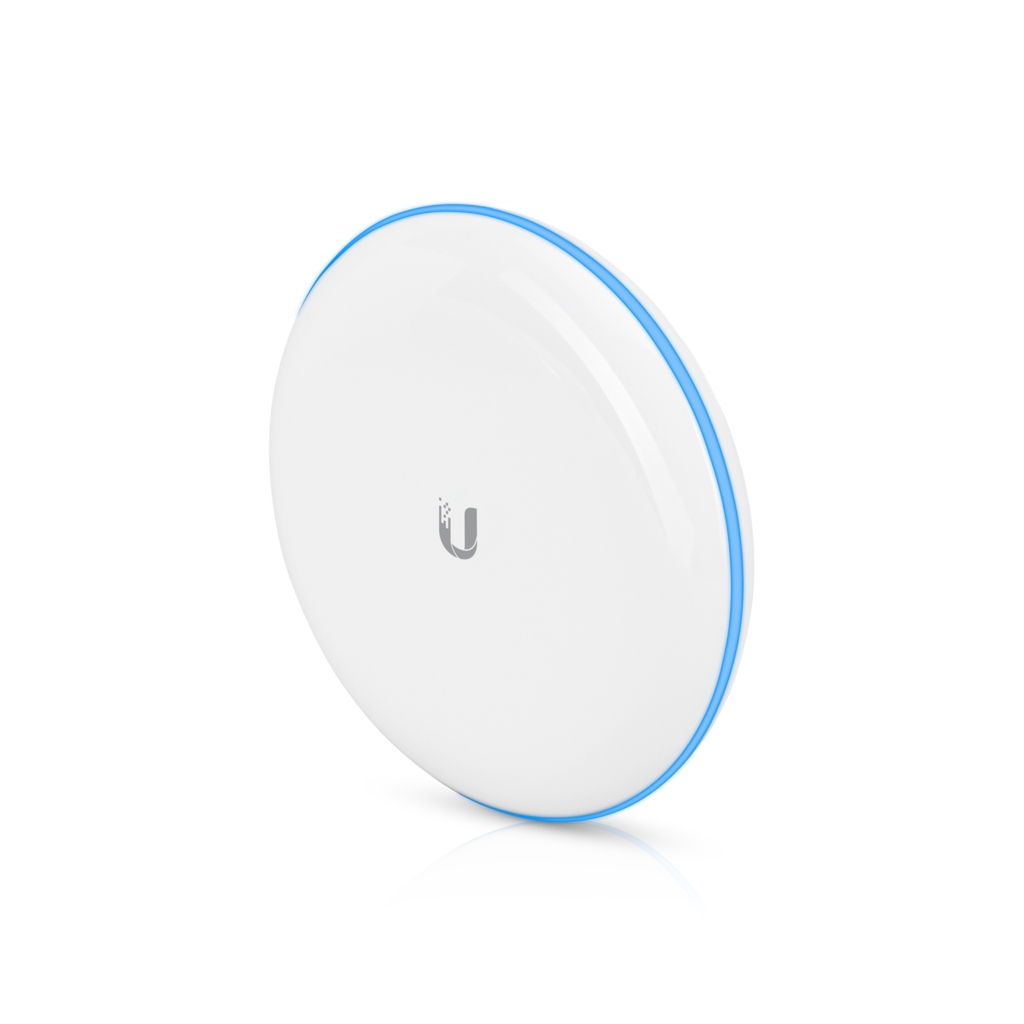

UBIQUITI 60 GHz Gigabit+ Wireless Bridge Kit, UniFi Building Bridge (UBB)

MPN: UBB
Order code: UBB
Quick code: #2288

PtP/Bridge | Passive 48V, 802.af PoE | 2.4 GHz (BLE): 2 dBi, 5 GHz: 10 dBi, 60 GHz: 17.2 dBi | 1x 1Gbps LAN port | Pole-Mount kid included

Price exc. VAT: Price inc. VAT: For orders (total sum):
383.44£ 460.13£ >0£
379.91£ 455.89£ >300£
376.39£ 451.67£ >1000£
Qty:


Features:

1.7+ Gbps bi-directional Plug and Play 60 GHz Bridge with 5 GHz Radio Redundancy, UniFi Controller Management, and range of up to 500 m

UniFi® Building-to-Building Bridge is the ideal solution for short-range, high-throughput connectivity. Integration with the UniFi Controller makes bridging two networks seamless. As a pack of two radios, UniFi Building-to-Building Bridge contains everything you need to get up and running within minutes. Enjoy simple, easy-to-use gigabit connectivity anywhere.

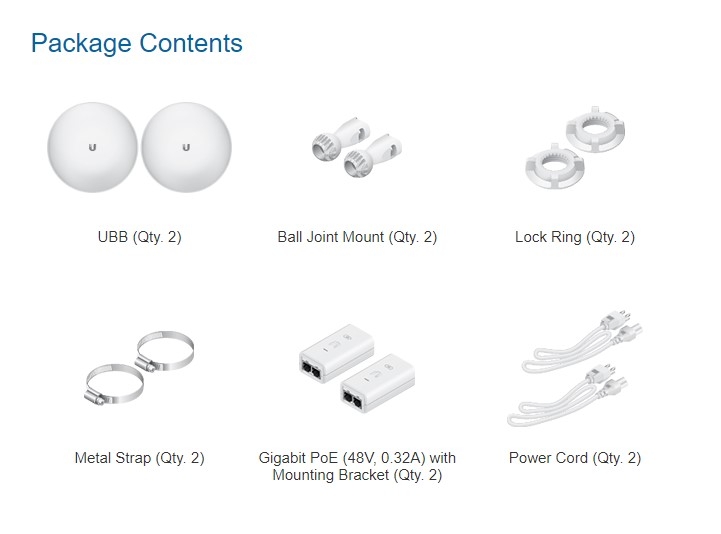

Package Contents:

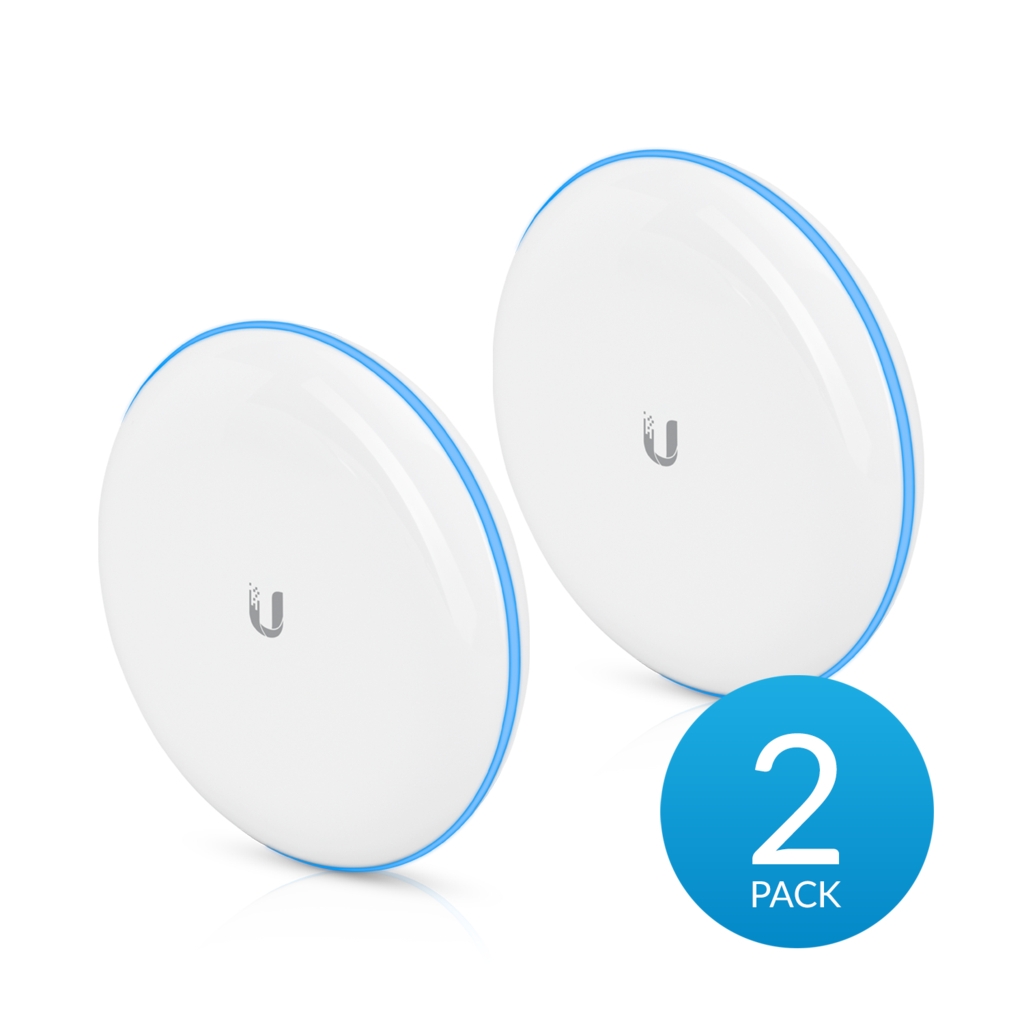

  • UniFi Building-to-Building Bridge (x2)
  • Ball joint mount (x2)
  • Lock ring (x2)
  • Metal strap (x2)
  • Gigabit PoE (48V, 0.32A) with mounting bracket (x2)
  • Power cord (x2)

Specification:

UBB RADIO
Dimensions 140 x 140 x 90 mm (5.51 x 5.51 x 3.54")
Weight 376 g (13.3 oz)
Antenna Gain 2.4 GHz (BLE): 2 dBi
5 GHz: 10 dBi
60 GHz: 17.2 dBi
GPS Yes
Max. TX Power 25 dBm (5 GHz)

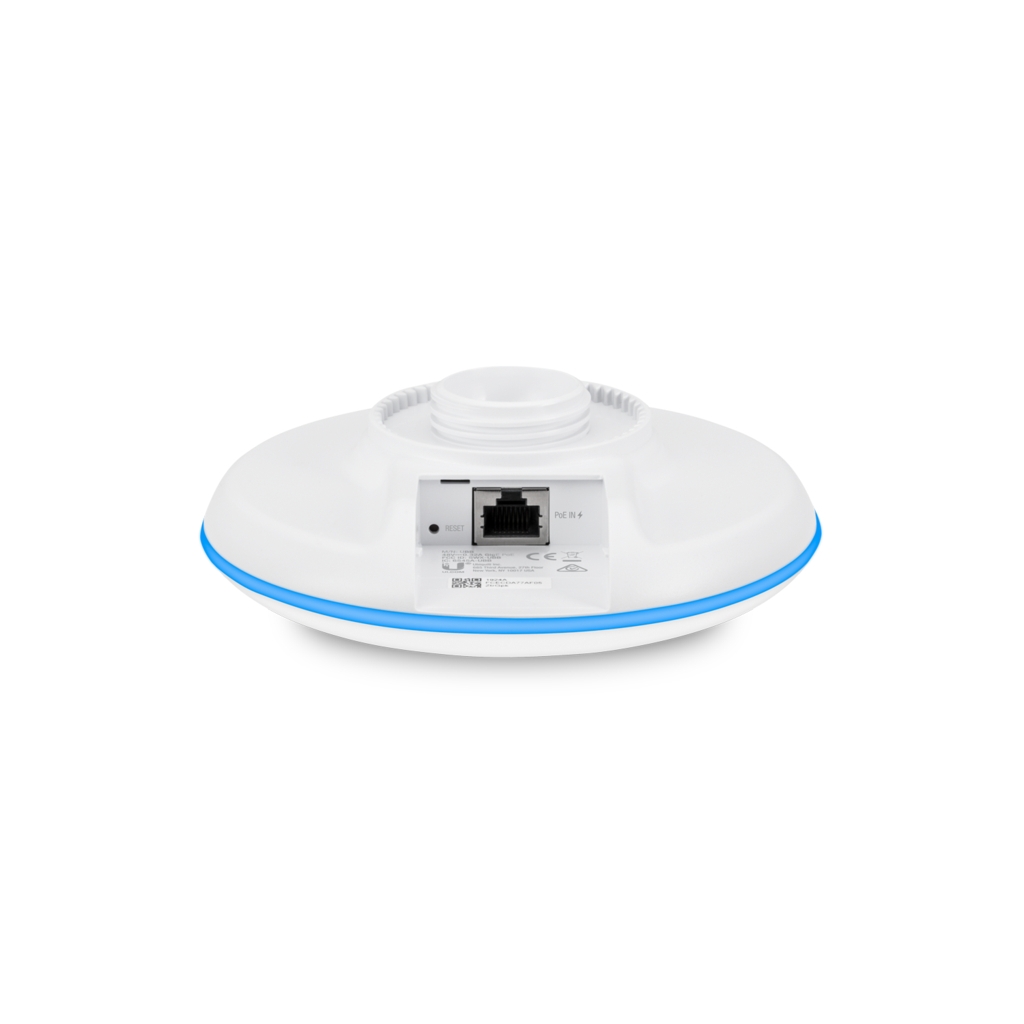

Interfaces Networking : (1) 10/100/1000 Ethernet Port
Management: Bluetooth
Enclosure UV-Resistant Polycarbonate
Power Method 802.3af Supported
Passive Power over Ethernet (48V)
Power Supply UniFi PoE Switch
48V, 0.32A Gigabit PoE Adapter (Included)
Max Power Consumption 11W
Wind Loading 56 N @ 200 km/h (12.6 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
Mounting Pole-Mount (Kit Included)
Wall-Mount (Not Included)
ESD/EMP Protection ± 24kV Contact/Air
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
OPERATING FREQUENCY (MHZ)
Worldwide 5150 - 5875
57,000 - 66,000
US/CA U-NII-1: 5150 - 5250
U-NII-3: 5725 - 5850
57,000 - 66,000
BLUETOOTH (MHZ)
Worldwide 2400 - 2483.5
