UBIQUITI UniFi AC Lite (UAP-AC-LITE)
Wireless data transfer speed up to 1167 Mbps | AP/Hotspot | 2.4/5 GHz | Standards 802.11a/b/g/n/ac is supported | MIMO 2×2 | PoE 802.3at/A supported.
|Price exc. VAT:||Price inc. VAT:||For orders (total sum):|
The UniFi AC Lite AP features the latest Wi-Fi 802.11ac technology in a refined industrial design and is ideal for cost-effective deployment of high‑performance wireless networks.
Dual-Radio Performance, Gigabit Speeds
The UniFi AC Lite delivers 5x the performance of the first-generation UniFi AP while still maintaining Ubiquiti’s disruptive pricing strategy.
The UniFi AC Lite AP can work with wireless data transfer up to 1167 Mbps, standards 802.11a/b/g/n/ac is supported, UniFi uses MIMO 2×2 antennas system 3dBi. The signal range is up to 122 m.
Sleek, Ultra-Compact Design
The UniFi AC Lite AP features a cleaner design in a reduced footprint – half the size compared to the standard UniFi AP.
Scalable Enterprise Wi-Fi Management
The UniFi Controller v4 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized controller. Remotely access the UniFi Controller to upgrade deployed UniFi APs while in the field.

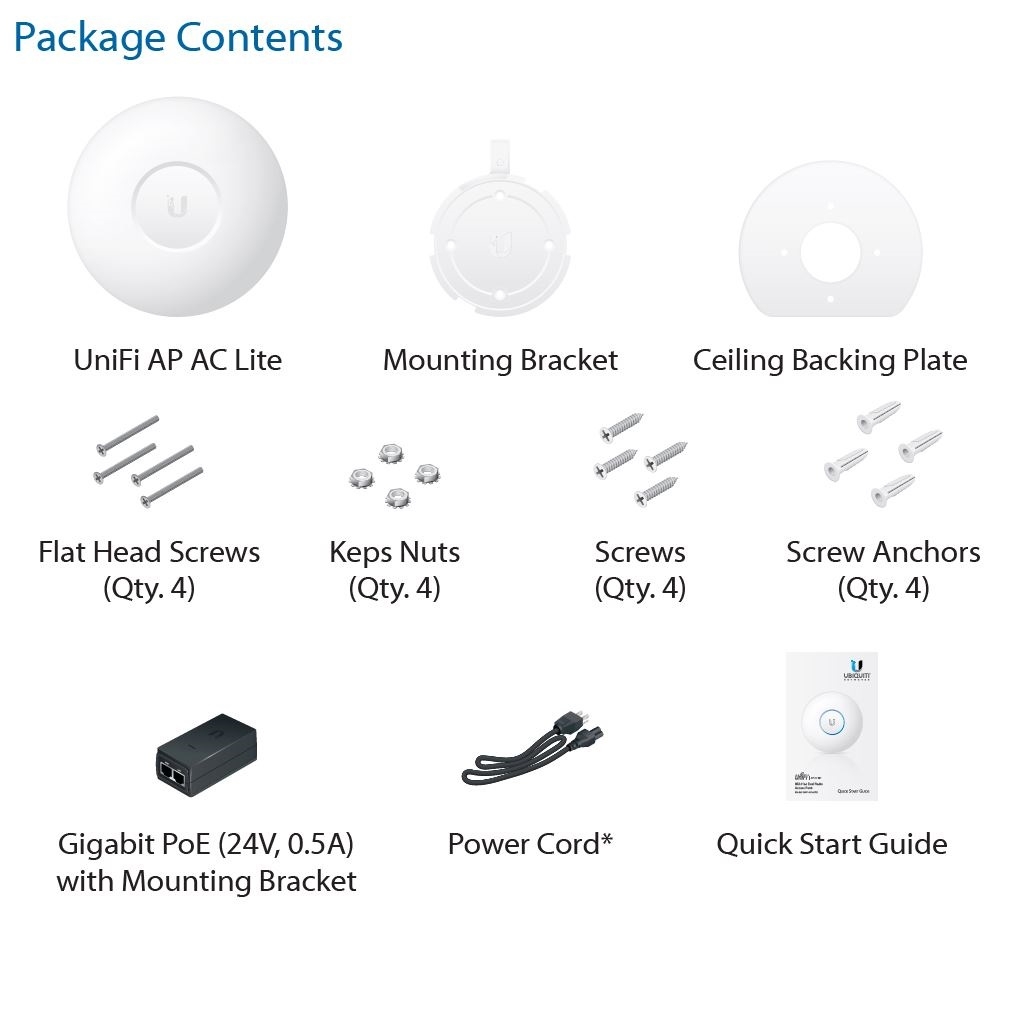

Package includes 24V GigE PoE adaptor.
|Dimensions||160 x 160 x 31.45 mm (6.30 x 6.30 x 1.24")|
With Mounting Kits
|170 g (6.0 oz)
185 g (6.5 oz)
|Networking Interface||(1) 10/100/1000 Ethernet Port|
|Power Method||802.3af/A PoE
24V Passive PoE (Pairs 4, 5+; 7, 8 Return)
|Power Supply||24V, 0.5A Gigabit PoE Adapter*|
|Maximum Power Consumption||6.5W|
|Maximum TX Power
|Antennas||(2) Dual‑Band Antennas, 3 dBi Each|
|Wi-Fi Standards||802.11 a/b/g/n/r/k/v/ac|
|Wireless Security||WEP, WPA‑PSK, WPA‑Enterprise (WPA/WPA2, TKIP/AES)|
|BSSID||Up to 8 per Radio|
|Mounting||Wall/Ceiling (Kits Included)|
|Operating Temperature||‑10 to 70° C (14 to 158° F)|
|Operating Humidity||5 to 95% Noncondensing|
|Certifications||CE, FCC, IC|
|Supported Data Standards||802.11ac,n,a,g,b|
* Only the single‑pack of the UAP‑AC‑LITE includes a PoE adapter.
Advanced Traffic Management
|Advanced QoS||Per‑User Rate Limiting|
|Guest Traffic Isolation||Supported|
|WMM||Voice, Video, Best Effort, and Background|
