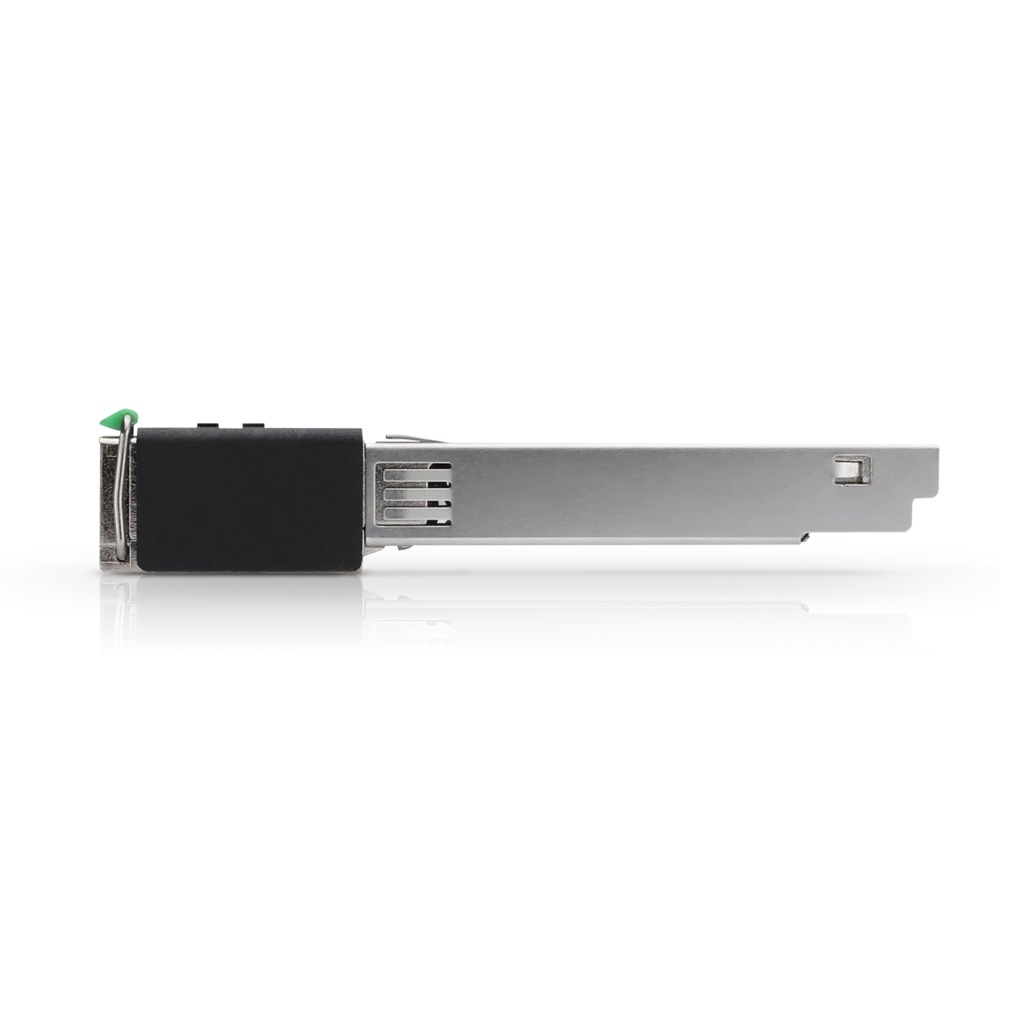

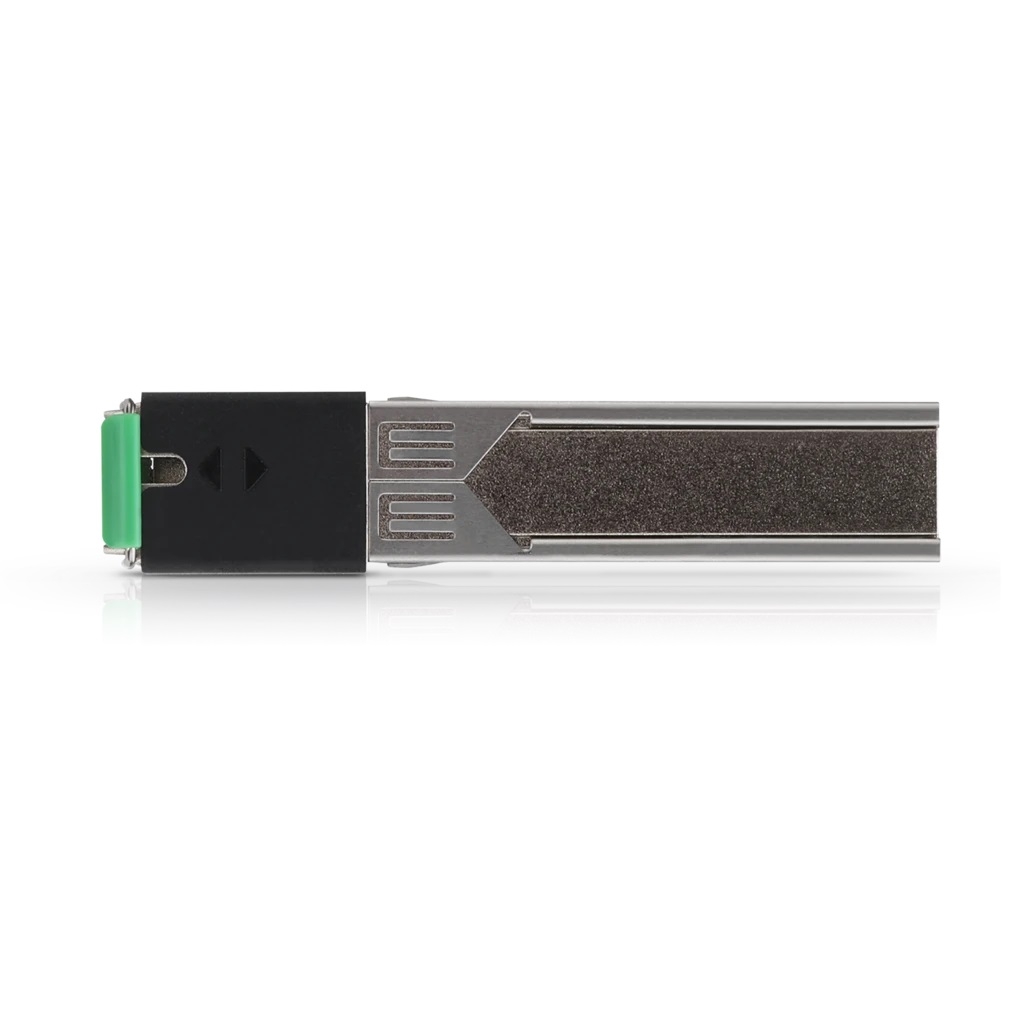

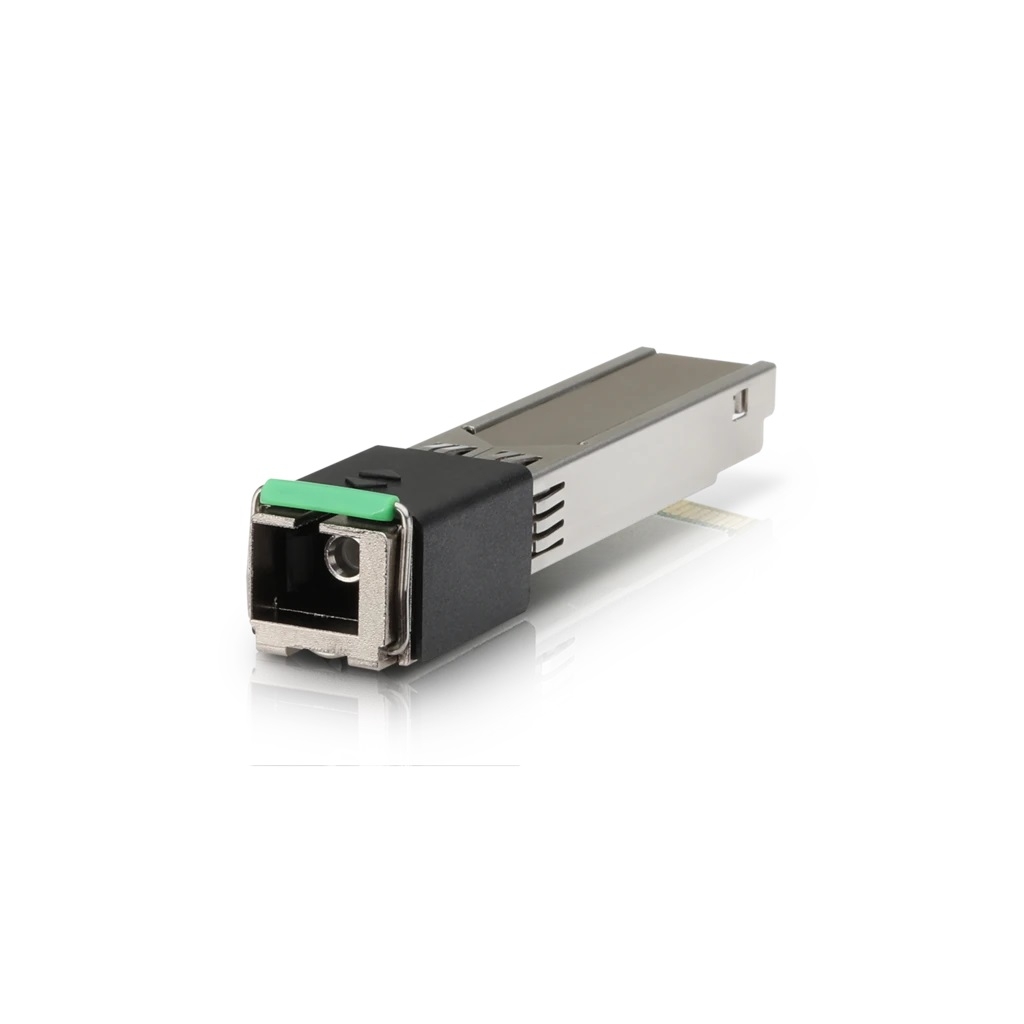

UBIQUITI UFiber Instant Optical Transceiver (UF-Instant)
MPN:
UF-Instant
Order code:
UF-Instant
Quick code:
#2359
EAN:
0817882029612
High‑performance GPON CPE in the form factor of an SFP module | features an SGMII Ethernet LAN port and is powered by SFP
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 29.13£ | 34.96£ | >0£ |
| 28.86£ | 34.63£ | >300£ |
| 28.59£ | 34.31£ | >1000£ |
Features:
- High-Performance GPON CPE
- Up to 2.4 Gbps Downstream and 1.2 Gbps Upstream GPON structure
- Supports up to 20 km GPON Links
- Powerful Layer 2/3 Management Features

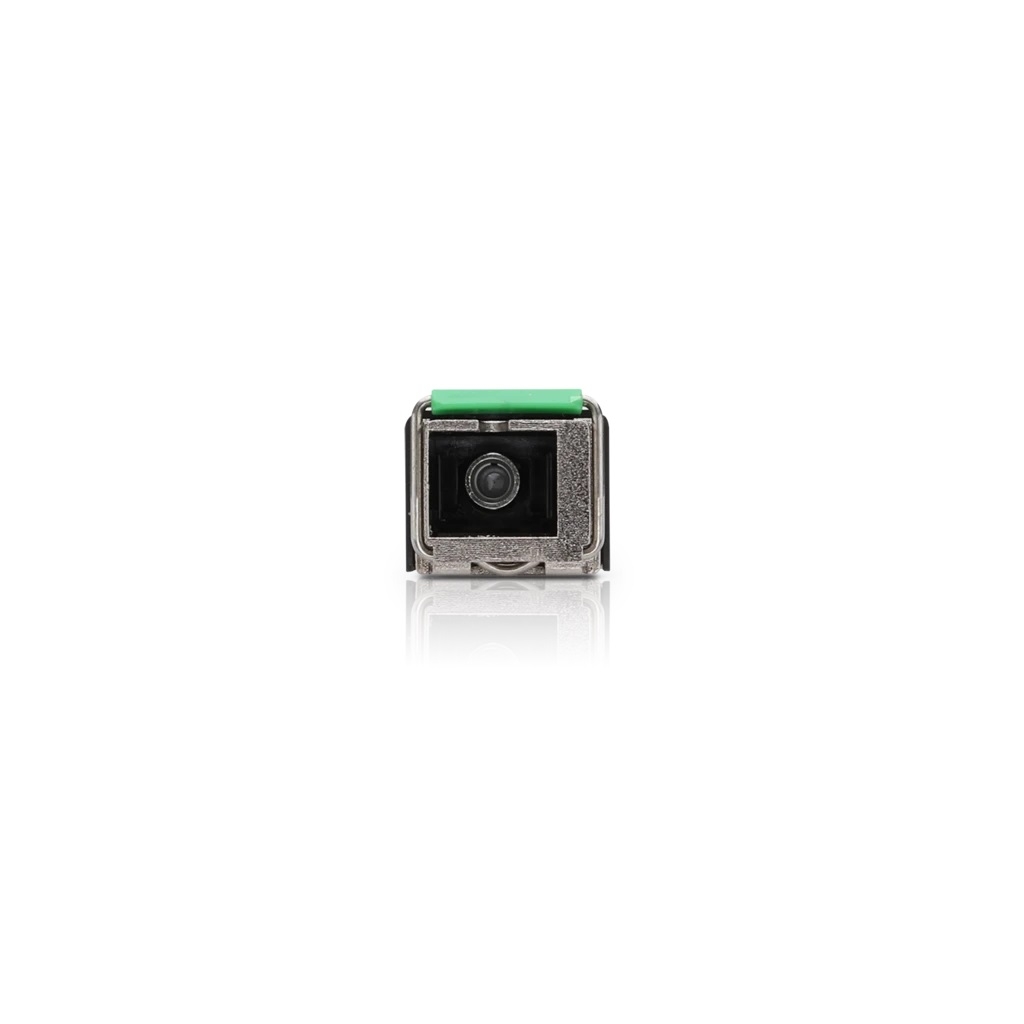

- (1) GPON WAN Port, SC/APC

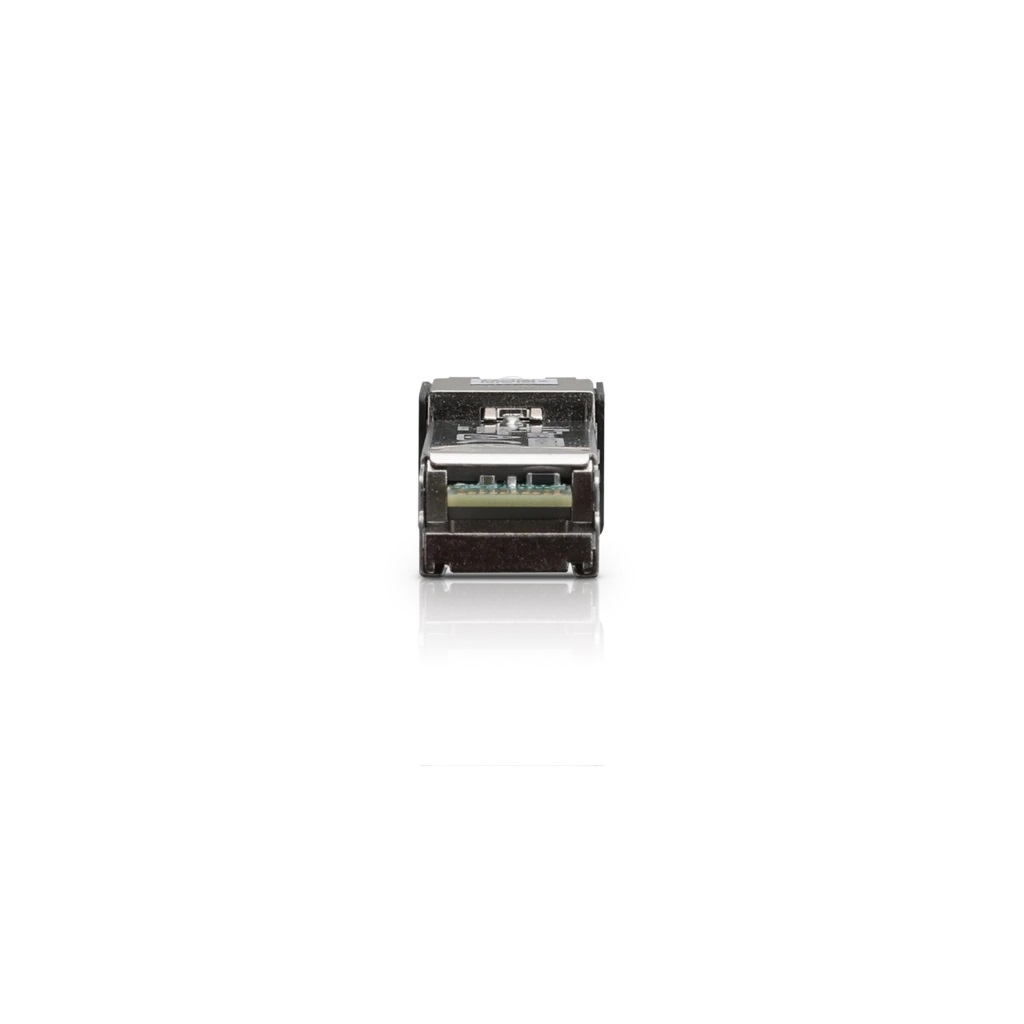

- (1) 1Gbps SFP interface
Specification:
| Dimensions | 69.46 x 13.70 x 11.30 mm (2.74 x 0.54 x 0.45") |
| Weight | 30 g (0.96 oz) |
| Networking Interfaces | (1) SC/APC, GPON WAN (1) SGMII Ethernet LAN |
| Networking Interface Speeds GPON WAN, ITU G.984 GbE LAN |
2.488 Gbps Downstream 1.244 Gbps Upstream 1 Gbps |
| Management Interface | In‐Band Ethernet PON |
| Normal Optical Power Range | TX (Class B+): 1.5 to 5 dBm RX: ‐28 to ‐8 dBm |
| Power Method | SFP |
| Power Supply | 3.3V |
| Max. Power Consumption | 2W |
| Supported Voltage Range | 3.3V |
| Processor Specs | MIPS 100 MHz |
| Memory Information | 32 MB DDR |
| Operating Temperature | ‐10 to 45° C (14 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
