UBIQUITI UFiber ActiveEthernet, Fiber-to-Ethernet Converter (UF-AE)
UFiber™ Active Ethernet allows for easy media conversion from fiber to copper. It supports 1 Gbps fiber uplink speeds and 10/100/1000 Ethernet speeds. UFiber Active Ethernet can be powered with 24V Passive PoE or 802.3af and is compatible with all UFiber SFP Modules
|Price exc. VAT:||Price inc. VAT:||For orders (total sum):|
The UFiber Active Ethernet is a 1 Gbps fiber-to-copper media converter; it allows ISPs to deliver active fiber to a customer's premises and connect it to affordable SOHO network equipment lacking SFP ports. Its compact design allows the UF-AE to be discreetly integrated into any environment.
Fiber Optic Data TransportUsing fiber optic cable for data transport significantly reduces electrostatic discharge (ESD) failures and electromagnetic interference (EMI). Data integrity is also sustained in runs beyond 100 meters, the limit of Ethernet over twisted-pair cable. The UF-AE delivers data over long distances at high speed using fiber. The UF-AE provides fiber connectivity to an RJ45 Ethernet device, which in turn provides 802.3af or 24V passive PoE to the UF-AE.
The versatile UF-AE connects any SFP or SFP+ module at the maximum speed of 1 Gbps. All UFiber SFP or SFP+ modules are supported.
The UF-AE is powered by 24VDC passive PoE or 802.3af active PoE.
1 Gbps fiber uplink speeds and 10/100/1000 Ethernet speeds are supported.

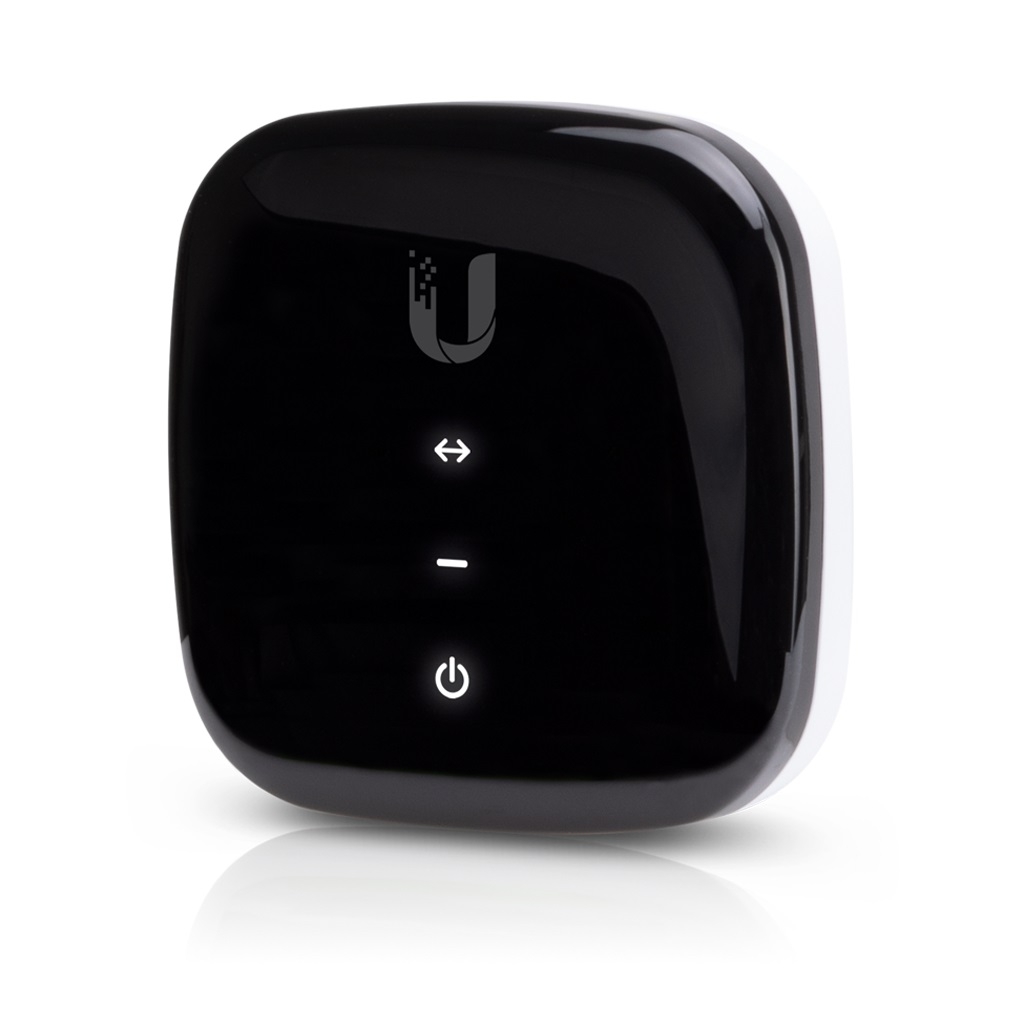

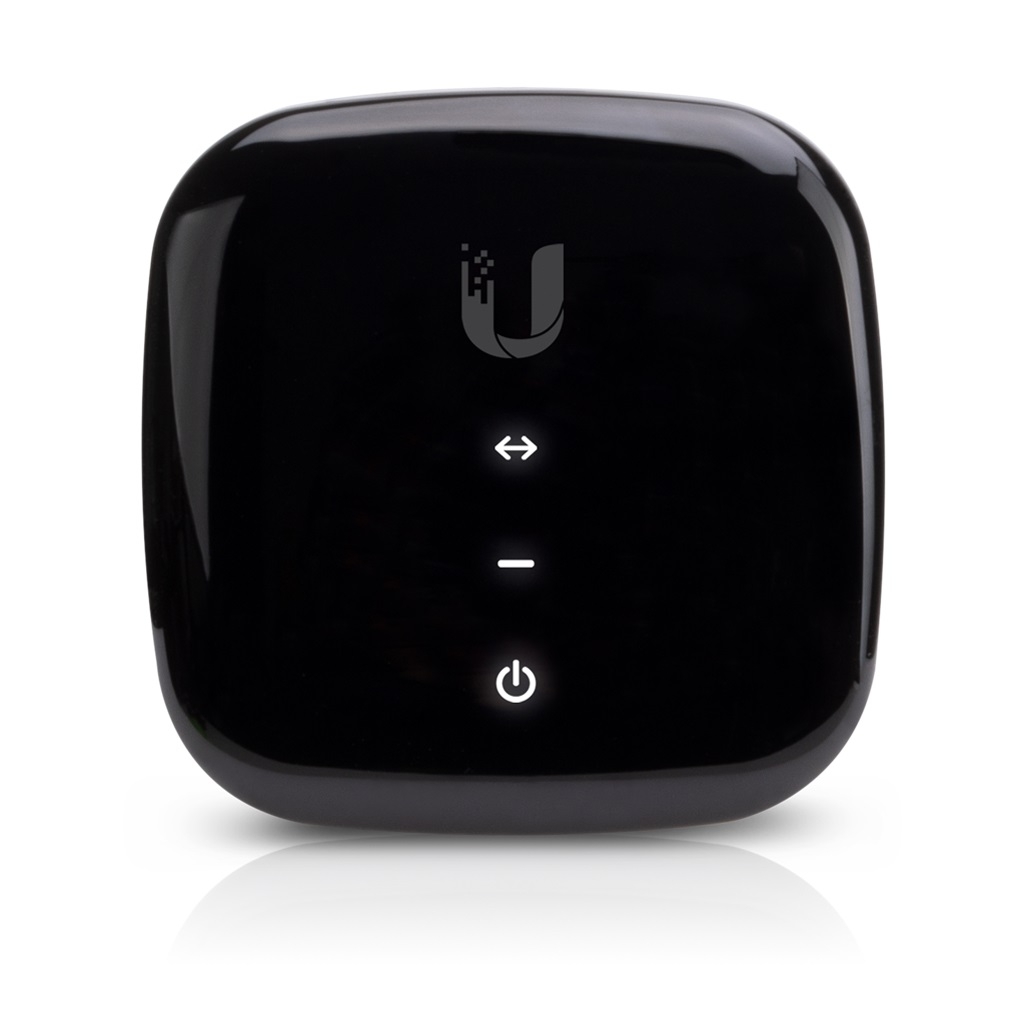

Intuitive LEDs indicate link and speed status.
Use the included bracket to easily mount the UF-AE on a wall.
Dimensions: 76.5 x 76.5 x 26.8 mm (3.01 x 3.01 x 1.06")
Weight: 70 g (2.47 oz)

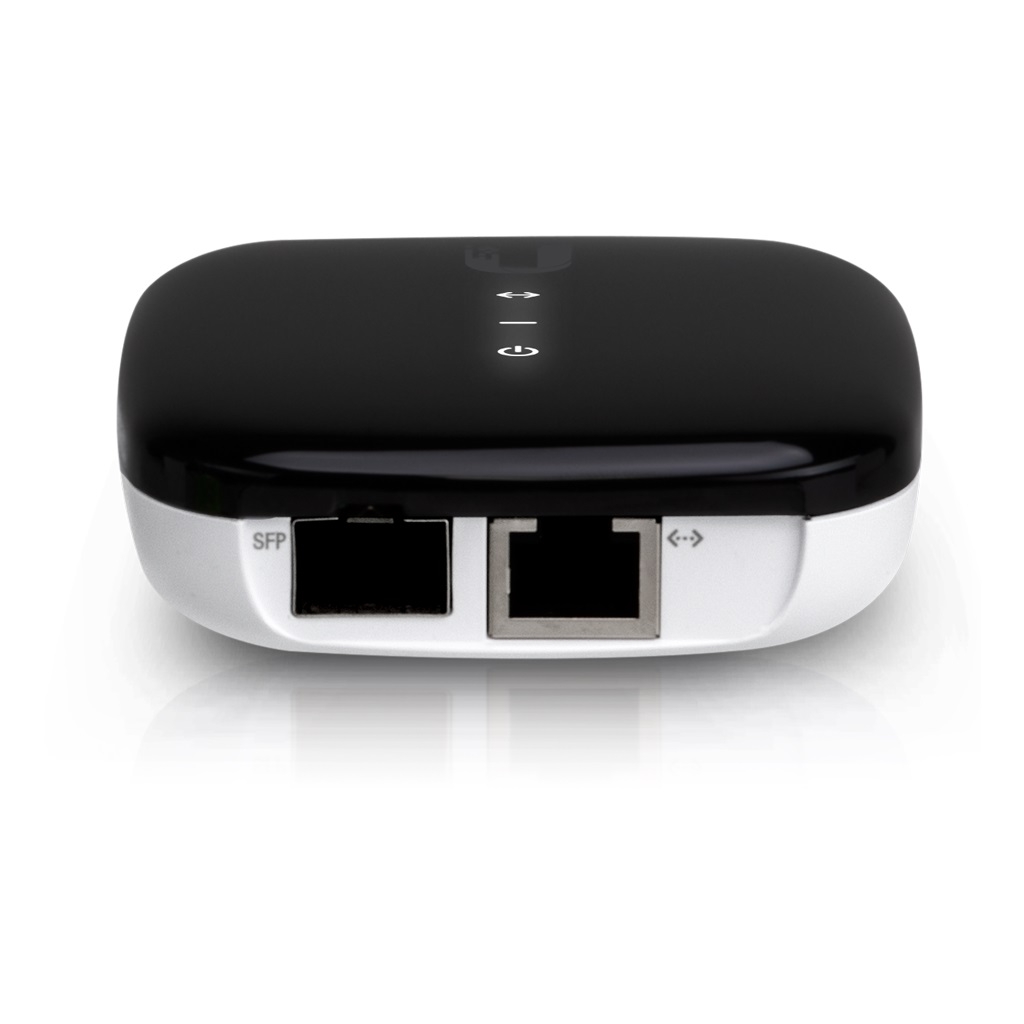

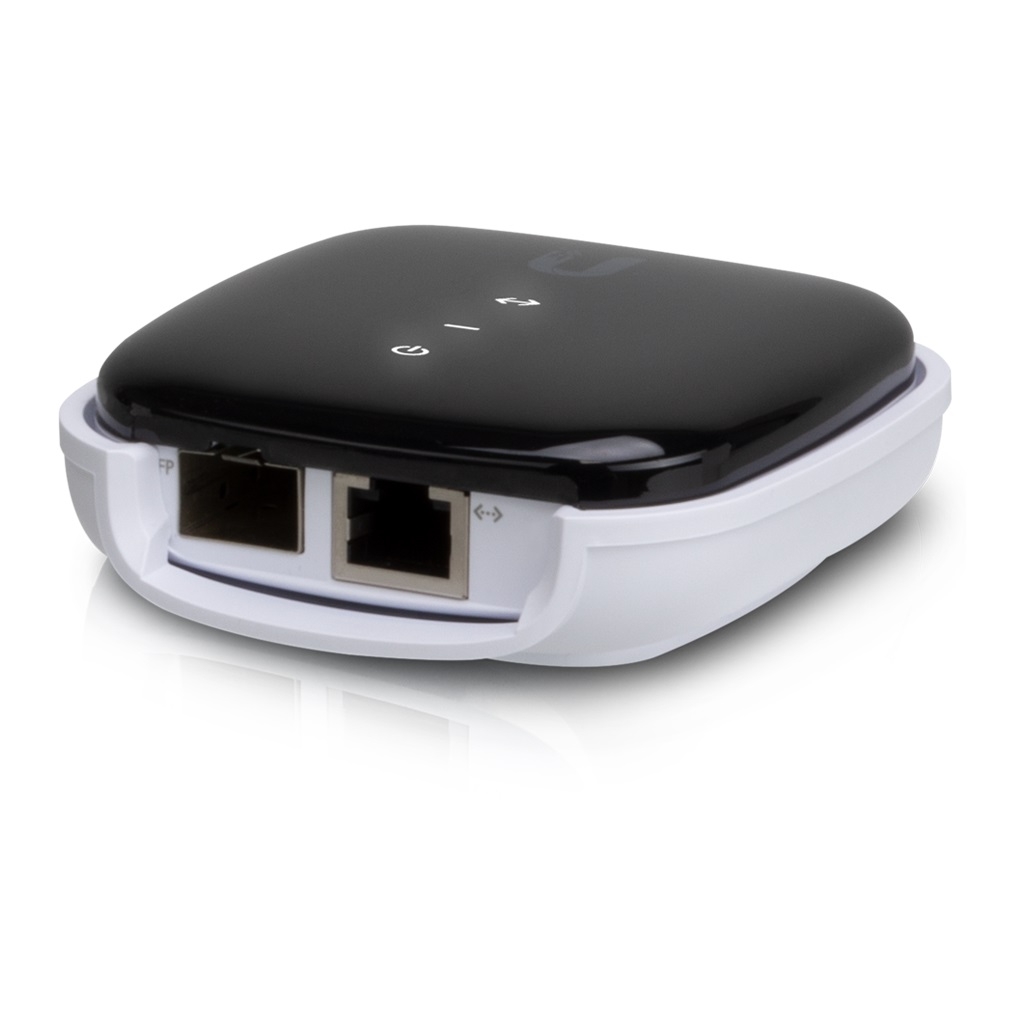

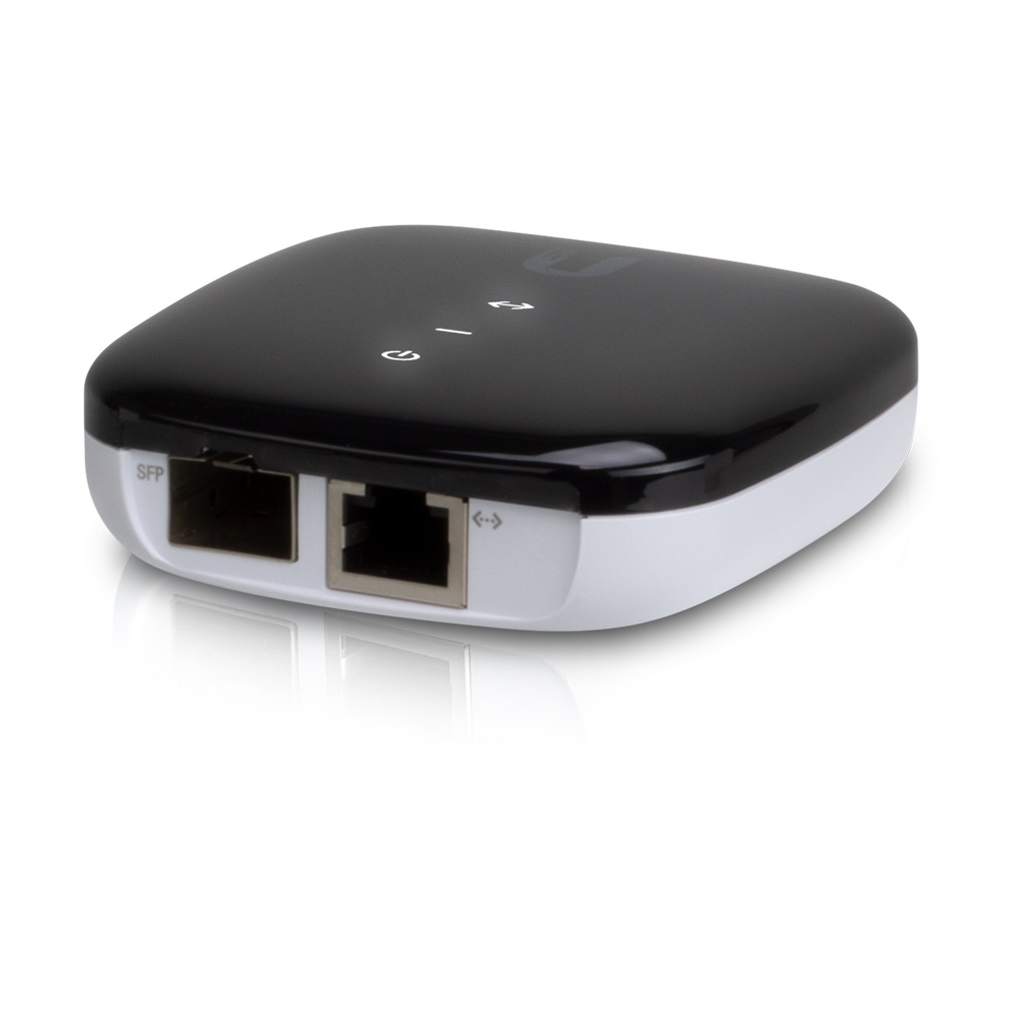

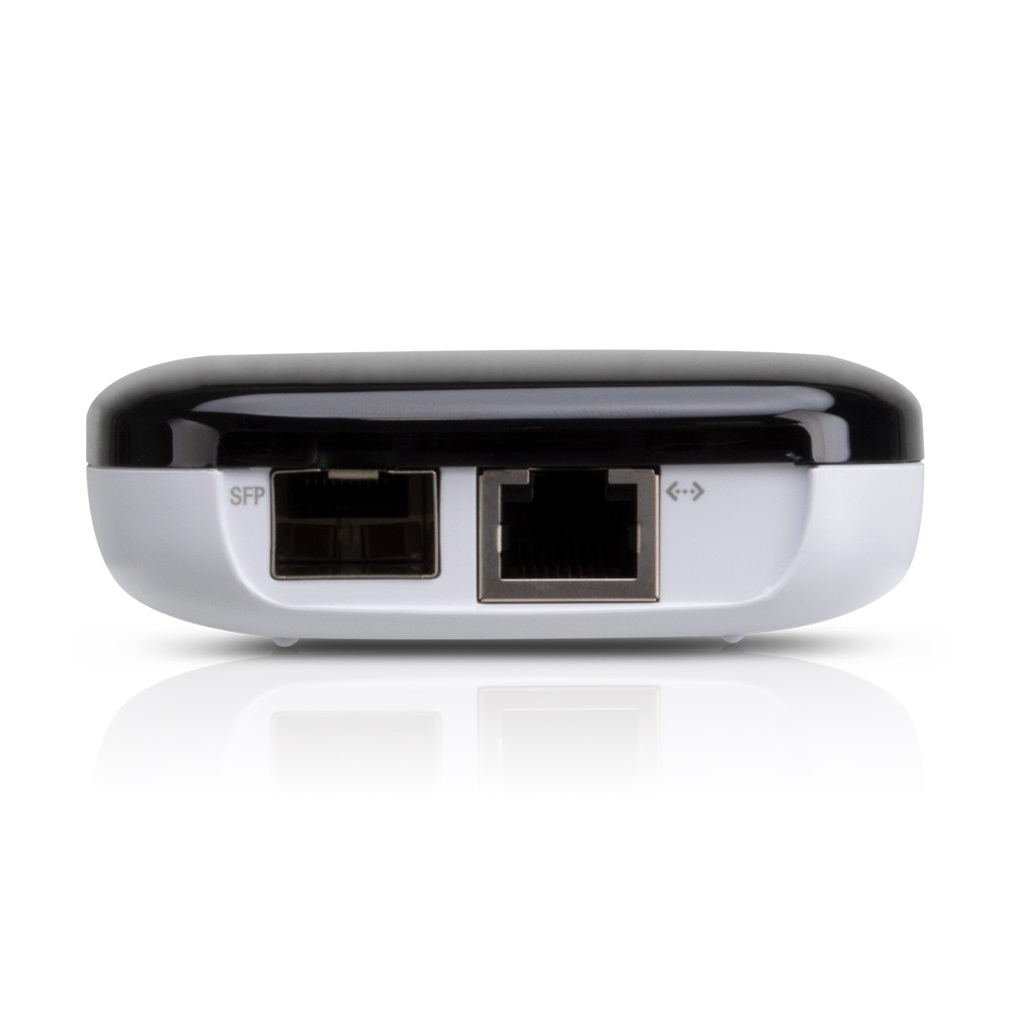

(1) 1 Gbps SFP Port
(1) 10/100/1000 Mbps RJ45 Port
802.3af PoE: (Pins 1, 2+; 3, 6-)
24V Passive PoE: (Pins 4, 5+; 7, 8-)
Power Supply: 802.3af PoE or 24V Passive PoE Device (Power supply not included)
Max. Power Consumption: 1.5W
Supported Voltage Range: 16 to 57V
(1) Optical Signal
Operating Temperature: -40 to 60° C (-40 to 140° F)
Operating Humidity: 10 to 90% Noncondensing
ESD/EMP Protection: ± 12kV Contact/Air
Certifications: CE, FCC, IC
