UBIQUITI UniFi AC HD (UAP-AC-HD) 802.11ac Wave 2 Enterprise Wi-Fi Access Point
UBIQUITI UniFi AC HD, UAP-AC-HD, 1733 Mbps Wave2 AP/Hotspot 2,4/5 GHz, 802.11 a/b/g/n/ac/ac-wave2, 2 x Gbit LAN, 4x4 MU-MIMO - indoor, single pack
|Price exc. VAT:||Price inc. VAT:||For orders (total sum):|
|Out of stock|
Deploy the UniFi AC HD AP in high-density environments requiring maximum wireless performance. The UniFi AC HD AP features simultaneous, dual-band, 4x4 MU-MIMO technology and convenient 802.3at PoE+ compatibility.
Its sleek design seamlessly integrates into any environment (all accessories included) and is compatible with existing UAP-AC-PRO mounts.

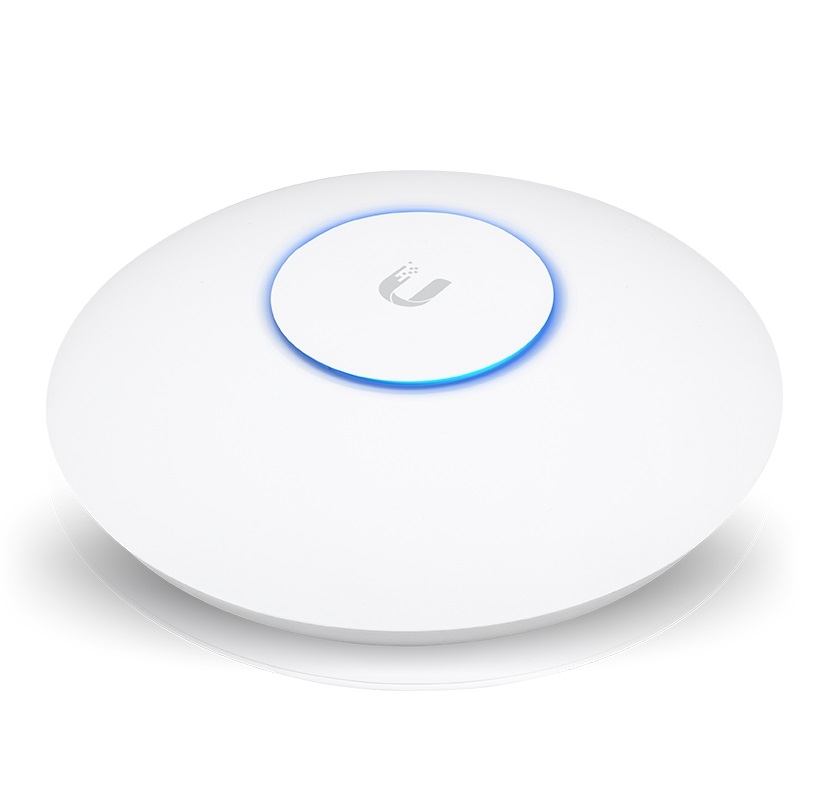

Unique LED provisioning ring provides administrator location tracking and alerts for each device.
Dual Gigabit Ethernet
The UniFi AC HD AP offers a secondary port available for bridging.
Superior Processing Power
The UniFi AC HD AP is capable of complex operations (guest control, filtering, and other resource-intensive tasks) that may slow down a lesser-equipped AP.
Power over Ethernet (PoE)
Includes PoE functionality. Each single-pack includes a PoE adapter.
The UniFi AC HD AP is compatible with an 802.3at PoE+ compliant switch. We recommend powering your UniFi devices with a UniFi PoE Switch (sold separately).
UniFi PoE Switch
Available in 8, 16, 24, and 48-port versions with multiple power output options, the UniFi PoE Switch conveniently offers auto-sensing IEEE 802.3af PoE/802.3at PoE+.
Dimensions: 220 x 220 x 48.1 mm (8.66 x 8.66 x 1.89")
Weight: 700 g (1.54 lb)
Weight With Mounting Kits: 830 g (1.83 lb)
Networking Interface: (2) 10/100/1000 Ethernet Ports
Power Method: Power over Ethernet (48V), 802.3at PoE+ Supported
Supported Voltage Range: 44 to 57VDC
Power Supply: 48V, 0.5A PoE Gigabit Adapter*
Power Save: Supported
Maximum Power Consumption: 17W
TX Power: 2.4 GHz, 6-25 dBm
TX Power: 5 GHz, 6-25 dBm
Antennas, 2.4 GHz: (2) Dual-Port, Dual-Polarity Antennas, 3 dBi each
Antennas, 5 GHz: (2) Dual-Port, Dual-Polarity Antennas, 4 dBi each
Wi-Fi Standards: 802.11 a/b/g/n/ac/ac-wave2
Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
BSSID: Up to Four per Radio
Mounting: Wall/Ceiling (Kits Included)
Operating Temperature: -10 to 70° C (14 to 158° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC
Advanced Traffic Management
Advanced QoS: Per-User Rate Limiting
Guest Traffic Isolation: Supported
WMM: Voice, Video, Best Effort, and Background
Concurrent Clients: 500+
