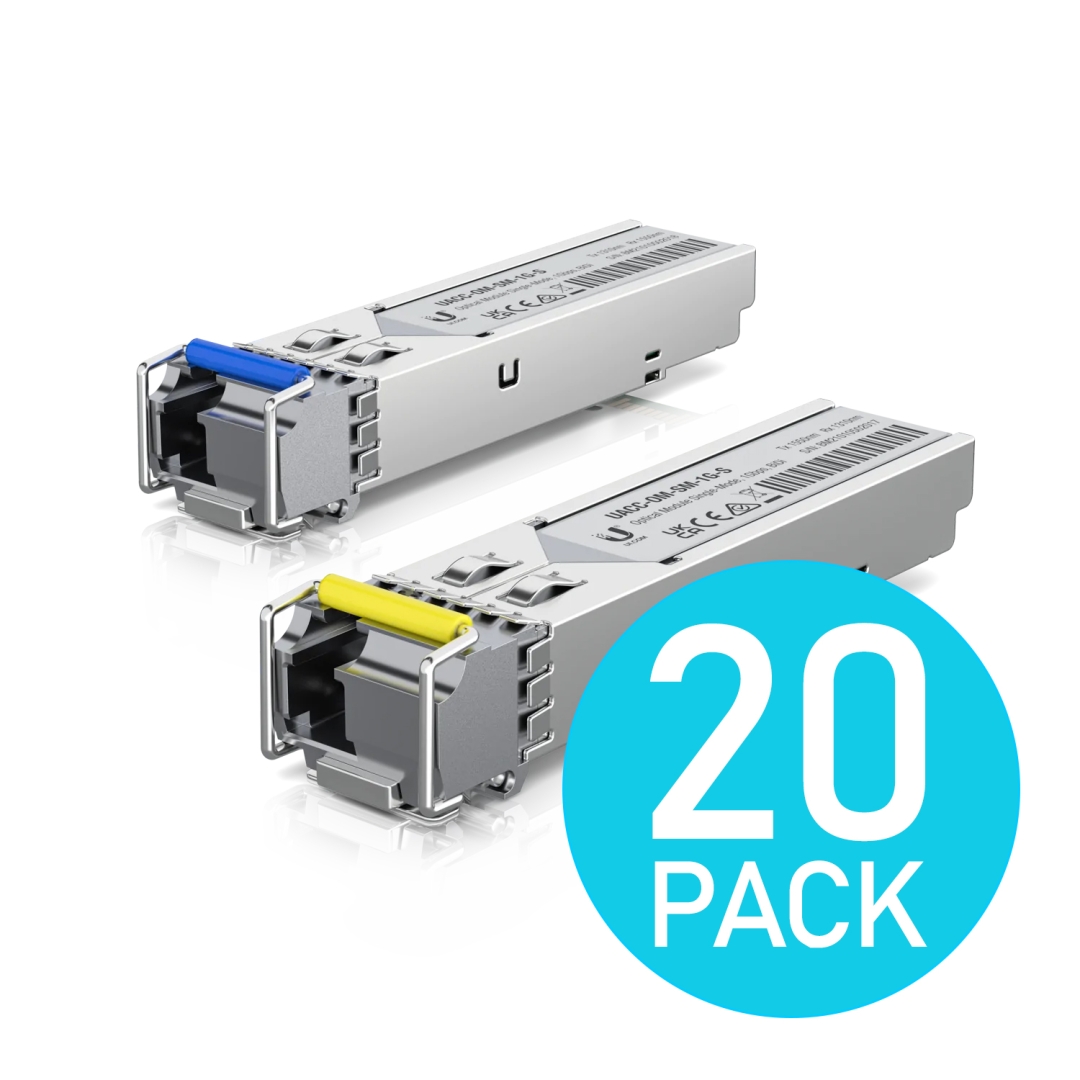

UBIQUITI Single-mode, simplex, fiber transceiver module, 20-pack (10 pairs) (UACC-OM-SM-1G-S-20)
MPN:
UACC-OM-SM-1G-S-20
Order code:
UACC-OM-SM-1G-S-20
Quick code:
#3823
EAN:
0810010076991
Up to 1.25 Gbps speed | Up to 3 kilometers distances
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 153.61£ | 184.33£ | >0£ |
| 152.20£ | 182.64£ | >300£ |
| 150.79£ | 180.95£ | >1000£ |
Features:
The 1 Gbps Bidirectional Single-mode Optical Module is a simplex transceiver that delivers up to 1.25 Gbps speed over distances up to 3 kilometers.
Features:
- 1.25 Gbps throughput
- Simplex LC connector
- Supports connections up to 3 km
- Supported media: SM Fiber (Fiber cable is not included)
Specification:
| Supported Media | Single-Mode Fiber |
| Connector Type | (1) LC |
| BiDi | Yes |
| TX Wavelength* | Blue Latch: 1310 nm Yellow Latch: 1550 nm |
| RX Wavelength* | Blue Latch: 1550 nm Yellow Latch: 1310 nm |
| Data Rate | 1.25 Gbps |
| Max. Power Consumption | 0.66W |
| Cable Distance | 3 km |
| Operating Temperature | 0 to 70° C (32 to 158° F) |
| Pack Options | 20-pack |
| WARNING | CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 – Do not look into the ends of the fiber optic cable or SFP module while converters are powered. |
*It must be used in pairs (blue latch and yellow latch)
