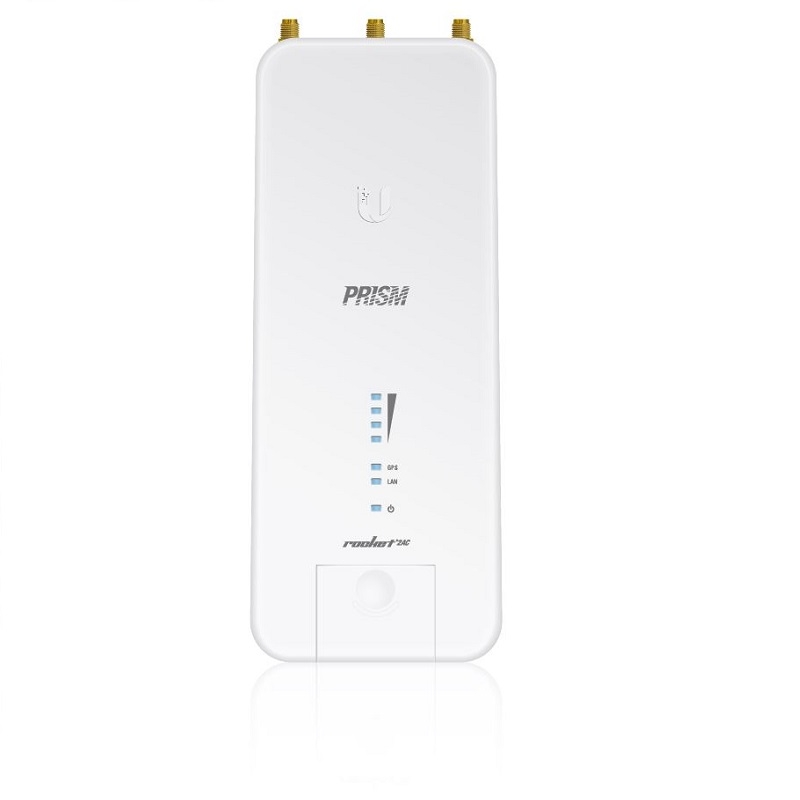

UBIQUITI Rocket 2AC airMAX® ac BaseStation with airPrism® Technology (R2AC)
27dBm, 802.11ac, frequency: Full-Band 2.4 GHz, throughput: 330+ Mbps, ports: (1) 10/100/1000 Ethernet Port, RF Connectors: (2) RP-SMA (Waterproof), (1) GPS (Waterproof), GPS Synchronization, separate Wi-Fi radio for fast and easy setup using your mobile device
|Price exc. VAT:||Price inc. VAT:||For orders (total sum):|
Ubiquiti Networks has designed airMAX ac radios with high performance and ease of installation
in mind. The Rocket®2AC Prism features both airMAX ac and airPrism technologies for maximum wireless performance in high‑density areas. Pair the Rocket 2AC Prism with airMAX ac antennas for optimal performance:
• PtP backhaul RocketDish™ ac Antenna
• PtMP links airMAX ac Sector
2.4 GHz Coverage
Deploy the Rocket 2AC Prism anywhere in the world. It delivers complete coverage of the 2.4 GHz
spectrum with a single radio. The Rocket 2AC Prism allows for flexibility in configuring channel bandwidths (subject to local country regulations).
airMAX ac technology
Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX ac protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
This time slot method eliminates hidden node collisions and maximizes airtime efficiency, so airMAX ac technology provides performance improvements in latency, noise immunity, scalability, and throughput compared to other outdoor systems in its class.
Intelligent QoS. Priority assigned to voice/video for seamless streaming.
Scalability. High capacity and scalability.
Long Distance. Capable of high‑speed, carrier-class links.
The next-generation airMAX ac technology boosts the advantages of our proprietary TDMA protocol.
Ubiquiti’s airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
airMAX ac supports high data rates, which require dense modulation: 256QAM – a significant increase from 64QAM, which is used in airMAX.
With their use of proprietary airMAX ac technology, airMAX ac products supports up to 330+ Mbps
(maximum 40 MHz channel width) real TCP/IP throughput – up to triple the throughput of standard airMAX products.
To enhance airMAX ac performance, Ubiquiti Networks introduces our patented airPrism technology, which
is featured on the Rocket 2AC Prism, model R2AC-PRISM.
High data rates require a high Signal‑to‑Noise Ratio (SNR), which is challenging to achieve, especially in noisy, high‑density areas.
Integrated into Ubiquiti’s custom silicon, airPrism technology creates a high SNR by isolating signals within
the operating channel and rejecting interference using specialized circuitry, the High‑Selectivity Receiver (HSR).
Depending on the product model and operating mode, available channel widths may include 10, 20, or 40 MHz.
Theoretically APs operate on different channels; however, because of the wider channel bandwidths, there can be overlap in spectrum usage.
airPrism technology removes up to an additional 30+ dB of adjacent channel interference through the active filtering design, so an airMAX ac AP with airPrism technology can provide significantly greater performance than a typical AP.
Facilitates AP Co-Location
Co-location is vital in many scenarios. For example, a WISP may have limited tower space, so it must co‑locate all APs within that allotted footprint. Shielding and other means can lessen interference but may be impractical.
By deploying airMAX ac APs with airPrism technology, you can co‑locate APs and enhance the overall performance of your wireless network.
Dimensions: 88 x 40 x 230 mm (3.47 x 1.58 x 9.06")
Weight: 440 g (15.52 oz)
Power Supply: 24V, 0.5A Gigabit PoE
Max. Power Consumption: 8.5W
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range: 18-26VDC
Operating Frequency: 2412 - 2472 MHz
Networking Interface: (1) 10/100/1000 Ethernet Port
RF Connectors: (2) RP-SMA (Waterproof); (1) GPS (Waterproof)
Processor Specs: Atheros MIPS 74Kc, 720 MHz
Memory: 128 MB DDR2 SDRAM, 16 MB NOR Flash
LEDs: Power, LAN, (4) Signal Strength, GPS
Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels
Channel Width Support: 10/20/40 MHz
Enclosure Characteristics: Die-Cast Aluminum with White Powder Coating
ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature: -40 to 70° C (-40 to 158° F)
Operating Humidity: 5 to 95% Noncondensing
Wireless Approvals: FCC, IC, CE
RoHS Compliance: Yes
Shock and Vibration: ETSI300-019-1.4
Modes: Access Point, Station
Services: Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing
Utilities: airMagic, airView, Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test
Distance Adjustment: Dynamic Ack and Ackless Mode
Power Adjustment: Software Adjustable UI
Security: WPA2 AES Only
QoS: Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low
Statistical Reporting: Uptime, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate
Other: Remote Reset Support Software Enabled/Disabled, VLAN Support, 256QAM, GPS, TX Filter
Ubiquiti Specific Features: 10 MHz Channels, airMAX ac Mode, Traffic Shaping with Burst Support, Discovery Protocol, Frequency Band Offset, Ackless Mode
