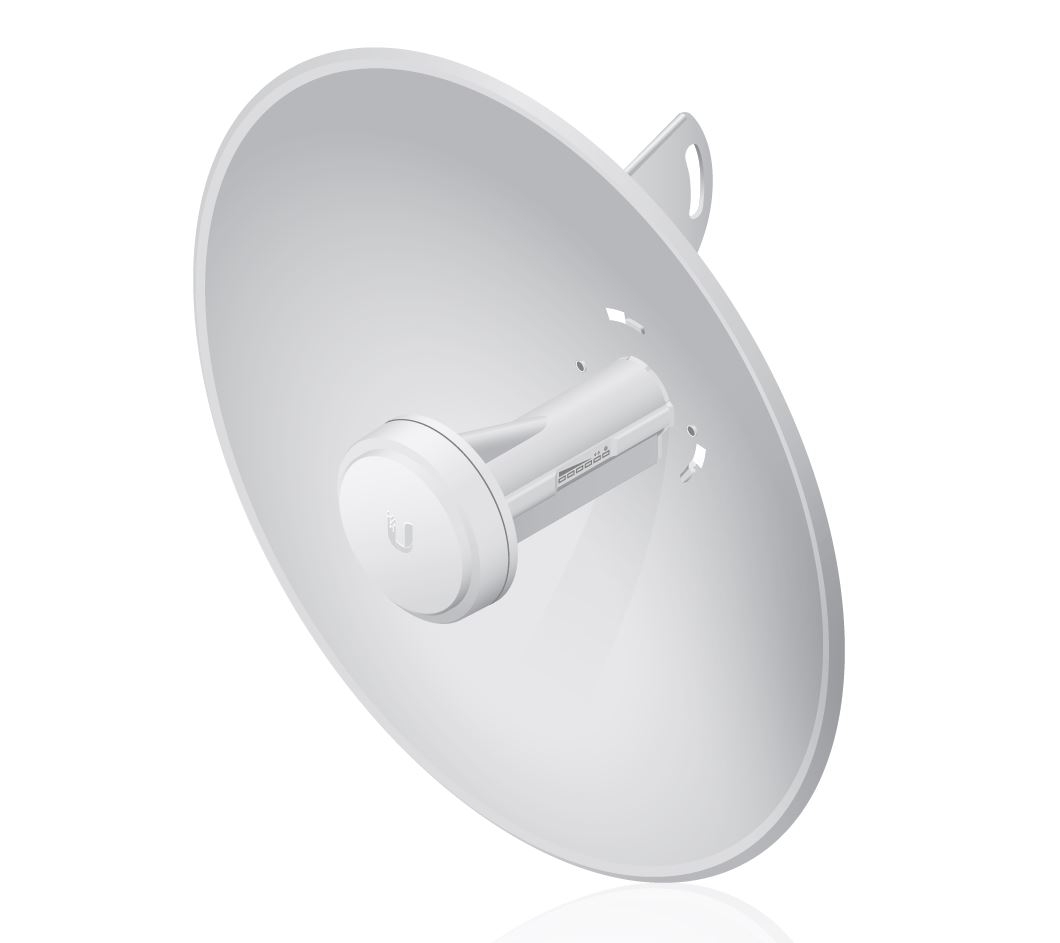

UBIQUITI PowerBeam M2 18dBi High-Performance airMAX Bridge (PBE-M2-400)

UBIQUITI PowerBeam M2 airMAX - outdoor CPE, frequency: 2 GHz, throughput: 150+ Mbps, range: 20+ km, 1x LAN, incl. 18 dBi antenna

Price exc. VAT: Price inc. VAT: For orders (total sum):
56.26£ 67.51£ >0£
55.31£ 66.37£ >300£
54.36£ 65.23£ >1000£
Qty:
In stock



Features:

Starting with the first-generation NanoBridge®, Ubiquiti Networks pioneered the all-in-one design for an airMAX® product functioning as a CPE (Customer Premises Equipment). The PowerBeam® was the next generation of Ubiquiti Networks CPE's.

Improved Noise Immunity

The PowerBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Integrated Design

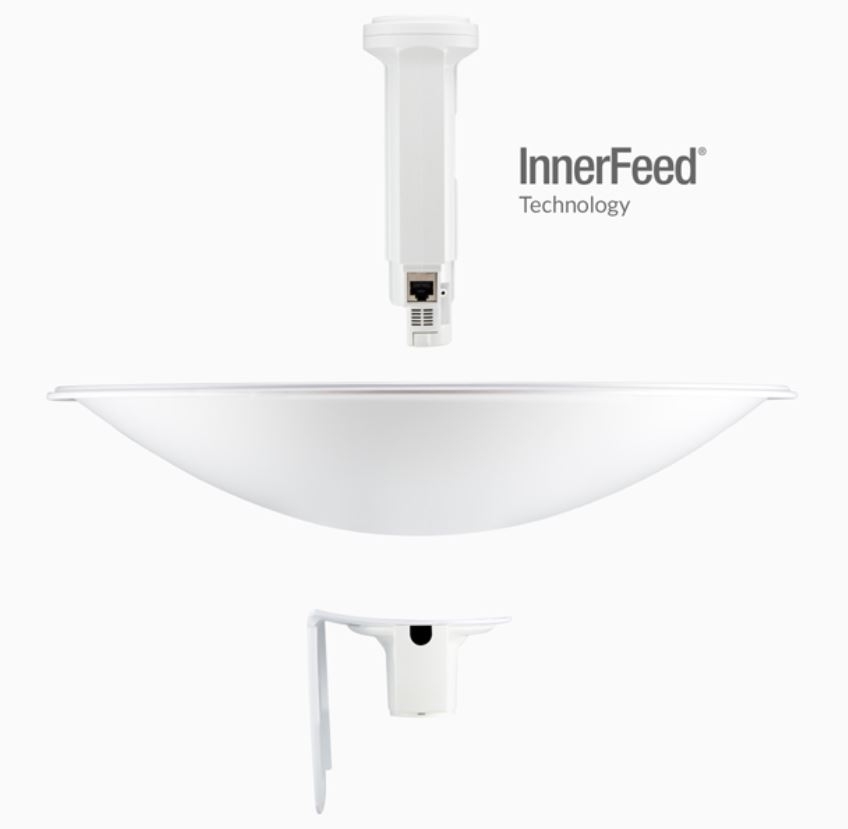

Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses.
Providing high performance and innovative mechanical design at a low cost, the PowerBeam is extremely versatile and cost‑effective to deploy.

airMAX Technology Included

Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol
allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
This time slot method eliminates hidden node collisions and maximizes airtime efficiency. It
provides significant performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.

Intelligent QoS. Priority is given to voice/video for seamless streaming.

Scalability. High capacity and scalability.

Long Distance. Capable of high‑speed, carrier-class links.

Specification:

Dimensions: 420 x 420 x 289 mm (16.54 x 16.54 x 11.38")
Weight: 1.795 kg (3.96 lb)
Power Supply: 24V, 0.5A PoE
Max. Power Consumption: 6W
Operating Frequency: 2405-2475 MHz
Gain: 18 dBi
Networking Interface (1): 10/100 Ethernet Port
Processor Specs: Atheros MIPS 74Kc, 560 MHz
Memory: 64 MB DDR2, 8 MB Flash
LEDs (1): Power, (1) LAN, (4) WLAN
Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels
Max. VSWR: 1.5:1
Channel Sizes: 5/8/10/20/30/40 MHz
Polarization: Dual Linear
Enclosure: Outdoor UV Stabilized Plastic
Mounting: Pole-Mount (Kit Included)
Wind Loading: 278.4 N @ 120 km/h (63 lbf @ 75 mph)
Wind Survivability: 120 km/h (75 mph)
ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature: -40 to 70° C (-40 to 158° F)
Operating Humidity: 5 to 95% Noncondensing
Wireless Approvals: FCC, IC, CE
RoHS Compliance: Yes
Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test: IEC 68-2-6
Temperature Shock Test: IEC 68-2-14
UV Test: IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5

Additional product information:

Datasheet
Quick Start Guide
Link to manufacturer product page
