UBIQUITI Power Supply with UPS and PoE, EdgePower 54V (EP-54V-72W)

MPN: EP-54V-72W
Order code: EP-54V-72W
Quick code: #3101

UPS device with dual PoE output ports. You can receive alerts in the event of a power outage, and the EP-54V-72W offers a 12V lead acid battery input (optional) for redundancy if the AC input fails over

new
Price exc. VAT: Price inc. VAT: For orders (total sum):
120.71£ 144.85£ >0£
119.67£ 143.60£ >300£
117.58£ 141.10£ >1000£
Qty:


Features:

The EdgePower 54V 72W is a UISP monitored and managed 54V DC power supply with integrated battery backup. This product provides WISPs with an easy-to-install 54V redundant power supply that includes a management user interface, SNMP, and simple 12V battery backup charger with multiple 54V outputs for small sites.

Features:

*12V Battery not included

    • 100-240VAC, 50-60 Hz, Universal Input

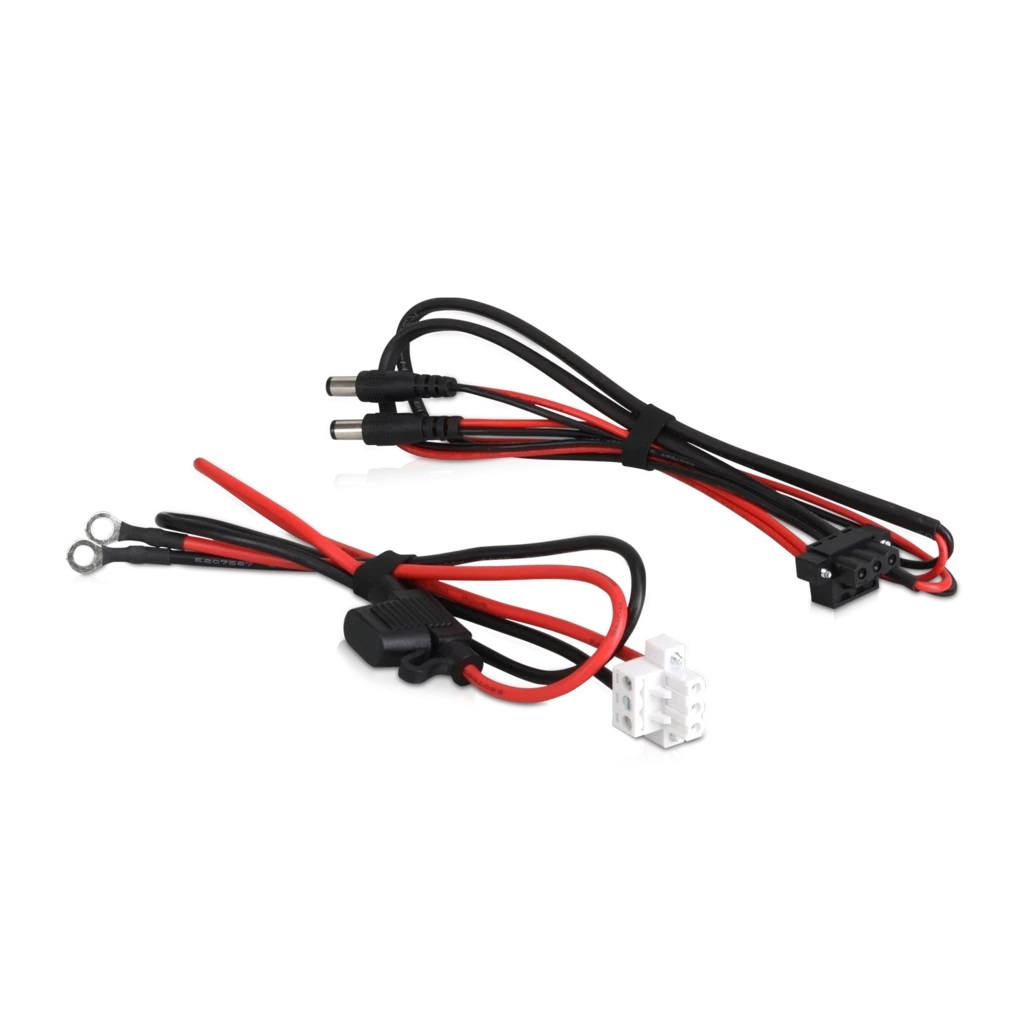

    • 54V DC Output (terminal connector with dual DC barrel jack included)
    • 12V Lead Acid Battery Input*
    • Two, 10/100 Ethernet, 54V Passive PoE output, switch-ports

Specification:

Dimensions 115 x 192 x 43.7 mm
(4.53 x 7.56 x 1.72")
Weight 650 g
(1.43 lb)
Interfaces
Networking
Management

2) 10/100 Mbps RJ45 Ports
Ethernet In-Band
PoE Output (2) 54VDC Passive PoE (Pins 4, 5+; 7, 8-)
DC Output 54V, 1.3A
Power Method
AC Input
Battery Input

100-240VAC, 50-60 Hz, Universal Input
DC Terminal Block
Power Supply
AC Input
Battery Input

AC/DC 72W
12VDC Lead Acid Battery*
Max. Power Consumption
System
Output

2W
72W
LEDs
System
RJ45 Data Ports

Status
PoE; Link/Activity
ESD/EMP Protection Air: ± 12 kV, Contact: ± 12 kV
Operating Temperature 0 to 40° C (32 to 104° F)
Operating Humidity 10 to 90% Noncondensing
Certifications CE, FCC, IC

* Battery not included
