UBIQUITI PoE Integrated AC Adapter (UACC-PoE+-USBC)
Delivers up to 30W of PoE+
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 35.73£ | 42.88£ | >0£ |
| 35.40£ | 42.48£ | >300£ |
| 35.08£ | 42.10£ | >1000£ |
Features:
An AC adapter with integrated PoE, enabling the UniFi Cloud Gateway device to support PoE output on a single port.
- Delivers up to 30W of PoE+

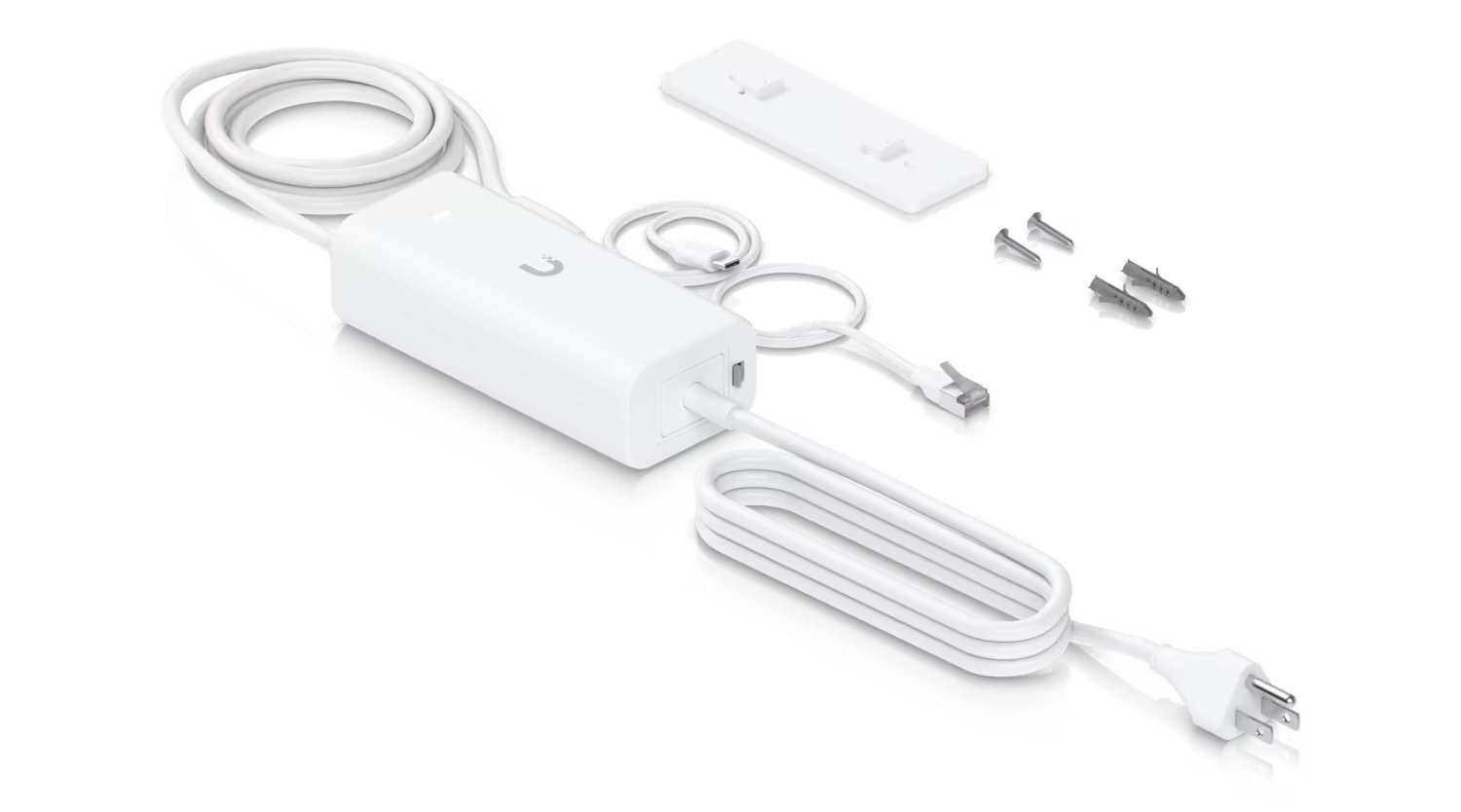

- Supports wall mount, DIN rail and floating mount (DIN rail and floating mount sold separately)

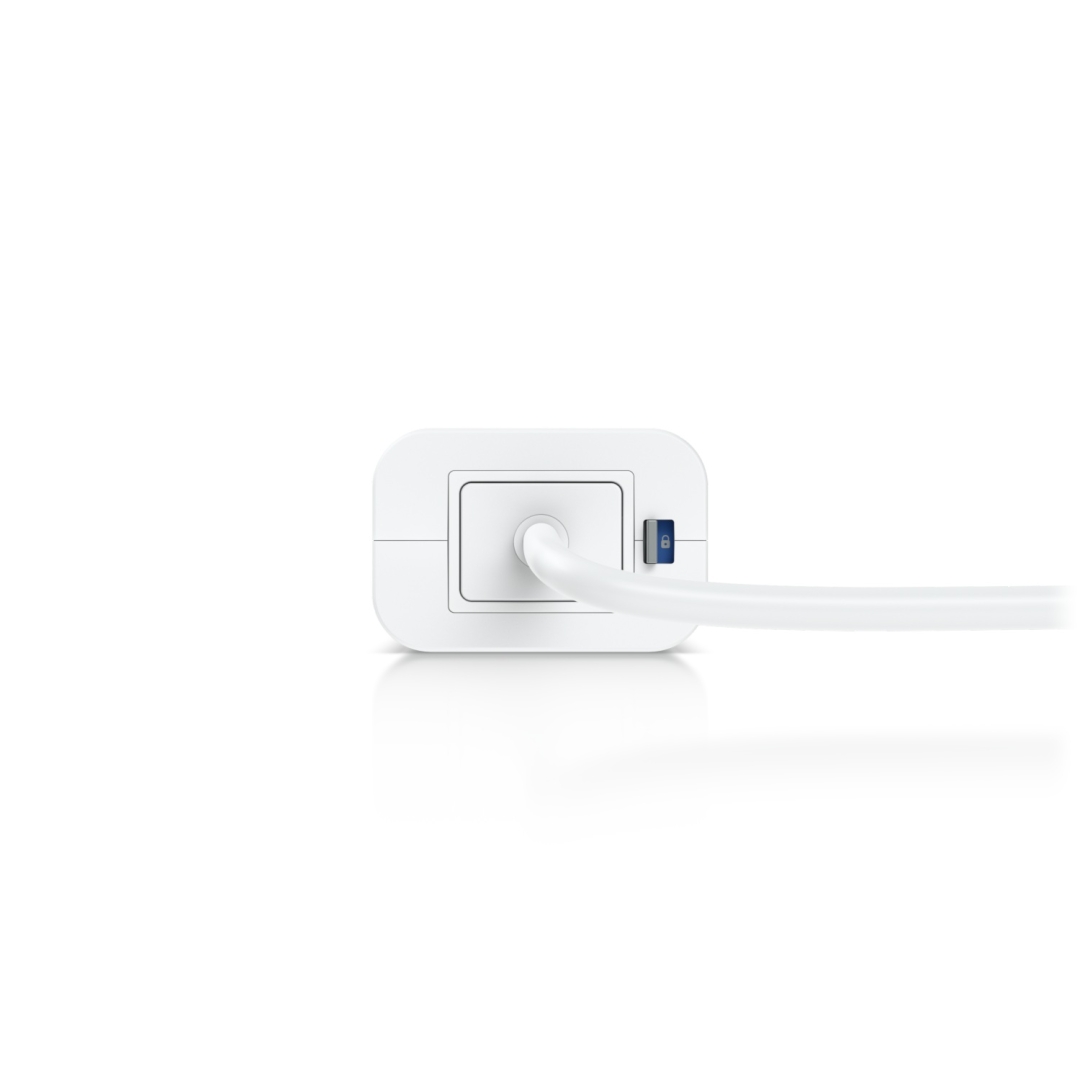

- Lockable latch designed for power cord security
Compatibility:
UCG-Ultra
UCG-Max
UXG-Lite
UXG-Max
UX
UX7
Specification:
Dimensions: 46 x 62 x 42 mm (5.7 x 2.4 x 1.7")
Weight: 358 g (12.6 oz)
Length: Cable: 150 cm (4.9 ft) total, including 30 cm split Type-C/Ethernet ends Power cord: 180 cm (5.9 ft)
Output Voltage:
Type-C: 5V@ 5A
PoE+: 48V@ 0.65A
Rated Voltage: 100—240V AC @ 50/60Hz
Gigabit LAN Port: Yes
4-pair Powering: Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
Clamping Protection: 11V data, 60V power

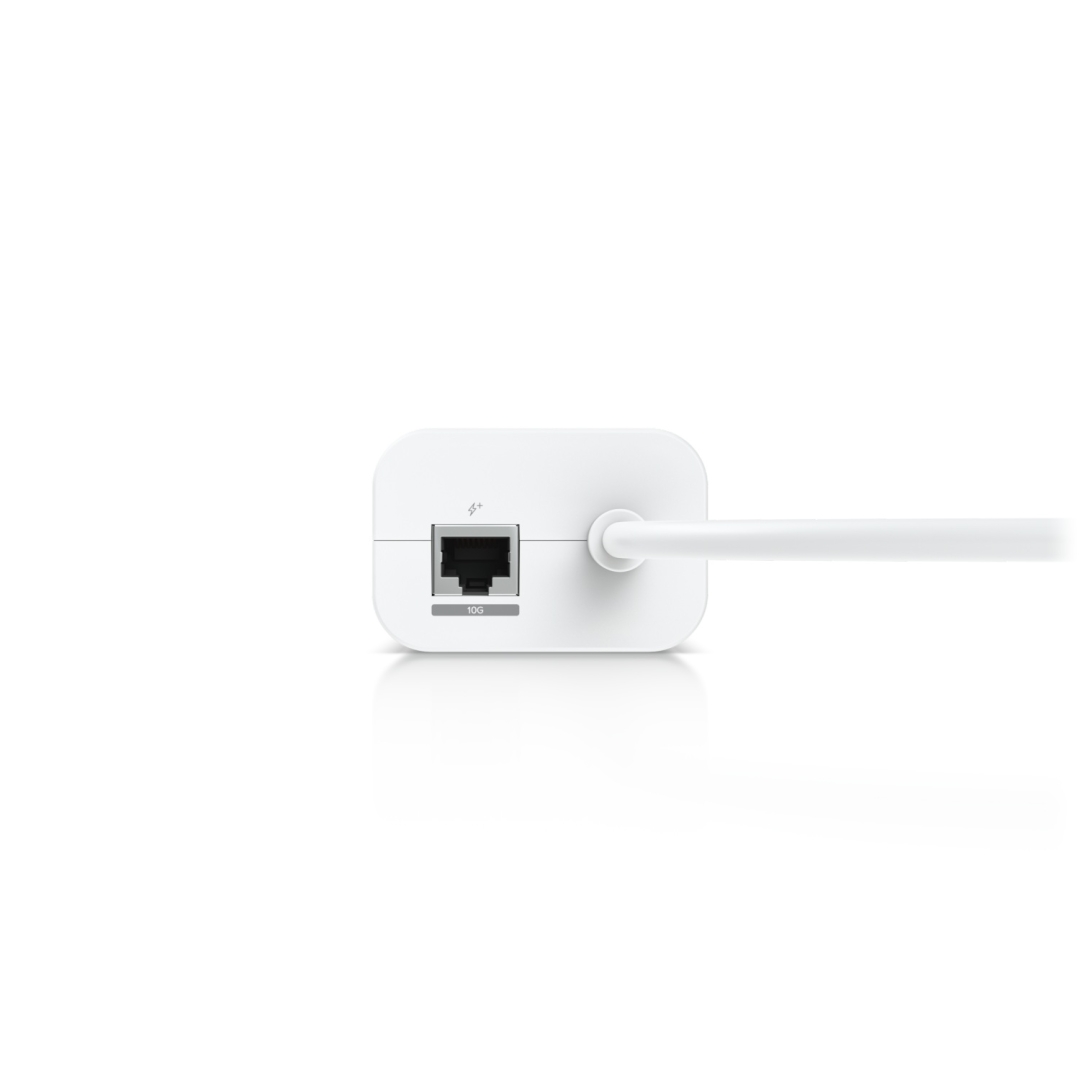

Data In / PoE: RJ45 shielded socket
Input Current: 1.5A max.
Inrush Current: 120A
Efficiency: 82%
Switching Frequency: 65 kHz
Output Ripple: 1% max.
Line Regulation: ≤ 5%
Load Regulation: ≤ 5%
Max. Surge Discharge: 1500A (8/20 μs) power
Peak Pulse Current: 36A (10/1000 μs) data
Response Time: <1 ns
Shunt Capacitance: <5 pF data
Surge Protection: Difference and common mode
Ambient Storage Temperature: -30 to 70°C (-22 to 158° F)
Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
Ambient Operating Humidity: 10 to 95% noncondensing
NDAA Compliant: Yes
Certifications: CE, FCC, IC, UL, UKCA, CCC, KC, RoHS
