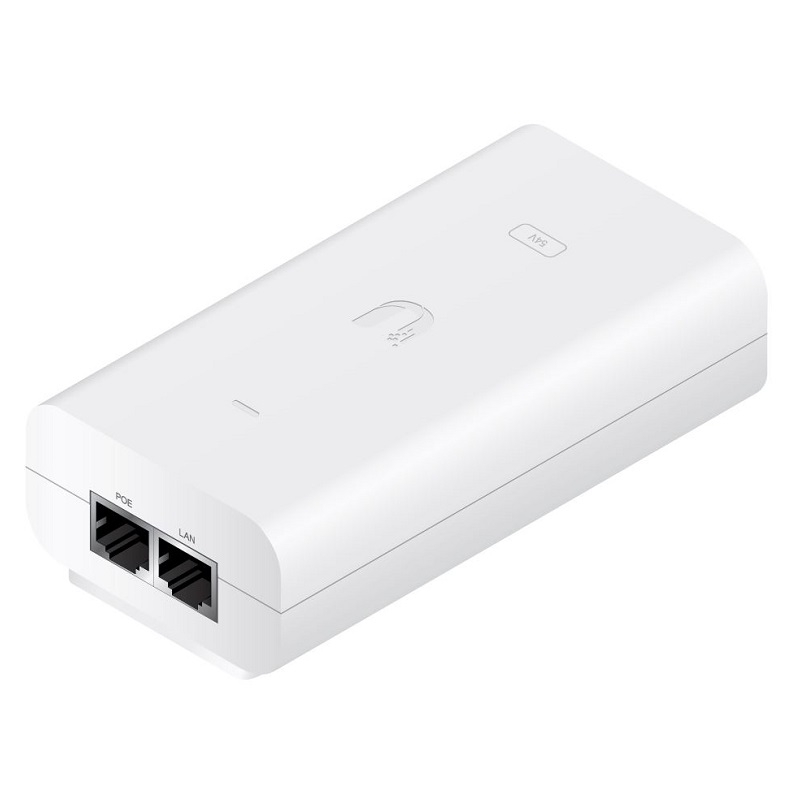

UBIQUITI 54 VDC, 1.5A Gigabit PoeE Adapter (POE-54-80W-G)

Ubiquiti's EdgePoint POE-54V-80W PoE Injector, designed to power Ubiquiti's EP-R8 and EP-S16 EdgePoint models.

Price exc. VAT: Price inc. VAT: For orders (total sum):
19.87£ 23.84£ >0£
19.54£ 23.45£ >300£
19.20£ 23.04£ >1000£
Qty:
In stock



Features:

Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices*, including:
• airFiber®
• airMAX®
• EdgeMAX®
• mFi®
• UniFi® AP
• UniFi Video / airVision®
* Always check product specifications to verify PoE compatibility.

Protection

Ubiquiti PoE Adapters provide a variety of features to help
protect your PoE devices:
• Surge protection
• Clamping protection
• Maximum surge discharge
• Peak pulse current
• AC cable with earth ground
Electrostatic discharge (ESD) is the leading cause for
outdoor device failures. You can effectively protect against
ESD damage using a grounded Ubiquiti PoE Adapter,
TOUGHCable™, and TOUGHCable Connectors.

Specification:

Dimensions: 123 x 65 x 34 mm (4.84 × 2.56 × 1.34")
Weight: 299 g (10.55 oz)
Output Voltage 54VDC @ 1.5A
LAN Activity Indicator: No
Gigabit LAN Port: Yes
Remote Reset Capability: No
Reset Button: No
Input Voltage: 100-240AC @ 50/60Hz
Input Current:0.8A @ 120VAC, 0.4A @ 240VAC
Inrush Current: <80A Peak @ 120VAC, <120A Peak @ 230VAC
Efficiency: 87+%
Output Ripple: 1% Max.
Switching Frequency: 100 kHz Max.
Line Regulation: ± 1%
Load Regulation: ± 3%
4-Pair Powering: Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-)
Operating Temperature: 0 to 40° C (32 to 104° F)
Storage Temperature: -30 to 70° C (-22 to 158° F)
Operating Humidity: 35 to 95% Noncondensing
AC Connector: IEC-320 C6
Data IN / POE: RJ45 Shielded Socket
Surge Protection: Difference and Common Mode
Clamping Protection: 11V Data, 60V Power
Max. Surge Discharge: 1500A (8/20 μs) Power
Peak Pulse Current: 36A (10/1000 μs) Data
Shunt Capacitance: <5 pF data
Response Time: <1 ns
Compliance: IEC 60950-1:2005+A1, UL60950-1, EN55022:2010, EN55024:2010, FCC Class B
