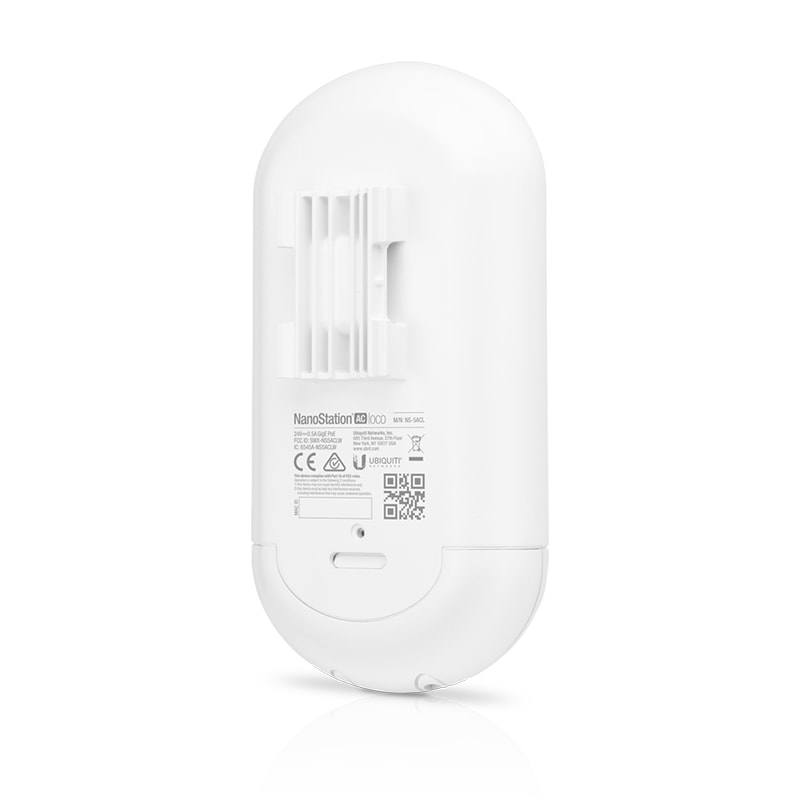

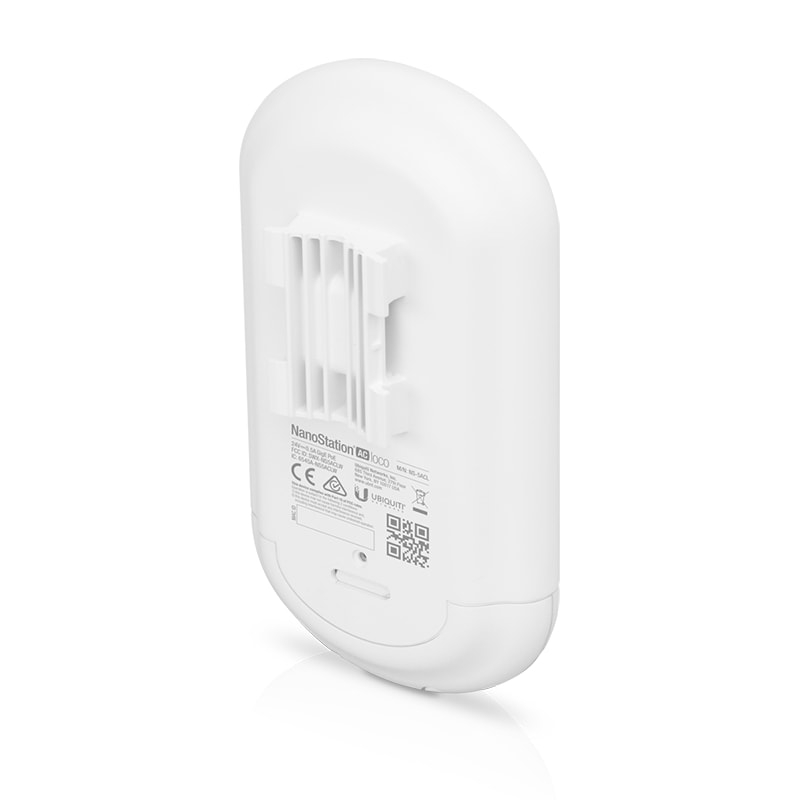

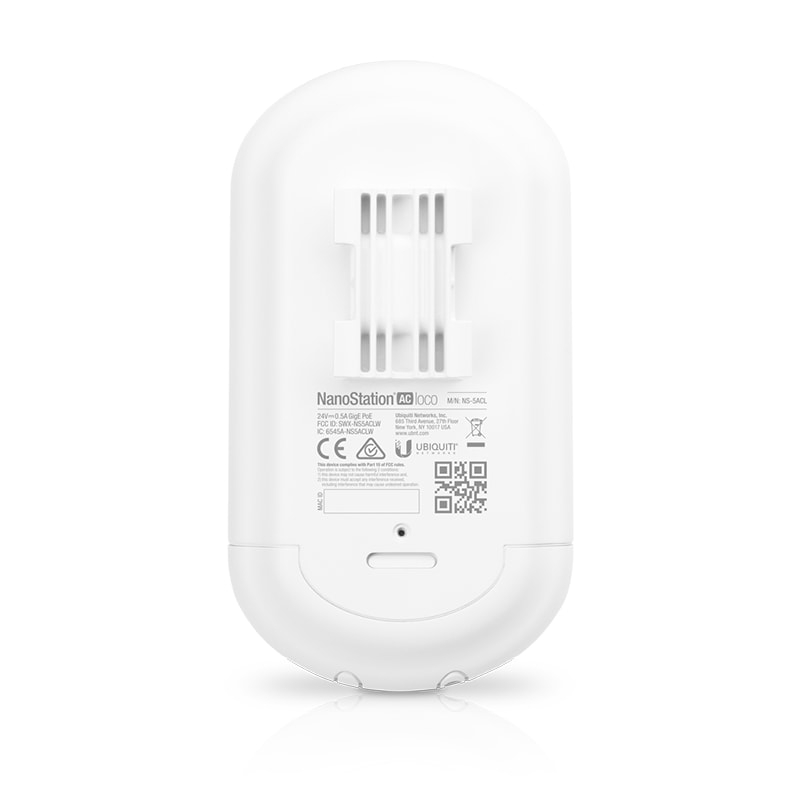

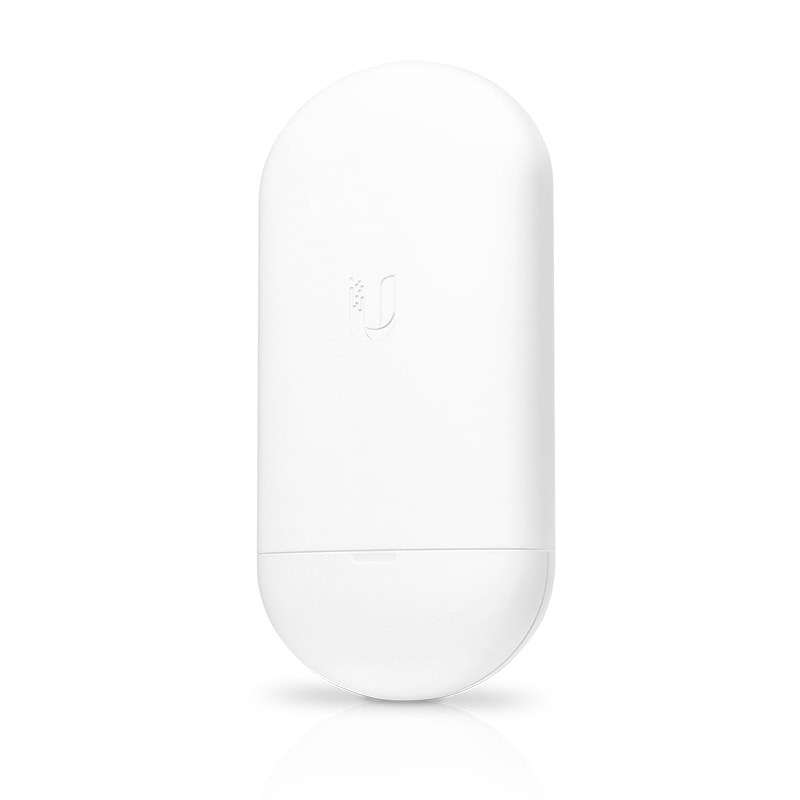

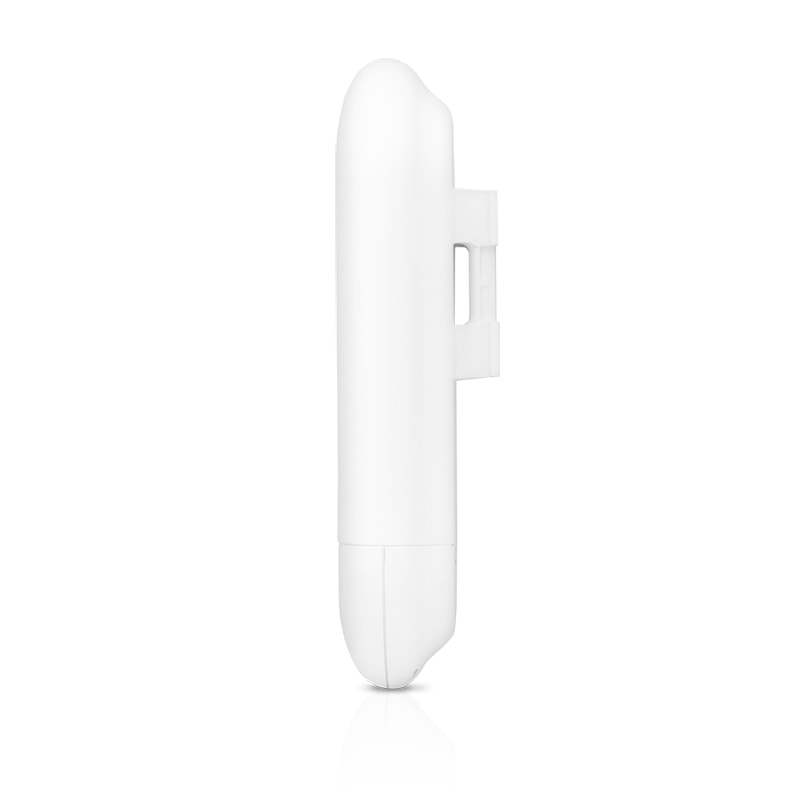

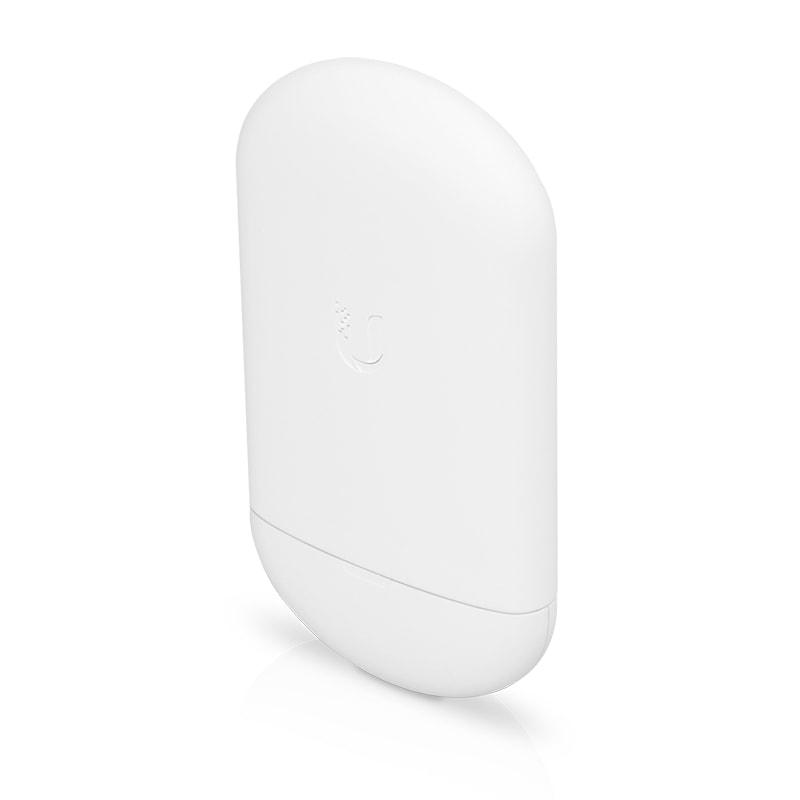

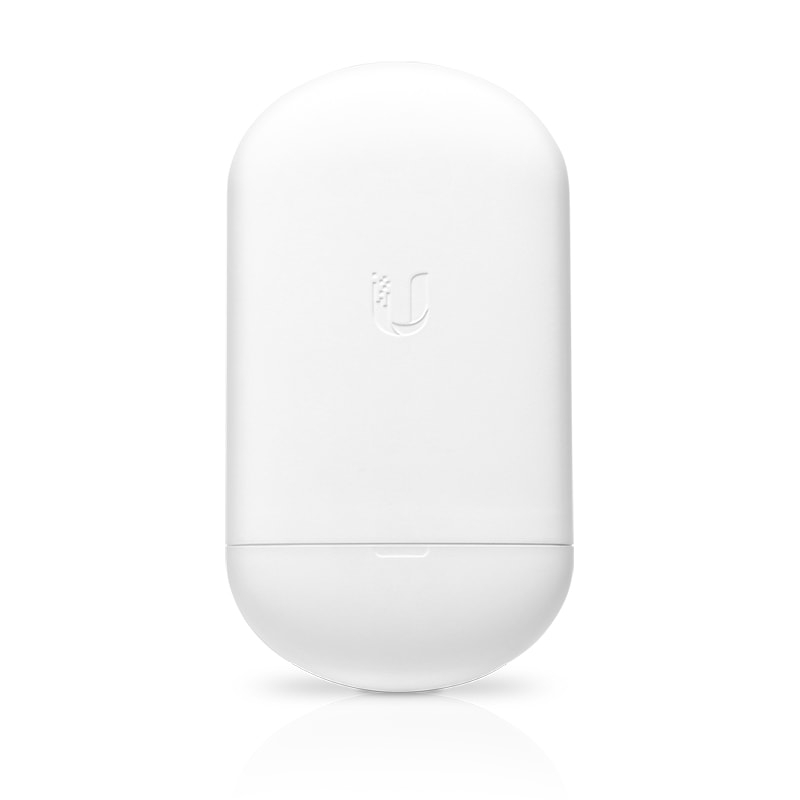

UBIQUITI NanoStation 5AC Loco 13 dBi Outdoor airMAX® CPE (NS-5ACL)

Order code: NS-5ACL
Quick code: #1458

Compact indoor/outdoor, high-performance CPEs featuring airMAX® AC technology and a dedicated Wi-Fi radio for management, frequency: 5 GHz, throughput: 450+ Mbps, range: 10+ km, 1 x 10/100/1000 Mbps Ethernet Port (PoE Supply NOT INCLUDED)

Price exc. VAT: Price inc. VAT: For orders (total sum):
35.55£ 42.66£ >0£
35.17£ 42.20£ >300£
34.56£ 41.47£ >1000£
Qty:
  In stock


Features:

Sleek Industrial Design

The NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry.





Management Wi-Fi Radio

Each NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.



Improved Surge Protection

The NanoStation AC and NanoStation AC loco feature enhanced protection against ESD events.

Now with airOS®8

airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Specification:

Dimensions: 179 x 77.5 x 59.1 mm (7.05 x 3.05 x 2.33")
Weight: 180 g (6.35 oz)
Power Supply: 24V, 0.5A Gigabit PoE Supply (NOT INCLUDED)
Max. Power Consumption: 8.5W
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Gain: 13 dBi

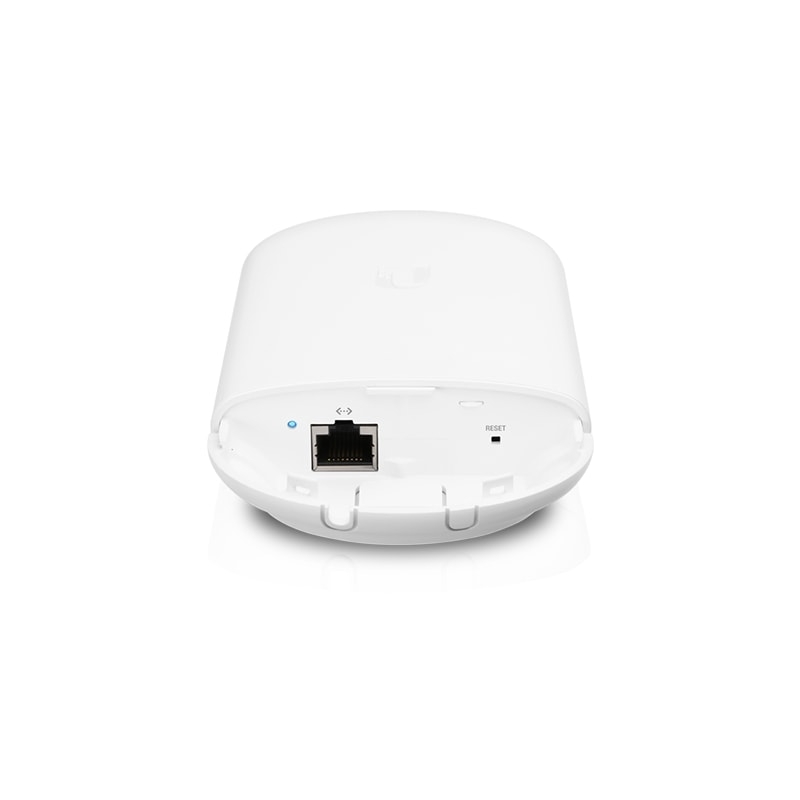

Networking Interface: 10/100/1000 Mbps Ethernet Port
Channel Bandwidths: 10/20/30/40/50/60/80 MHz
Processor: Specs Atheros MIPS 74Kc, 560 MHz
Memory: 64 MB DDR2
Cross-pol Isolation: 20 dB Minimum
Max. VSWR: 1.8:1
Beamwidth: 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
Polarization: Dual Linear
Enclosure: Outdoor UV Stabilized Plastic
LEDs: (1) Power

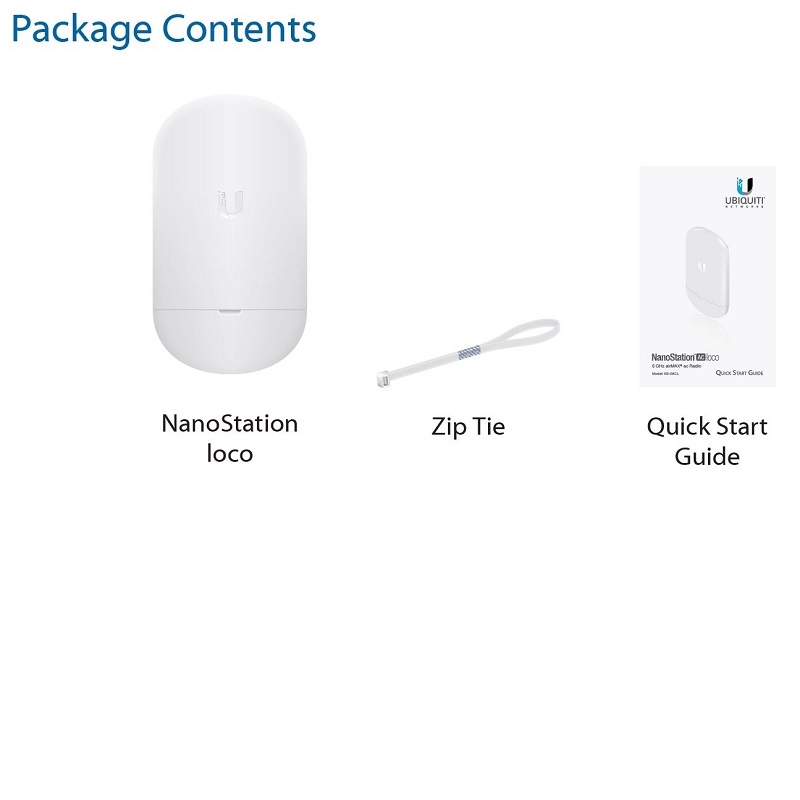

Mounting: Pole-Mount (Kit Included)
Operating Temperature: -40 to 70° C (-40 to 158° F)
Operating Humidity: 5 to 95% Noncondensing
RoHS Compliance: Yes
ESD/EMP Protection: ±24kV Contact/Air
Shock & Vibration: ETSI300-019-1.4
Certifications: CE, FCC, IC

Operating Frequency (MHz): 5150 - 5875
Management Radio (MHz): 2412 - 2472
