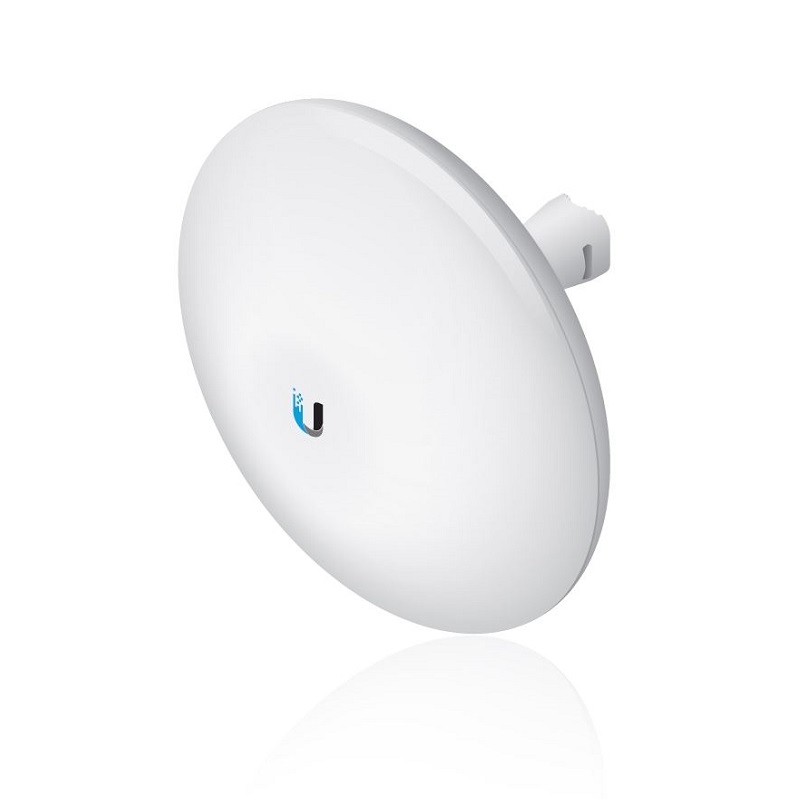

UBIQUITI NanoBeam® AC 2.4 GHz airMAX® ac CPE with Dedicated Wi-Fi Management (NBE-2AC-13)

Frequency - 2.4 GHz, Throughput - 330+ Mbps, Antenna Gain - 13 dbi , Range - 15+ km, 802.11ac, 1x Gigabit LAN, improved noise immunity, surge protection

new
Price exc. VAT: Price inc. VAT: For orders (total sum):
67.99£ 81.59£ >0£
66.84£ 80.21£ >300£
65.69£ 78.83£ >1000£
Qty:
Out of stock



Features:

Management Wi-Fi Radio

The NanoBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.



Improved Surge Protection

The NanoBeam® AC features enhanced protection against ESD events.

Superior Processing

Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Incredible Antenna “Beam” Performance

The form factor of the NanoBeam® AC features the highest gain for its size. The NanoBeam AC’s excellent beam directivity provides the best performance in high-noise environments.

Performance Breakthrough

airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

Advanced Software Technology

Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Plug and Play Installation

The NanoBeam® AC mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.

Now with airOS®8

airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Specification:

Dimensions (Mount Included): 189 x 189 x 125 mm (7.44 x 7.44 x 4.92")
Weight (Mount Included): 0.530 kg (1.17 lb)
Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
Max. Power Consumption: 7.5W
Gain: 13 dBi
Networking Interface: (1) 10/100/1000 Ethernet Port, Wi-Fi for Management
Processor: Specs Atheros MIPS 74Kc, 533 MHz
Memory: 64 MB DDR2
LEDs: Power, Ethernet, (4) Signal Strength
Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels
Max. VSWR: 1.5:1
Channel Sizes: PtP Mode - 10/20/40MHz, PtMP Mode - 10/20/40 MHz
Polarization: Dual Linear
Enclosure: Outdoor UV Stabilized Plastic
Mounting: Pole-Mount (Kit Included), Wall-Mount
Wind Loading: 45.4 N @ 200 km/h (10.2 lbf @ 125 mph)
Wind Survivability: 200 km/h (125 mph)
ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
RoHS Compliance: Yes
Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test: IEC 68-2-6
Temperature Shock Test: IEC 68-2-14
UV Test: IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
Operating Temperature: -40 to 70° C (-40 to 158° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC

Operating Frequency (MHz): 2412 - 2472
Management Radio (MHz): 5150 - 5250
