UBIQUITI Motion Sensor (USL-Motion)
SuperLink motion sensor designed for versatile installation, delivering up to 6 years of battery life
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 35.65£ | 42.78£ | >0£ |
| 35.32£ | 42.38£ | >300£ |
| 34.99£ | 41.99£ | >1000£ |
Specification:

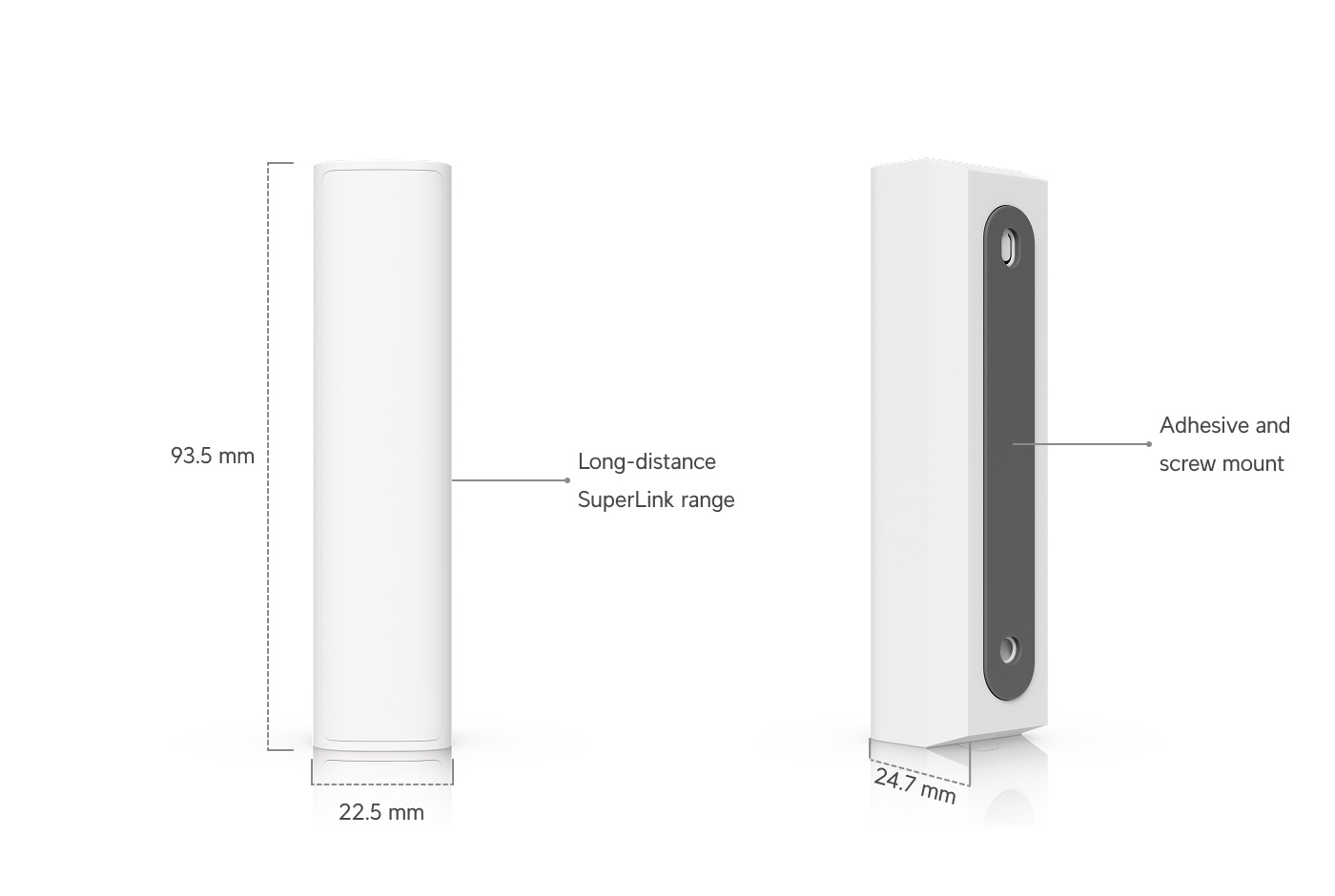

Dimensions:
Device with wall mount: 93.5 x 22.5 x 24.7 mm (3.7 x 0.89 x 0.97")

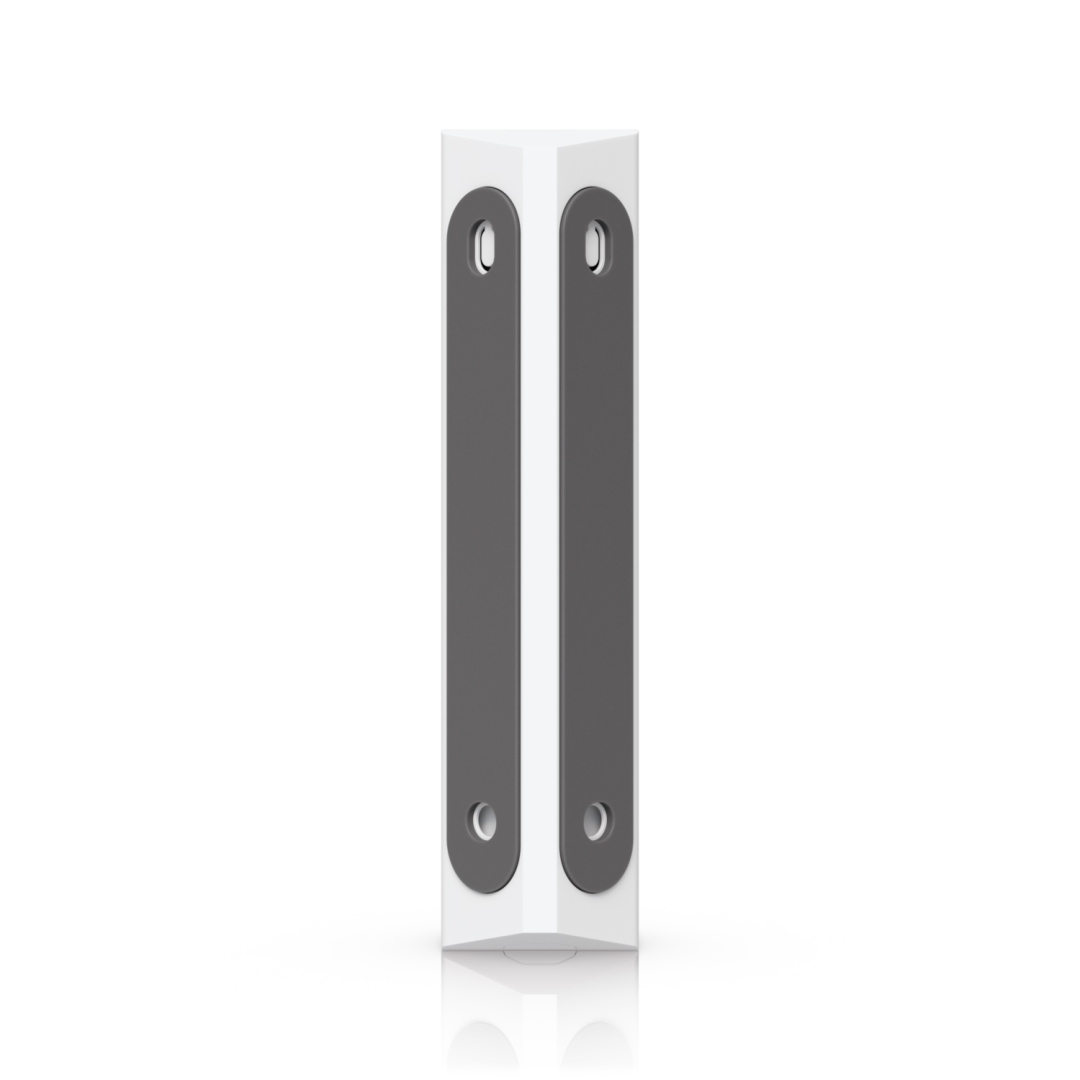

Device with corner mount: 93.5 x 22.5 x 27.9 mm (3.7 x 0.89 x 1.1")

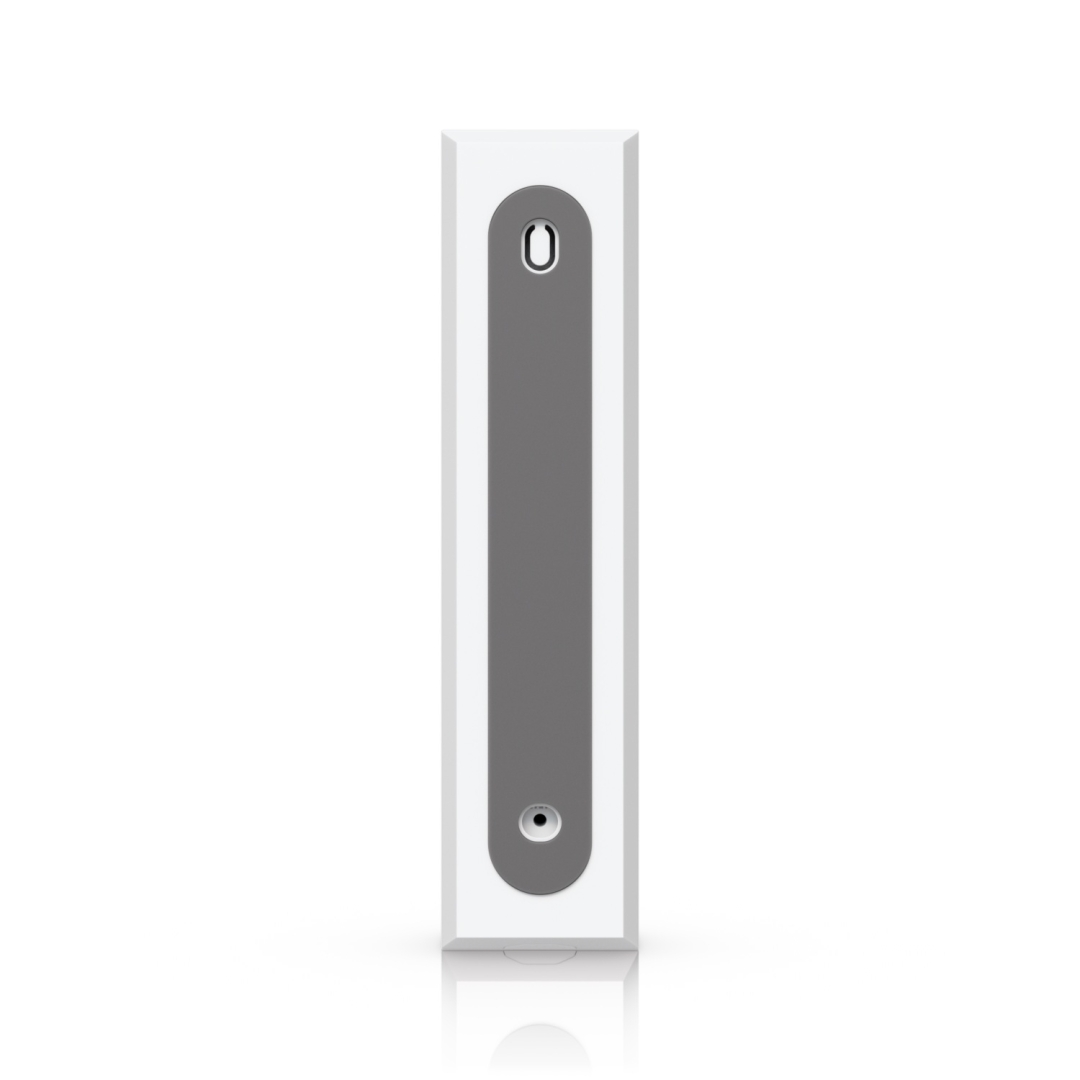

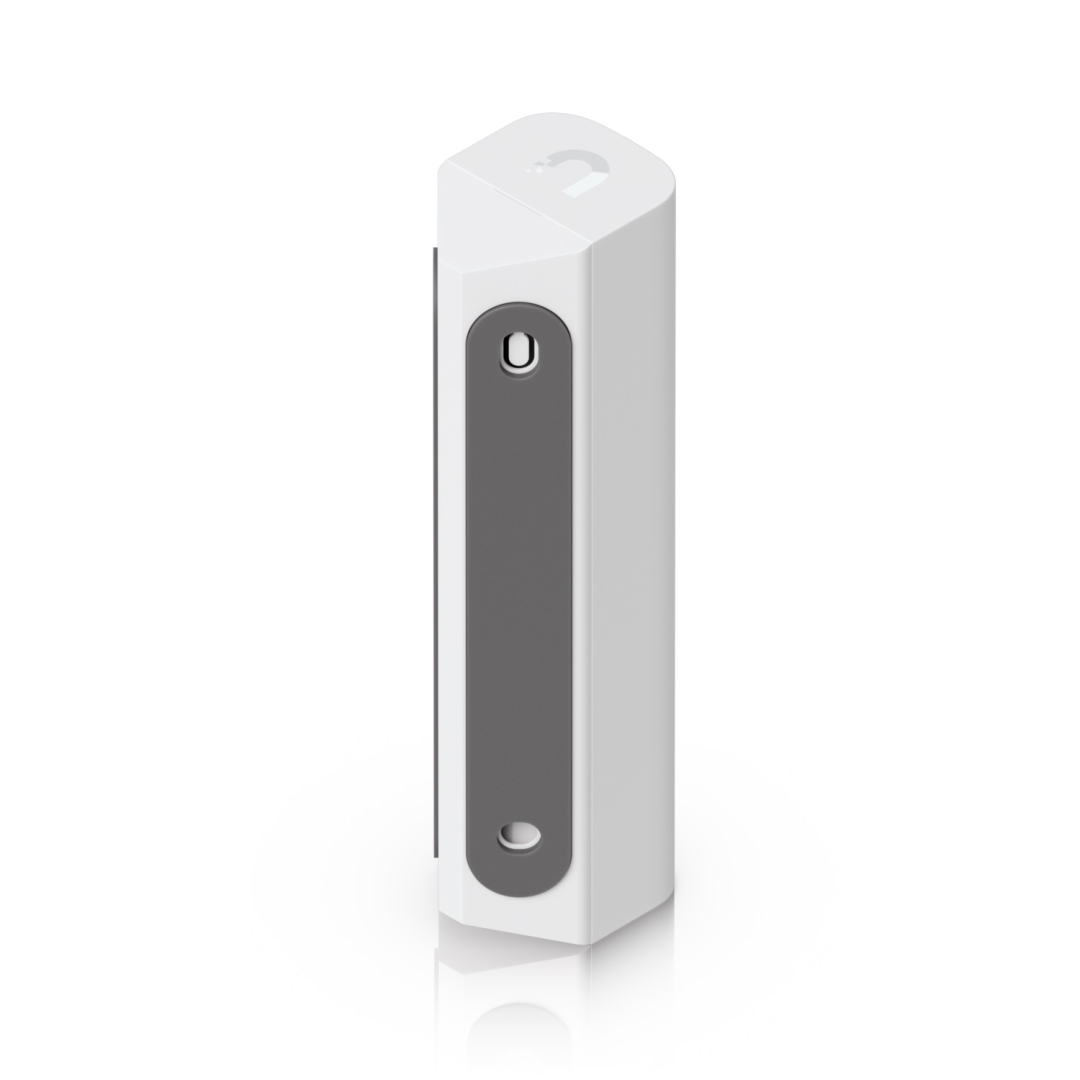

Mounting: Adhesive and screw mount
UniFi Application Suite: Protect
Performance
Connectivity: SuperLink (Proprietary)
Operating Frequency:
SuperLink: 865.1–869.5 MHz
Antenna Gain:
SuperLink: 1 dBi
Max. TX Power:
SuperLink: 14 dBm
Max. Range:
SuperLink: 2 km (1.2 mi)
Sensor Features:
Horizontal PIR Sensor: Detection range up to 1.5 m (4.9 ft)
Vertical PIR Sensor: Detection range up to 6 m (19.7 ft) with pet immunity
Hardware
Max. Power Consumption: 22.6mW
Supported Voltage Range: 3V

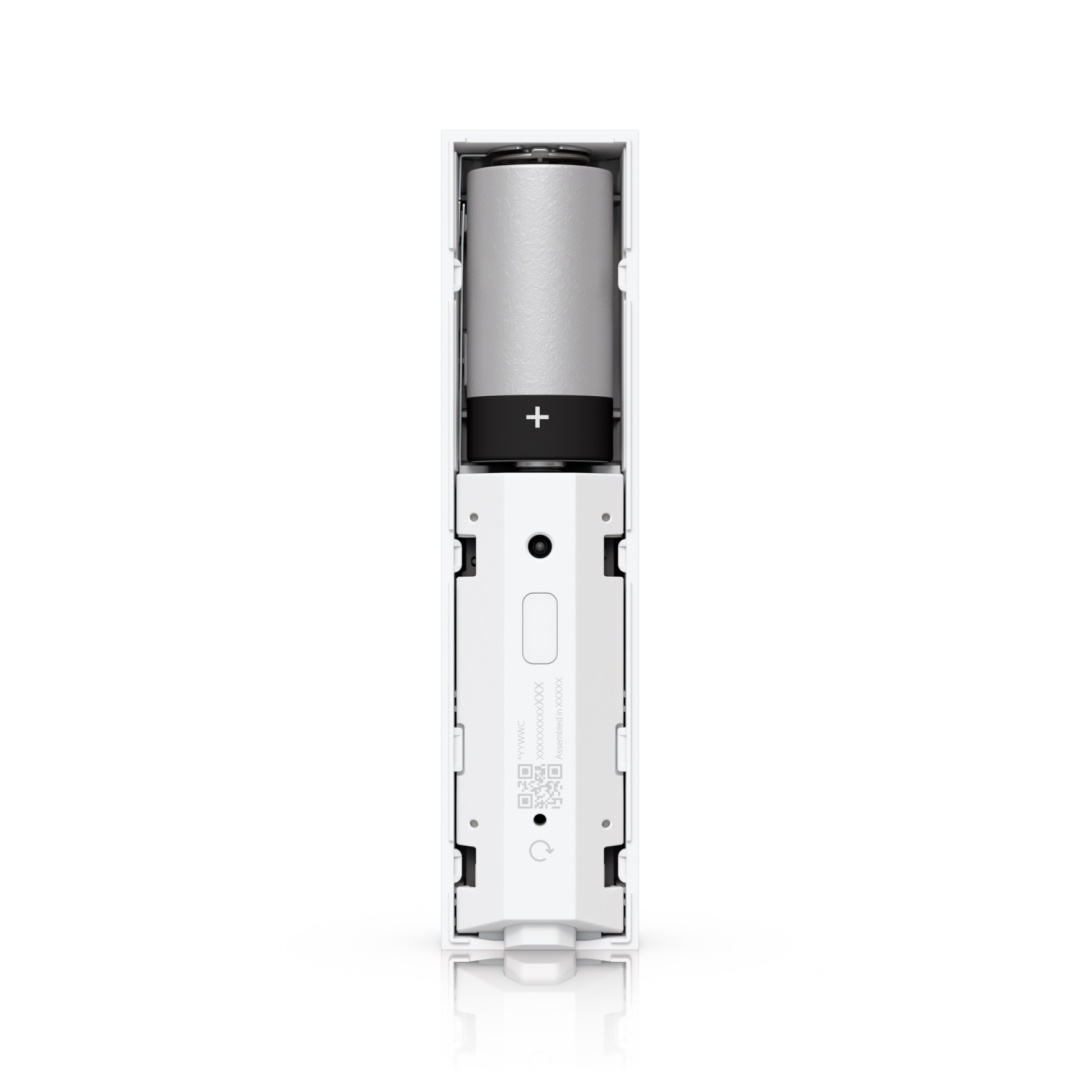

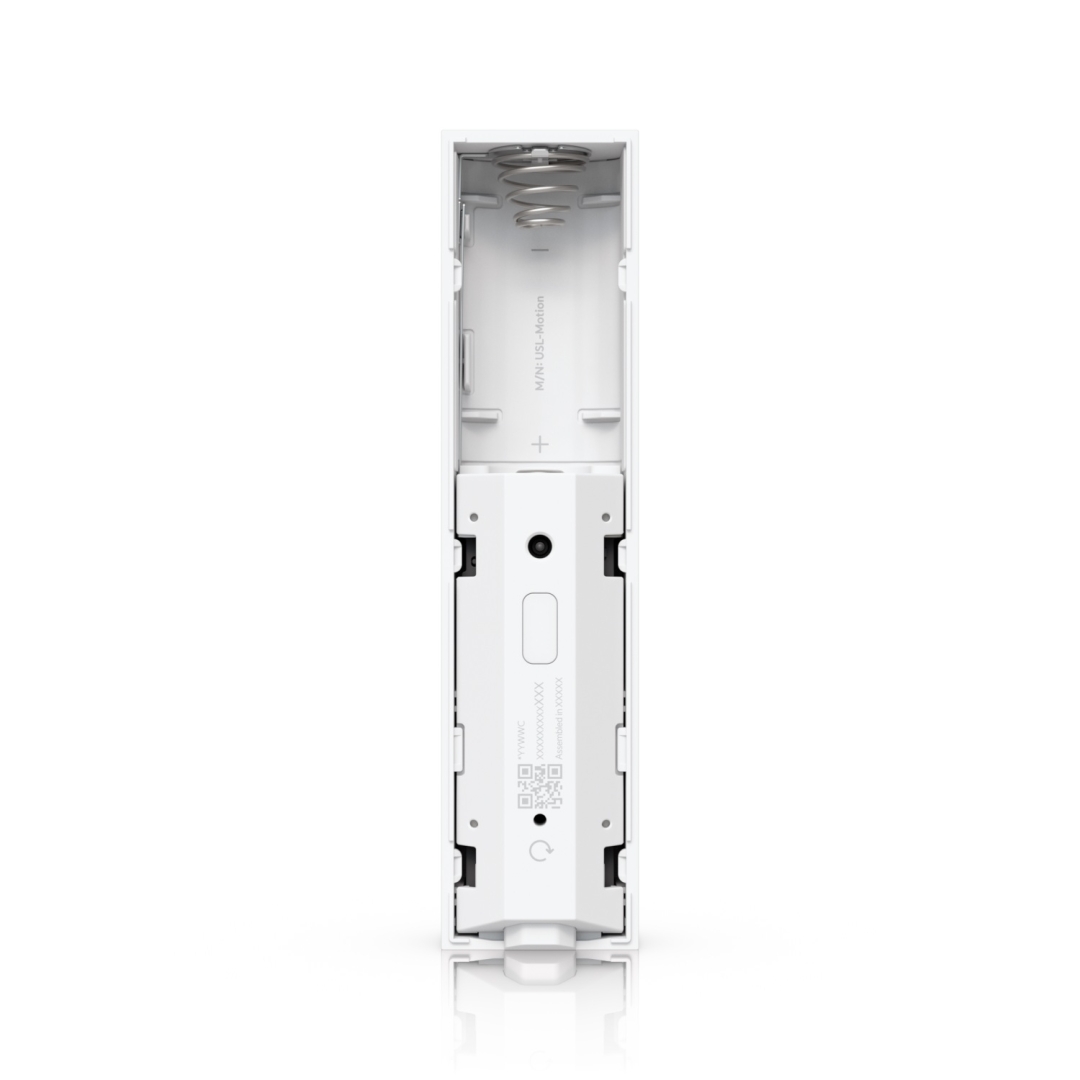

Power Method: Lithium battery CR123A
Battery Life: Up to 6 years
Weight: 45 g (1.6 oz)
Enclosure Material: Polycarbonate, high-density polyethylene (HDPE)
Mount Material: Polycarbonate

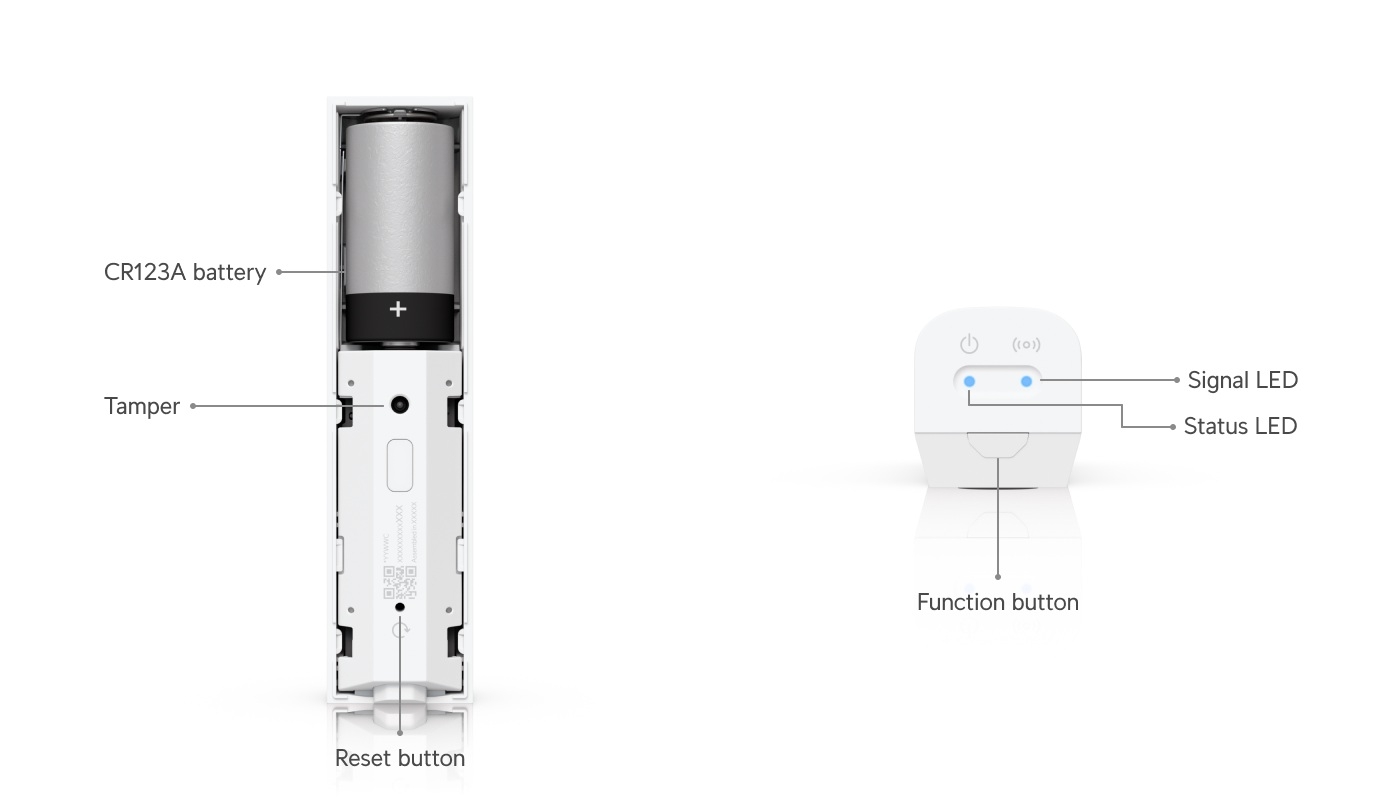

Buttons:
(1) Factory reset
(1) Function button
(1) Tamper switch

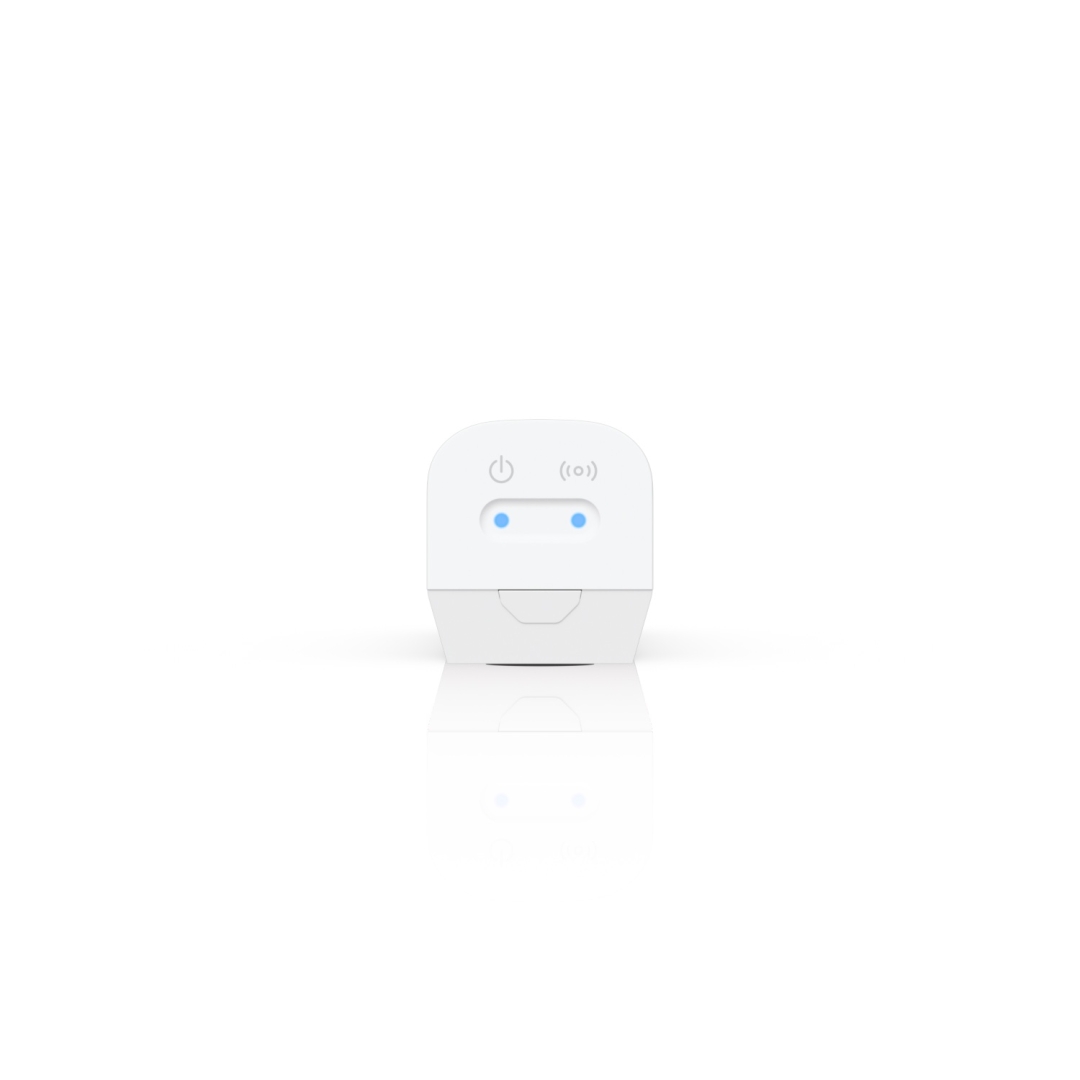

LEDs:
(1) Status: R/B/W
(1) Signal: B/R
Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
Ambient Operating Humidity: 10 to 90% noncondensing
Certifications: FCC, IC, CE
NDAA Compliant: ✓
Software
Application Requirements:
Web Application: UniFi Protect
Mobile App: UniFi Protect iOS™ and Android™
