UBIQUITI Low-Cost GPON Optical Network Unit (ONU) UFiber loco (UF-LOCO)
Robust, high‑performance GPON CPE that features extremely low power consumption and the choice of 24V passive PoE or Micro-USB power, GPON links of up to 20 km, integrates with Ubiquiti UFiber OLT and 3rd-Party OLT devices
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 35.36£ | 42.43£ | >0£ |
| 35.03£ | 42.04£ | >300£ |
| 34.71£ | 41.65£ | >1000£ |
Features:
Sporting a sleek industrial design, the U Fiber loco is a robust, high‑performance GPON CPE that features extremely low power consumption and the choice of 24V passive PoE or Micro-USB power.
Features:

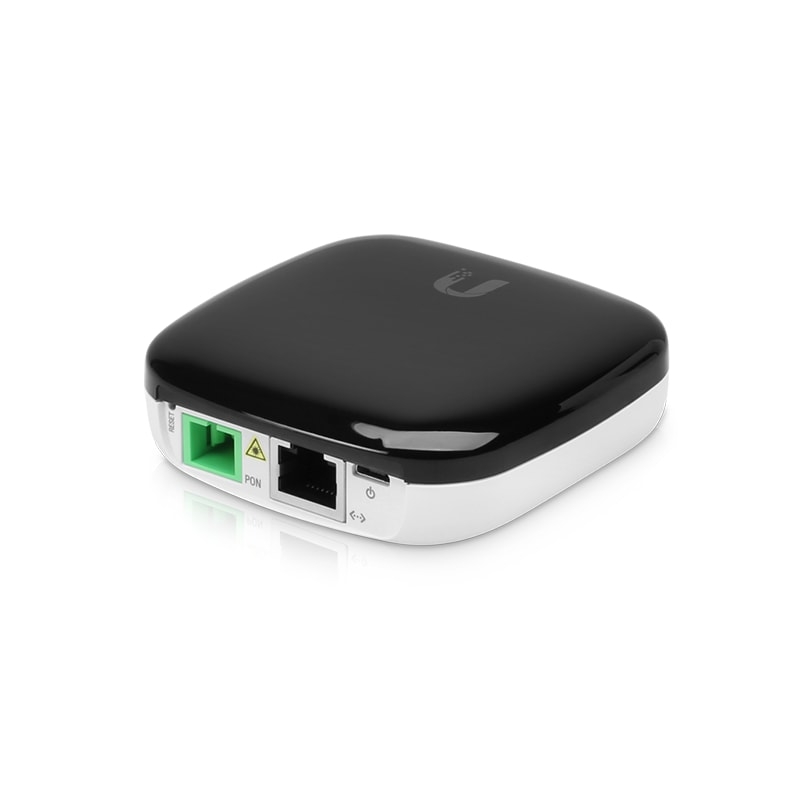

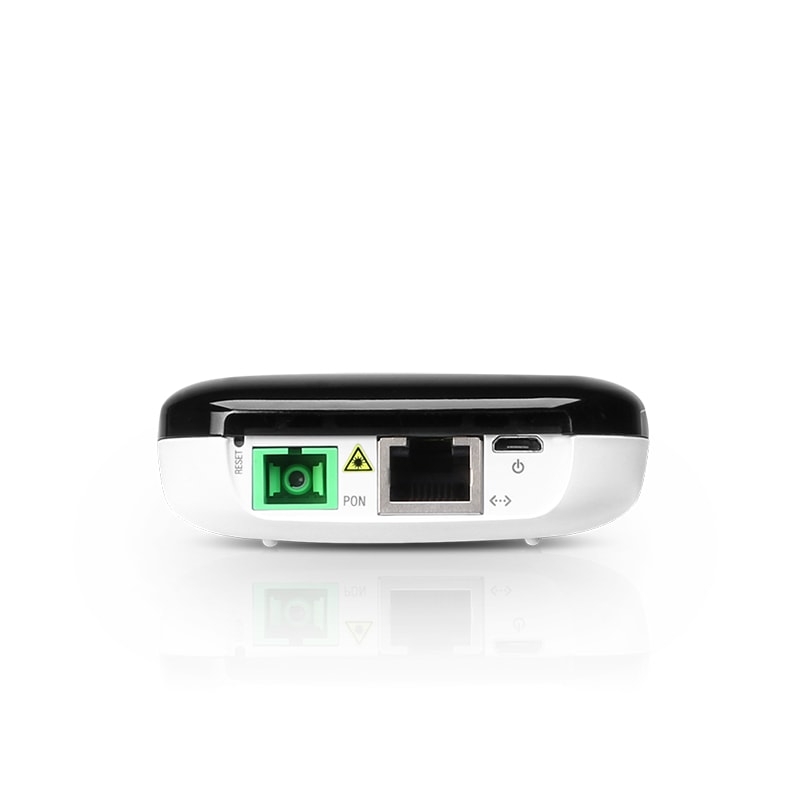

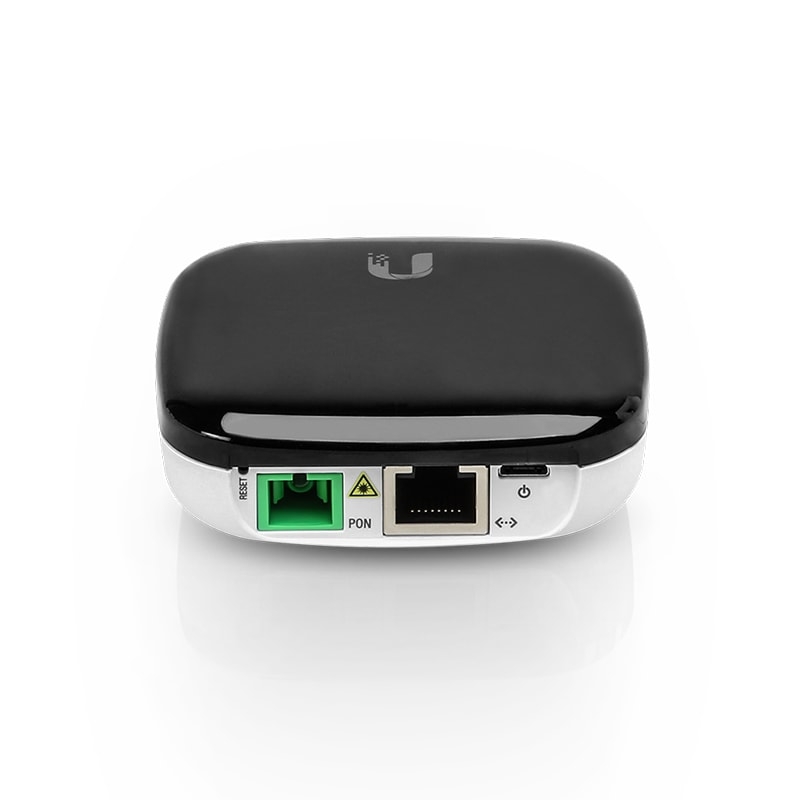

• WAN: (1) GPON Port
• LAN: (1) Gigabit Ethernet Port
• GPON Speeds: 2.488 Gbps Downstream (RX), 1.244 Gbps Upstream (TX)
• Wavelengths: 1490 nm Downstream (RX), 1310 nm Upstream (TX)
•• Mounting: Wall-Mountable (Indoor)
Specification:
Dimensions: 76.5 x 76.5 x 26.4 mm (3.01 x 3.01 x 1.04")
Weight: 77 g (2.72 oz)
Networking Interface Speeds:
(1) GPON WAN, ITU G.984, 2.488 Gbps Downstream, 1.244 Gbps Upstream
(1) GbE LAN, 10/100/1000 Mbps
Management Interface: In-Band Ethernet/PON
Normal Optical Power Range:
TX (Class B+): 1.5 dBm to 5 dBm
RX: -28 dBm to -8 dBm
Power Method: Micro-USB: 5V, 1A or 24V Passive PoE (Pins +4, 5; -7, 8)
Power Supply: Micro-USB Power Adapter*: 5V, 1A
Max. Power Consumption: 3.5W
Supported Voltage Range: 4.7 to 5.3V
Processor Specs: MIPS32, 240 MHz
Memory Information: 128 MB DDR3
Buttons (1): Reset
Operating Temperature: -10 to 45° C (14 to 113° F)
Operating Humidity: 10 to 90% Noncondensing

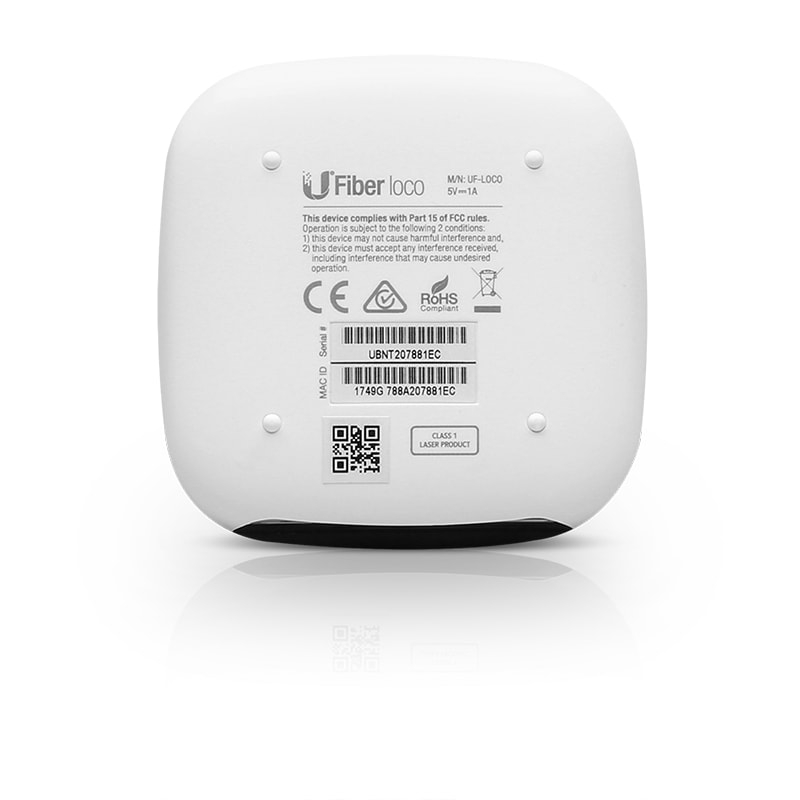

Certifications: CE, FCC, IC

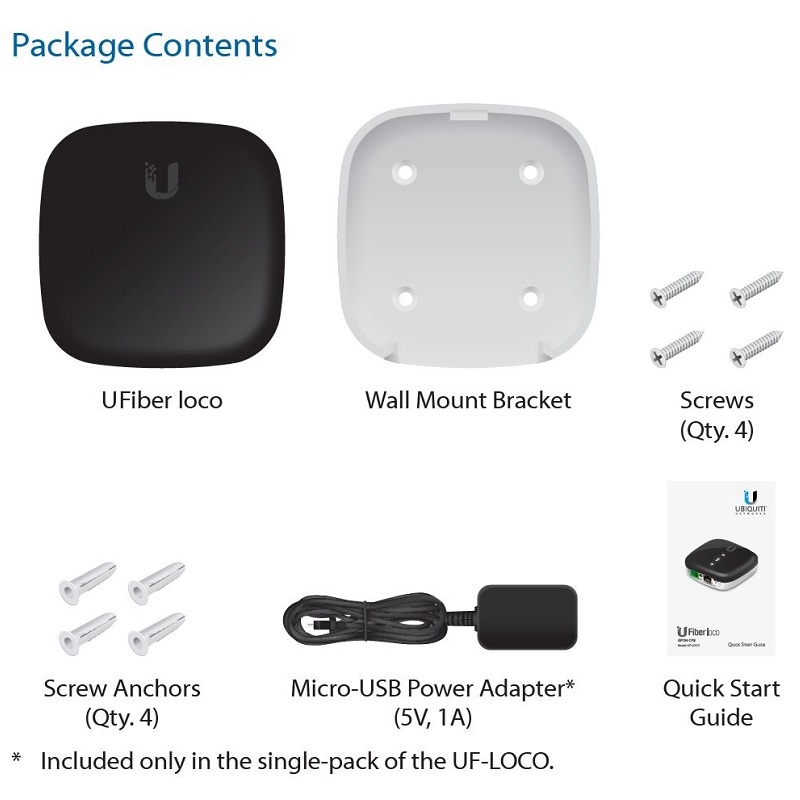

* Included only in the single-pack of the UF-LOCO
