UBIQUITI In-Wall 802.11ac Wave 2 Wi-Fi Access Point, white (UAP-IW-HD)

MPN: UAP-IW-HD
Order code: UAP-IW-HD
Quick code: #1807

4x4 MU-MIMO on 5GHz (1733Mbps max PHY rate), 2x2 MIMO on 2.4GHz (300Mbps max PHY rate), 802.3af for base functionality. 802.3at required if using PoE passthrough, 1x4 (1 in, 4 out) switched Gigabit Ethernet ports with configurable PoE passthrough (port 1 only)

new
Price exc. VAT: Price inc. VAT: For orders (total sum):
134.42£ 161.30£ >0£
133.26£ 159.91£ >300£
130.94£ 157.13£ >1000£
Qty:
  In stock


Features:

Scalable Enterprise Wi-Fi Management
UniFi® is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. The UniFi IW HD AP has a refined industrial design and can be easily installed using the included mounting hardware.
Easily accessible through any standard web browser and the UniFi app (iOS or Android™), the UniFi Controller software is a powerful software engine ideal for high‑density client deployments requiring low latency and high uptime performance.
Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network – no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.

Save Money and Save Time UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service. You also have the option of deploying the compact UniFi Cloud Key with built-in software.
Powerful Hardware The UniFi IW HD AP features the latest in Wi-Fi 802.11ac Wave 2 MU‑MIMO technology.
Intuitive UniFi Controller Software Configure and manage your APs with the easy-to-learn user interface.
Expandable Unlimited scalability: build wireless networks as big or small as needed. Start with one (or upgrade to a multi‑pack) and expand to thousands while maintaining a single unified management system.

Specification:

Dimensions: 139.7 x 86.7 x 25.75 mm (5.5 x 3.41 x 1.01")
Weight: 210 g (7.41 oz)

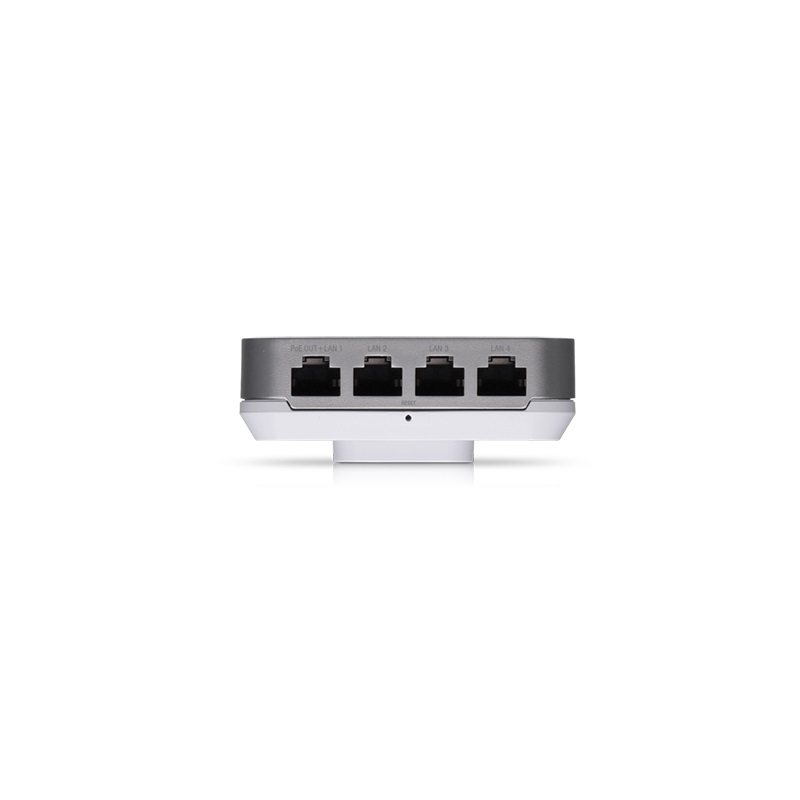

Networking Interface: (5) 10/100/1000 Ethernet Ports
Buttons: Reset

Power Method:
     802.3af PoE
     802.3at PoE+

Supported Voltage Range: 44 to 57VDC
Power Supply: UniFi Switch (PoE)
PoE Out: 48V Passthrough (Pins +1, 2; -3, 6)
Power Save: Supported
Beamforming: Supported
Maximum Power Consumption: 11W (with PoE Passthrough - 23W (requires 802.3at PoE+ switch)

TX Power:
     2.4 GHz - 23 dBm
     5 GHz - 26 dBm

Antennas:
     Dual-Band - (2) Single-Port, Single-Polarity Dual-Band Antennas, 2.4 GHz: 1.8 dBi Each, 5 GHz: 3.4 dBi Each
     Single-Band - (2) Single-Port, Dual-Polarity, Single-Band Antennas, 5 GHz: 6 dBi Each

Wi-Fi Standards: 802.11 a/b/g/n/r/k/v/ac/ac-wave2
Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
BSSID: Up to 8 per Radio
Mounting: 1-Gang Electrical Wall Box (Not Included)
Operating Temperature: -10 to 60° C (14 to 140° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC

Advanced Traffic Management
VLAN: 802.1Q
Advanced QoS: Per-User Rate Limiting
Guest Traffic: Isolation Supported
WMM: Voice, Video, Best Effort, and Background
Concurrent Clients: 200+

Supported Data Rates (Mbps)
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac: 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80), 58 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160)
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
