UBIQUITI GPON Optical Line Terminal (OLT) UFiber OLT (UF-OLT)

Order code: UF-OLT
Quick code: #1363

8-Port GPON Optical Line Terminal with + 2x SFP+, Up to 2.488 Gbps TX and 1.244 Gbps RX

Price exc. VAT: Price inc. VAT: For orders (total sum):
1042.79£ 1251.35£ >0£


Introducing the U Fiber OLT – a fiber solution that anyone can deploy.

U Fiber offers Internet and telecom service providers a cost-effective fiber optic delivery system for Triple Play Services (data, voice, IPTV/VoD) with speeds of up to 2.488 Gbps downstream
and 1.244 Gbps upstream.

The U Fiber network is intelligently managed using the included UNMS™ (Ubiquiti Network Management System) controller. U Fiber devices consist of the U Fiber OLT (deployed at the provider premises) and the U Fiber Nano™G consumer premises equipment ONUs.

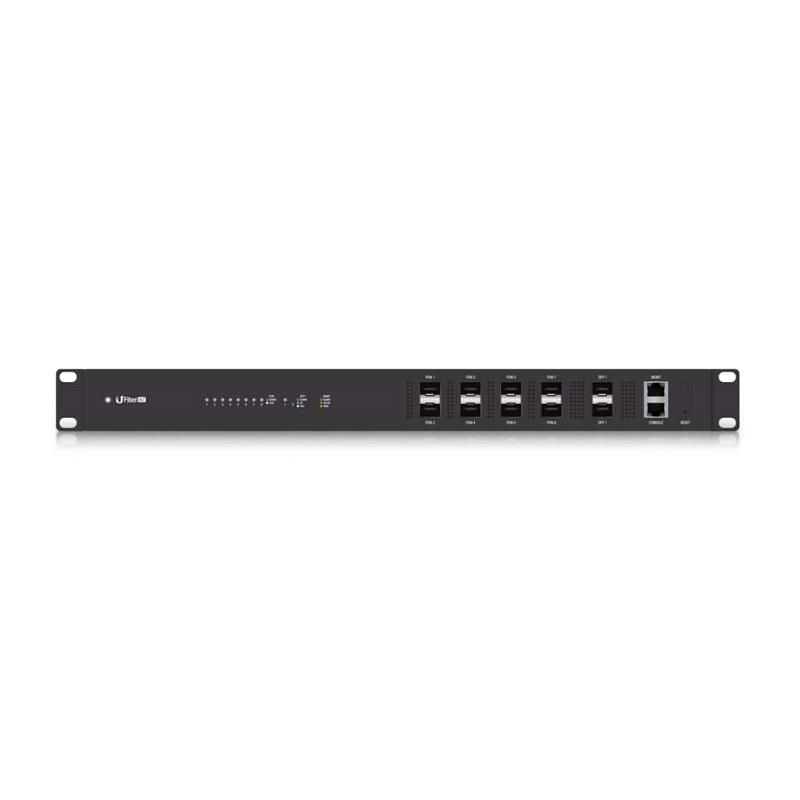

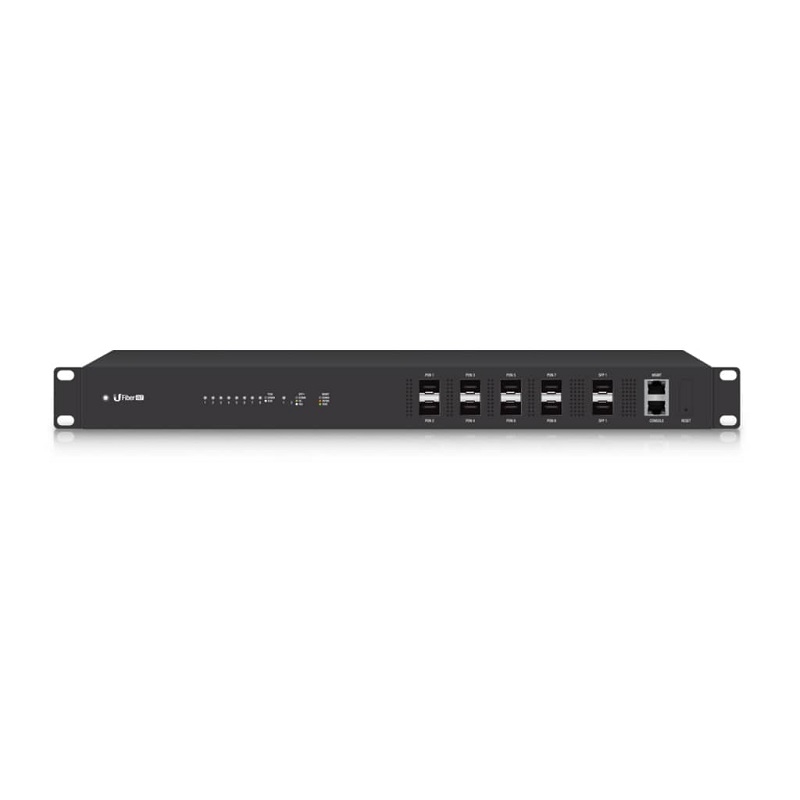

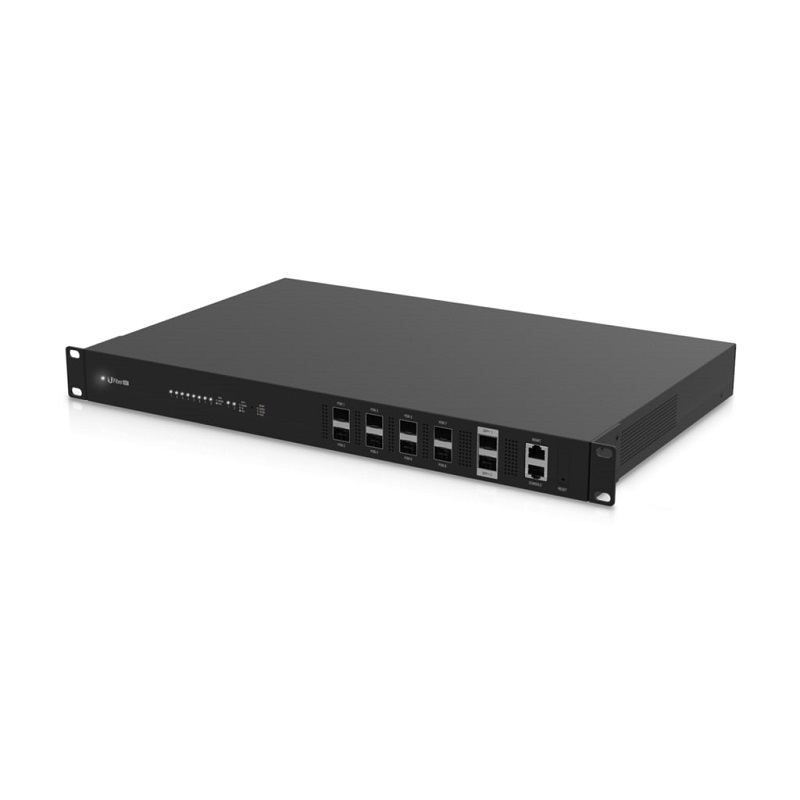

GPON Optical Line Terminal The U Fiber OLT offers eight GPON ports and supports up to 1024 concurrent clients with physical links of up to 20 km in distance. Two SFP+ ports provide 10G of uplink connectivity.

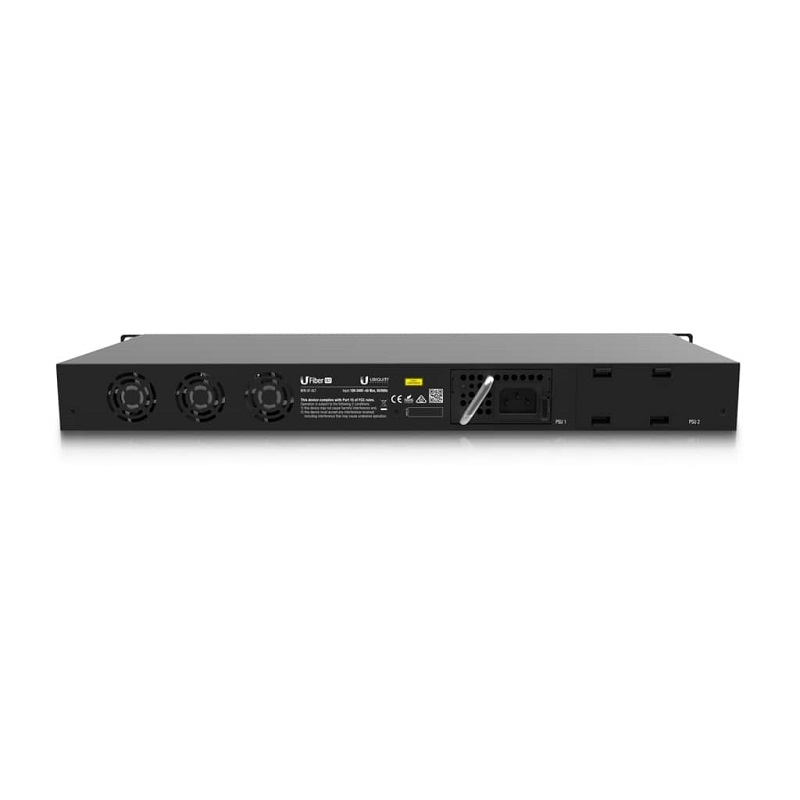

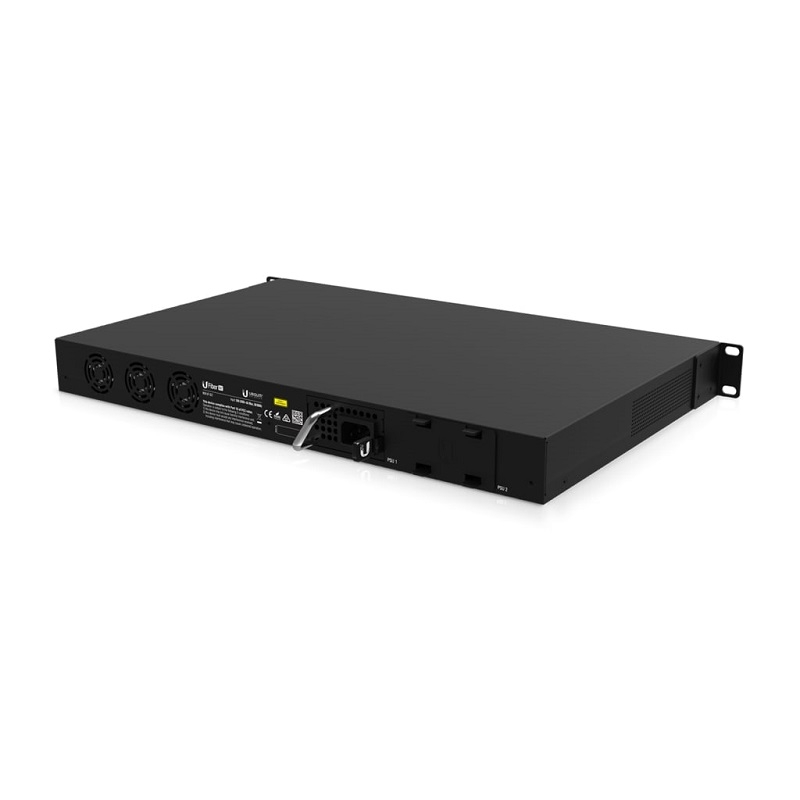

The UF-OLT provides flexible power options, with two modular power adapter bays that can house either AC/DC or DC/DC power modules. One AC/DC module is included; additional modules can be purchased separately.

• Ports: (8) GPON SFP Ports, (2) SFP+ Ports
• Concurrent Clients: 1024 ONUs
• GPON Range: Up to 20 km Link
• GPON Speeds: 2.488 Gbps Upstream (TX), 1.244 Gbps Downstream (RX)
• Wavelengths: 1490 nm Upstream (TX), 1310 nm Downstream (RX)
• Max. Power Consumption: 40W
• Power Method:
• AC/DC Power Module (Included)
• DC/DC Power Module (Optional)
• Mounting: 1U Rack-Mountable (Optional)


Dimensions: 442.4 x 285.6 x 43.7 mm (17.42 x 11.24 x 1.72")

Weight: 4.40 kg (9.7 lb) (4.495 kg (9.91 lb) with Mount Brackets)

Networking Interfaces:
(2) 1G/10G SFP+

Concurrent Clients: 1024 Registered ONUs/ONTs (128 per GPON Port)

Management Interfaces:
(1) Ethernet for Out-of-Band Management
(1) RJ45 Serial Console Port

GPON Speeds:
2.488 Gbps Upstream (TX)
1.244 Gbps Downstream (RX)

Operating Wavelengths:
1490 nm TX
1310 nm RX

Normal Optical Power Range TX (Class B+): 1.5 dBm to 5 dBm, RX: -8 dBm to -28 dBm

Physical Reach - 20 km
Logical Reach - 60 km
Max. Differential Fiber Distance - 20 km (B+) /40 km (C+)

Power Method:
100-240VAC, 100W AC/DC Power Module (Included)
38-54VDC, 100W DC/DC Power Module (Optional)

Power Supply (1): 25V, 100W AC/DC PSU Module (Included)

Max. Power Consumption: 40W (Excluding SFP Modules)

Operating Mode: OLT 2/3 Ethernet Switch and GPON Core

Advanced QoS: Supports 8 Priority Queues per User Port and Traffic Classification

Processor Specs: MIPS 1004kc, 880 MHz Dual Core

Memory Information: 512 MB DDR3, 512 MB NAND

Operating Temperature: -10 to 45° C (14 to 113° F)

Operating Humidity: 10 to 90% Noncondensing

Certifications: CE, FCC, IC
