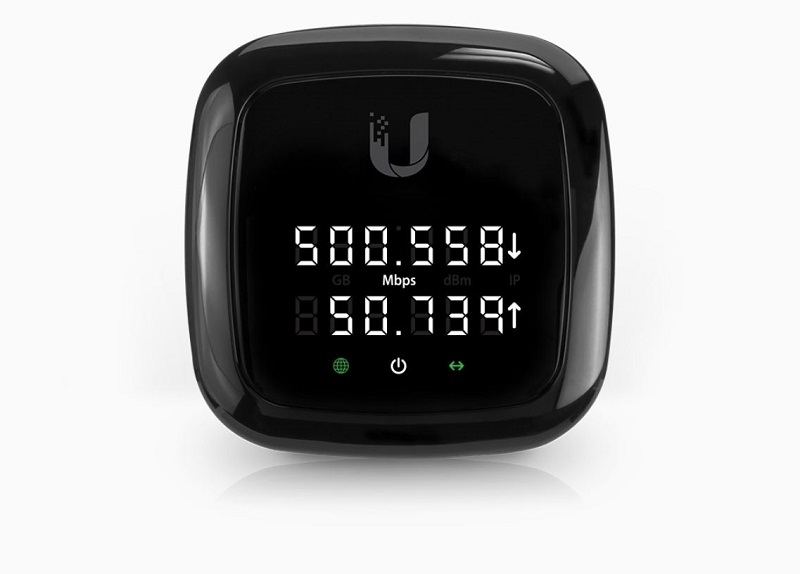

UBIQUITI GPON Optical Network Unit (ONU) UFiber Nano G (UF-Nano)
MPN:
UF-Nano
Order code:
UF-Nano
Quick code:
#1360
High-performance GPON ONU, GPON links of up to 20 km, integrates with Ubiquiti UFiber OLT and 3rd-Party OLT devices, 24V passive PoE, informational LED display
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 53.41£ | 64.09£ | >0£ |
| 52.92£ | 63.50£ | >300£ |
| 52.43£ | 62.92£ | >1000£ |
Features:
The U Fiber Nano G is a robust, high-performance GPON ONU that features an informational LED display and a sleek, sophisticated industrial design.• WAN: (1) GPON Port
• LAN: (1) Gigabit Ethernet Port
• GPON Speeds: 2.488 Gbps Downstream (RX), 1.244 Gbps Upstream (TX)
• Wavelengths: 1490 nm Downstream (RX), 1310 nm Upstream (TX)
• Display: Digital LED for Status Reporting
• Max. Power Consumption: 7W
• Power Method: 24V Passive PoE
• Mounting: Wall-Mountable (Indoor)
Specification:
Dimensions: 77 x 77 x 28 mm (3.03 x 3.03 x 1.1")Weight: 110 g (3.88 oz)
Networking Interface Speeds:
(1) GPON WAN, ITU G.984, 2.488 Gbps Downstream, 1.244 Gbps Upstream
(1) GbE LAN, 10/100/1000 Mbps
Management Interface: In-Band Ethernet/PON
Normal Optical Power Range:
TX (Class B+): 1.5 dBm to 5 dBm
RX: -8 dBm to -28 dBm
Power Method: Passive PoE (Pins +4, 5; -7, 8) (Dying Gasp Support)

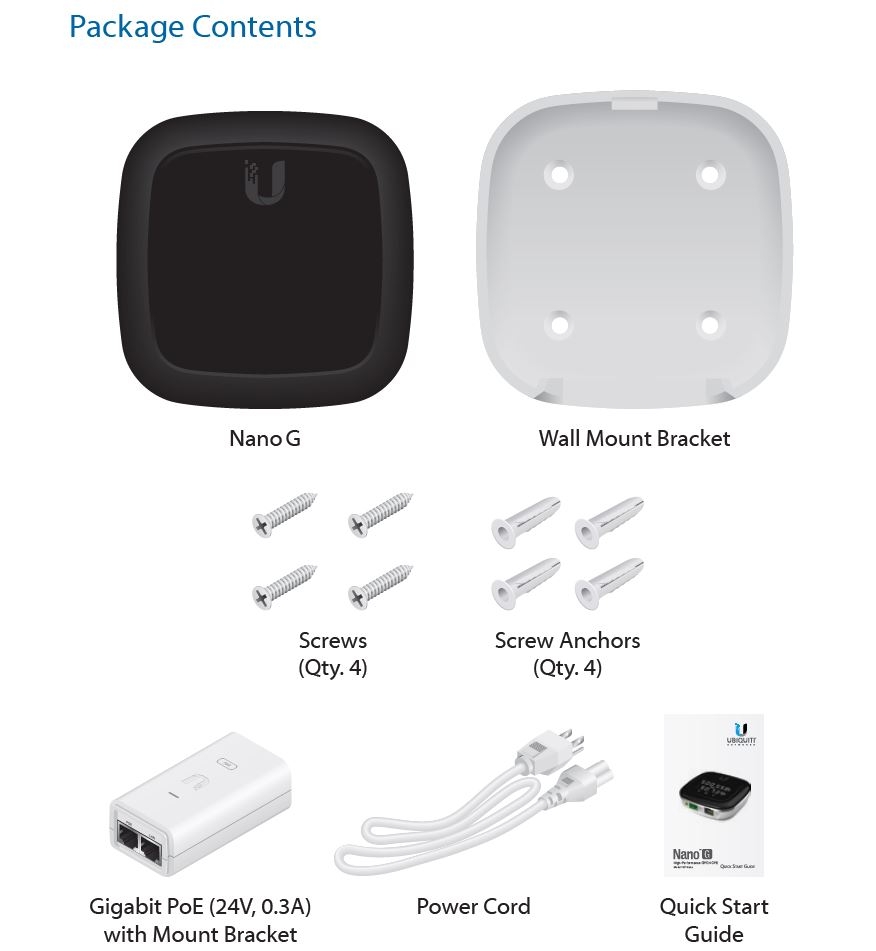

Power Supply: PoE Adapter: 24V, 0.3A (Included)
Max. Power Consumption: 7W
Supported Voltage Range: 20V to 28V
Processor Specs: MIPS32, 240 MHz
Memory Information: 128 MB DDR3
Buttons:
(1) Display Information
(1) Reset
Operating Temperature: -10 to 45° C (14 to 113° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC
