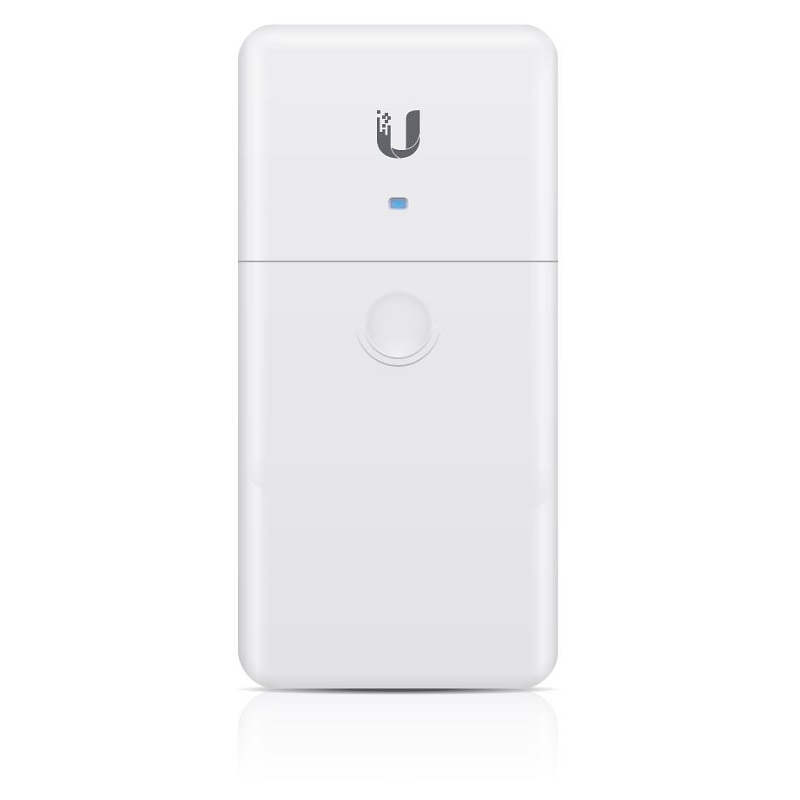

UBIQUITI Optical Data Transport for Outdoor POE Devices FiberPoE, Gen2 (F-POE-G2)

Features:

Overcome PoE limitations with the next-generation FiberPoE™, model F-POE-G2. The FiberPoE Gen 2 is a low‑cost solution for outdoor deployments that require long-distance runs to reach the PoE device. Deployments with the FiberPoE Gen 2 provide significant EMI and ESD protection over typical PoE installations. The FiberPoE Gen 2 also features a  durable, weatherproof form factor and enhanced surge protection.

Separate Data and Power Transport
PoE is ideal for indoor or short-run installations. However, for outdoor, long-distance installations, PoE becomes vulnerable to EMI and is limited to 100 meters with correlated power  loss. With the FiberPoE Gen 2, data and power are transported on separate cables to greatly improve data integrity and enable much longer cable runs.
The FiberPoE Gen 2 provides Gigabit bi‑directional data transport between twisted-pair Ethernet cable and fiber optic cable, and injects DC power to the Ethernet cable for passive PoE. Use one FiberPoE Gen 2 device as an Fiber‑to‑Ethernet Converter, or a pair of FiberPoE Gen 2 devices to create a Fiber Bridge.

Enhanced Surge Protection
Featuring a built-in high-current Gas Discharge Tube (GDT) for the DC terminal block and PoE port, the FiberPoE Gen 2 delivers enhanced surge protection. The added GDT support effectively protects against lightning and other power surges.

Fiber Optic Data Transport
Using fiber optic cable for data transport significantly reduces electrostatic discharge (ESD) failures and electromagnetic interference (EMI). Data integrity is also sustained in runs beyond 100 meters, the limit of Ethernet over twisted‑pair cable.
The FiberPoE Gen 2 supports a 1G SFP module and 24V or 50V power from a DC power cable or PoE cable.

Integrated Fiber Cable Strain Relief
An integrated strain relief system was thoughtfully designed to fit inside the FiberPoE Gen 2 cover for added protection and a cleaner installation.

Specification:

Dimensions (Excluding Mount): 196.4 x 93.5 x 32.4 mm (7.73 x 3.68 x 1.28")
Weight: 288 g (10.2 oz)
Enclosure: White Polycarbonate

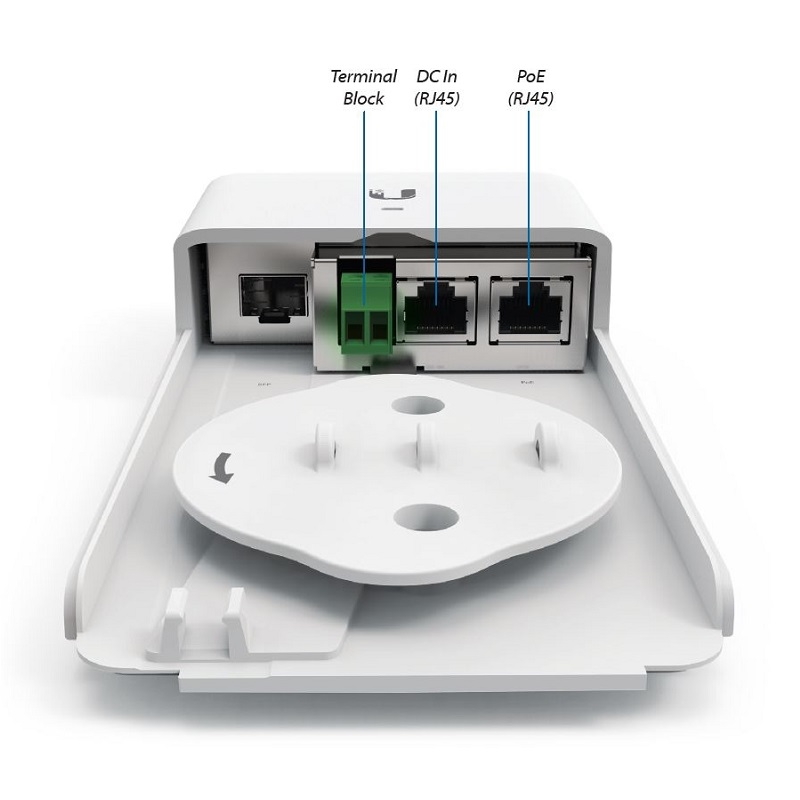

Interface Connections:
   (1) 1 Gbps SFP Port
   (1) DC Terminal Block
   (1) RJ45 Port, 2-Pair or 4-Pair DC Injection
   (1) 1 Gbps Ethernet PoE Port (10/100 Mbps Ethernet not supported) 2-Pair (24VDC Input) or 4-Pair (24 or 50VDC Input) PoE Passthrough

PoE Polarity
   2-Pair (24 or 50VDC) - Pins 4, 5 (+); 7, 8 (-)
   4-Pair (50VDC) - Pins 1, 2, 4, 5 (+); 3, 6, 7, 8 (-)

Power Method
DC Injection From:
   RJ45 DC In Port, 2-Pair or 4-Pair PoE Capability
   RJ45 PoE Port, 2-Pair or 4-Pair PoE Capability
   DC Terminal Block

PoE Output (RJ45 PoE Port): 2-Pair or 4-Pair (24VDC Input), or 4-Pair (50VDC Input) Passthrough

DC Output (Terminal Block): 24 or 50VDC (DC In or PoE Port Input)
Input DC Voltage: 16 to 57V
Typical Power Consumption: 1.5W
Surge Protection: Built-In High-Current Gas Discharge Tube for DC Terminal Block and PoE Port
Operating Temperature*: -40 to 60° C (-40 to 140° F)
Operating Humidity: 10 to 95% Noncondensing
ESD/EMP Protection: ± 24kV Air, ± 24kV Contact
Certifications: CE, FCC, IC

* May be further restricted by the operating temperature range of the SFP module being used.
