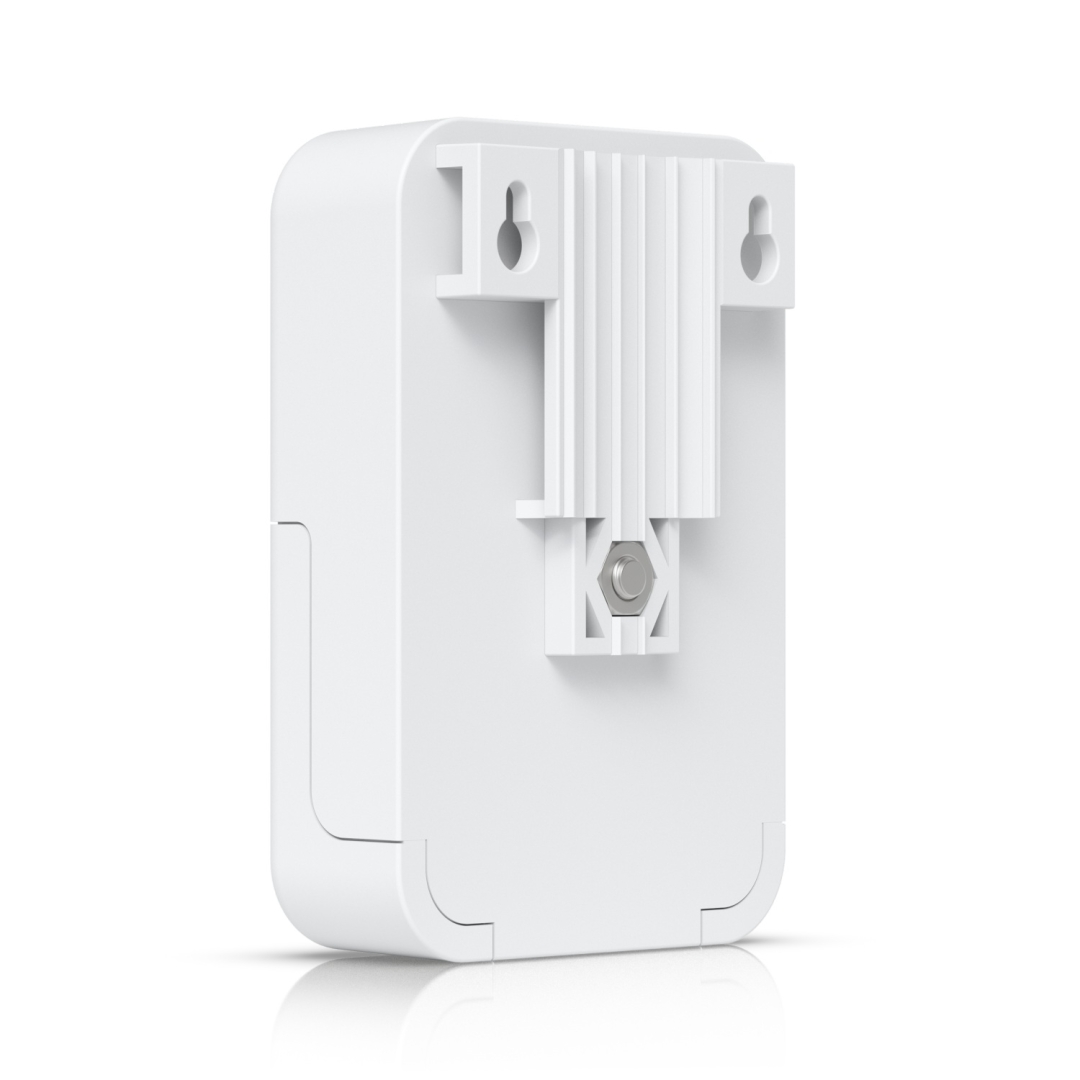

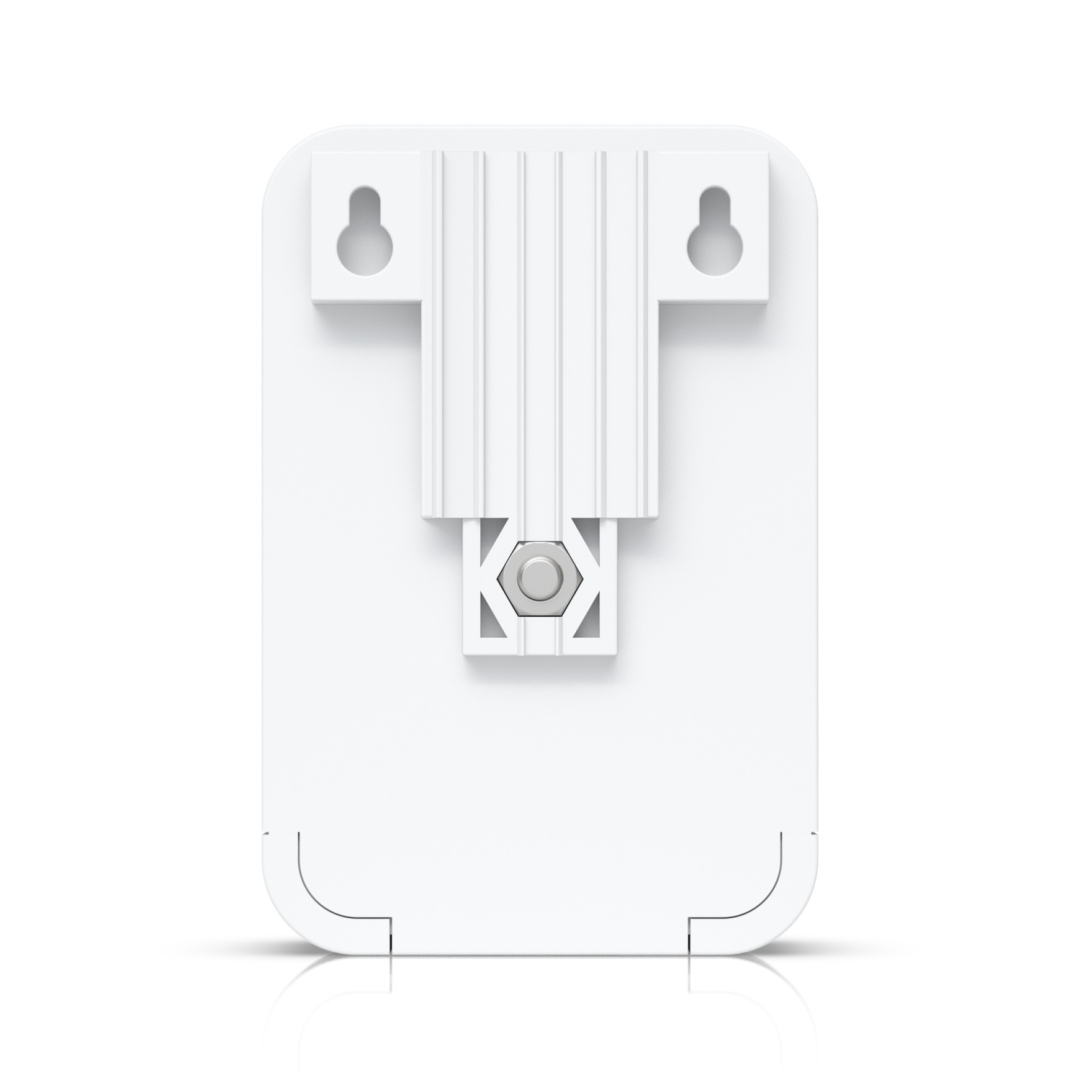

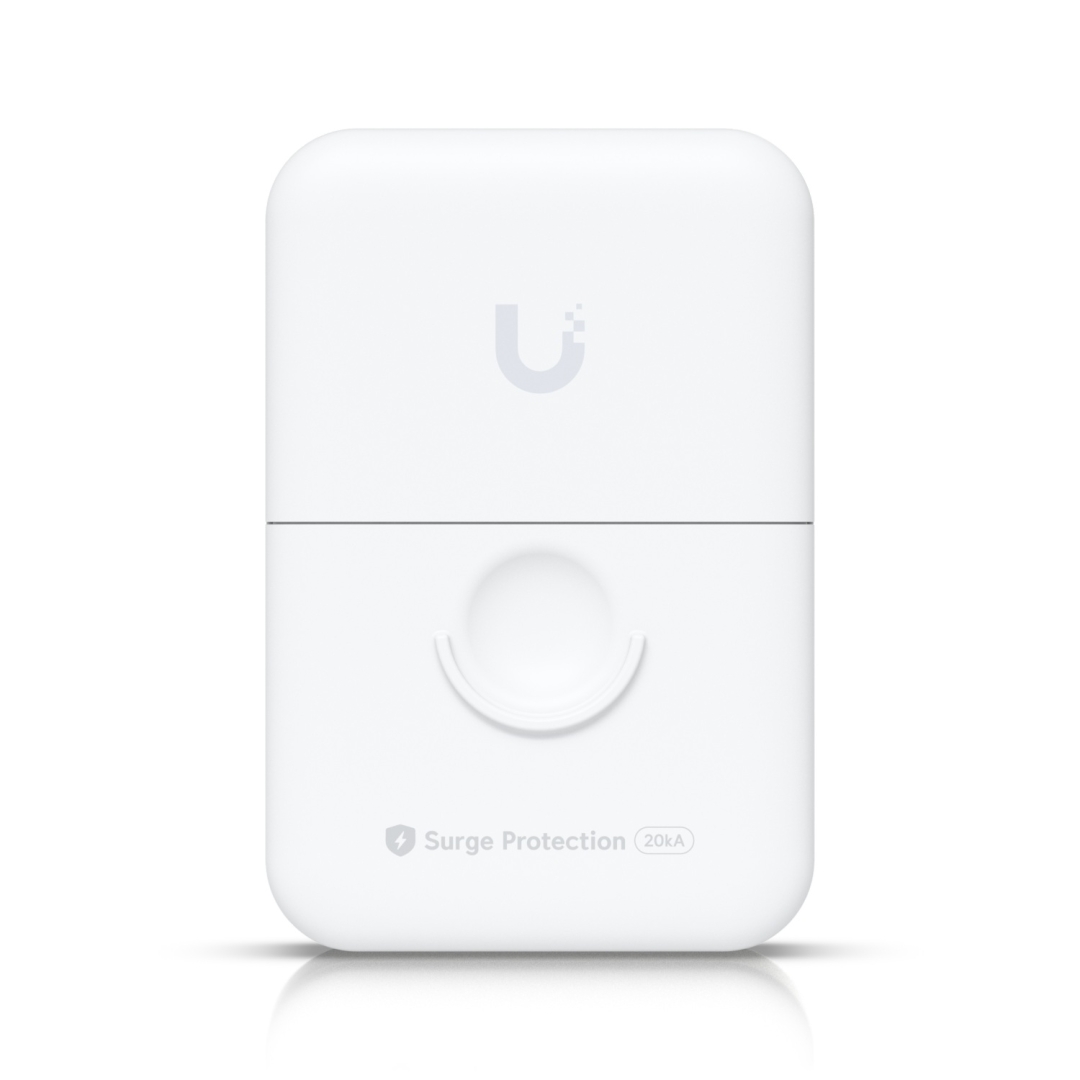

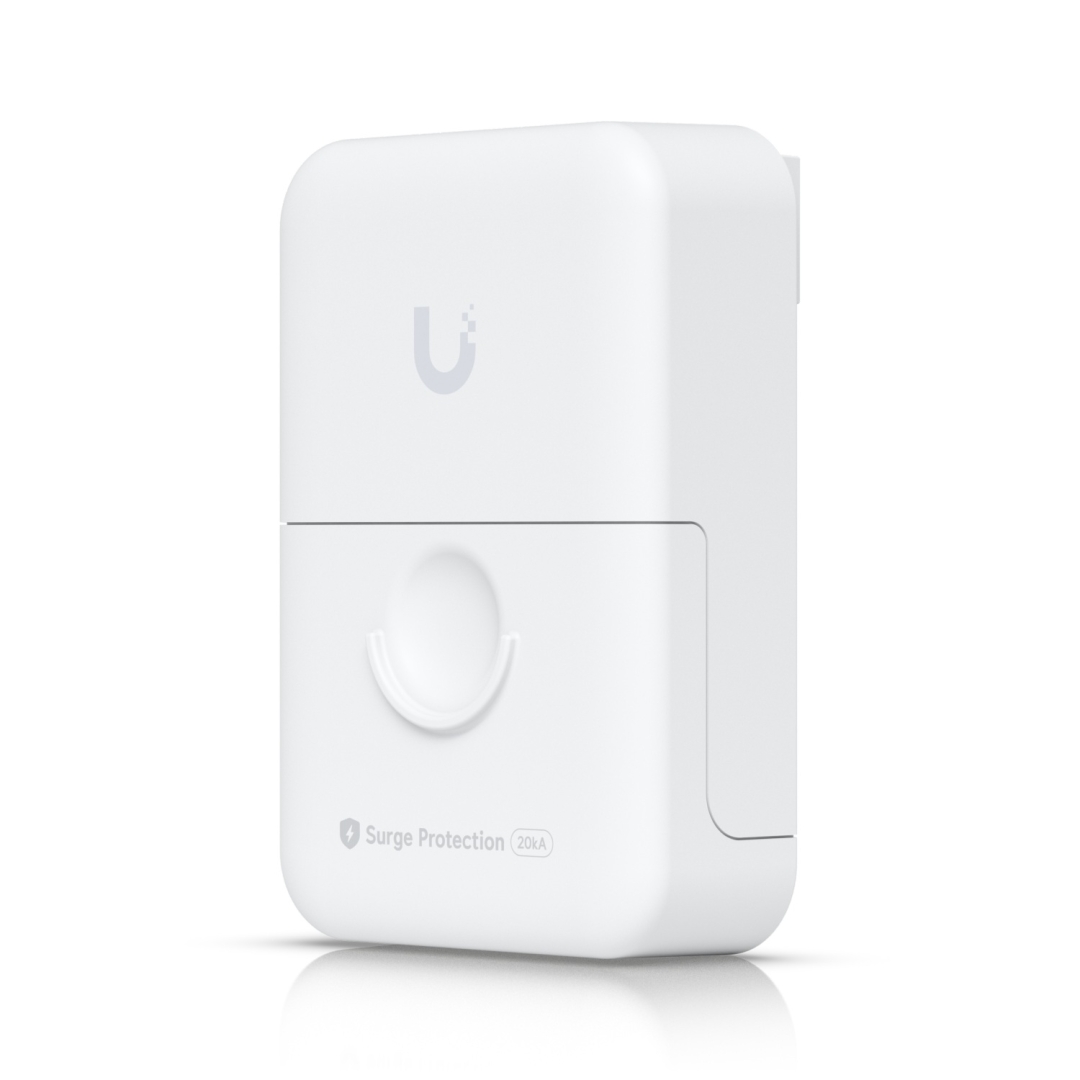

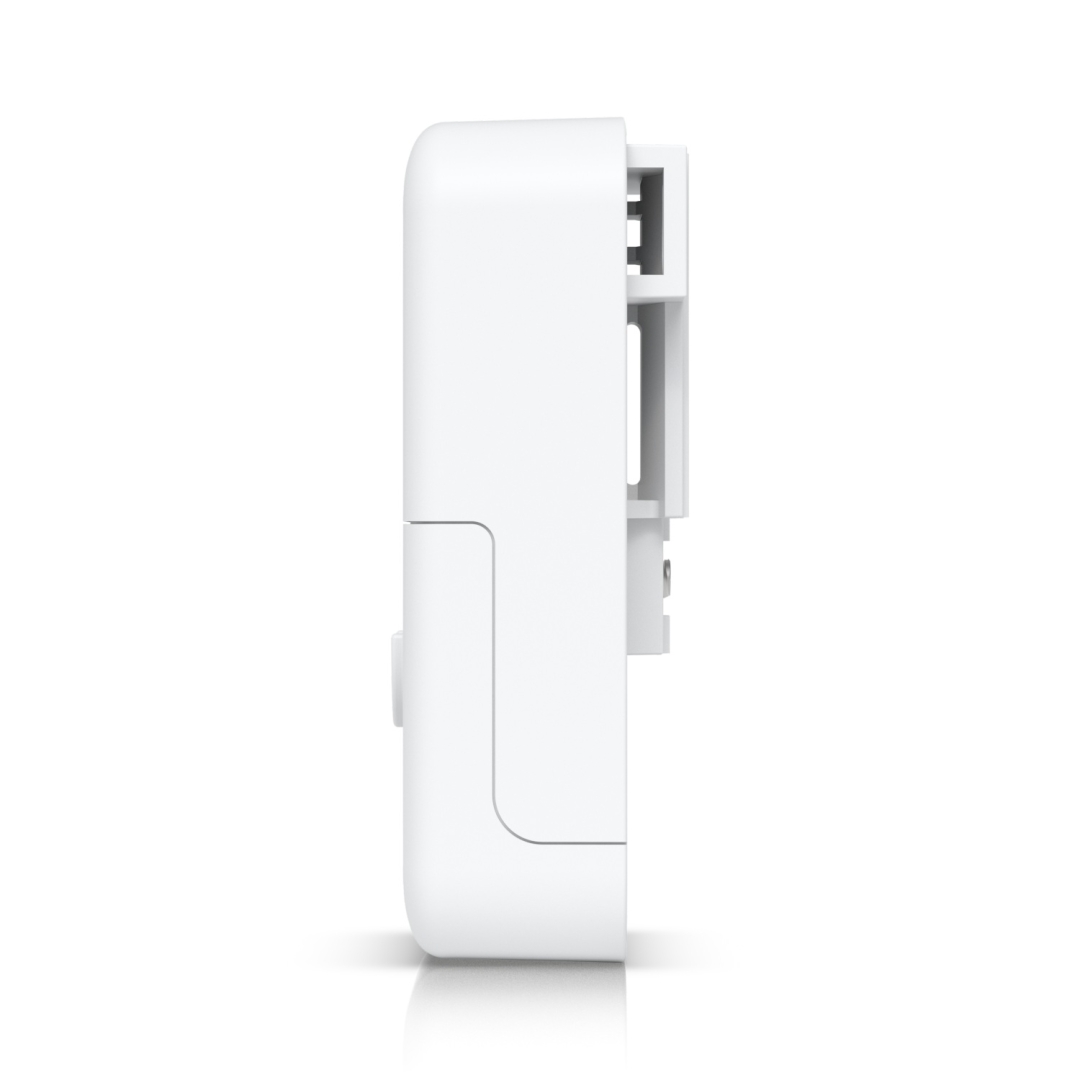

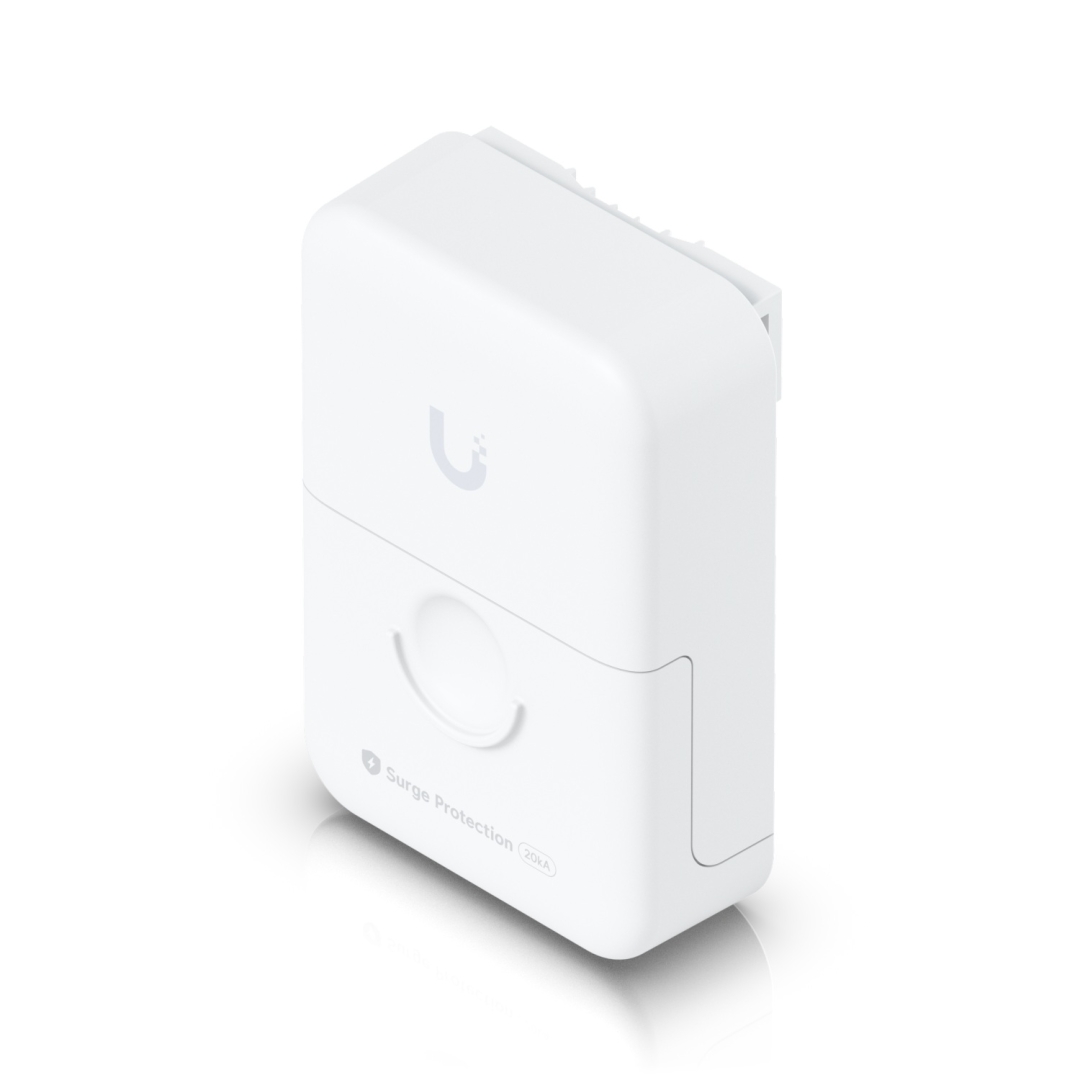

UBIQUITI Ethernet Surge Protection Outdoor (UACC-ETH-SP-Pro)
Bidirectional protection for up to 10 GbE, PoE++, and 20kA surge discharge for indoor installation
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 14.04£ | 16.85£ | >0£ |
| 13.81£ | 16.57£ | >300£ |
| 13.58£ | 16.30£ | >1000£ |
Features:
ESD protection for outdoor high-speed networks.
- Protects outdoor Ethernet devices, up to 20kA discharge current.

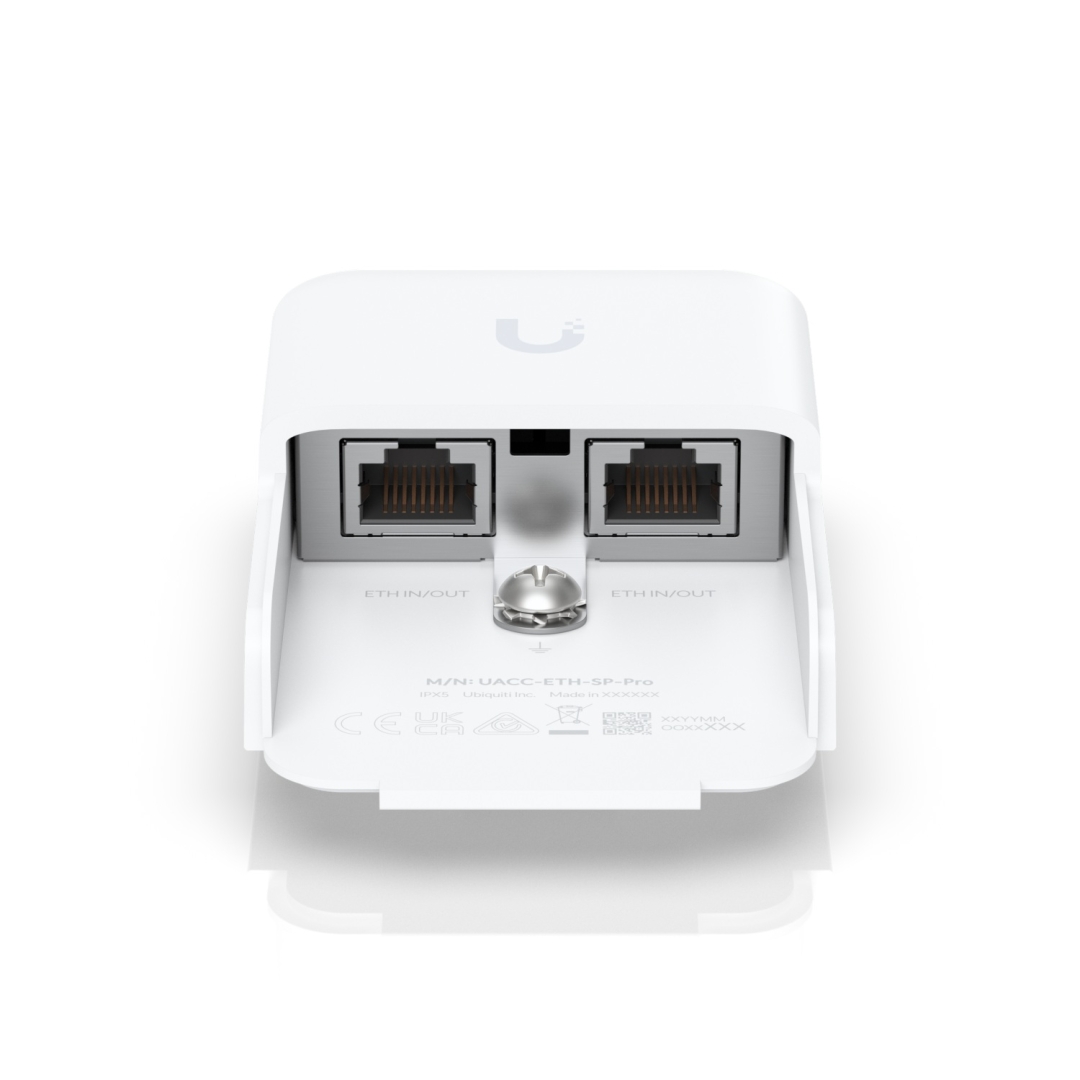

- (2) Passive, surge-protected RJ45 connections
- Quick and easy installation
- Compatible with 10 GbE networks
Specification:
Mechanical
Dimensions: 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3")
Weight: 95 g (3.35 oz)
Enclosure Material: Polycarbonate
Weatherproofing: IPX5
Hardware
Networking Interface: (2) RJ45 female connectors
DC Spark-Over Voltage: 90V @ 100V/s
Max. Impulse Spark-Over Voltage: 600V @ 1kV/µs
Discharge Current: 20kA
Insulation: Max. Resistance: 1G ohm @ 50V
Max. Capacitance: 1.0 pF @ 1 MHz
Data Line Protection: Up to 10 Gbps
PoE Support: ✓
ESD/EMP Protection: Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
Ambient Operating Temperature: -30 to 65° C (-22 to 149° F)
Ambient Operating Humidity: 10 to 90% noncondensing
Shock and Vibration Certification: ETSI300-019-1.4 Standard
