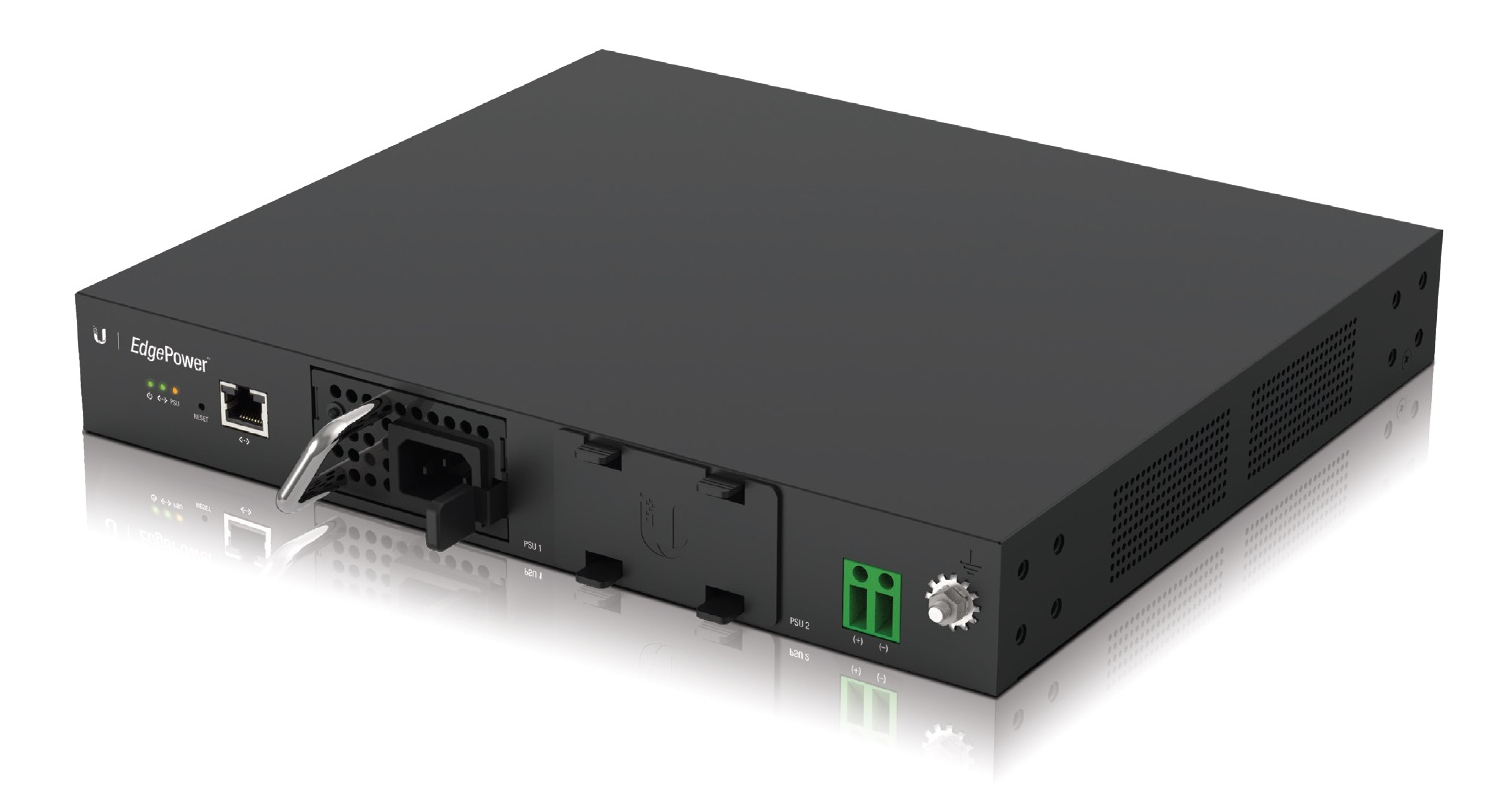

UBIQUITI EdgePoint (EP-54V-150W) DC Power Supply

Order code: EP-54V-150W
Quick code: #1132

UBIQUITI EdgePoint (EP-54V-150W) DC Power Supply, modular PSU system 150W up to 300W output, backup PSU, 1x LAN, webui

Price exc. VAT: Price inc. VAT: For orders (total sum):
138.14£ 165.77£ >0£
136.95£ 164.34£ >300£
134.56£ 161.47£ >1000£


Modular DC Power Supply for EdgePoint
The EdgePower™ is a high-power, modular PSU system designed to connect to EdgePoint™ routers/switches, and provide reliable power to attached PoE devices.
The EdgePower uses modular PSUs for flexible configuration options. The EdgePower can utilize two modular PSUs to provide up to 300W of power, or be configured to provide up to 150W of power with an automatic PSU backup.
The EdgePower consists of a rack‑mountable, two-bay housing and control unit, and includes one AC‑DC 54V, 150W PSU module. The second PSU bay can house an AC-DC or DC‑DC PSU module (sold separately):
• EP-54V-150W-AC
• EP-54V-150W-DC

High Power
The EdgePower provides up to 150W of power output. With an optional PSU in the secondary bay, the EdgePower may be configured to deliver up to 300W of power.
Backup PSU
The secondary PSU may be configured as a backup PSU. In backup mode, the secondary PSU remains inactive and offline. If failure of the primary PSU is detected, the secondary PSU automatically activates to supply continuous power.

Web UI
Designed for convenient management, the EdgePower Configuration Interface allows administrators to configure and monitor PSU features in a simple, graphical user interface.
The EdgePower may be connected to the LAN for remote monitoring and configuration.


Dimensions without Mount Brackets: 299.8 x 286.9 x 42.55 mm (11.89 x 11.3 x 1.675")
Weight without Mount Brackets: 2.7 kg (5.95 lb)
Power Method: 100-240VAC/50-60 Hz, Universal Input
Power Supply Module: 54V, 150W AC/DC, Model EP-54V-150W-AC, Installed in PSU 1
Maximum Power Output: 150W (1 PSU Module), 300W (2 PSU Modules @ 150W Each)
Power: System On/Off
Ethernet: Management Port Link
Networking Interface: (1) 10/100 RJ45 Ethernet
Management Interface: Ethernet In-Band, Web UI
Rack-Mount: Yes, 1U High
Operating Temperature: 0 to 40° C (32 to 104° F)
Operating Humidity: 10 to 90% RH
ESD/EMP Protection: Air ± 24KV; Contact ± 24KV
Certifications: CE, FCC, IC
